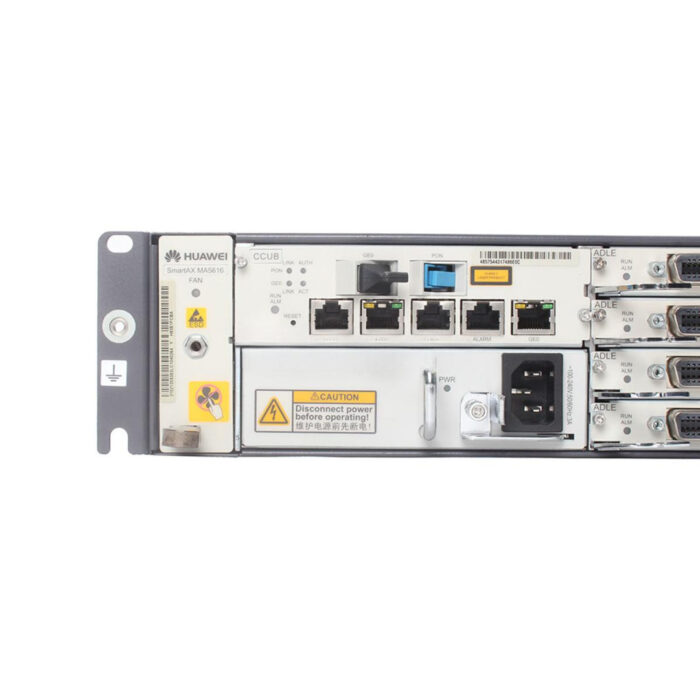

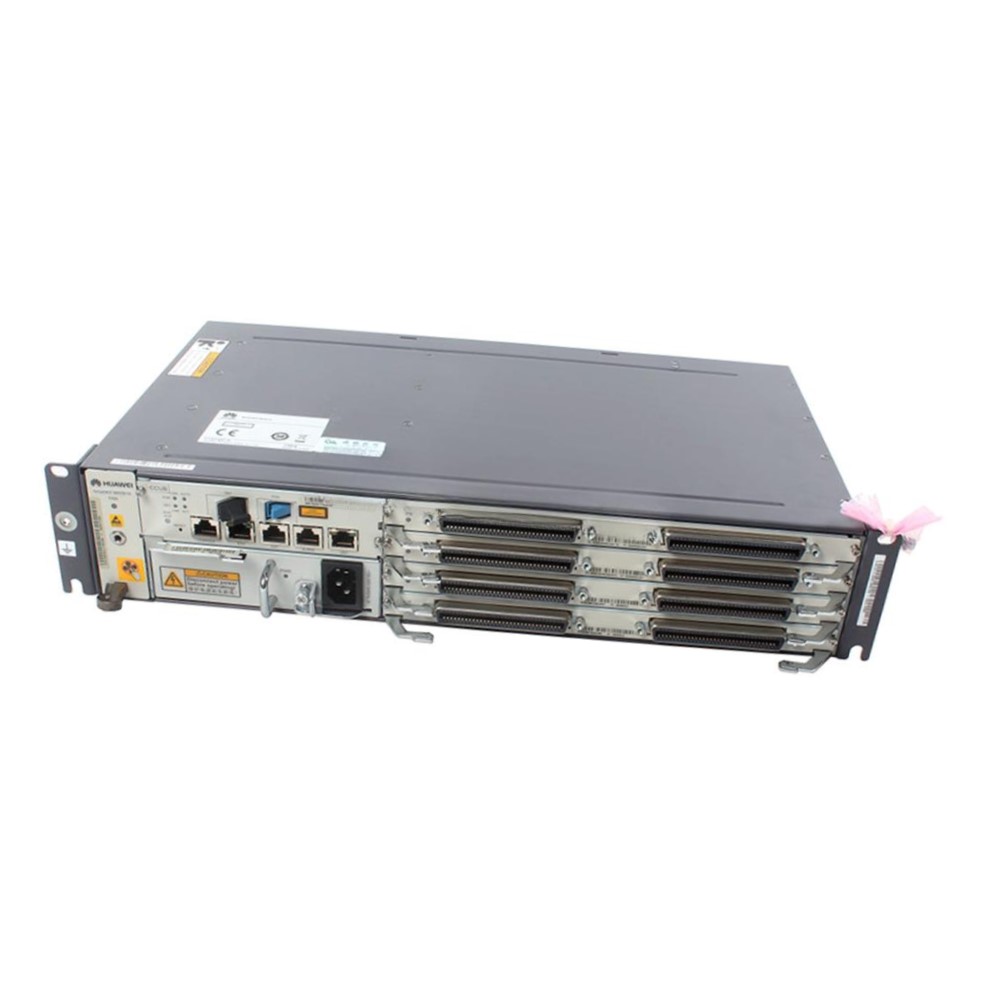

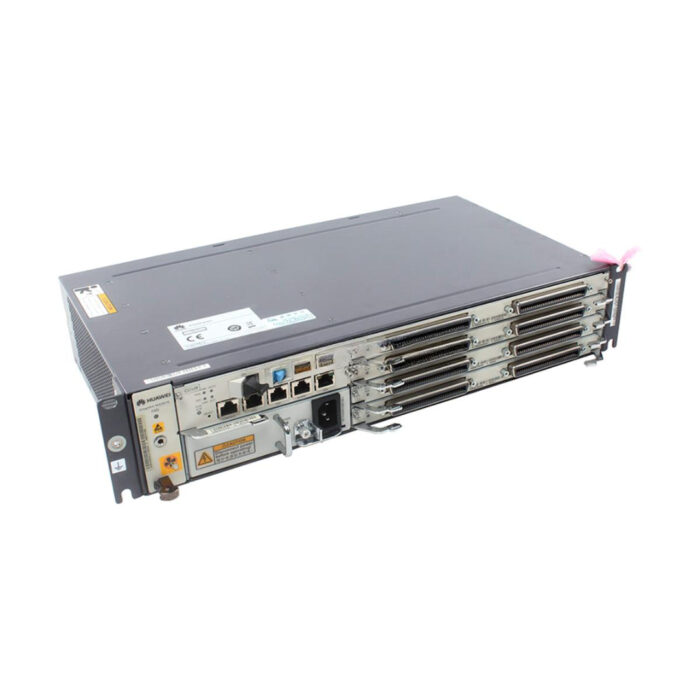

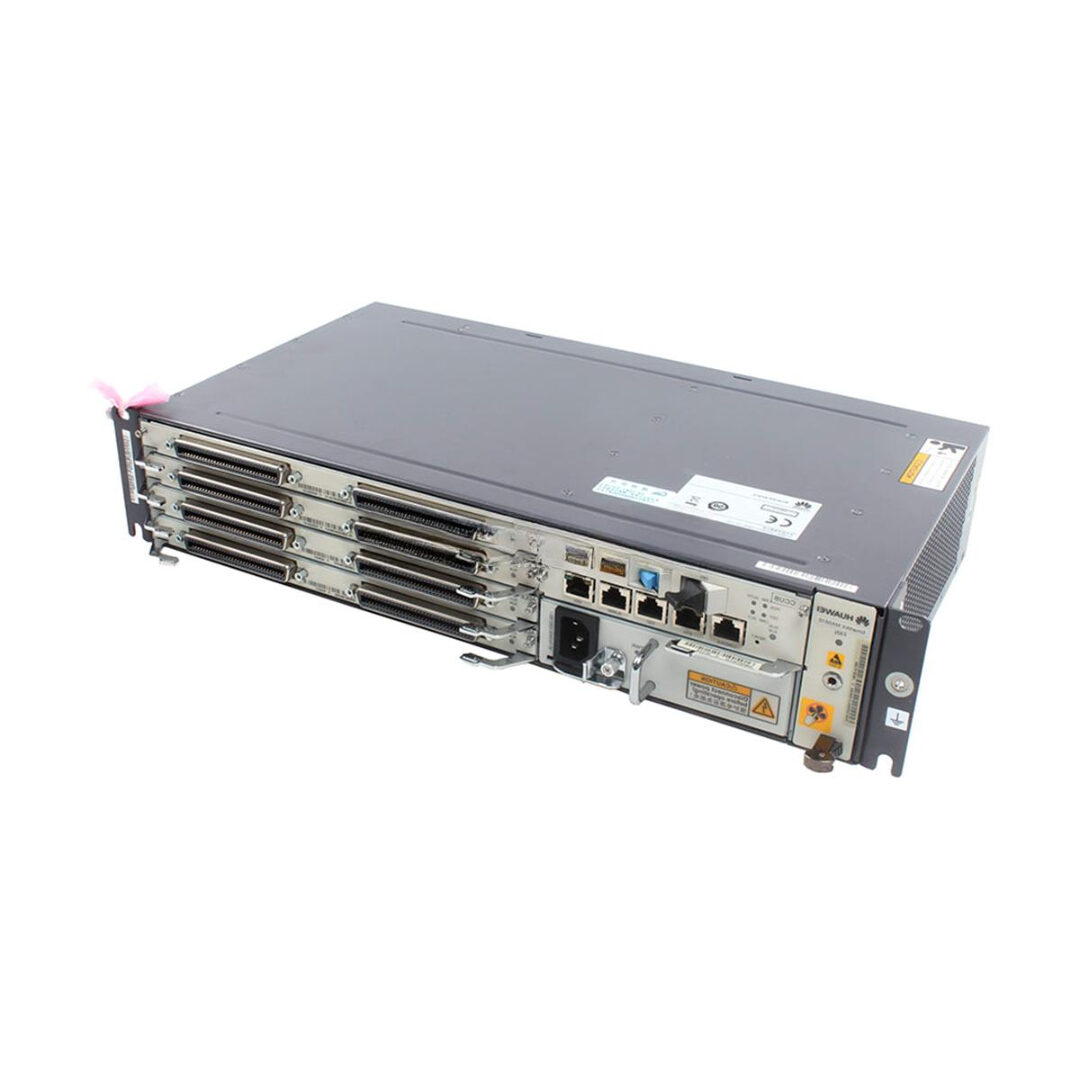

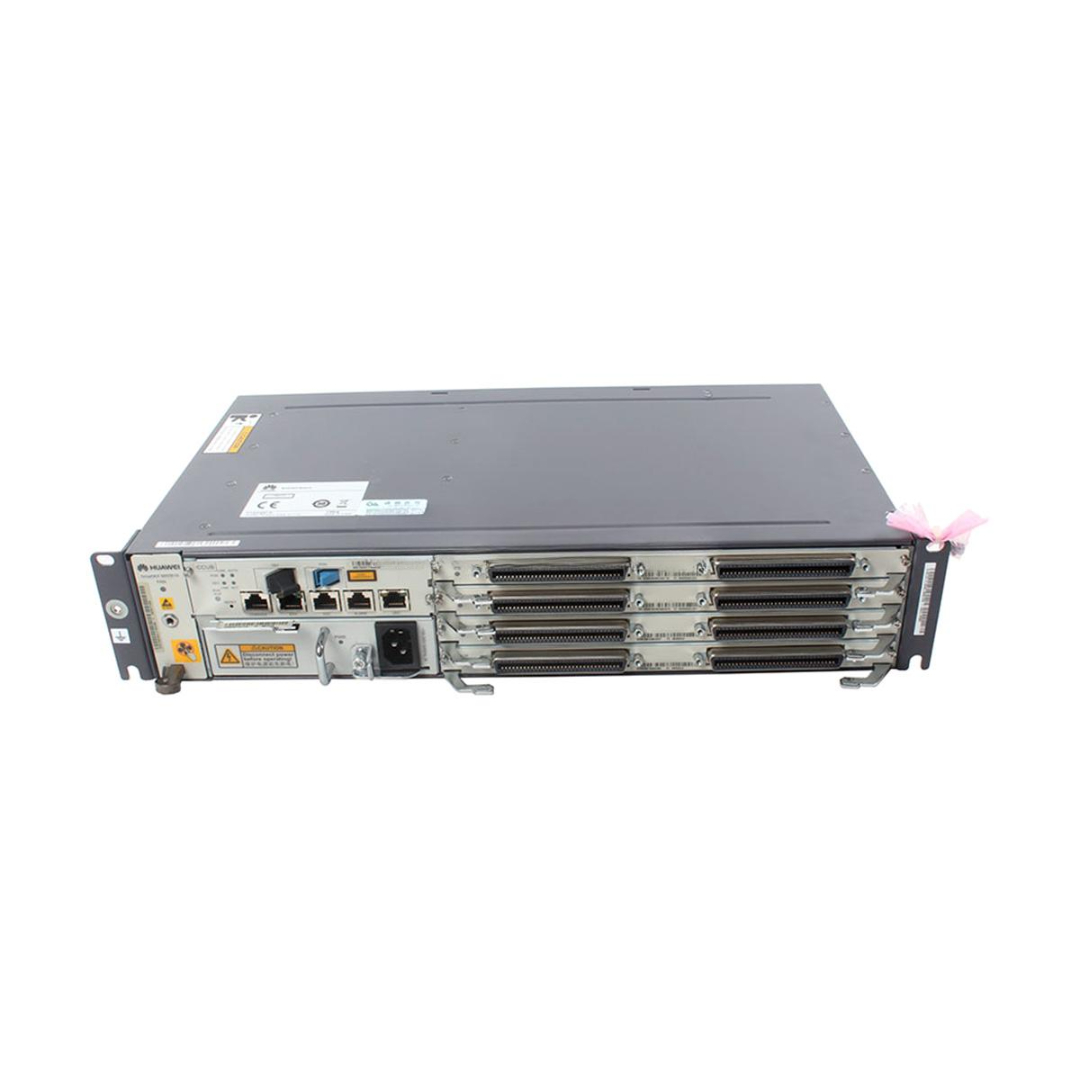

MA5616 32ADSL2+ PAIA Huawei Brand New Silver Bundle Equipped
The MA5616 32ADSL2+ PAIA Huawei is a highly integrated, carrier-grade access solution designed for flexible deployment of broadband services in multi-dwelling units (MDUs), remote areas, and FTTx scenarios. It combines high-density ADSL2+/ADSL access with POTS/voice capabilities, packaged in a compact 2U chassis ideal for space-constrained environments. This version comes equipped with a 32-port ADSL2+ PAIA board and forms part of Huawei’s “Silver Bundle”—a complete, ready-to-deploy DSLAM solution for ISPs and telecom operators.
Ideal for legacy copper infrastructures, the MA5616 with 32ADSL2+ PAIA supports triple-play services (data, voice, and video), remote management, and advanced diagnostics, helping reduce OPEX while expanding network reach.
Key Features
-
Model: MA5616 32ADSL2+ PAIA (Silver Bundle Equipped)
-
Condition: 100% Brand New, Original Huawei
-
Bundle Includes:
-
MA5616 Chassis (2U)
-
1 x 32-port ADSL2+ PAIA board
-
Control board, uplink board, and power module (AC/DC based on configuration)
-
Fan unit + mounting accessories
-
-
ADSL2+ Support: Up to 24 Mbps downstream, 1 Mbps upstream
-
Voice Capability: Integrated POTS support (PAIA board with splitter)
-
Management: Remote OAM, CLI, SNMP, and NMS over Ethernet
-
Uplink Options: GE, FE, and E1 (depending on control/uplink board)
-
Installation Mode: Indoor rackmount or wall-mount
-
Deployment: Central office, outdoor cabinet, basement, or floor cabinet
Technical Specifications
| Specification | Details |
|---|---|
| Chassis Model | MA5616 |
| Access Board | 32ADSL2+ PAIA (32 ports ADSL2+/POTS Combo) |
| Line Standard | ITU-T G.992.5 (ADSL2+), G.992.3 (ADSL2), G.992.1 |
| Max Bandwidth | 24 Mbps down / 1 Mbps up |
| Ports per Board | 32 ADSL2+/POTS Combo Ports |
| Splitters | Integrated per port (on PAIA board) |
| Power Supply | AC (90–264V) or DC (–38.4V to –72V), selectable |
| Dimensions (W×D×H) | 442 mm × 220 mm × 88.1 mm (2U) |
| Weight | ≤ 7.5 kg (fully equipped) |
| Operating Temperature | –40°C to +65°C (fan-assisted) |
| Humidity | 5% to 95% RH, non-condensing |
| MTBF | >200,000 hours |
| Compliance | CE, RoHS, ITU-T, IEEE, YD/T standards |
| Warranty | 1–3 Years Manufacturer Warranty |
MA5616 32ADSL2+ PAIA Huawei Applications
-
Rural & Remote Broadband — Affordable DSL rollout over existing copper
-
FTTC/FTTB Deployments — Last-mile broadband delivery via DSL
-
Legacy Copper Infrastructure — Extend life and utility of existing cabling
-
Voice + Data Bundling — Dual-service delivery (ADSL + POTS) for residential use
-
MDUs and Campuses — Compact access point for small clusters or buildings
Customization & OEM Options
-
Custom Bundles – Configure chassis with ADSL2+, VDSL2, SHDSL, POTS, or FXO boards
-
Branding Options – OEM labeling and UI interface with customer logo
-
Splitters & Cable Kits – Indoor or outdoor rated splitter modules and cabling
-
Extended Testing – Environmental, performance, and pre-provisioning QA
-
Power Variants – Choose between AC, DC, or dual input models
MA5616 32ADSL2+ PAIA Huawei Wholesale & Global Supply
-
Original Huawei Silver Bundle – Factory-assembled, test-certified components
-
Bulk Supply Available – For ISPs, telecom resellers, and regional integrators
-
Fast Delivery Worldwide – Pre-packed kits ready for global deployment
-
Secure Packaging – Shock-proof, anti-static OEM boxes for safe transit
-
Full Documentation – Includes datasheets, install manuals, and MIBs
-
Technical Support – Access to Huawei-certified professionals for integration
Why Choose the MA5616 32ADSL2+ PAIA Huawei
-
All-in-One DSLAM Kit – Plug-and-play access solution with voice & data
-
Carrier-Grade Reliability – Huawei engineering trusted by global operators
-
Space-Saving Design – 2U compact chassis ideal for limited environments
-
High Scalability – Supports multiple board types for flexible growth
-
Cost-Effective & Durable – Long lifespan and minimal maintenance
Request a Quote, Datasheet & Bulk Purchase Details
Maximize your copper infrastructure with the Huawei MA5616 32ADSL2+ PAIA Silver Bundle — the perfect access solution for rural, metro, or multi-tenant broadband deployments.
Contact us now for technical consultation, OEM customization, and wholesale pricing!
