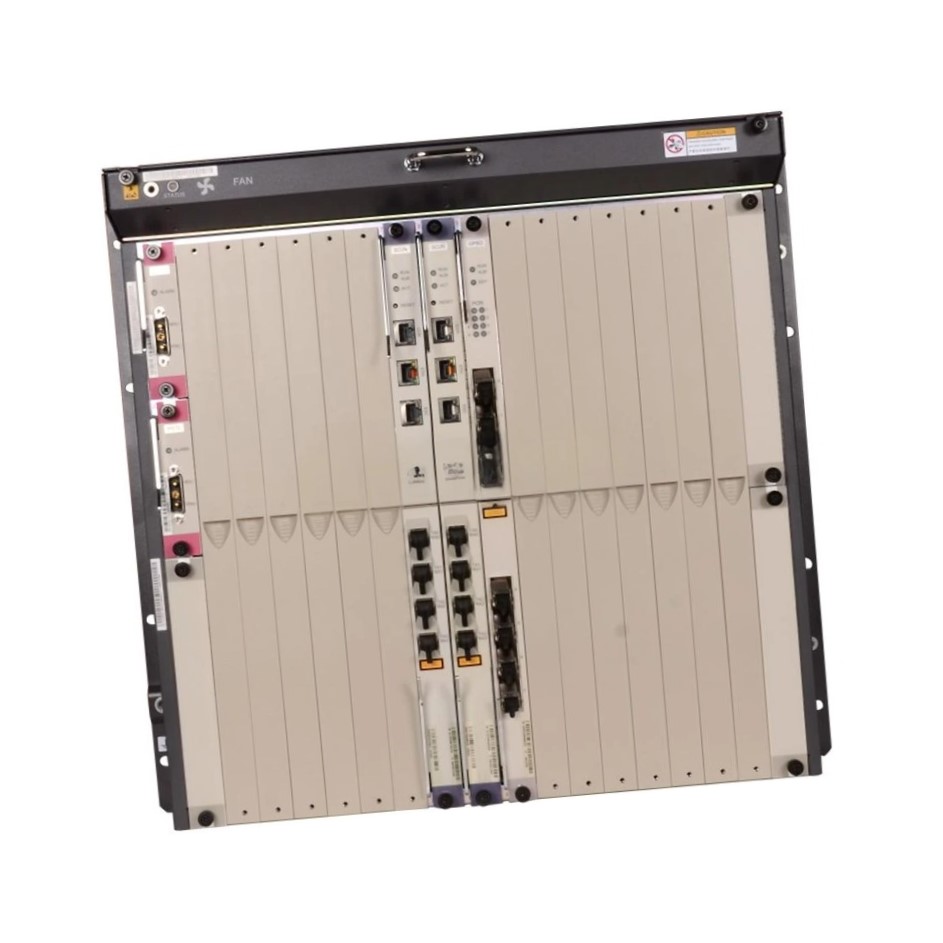

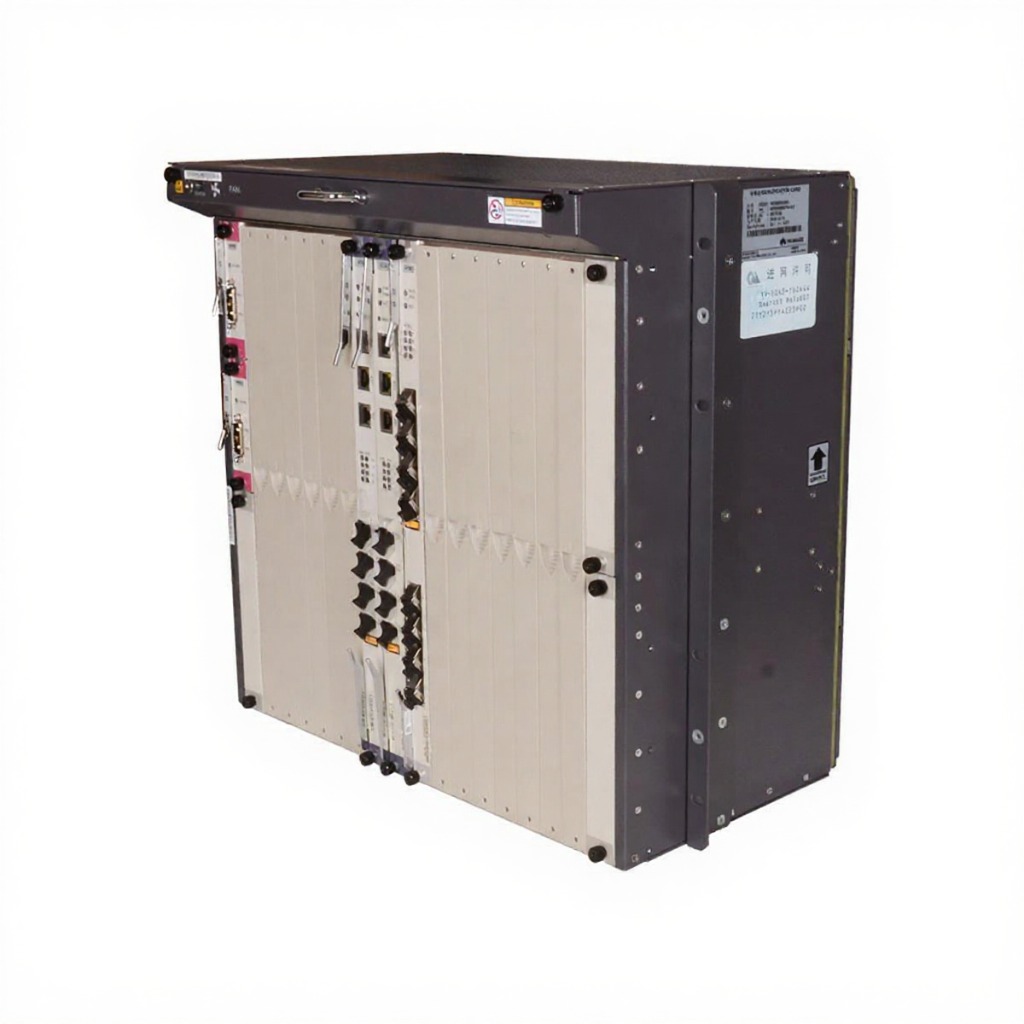

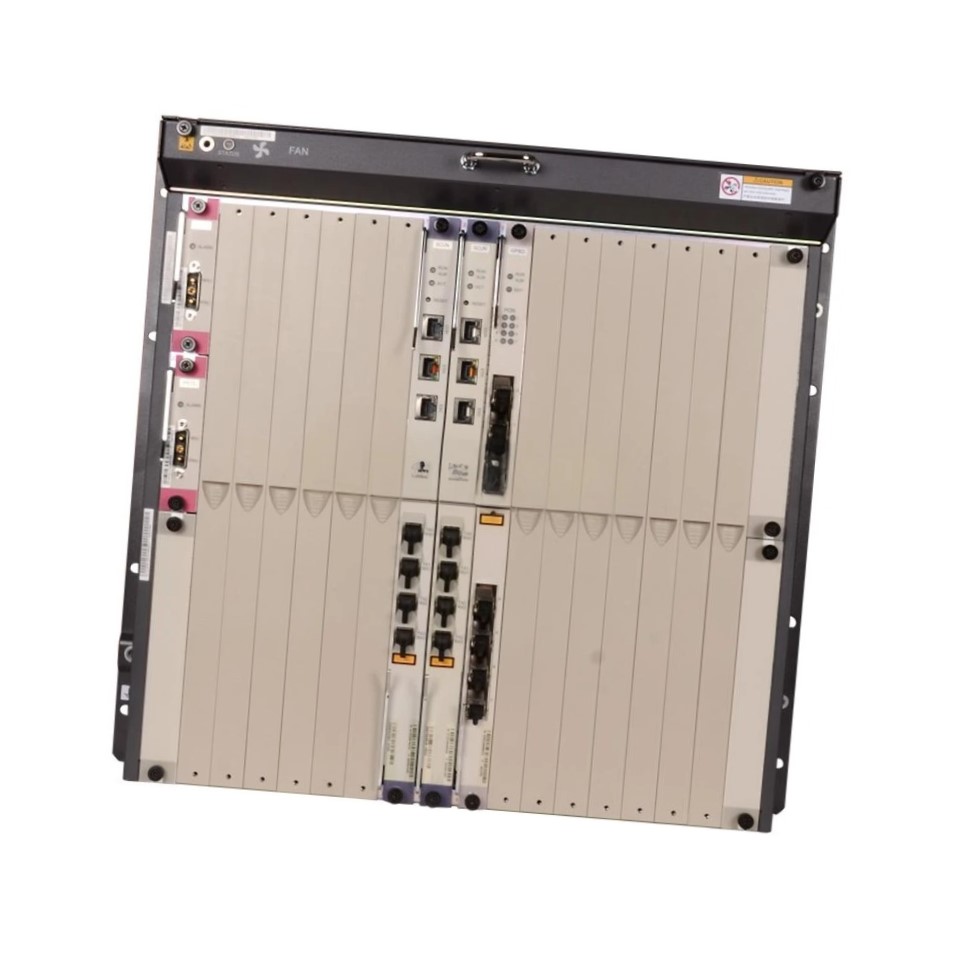

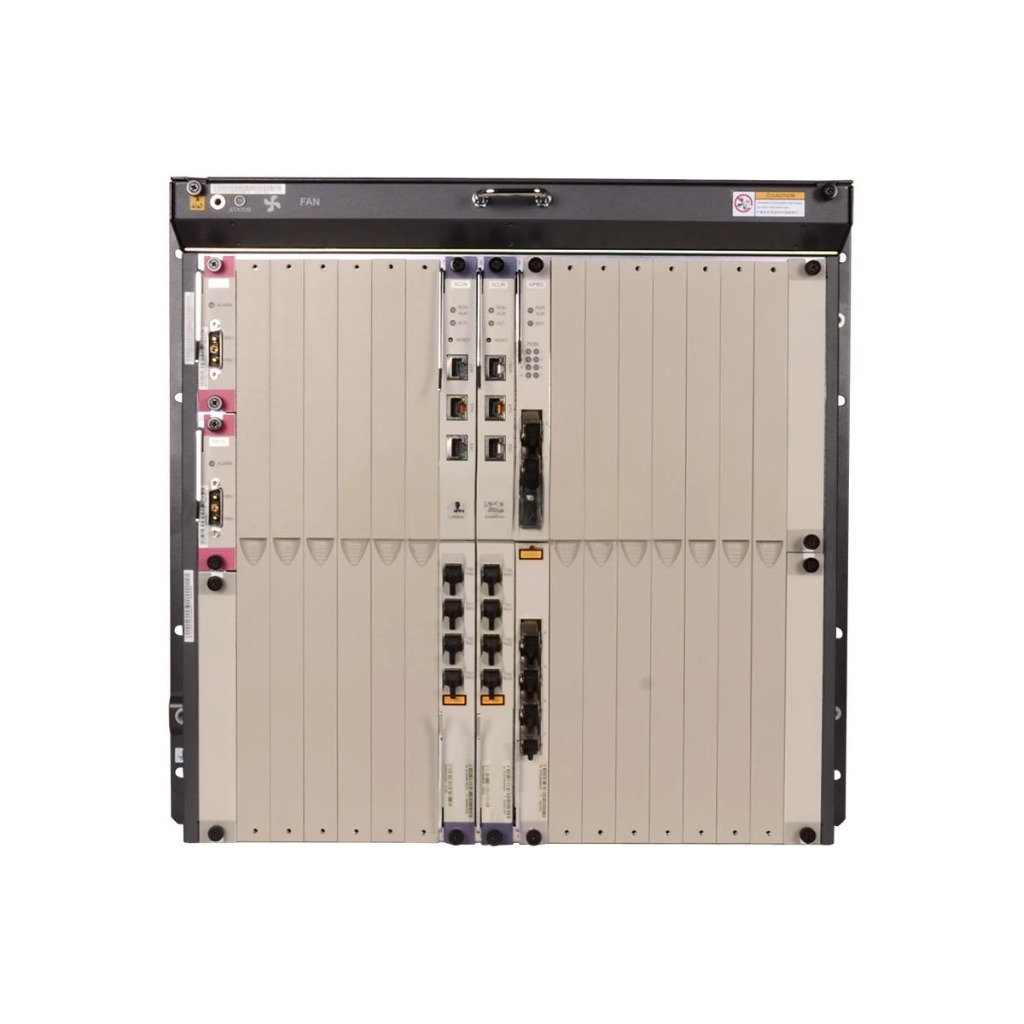

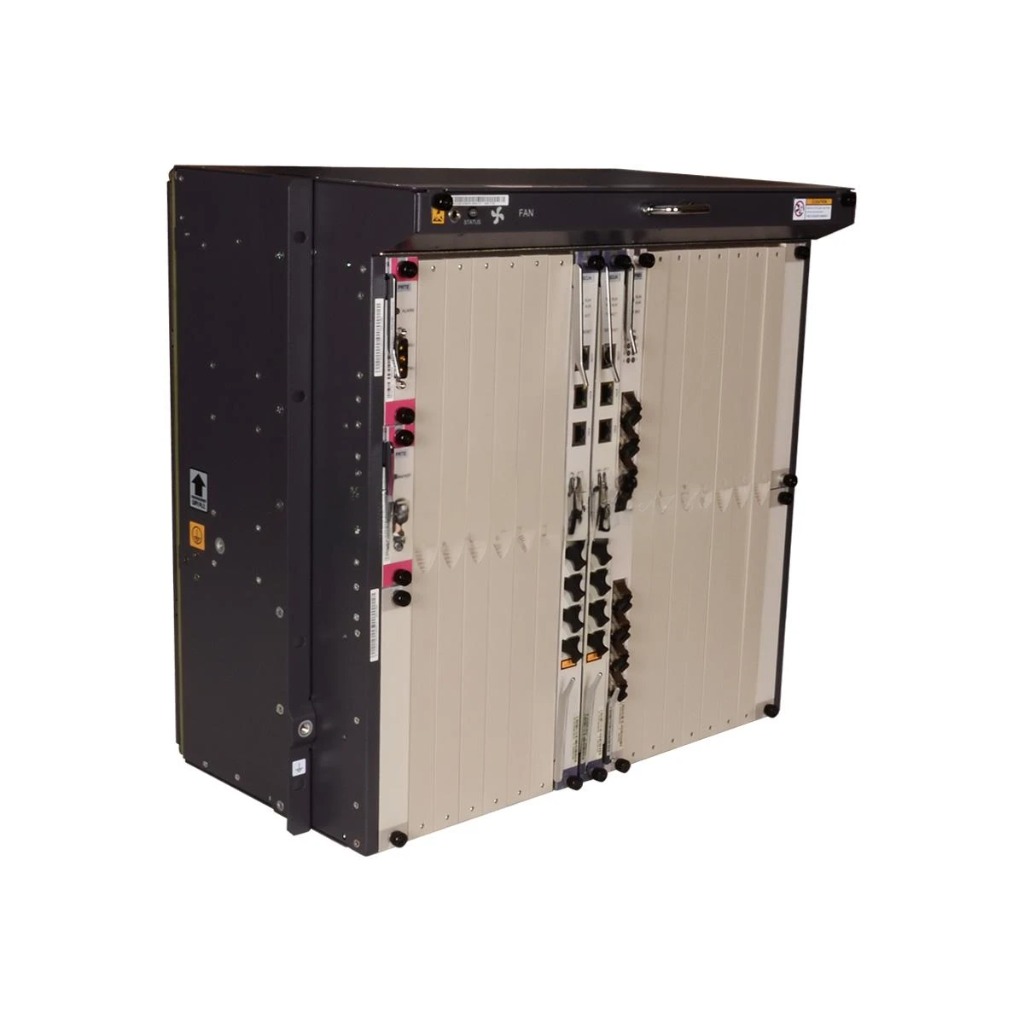

MA5680T Huawei Brand New 8GPON C+ Bundle 1×GPBD C+ SFP Module
The MA5680T Huawei is a powerful, carrier-class OLT (Optical Line Terminal) that integrates high-density GPON/EPON, aggregation, and routing capabilities for next-generation fiber access networks. This bundle includes 1×GPBD 8-port GPON Service Board (Class C+) fully populated with 8×C+ SFP modules, delivering exceptional coverage, high split ratios, and stable service for large-scale FTTH, FTTB, and FTTC deployments.
Key Features
-
Model: MA5680T OLT with GPON C+ Bundle
-
Bundle Configuration: 1×GPBD 8-port GPON Service Board + 8×GPON Class C+ SFP Optical Modules
-
Condition: 100% Brand New, Original Huawei
-
High-Density GPON: Supports 8 GPON interfaces per board; scalable for multi-card expansion
-
Long-Distance Coverage: Class C+ optics provide up to 20 km reach with higher optical budget (32 dB typical)
-
Flexible Split Ratio: Supports up to 1:128 split ratio per PON port
-
Robust Layer 2/3 Features: Integrated Layer 2 switching and Layer 3 routing functions for full-service access
-
Carrier-Grade Reliability: Hot-swappable boards and modules, dual control boards, redundant power supply
-
Unified Network Management: Compatible with Huawei U2000 or iManager for simplified O&M
-
Energy Efficient: Intelligent power consumption management for large deployments
Technical Specifications
| Category | Specification |
|---|---|
| OLT Chassis | MA5680T, 19-inch rack mount |
| Service Board | 1×GPBD — 8-port GPON Service Board |
| SFP Modules | 8×GPON Class C+ BIDI SFP |
| GPON Standard | ITU-T G.984 |
| Split Ratio | Up to 1:128 per port |
| Max Distance | 20 km coverage per PON port |
| Wavelength TX/RX | TX 1490 nm / RX 1310 nm |
| Upstream/Downstream | Up to 1.244 Gbps upstream, 2.488 Gbps downstream |
| Subscriber Capacity | 8 ports × 128 ONUs per port = up to 1024 ONUs per GPBD |
| Power Supply | -48 V DC |
| Management | CLI, SNMP, Telnet, Web, integrated with U2000/iManager NMS |
| Operating Temp | -25°C ~ +65°C |
| Warranty | 100% Original Huawei warranty and technical support |
MA5680T Huawei Applications
FTTH (Fiber to the Home) — Large residential rollouts with high split ratio
FTTB/FTTC (Building/Curb) — Flexible service for apartments, office complexes, and business parks
Triple-Play Services — Voice, video, and high-speed data over GPON
IPTV & VoIP Services — Supports multicast and QoS for seamless HD content delivery
Campus & Enterprise Networks — Cost-effective fiber aggregation for large-scale user access
Customization & OEM Services
Pre-Configured: GPON profiles, VLANs, QoS, and security settings can be set up before shipment
OEM Branding: Private labels and custom packaging available for resellers & ISPs
Full Kits: Add matching ONTs, splitters, patch cords, and fiber accessories for turnkey delivery
Extended Testing: Burn-in testing and batch test reports for critical projects
MA5680T Huawei Wholesale & Bulk Procurement
Factory-Direct Pricing: Attractive volume discounts for bulk rollouts
Global Fulfillment: Professional export packing and fast worldwide shipping
Dedicated Account Support: Personal manager for your project requirements
Reliable Stock: Consistent availability for urgent rollouts
Full Huawei Warranty: 100% genuine with tech support and upgrades
MA5680T Huawei Why Choose Us
100% Genuine Huawei Equipment — Brand New and Certified
Flexible & Scalable — Tailored for any fiber access scenario
Competitive Wholesale Rates — Ideal for ISPs, telecom carriers, and system integrators
Safe Export Logistics — Secure packing and worldwide delivery
Expert Technical Support — From planning to installation and beyond
Contact Us for Best Pricing
Upgrade your fiber access network with the MA5680T Huawei Brand New 8GPON C+ Bundle — the proven choice for stable, high-capacity broadband.
