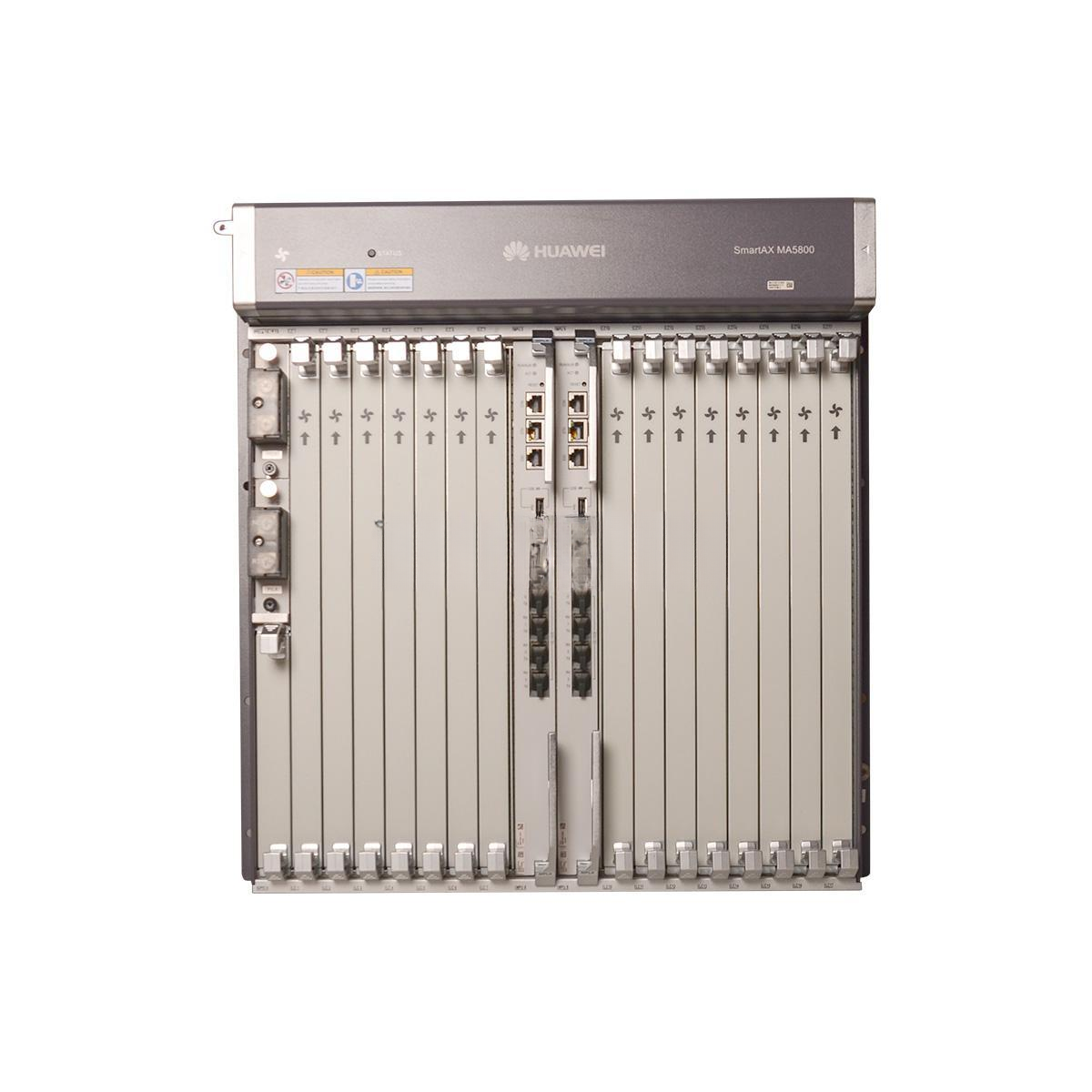

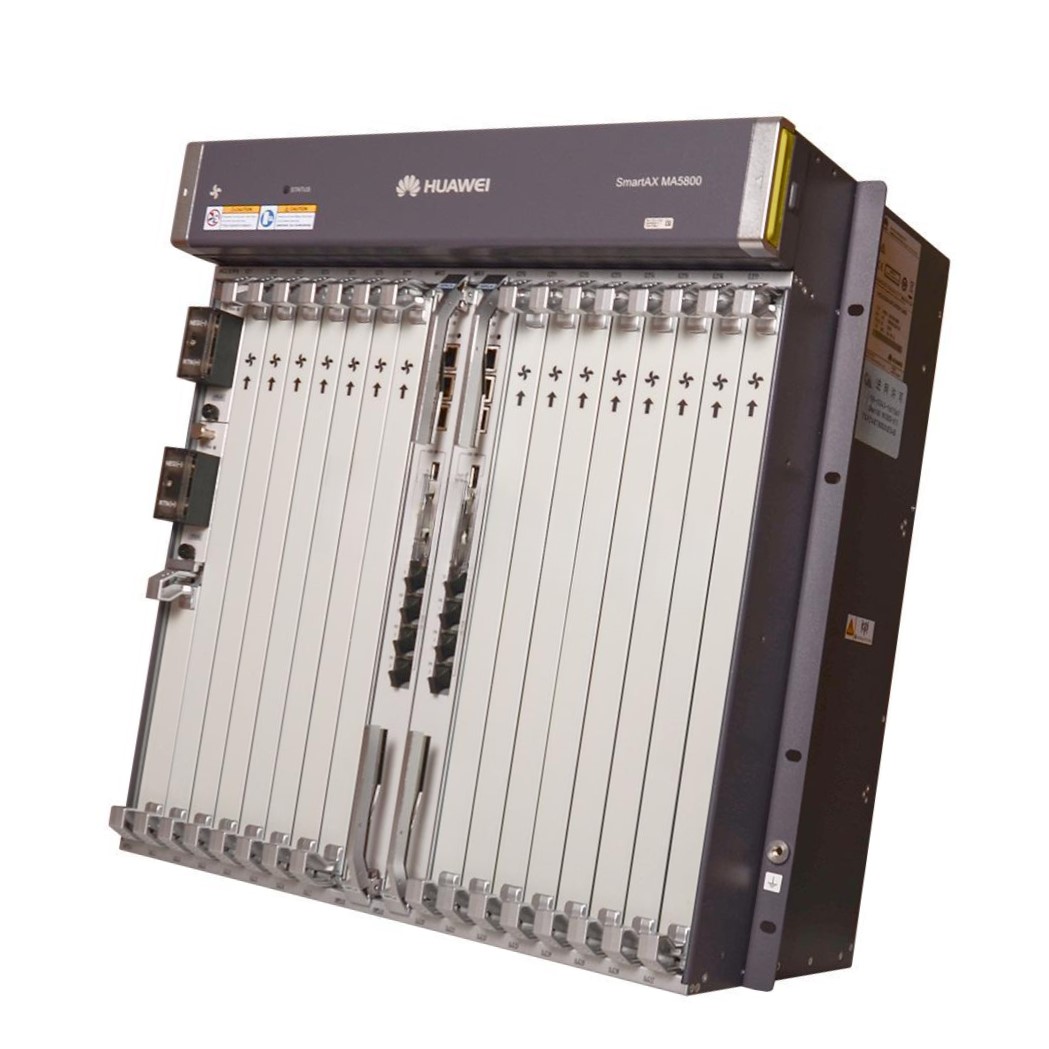

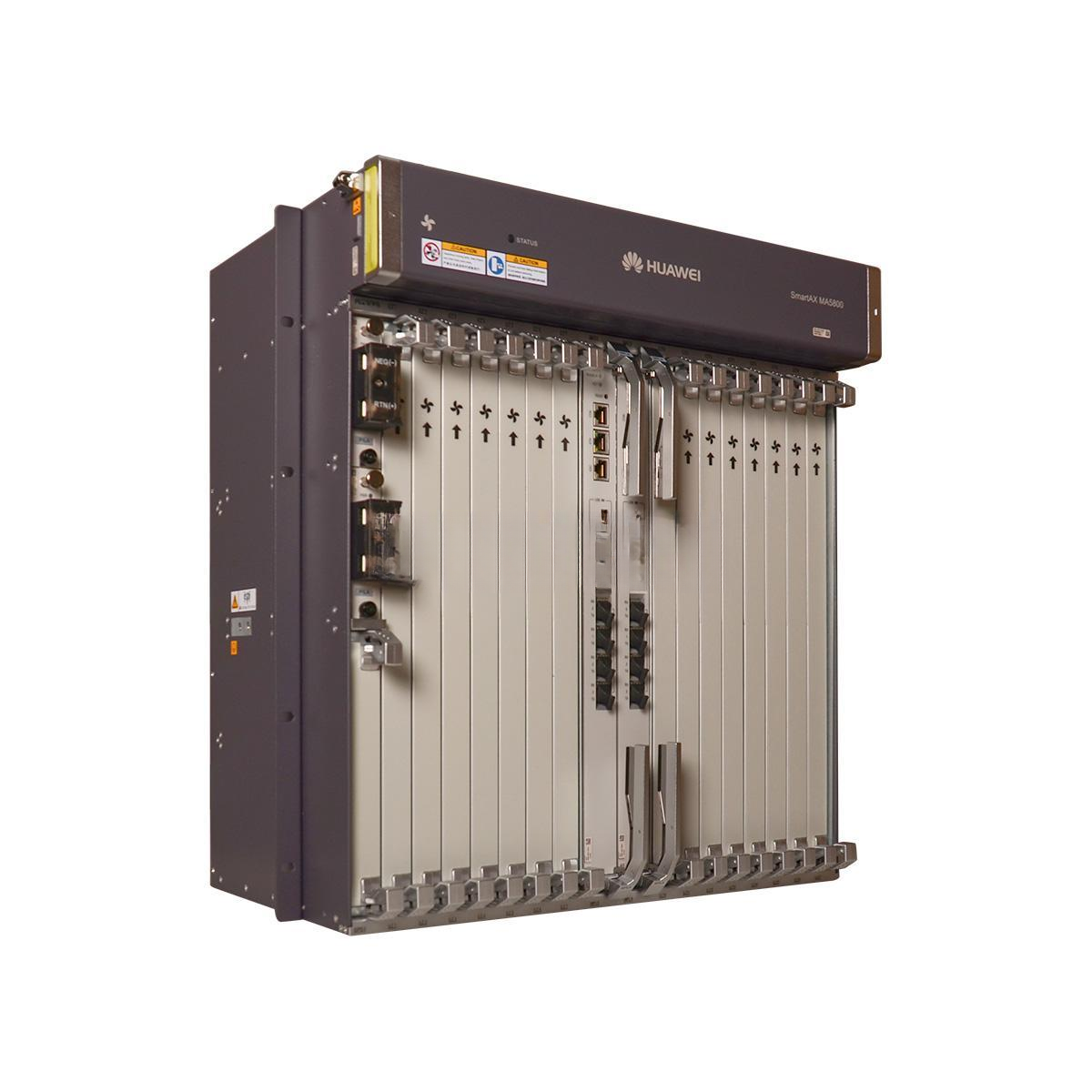

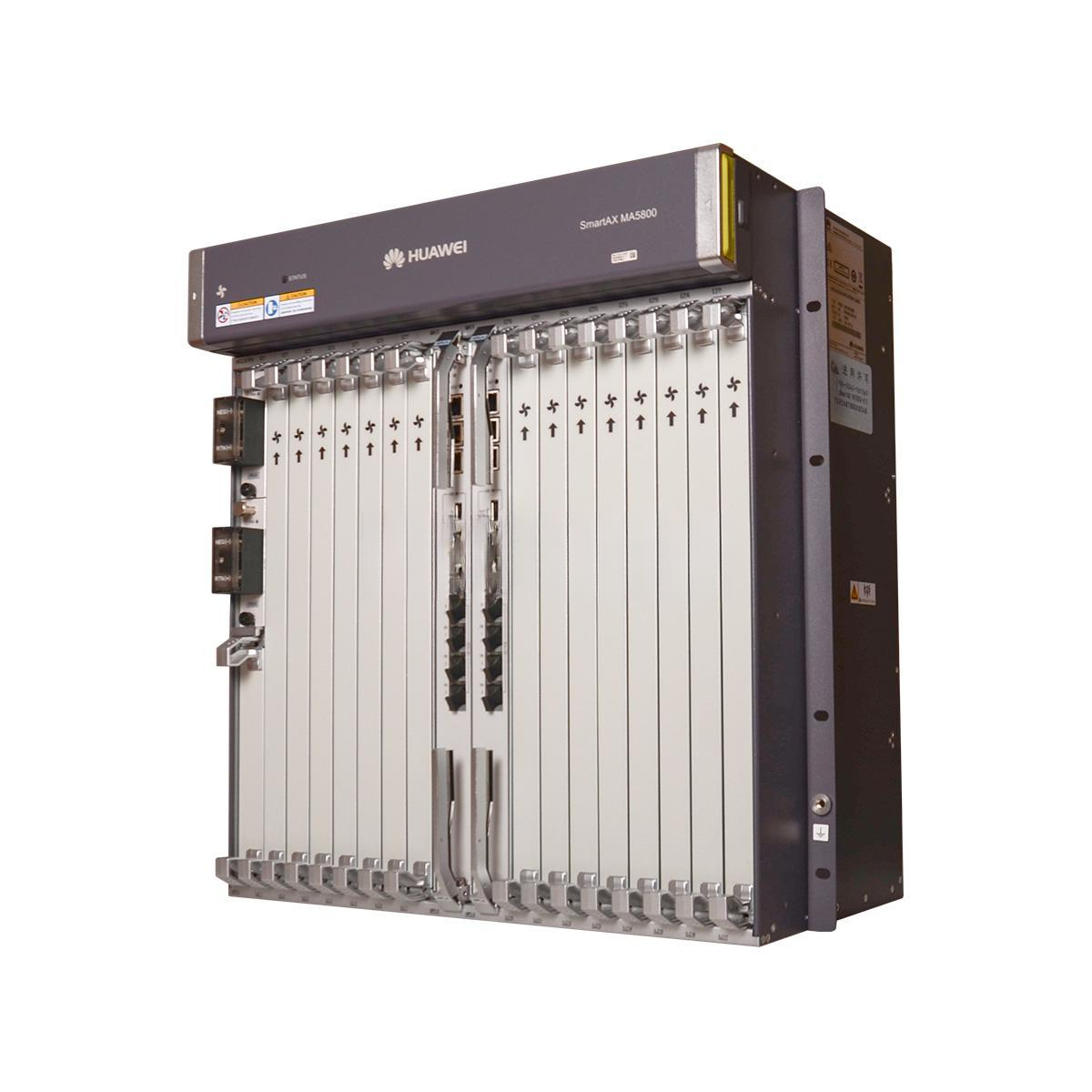

MA5800 X15 Huawei Description:
The MA5800 X15 Huawei is a brand new, next-generation Optical Line Terminal (NG OLT) equipped with the H901BPIB subrack, purpose-built to deliver ultra-broadband access for large-scale Fiber-to-the-Home (FTTH), Fiber-to-the-Building (FTTB), and Fiber-to-the-Curb (FTTC) deployments.
As part of Huawei’s flagship MA5800 series, the MA5800 X15 acts as a smart aggregation OLT that supports multi-service access and distributed architecture. It efficiently aggregates services including GPON, XG(S)-PON, 10G EPON, and supports smooth evolution to next-gen PON standards. With its powerful switching capacity and flexible slot design, it delivers high-density, high-bandwidth services for residential broadband, enterprise leased lines, mobile backhaul, and video services.
The integrated H901BPIB subrack enhances system reliability and management, offering seamless power distribution and efficient heat dissipation for stable, long-term operation.
Key Features:
-
Model: MA5800 X15 with H901BPIB Subrack
-
Condition: 100% Brand New, Original Huawei
-
Type: Next-Generation Optical Line Terminal (NG OLT)
-
Architecture: Distributed architecture for high-performance aggregation
-
Service Support: GPON, XG-PON, XGS-PON, 10G EPON, and future PON upgrades
-
Slots: Up to 15 service slots with flexible configuration
-
High Capacity: Supports large user bases with high bandwidth demands
-
Reliability: Equipped with redundant power supplies and advanced cooling
-
Subrack: H901BPIB subrack ensures efficient power distribution and robust stability
-
Management: Intelligent O&M with unified network management, service monitoring, and troubleshooting
Tech Specs:
System Specifications
| Item | Specification |
|---|---|
| System Switching Capacity | 7 Tbit/s |
| Maximum Bandwidth per Slot | H901MPLB: 200 Gbit/s H901MPLA: 100 Gbit/s |
| MAC Address Table | Maximum 262,143 |
| ARP/Routing Table | Maximum 65,536 |
| Concurrent 4K Video Users | Maximum 16,000 |
| Supported Ports | GPON: 240 10G GPON: 120 GE/FE: 720 10GE: 120 |
| Supported Cabinet | N63E-22 |
Supported Boards
| Board Type | Model | Description |
|---|---|---|
| Control Board | MPLB | 4 GE/10GE upstream ports, supports load sharing, default uplink for MA5800 |
| MPLA | ||
| CKUA | Supports stratum-3 clock functions (requires MPLB/MPLA) | |
| Upstream Interface | NXED | Enhanced 8-port 10GE upstream, supports 10GE/GE Ethernet transmission (extends MA5800 uplink capacity) |
| Universal Interface | CIUA | Provides synchronous time/clock input & output, alarms, RS485 serial ports, transparent Ethernet ports |
| Service Boards | GPHF | 16 GPON ports for access services |
| GPSF | 16 GPON ports for home access services | |
| XGHD | 8 asymmetric 10G GPON ports | |
| TWED | 8 symmetric 10G GPON ports | |
| EDSH | 32-channel E1 upstream, native TDM mode | |
| OGHK | 48-port aggregated GE/FE optical interface | |
| OXHD | 8-port aggregated 10GE optical interface | |
| Power Board | PILA | Provides -48V DC input |
| Fan Monitoring | FMLA, FMMA | Powers, controls, and monitors fans |
Physical & Environmental
| Item | Specification |
|---|---|
| Dimensions (W × D × H) | 493 × 287 × 486 mm (excluding brackets) 535 × 287 × 486 mm (including brackets) |
| Height | 11U (21-inch rack) |
| Maximum Weight | 35 kg |
| Maximum Input Current | 60 A |
| Power Supply | DC -38.4 V to -72 V (rated -48 V / -60 V) |
| Operating Temperature | -40°C to +65°C (startup at ≥ -25°C) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Package Dimensions (cm) | 73 × 71 × 44 |
Note: The +65°C limit refers to the maximum temperature at the air intake of the service subrack.
MA5800 Series Comparison
| Item | MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 |
|---|---|---|---|---|
| Cabinet Supported | N63E-22 | N66E-22 | N63E-22, N66E-22 | N63E-22 |
| Dimensions (W×D×H, mm) | 493×287×486 (excl.) 535×287×486 (incl.) |
442×287×486 (excl.) 482.6×287×486 (incl.) |
442×268.7×263.9 (excl.) IEC: 482.6×268.7×263.9 ETSI: 535×268.7×263.9 |
442×268.7×88.1 (excl.) IEC: 482.6×268.7×88.1 ETSI: 535×268.7×88.1 |
| Max Weight (kg) | 45 | 35 | 26 | 9.4 |
| Max Input Current | 60 A | 60 A | 40 A | DC: 20 A / AC: 8 A |
| Switching Capacity | MPLB: 7 Tbit/s MPLA: 3.6 Tbit/s |
MPLA: 3.6 Tbit/s | MPLA: 480 Gbit/s | MPLA: 480 Gbit/s |
| Max Slot Bandwidth | MPLB: 200 Gbit/s MPLA: 100 Gbit/s |
100 Gbit/s | 80 Gbit/s | 80 Gbit/s |
| 4K Video Users | 16,000 | 8,000 | 2,000 | 500 |
| MAC Address Table | 262,143 | 262,143 | 262,143 | 32,768 |
| IPv4 Routing Table | 65,536 | 65,536 | 65,536 | 32,768 |
| IPv6 Routing Table | 16,384 | 16,384 | 16,384 | 8,192 |
| ARP Table | Up to 131,072 (version dependent) | Up to 131,072 | Up to 131,072 | 32,768 |
| GPON Ports | 272 | 240 | 112 | 32 |
| XG/XGS-PON Ports | 272 / 136 | 240 / 120 | 112 / 56 | 32 / 16 |
| GE/FE Ports | 816 | 720 | 336 | 96 |
| 10GE Ports | 408 | 360 | 168 | 16 |
| E1 Ports | 544 | 480 | 224 | 64 |
Optical Module Options
| Board | Supported Modules |
|---|---|
| GPON (GPHF/GPSF) | CLASS B+, C+, C++ SFP – Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| XG-PON (XGHD/XGSF) | N1/N2a SFP+ – Tx: 9.953 Gbit/s, Rx: 2.488 Gbit/s |
| XGS-PON (TWED) | XFP/SFP+ – Tx: 9.953 Gbit/s, Rx: 9.953/2.488 Gbit/s |
| Combo PON (CGID, CGHF, CGHD, CSHF, CSHD) | XFP/SFP+ Combo modules supporting GPON/XG-PON/XGS-PON |
MA5800 X15 Huawei Applications:
The MA5800 X15 with H901BPIB subrack is ideal for:
-
FTTH, FTTB, and FTTC deployments for large-scale broadband access
-
Triple-play services (data, voice, and video) for residential and enterprise customers
-
Enterprise leased line services and mobile backhaul
-
Urban and suburban broadband network expansions
-
ISP and telecom operator access network upgrades and greenfield deployments
MA5800 X15 Huawei Customization & OEM Services:
We understand that every network deployment is unique. We offer customization and OEM services, including:
-
Pre-configuration and slot population to match your exact requirements
-
OEM branding and private labeling for resellers and integrators
-
Custom packaging for phased project rollouts
-
Burn-in testing and performance validation for mission-critical applications
-
Assistance with integration into multi-vendor environments
MA5800 X15 Huawei Wholesale & Bulk Orders:
We are trusted by telecom operators, ISPs, and system integrators worldwide, and we fully support wholesale supply and bulk procurement, providing:
-
Competitive factory-direct pricing with attractive discounts for volume orders
-
Consistent stock availability for timely deployment
-
Export-compliant packaging and reliable global shipping
-
Dedicated account managers for streamlined order handling
-
Comprehensive technical support and warranty services
Why Choose Us:
-
100% genuine Huawei hardware, tested and certified
-
Flexible solutions for diverse broadband network scenarios
-
Competitive pricing for bulk supply and resale
-
Fast, secure global logistics and delivery
-
Professional technical support from planning to post-deployment
Contact Us for a Quote:
Ready to future-proof your access network with the MA5800 X15 Huawei Brand New NG OLT with H901BPIB Subrack Equipped? Contact us today for detailed technical specifications, compatibility checks, customization options, and competitive wholesale pricing.
Our expert team is ready to help you build an ultra-broadband, future-ready network with trusted Huawei solutions.
