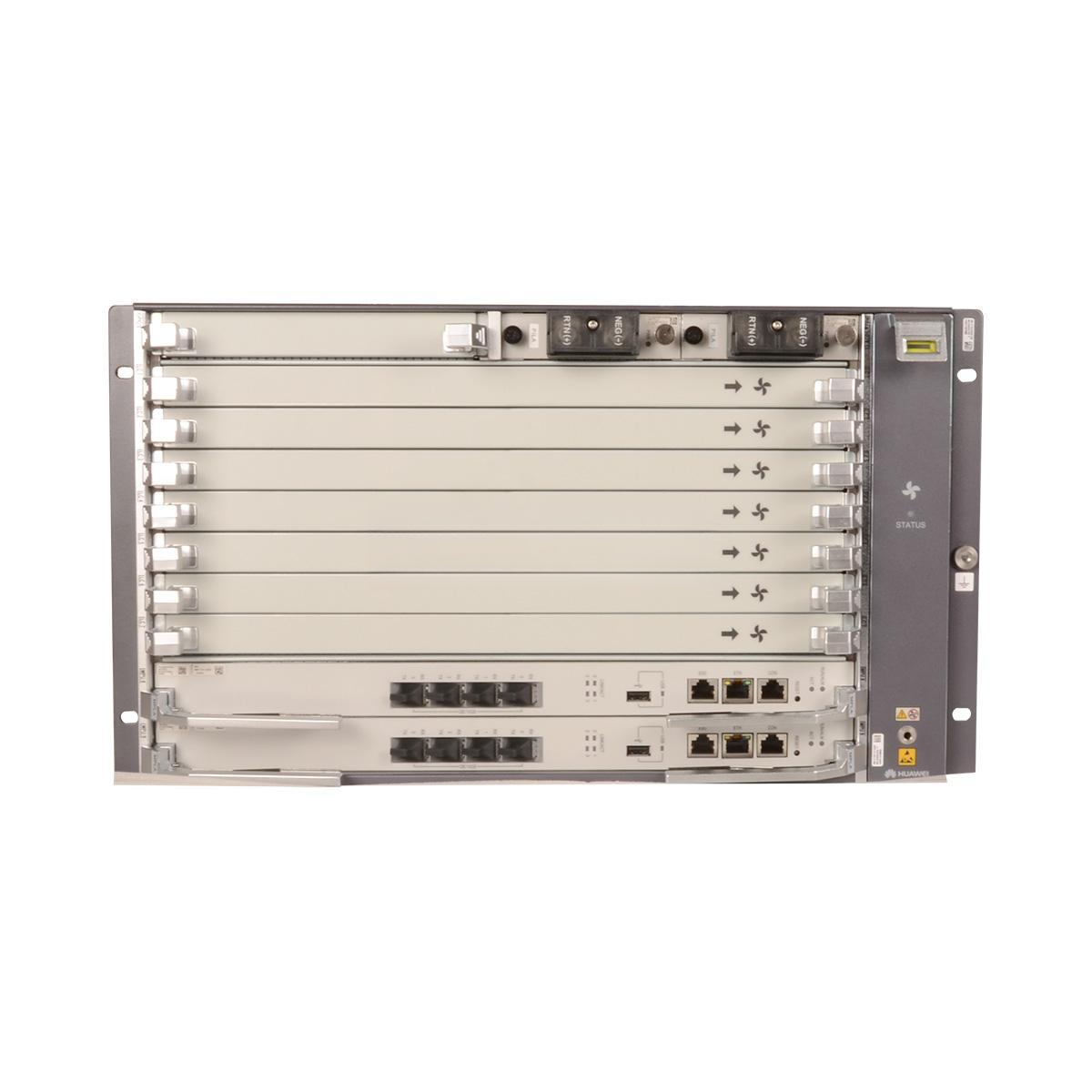

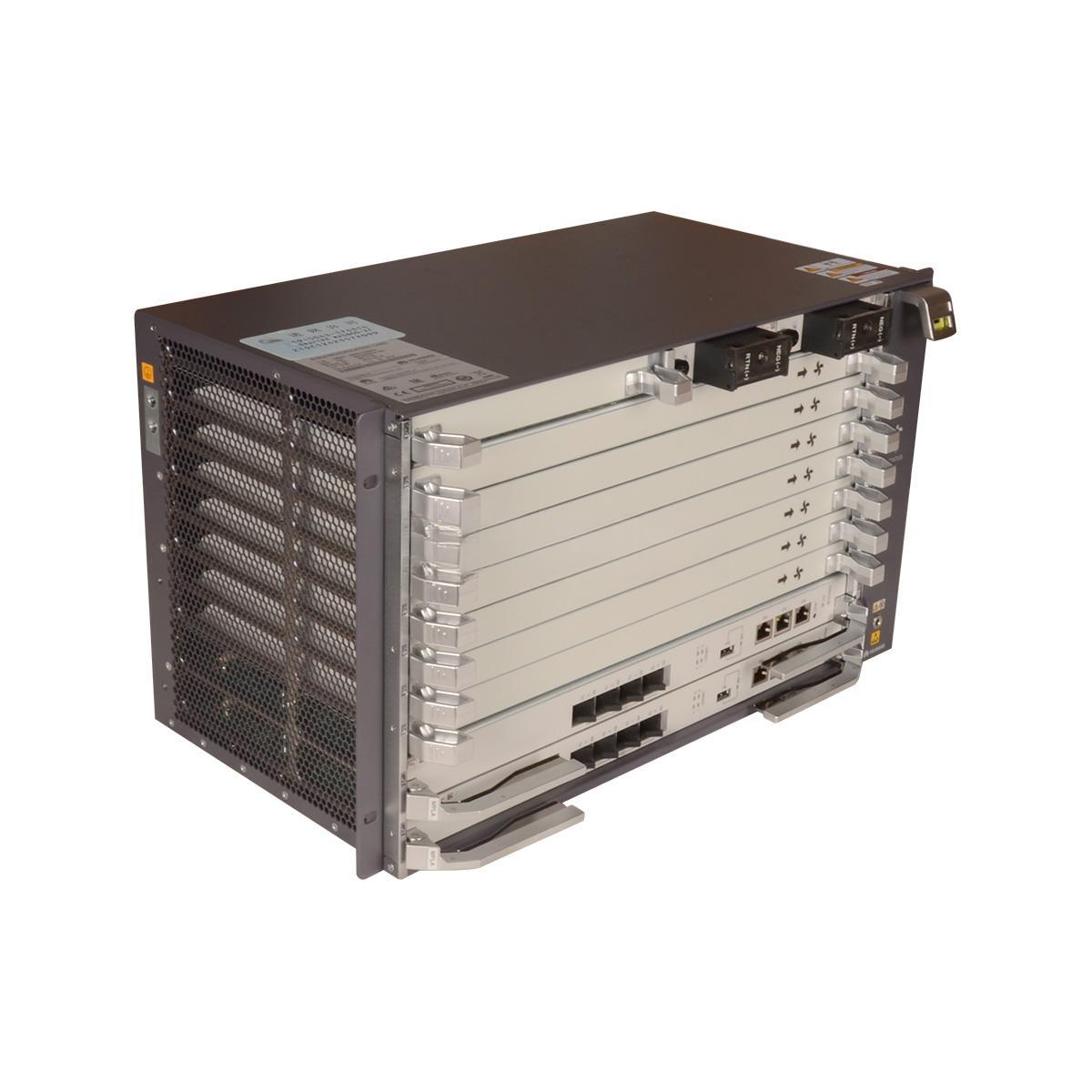

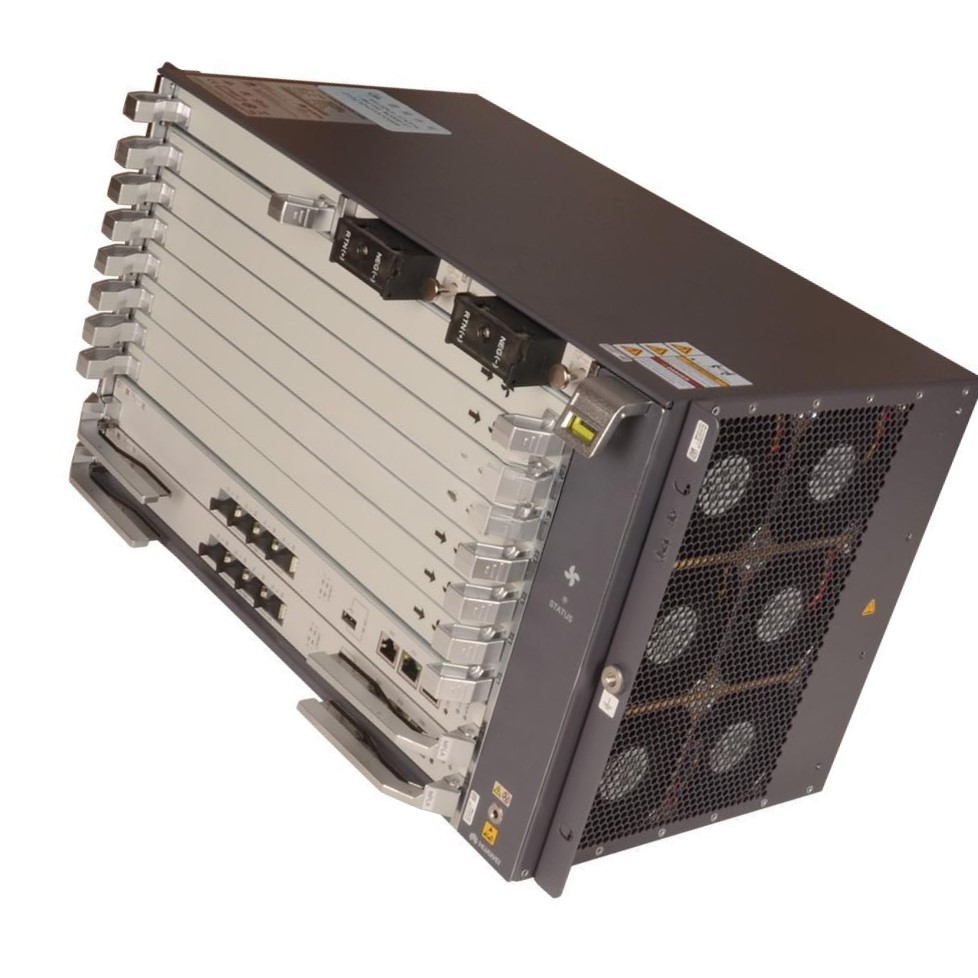

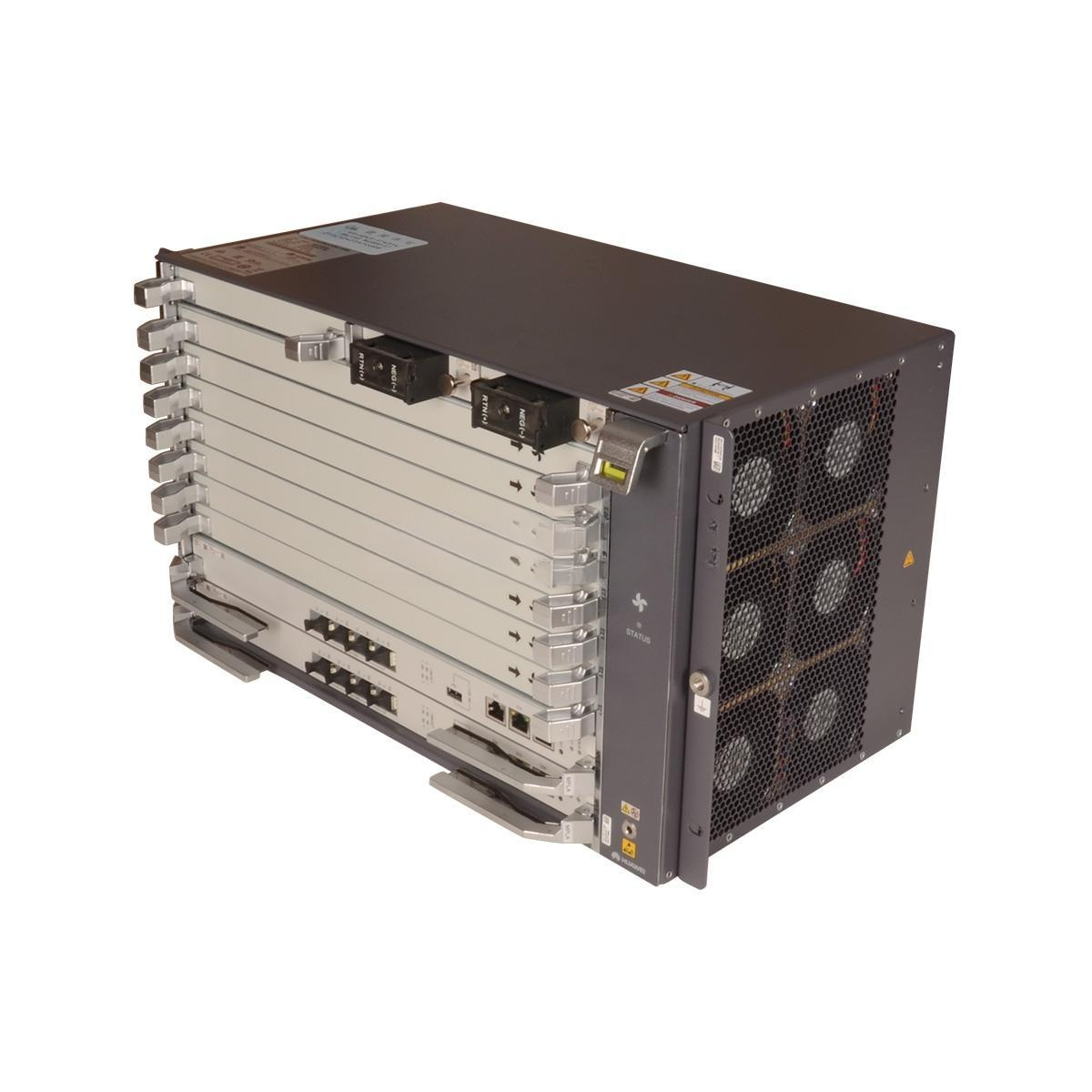

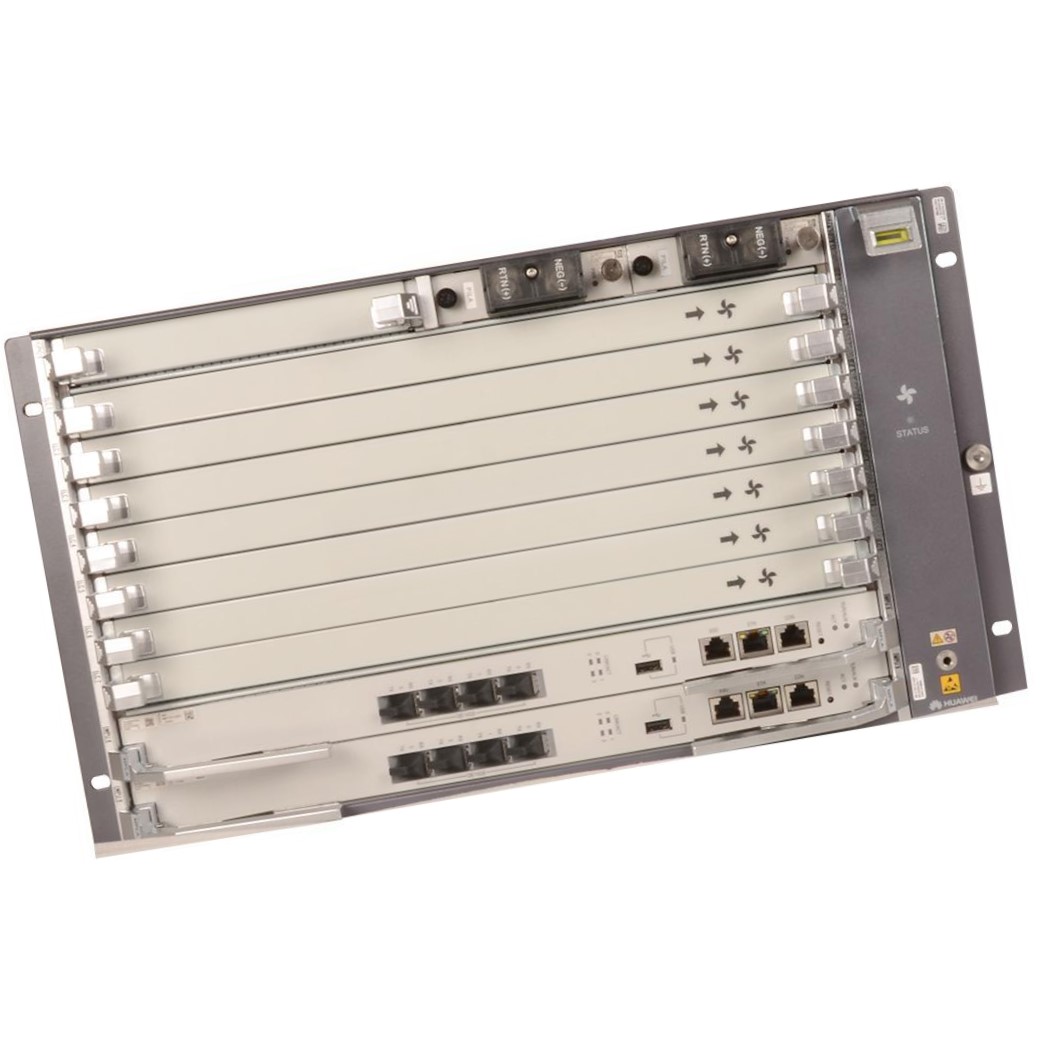

MA5800 X7 Huawei Description:
The MA5800 X7 Huawei is a brand new, next-generation Optical Line Terminal (NG OLT) designed to meet the ultra-broadband demands of modern FTTx deployments. This compact yet powerful subrack comes fully equipped with 2xH901MPLA main control and switch processing units, delivering high reliability and performance for converged access networks.
Part of Huawei’s flagship MA5800 series, the MA5800 X7 features a distributed architecture and supports multi-service access including GPON, XG(S)-PON, 10G EPON, and future PON evolutions. Its modular design with multiple service slots allows flexible configuration to meet diverse service requirements for residential, enterprise, or campus networks.
The integrated H901MPLA control boards ensure efficient switching, centralized service management, and powerful forwarding capabilities, enabling high-density, high-bandwidth access for thousands of subscribers with minimal latency and stable operation.
Key Features:
-
Model: MA5800 X7 with 2xH901MPLA
-
Condition: 100% Brand New, Original Huawei
-
Type: Next-Generation Optical Line Terminal (NG OLT) Subrack
-
Control Boards: Equipped with 2xH901MPLA main control and switch processing units for redundancy and performance
-
Architecture: Distributed architecture for high throughput and future-proof scaling
-
Service Support: GPON, XG-PON, XGS-PON, 10G EPON, and hybrid PON access
-
Slots: 7 slots for flexible service board expansion
-
High Capacity: Supports triple-play services, leased lines, and mobile backhaul
-
Reliability: Telecom-grade hardware with redundant control and power supply
-
Management: Unified network management and intelligent O&M for simplified operations
MA5800 X7 Huawei Tech Specs:
| Item | Specification |
|---|---|
| Switching Capacity (System) | MPLA/H902MPLA: 3.6 Tbit/s MPLB: 7 Tbit/s |
| Maximum Bandwidth per Slot | H901MPLB: 200 Gbit/s H901/H902MPLA: 100 Gbit/s |
| MAC Addresses (Max) | 262,144 |
| ARP/Routing Entries (Max) | 131,072 |
| Concurrent 4K Video Users (Max) | 8,000 |
| GPON Ports (Max) | 112 |
| XG-PON Ports (Max) | 112 |
| XGS-PON Ports (Max) | 56 |
| GE/FE Ports (Max) | 336 |
| 10GE Ports (Max) | 56 |
| Cabinet Supported | N63E-22 |
| Maximum Input Current | 40 A |
| Power Supply | DC: -38.4 V to -72 V (rated: -48 V / -60 V) |
| Ambient Temperature | -40°C to +65°C Startup: ≥ -25°C |
| Ambient Humidity | 5% RH to 95% RH |
| Dimensions (W × D × H) | 6U, 19 inch standard Without brackets: 442 × 268.7 × 263.9 mm With IEC brackets: 482.6 × 268.7 × 263.9 mm With ETSI brackets: 535 × 268.7 × 263.9 mm |
| Maximum Weight (incl. brackets) | 26 kg |
Supported Boards
Control Boards
-
MPLB: 4 GE/10GE upstream ports, load sharing
-
MPLA / H902MPLA
-
H901CKUA: Stratum-3 clock functions with MPLA/MPLB
Upstream Interface Board
-
NXED: 8-port 10GE upstream (for additional uplink)
Universal Interface Board
-
H901CIUA: Time sync/clock I/O, alarm, RS485, Ethernet transparent transmission
Service Boards
| Board | Description |
|---|---|
| GPHF | 16 GPON ports |
| GPSF | 16 GPON ports for home access |
| XGHD | 8 asymmetric 10G GPON ports |
| TWED | 8 symmetric 10G GPON ports |
| EDSH | 32-channel E1 upstream board (native TDM) |
| OGHK | 48-port GE/FE optical aggregation |
| OXHD | 8-port 10GE optical aggregation |
Power Board
-
PILA: -48V DC input
Fan Monitoring Board
-
FMLA / FMMA: Fan power supply, monitoring and control
Environment & Operation
-
Startup Temp: ≥ -25°C
-
Working Temp: -40°C to +65°C (intake)
-
Humidity: 5% RH ~ 95% RH
MA5800 X7 Huawei Applications:
The MA5800 X7 with 2xH901MPLA is ideal for:
-
FTTH, FTTB, FTTC network deployments
-
Urban and rural broadband access networks
-
Multi-tenant buildings, campus networks, and enterprise broadband
-
Triple-play service aggregation (Internet, IPTV, VoIP)
-
Mobile backhaul and 5G front haul
-
Network modernization and greenfield expansions for ISPs and telecom operators
Customization & OEM Services:
We provide customization and OEM services to meet project-specific requirements, including:
-
Pre-configuration of control and service boards to match your deployment plan
-
OEM branding and private labeling for resellers and integrators
-
Custom packaging for phased rollouts or special logistics
-
Burn-in testing and performance verification for mission-critical networks
-
Technical guidance for integration into multi-vendor environments
MA5800 X7 Huawei Wholesale & Bulk Orders:
We support wholesale supply and bulk procurement, trusted by global telecom operators, ISPs, and integrators. Benefit from:
-
Factory-direct pricing with attractive volume discounts
-
Consistent stock availability and fast global delivery
-
Export-compliant, protective packaging
-
Dedicated account managers for smooth transactions
-
Full technical support and warranty coverage
Why Choose Us:
-
100% genuine Huawei hardware, fully tested and certified
-
Flexible supply solutions for diverse network scenarios
-
Competitive pricing for integrators and resellers
-
Reliable global logistics and secure shipping
-
Professional technical support before, during, and after deployment
Contact Us for a Quote:
Ready to expand your fiber access network with the MA5800 X7 Huawei Brand New Subrack Equipped with 2xH901MPLA? Reach out to us today for detailed specifications, compatibility guidance, tailored configurations, and competitive wholesale pricing.
Our expert team is here to help you build a high-capacity, future-ready network with trusted Huawei solutions.
