- Model Number:XPON
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Use:FTTH Solution
- Warranty Time:2 years
- Product name:XPON ONU
- Color:White
- Keywords:onu
- Model:2GE+CATV+WIFI(2.4G +5G)

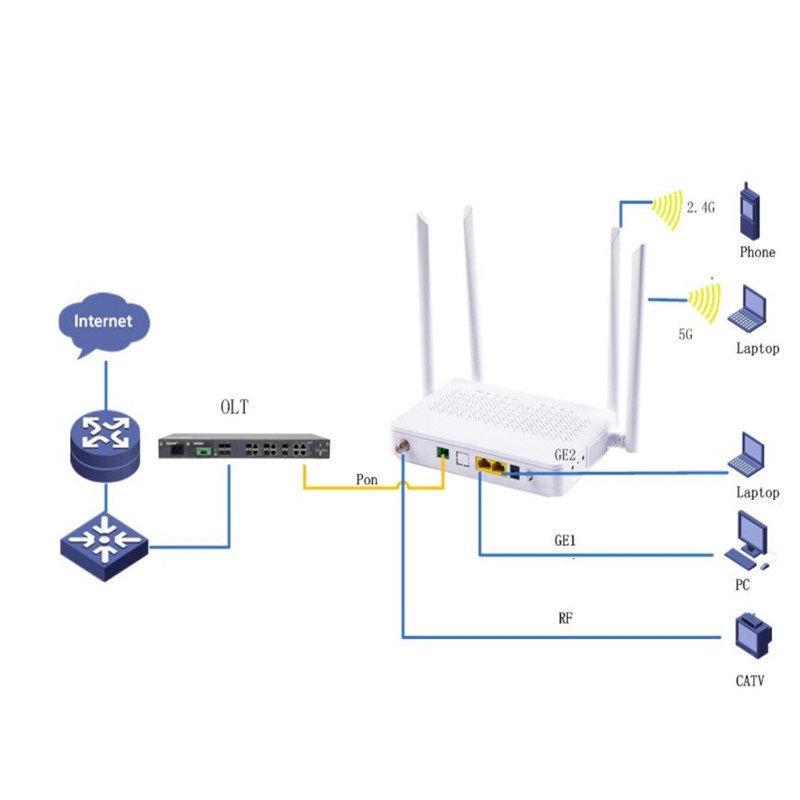

- Application:FTTH FTTB FTTX Network
- Connector Type:SC/APC
- Ports:2GE+CATV+WIFI(2.4G +5G)
- XPON:GPON Mode
- Weight:0.5kg
-
- Supply Ability
- 1000 Piece/Pieces per Month
-
- Packaging Details
Paper box
-
- Port
SHENZHEN
- Lead time:Quantity(pieces)1 – 1011 – 100>100Lead time (days)530To be negotiated
Product Description
Features:
Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
Compliance with IEEE802.11b/g/n/ac 2.4G & 5G WIFI standard
Support IPV4 & IPV6 Management and transmission
Support TR-069 remote configuration and maintenance
Support Layer 3 gateway with hardware NAT
Support Multiple WAN with Route/Bridge mode
Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
Support IGMP V2 and MLD proxy/ snooping
Support DDSN, ALG, DMZ, Firewall and UPNP service
Support CATV interface for video service
Support bi-directional FEC
Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
Compliance with IEEE802.11b/g/n/ac 2.4G & 5G WIFI standard
Support IPV4 & IPV6 Management and transmission
Support TR-069 remote configuration and maintenance
Support Layer 3 gateway with hardware NAT
Support Multiple WAN with Route/Bridge mode
Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
Support IGMP V2 and MLD proxy/ snooping
Support DDSN, ALG, DMZ, Firewall and UPNP service
Support CATV interface for video service
Support bi-directional FEC
Highlights:
Support docking compatibility with OLT of various manufacturers
Support automatically adapt to the EPON or GPON mode used by the peer OLT
Support 2.4 and 5G Hz dual band WIFI
Support multiple WIFI SSID
Support EasyMesh WIFI function
Support WIFI WPS function
Support multiple wan configuration
Support WAN PPPoE/DHCP/Static IP/Bridge mode.
Support CATV video service
Support fast transmission of hardware NAT
Support docking compatibility with OLT of various manufacturers
Support automatically adapt to the EPON or GPON mode used by the peer OLT
Support 2.4 and 5G Hz dual band WIFI
Support multiple WIFI SSID
Support EasyMesh WIFI function
Support WIFI WPS function
Support multiple wan configuration
Support WAN PPPoE/DHCP/Static IP/Bridge mode.
Support CATV video service
Support fast transmission of hardware NAT
Hardware Specifications:

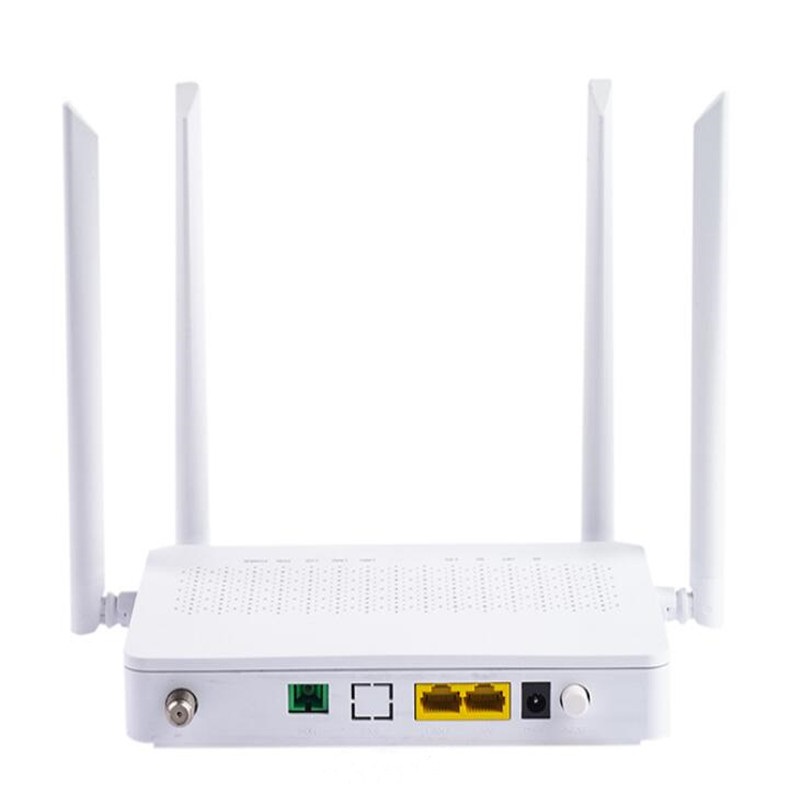

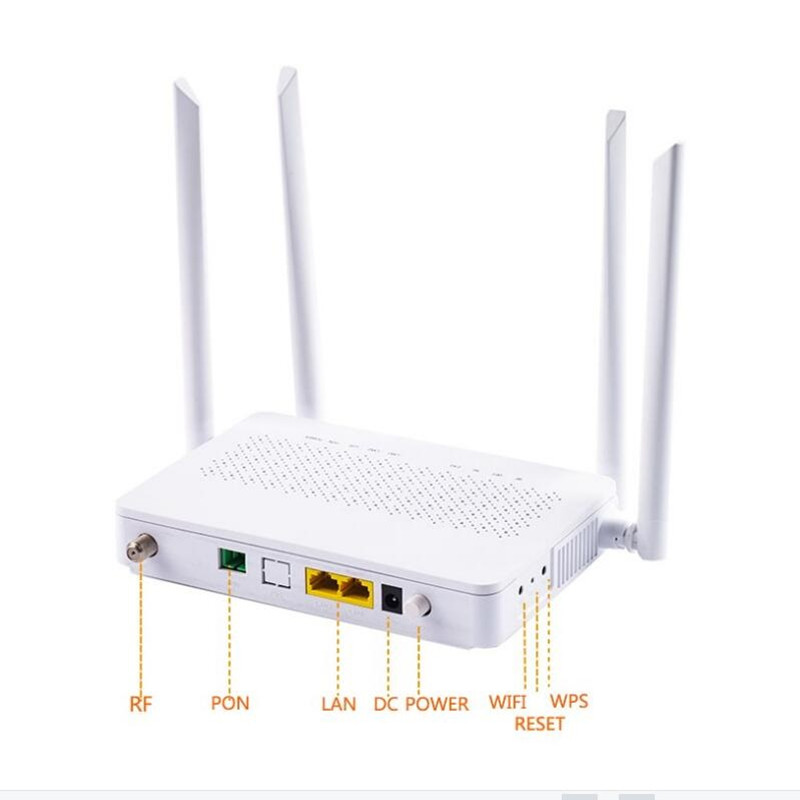

Interface: 1* G/EPON+2*GE+2.4G/5.8G WLAN+1*RF
Power adapter input: 100V-240V AC, 50Hz-60Hz
Power Supply: DC 12V/1.5A
Indicator light: POWER/PON/LOS/LAN1/ LAN2 /2.4G/5G /RF/OPT
Button: Power switch Button, Reset Button, WLAN Button, WPS Button
Interface: 1* G/EPON+2*GE+2.4G/5.8G WLAN+1*RF
Power adapter input: 100V-240V AC, 50Hz-60Hz
Power Supply: DC 12V/1.5A
Indicator light: POWER/PON/LOS/LAN1/ LAN2 /2.4G/5G /RF/OPT
Button: Power switch Button, Reset Button, WLAN Button, WPS Button
Power Consumption: <18W
Working temperature: -20℃~+50℃
Working temperature: -20℃~+50℃
Environment humidity: 5% ~ 95% (non-condensing)
Dimension:180mm x 133mm x 28mm (L×W×H Without antenna)
Net Weight:0.3Kg
Dimension:180mm x 133mm x 28mm (L×W×H Without antenna)
Net Weight:0.3Kg
Wireless:
Interface type:External 4*2T2R External antenna
Antenna gain: 5dBi
Interface maximum rate:
2.4G WLAN: 300Mbps
5.8G WLAN: 866Mbps
Interface working mode:
2.4G WLAN:802.11 b/g/n
5.8G WLAN:802.11 a/n/ac
Interface type:External 4*2T2R External antenna
Antenna gain: 5dBi
Interface maximum rate:
2.4G WLAN: 300Mbps
5.8G WLAN: 866Mbps
Interface working mode:
2.4G WLAN:802.11 b/g/n
5.8G WLAN:802.11 a/n/ac
PON Interface:
Interface Type: SC/APC, CLASS B+
Transmission distance: 0~20km
Working wavelength: Up 1310nm;
Down 1490nm;CATV 1550nm
RX Optical power sensitivity: -27dBm
Transmission rate:
GPON: Up 1.244Gbps;Down 2.488Gbps
EPON: Up 1.244Gbps;Down 1.244Gbps
Interface Type: SC/APC, CLASS B+
Transmission distance: 0~20km
Working wavelength: Up 1310nm;
Down 1490nm;CATV 1550nm
RX Optical power sensitivity: -27dBm
Transmission rate:
GPON: Up 1.244Gbps;Down 2.488Gbps
EPON: Up 1.244Gbps;Down 1.244Gbps
CATV Interface:
Interface type: 1*RF
Optical receiving wavelength: 1550nm
RF output level : 80±1.5dBuV
Interface type: 1*RF
Optical receiving wavelength: 1550nm
RF output level : 80±1.5dBuV
Input optical power: +2~-15dBm
AGC range: 0~-12dBm
Optical reflection loss: >14
MER: >31@-15dBm
AGC range: 0~-12dBm
Optical reflection loss: >14
MER: >31@-15dBm
Ethernet Interface :
Interface type:2* RJ45
Interface parameters:10/100/1000BASE-T
Interface type:2* RJ45
Interface parameters:10/100/1000BASE-T
Packing & Delivery
