- Use:FTTH, FTTH
- Warranty Time:1 YEAR
- No. of Fiber:12.

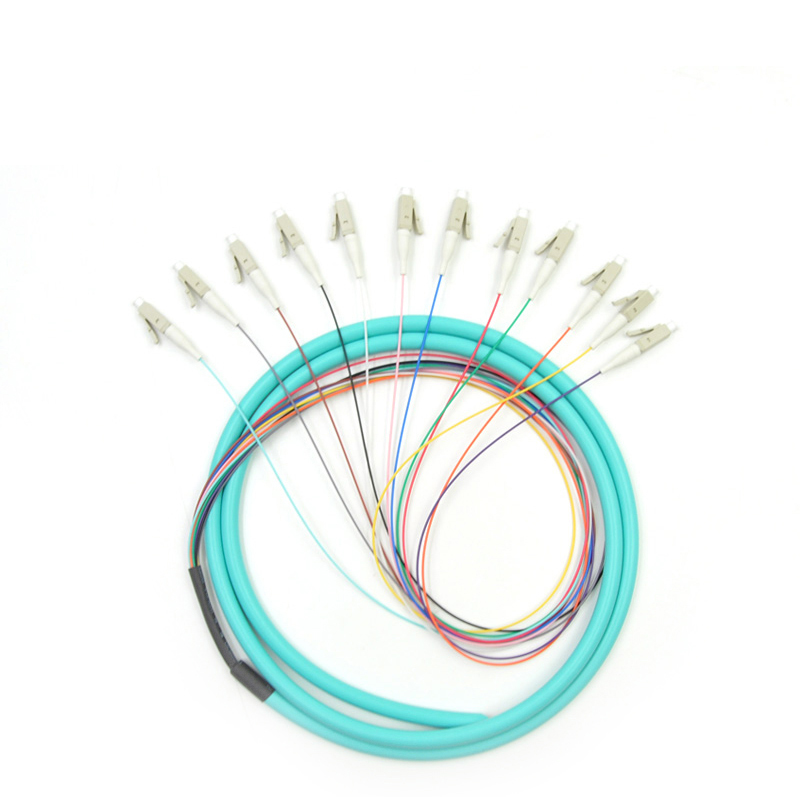

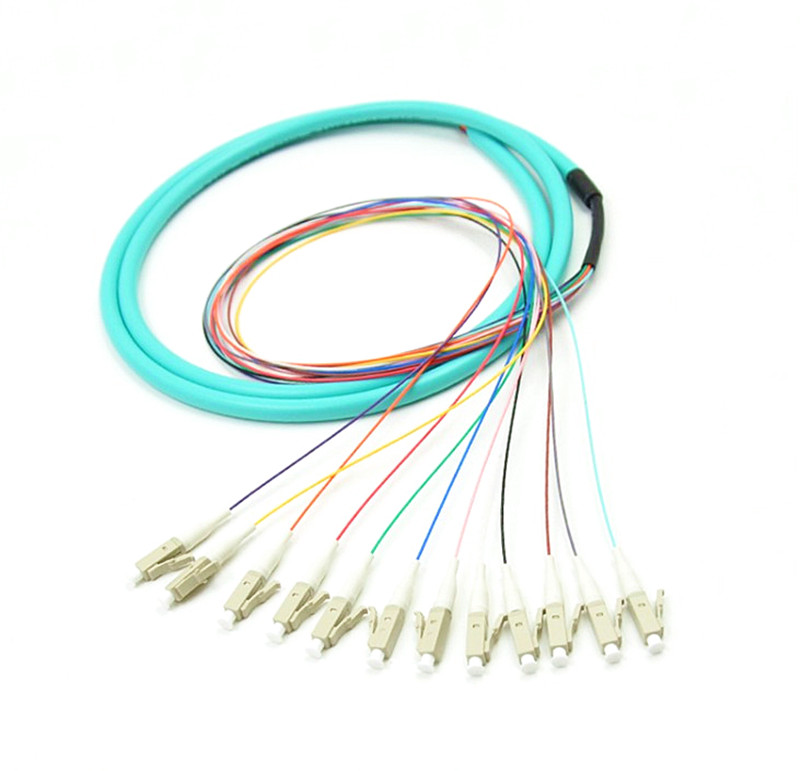

- Product name:OM3 12 core pigtail LC
- Application:Telecommunication
- Certification:CE RoHS, ISO
- Material:PVC
- Operating temperature:-40~75°C
- Length:1.5m, 1M, 2M, or as requirement
- Color:Customized
- Brand:WOLON
- Selling Units:Single item
- Single package size: 12X12X6 cm
- Single gross weight:0.200 kg
- Package Type:PE bags and carton or customized for Manufacture Om3 Lc 12 Core Pigtail For Wholesales
- Picture Example:
- Lead time:Quantity(pieces)1 – 5000>5000Lead time (days)10To be negotiated
Product Description
Pigtails are used forsplice applications when terminating outside plant cable. It’s consists ofa connector and a special lengthof fiber cable.Meets Telcordia GR-326 Core and ROHS requirements.All of our pigtails are factory inspected andtested, with available interferometer dataupon request.
|
Connector A |
LC |
Connector B |
Unterminated |
|
Fiber Category |
Multi-mode |
Fiber Count |
1 |
|
Polish |
UPC |
Cable Diameter |
0.9mm |
|
Jacket Material |
LSZH |
Jacket Color |
12 different colors |
|
Wavelength |
1310nm,1550nm |
Durability |
>1000 Times |
|
Insertion loss |
≤0.3dB |
Interchangeability |
≤0.2dB |
|
Return loss |
≥60dB |
Vibration |
≤0.2dB |
|
Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Length tolerance: 0-5M:+5cm/-0cm ; 5-100m:+10cm/-0c
Features:
- Low insertion loss,Low back reflectionloss
- Flexible and easy to strip fiber buffering
- Identifiable fiber buffer colors under all lighting conditions
- Reduces installationtime
- Avoids incorrect patching bypossible fiber flipping
- Clean and Scratch-Free End Face
- Proportional geometric test is applied to the normal production.
- 100% interferometercheck is available under special requirement.
