- Products Status:Stock
- Ports:8
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:16Gbps
- Model Number:TS8208P
- Place of Origin:Guangdong, China
- Certification:CE FCC RoHS
- Supply Ability5000 Piece/Pieces per Month
- Packaging Detailsbubble box, carton
- PortGUANGZHOU SHENZHEN
- Picture Example:

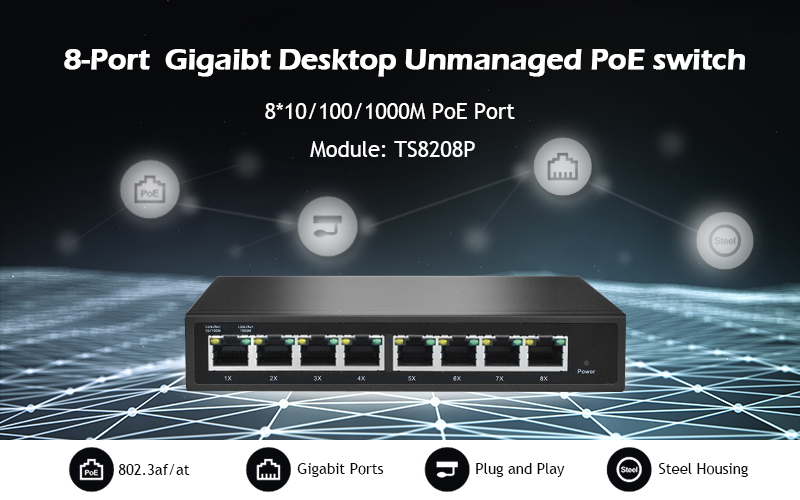

8-Port Gigabit Desktop Switch with 8-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

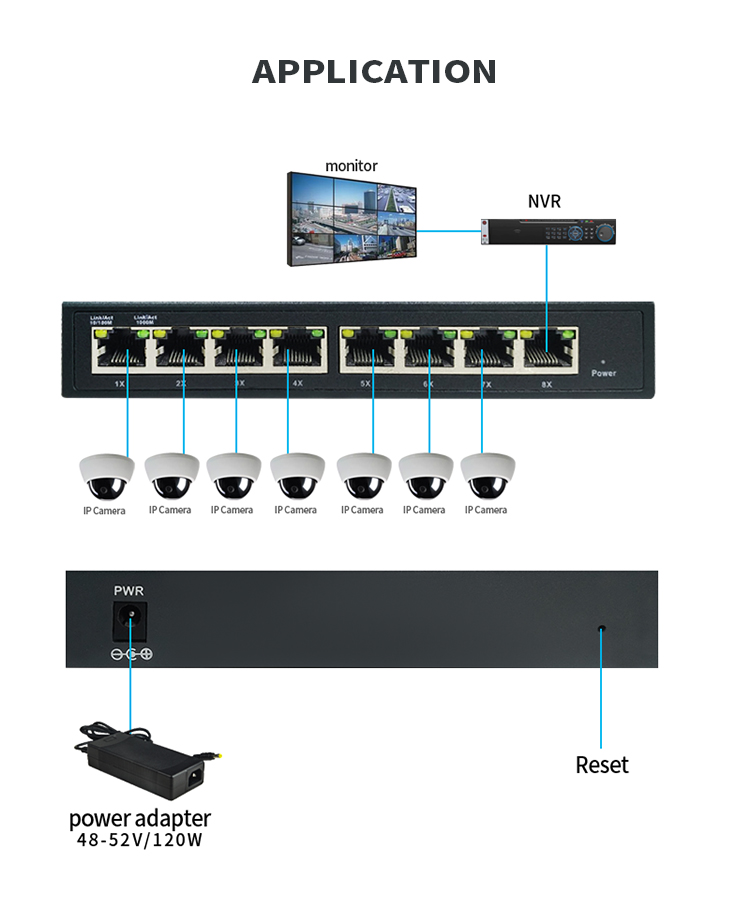

8 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Easy To Use
TS8208P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TS8208P 8-Port Gigabit Desktop Switch with 8-Port PoE is a great selection for expanding your home or office network.
Key Features:
Supports PoE power up to 30W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3af/at compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
4K entry MAC address table of the TS8208P with auto-learning and auto-aging
External power adapter supply
Ordering Information:
TS8208P, 8 -port 10/100/000Mbps With 8- port PoE IEEE802.3AF/AT
TS8208P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TS8208P 8-Port Gigabit Desktop Switch with 8-Port PoE is a great selection for expanding your home or office network.
Supports PoE power up to 30W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3af/at compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
4K entry MAC address table of the TS8208P with auto-learning and auto-aging
External power adapter supply
TS8208P, 8 -port 10/100/000Mbps With 8- port PoE IEEE802.3AF/AT
HARDWARE FEATURES
|
Interface
|
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
|
Fan Quantity
|
Fanless
|
|
External Power Supply
|
External Power Adapter(Output: 48VDC / 2.5A)
|
|
PoE Ports (RJ45)
|
Standard: 802.3 af compliant
PoE Ports: Port1- Port 8 Power Supply: 120W |
|
Backbound Bandwidth
|
16Gbps
|
|
Mac Address Table
|
4K
|
|
Dimensions ( W x D x H )
|
(190*96*27 mm)
|
|
SOFTWARE FEATURES Transmission Method
|
Store-And-Forward
|
|
Advanced Functions
|
Compatible With IEEE 802.3af Compliant PDs
Priority Function Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS |
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
TS8208P, Power Adapter, Installation Guide
|
|
Environment
|
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
