- Products Status:Stock
- Ports:10
- Transmission Rate:10/100/1000Mbps
- Function:POE, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:20Gbps
- Model Number:TS8208P-2G
- Place of Origin:Guangdong, China
- Product Name:8 Port PoE Switch
- Device Type:Switch – 8 Ports – Unmanaged
- Manufacturer:Gxcom Technology
- PoE Ports:8 Support IEEE802.3AF/AT Standard
- Warranty:3 Years
- Condition:100% Original Brand
- Certification:CE FCC RoHS
- Selling Units:Single item
- Single package size: 21X15X3.5 cm
- Single gross weight:1.500 kg
- Package Type:bubble box, carton
- Lead time:Quantity(units)1 – 12 – 100>100Lead time (days)515To be negotiated
Product Description
Manufacturer wholesale VLAN 48V 8 port PoE Network switch with built-in power 120W and 2 gigabit uplink ports
8*10/100/1000mbps POE port
2*10/100/1000mbps uplink Port
100m Distance
Vlan support
Support IEEE802.3AF/AT
Whole Power:120W
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8*10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Each port max. power supply reached 30W
Application:
– Wireless Access Point
– IP Camera
– IP Phone
– Computer Networks
HARDWARE FEATURES
|
Product
|
8 Port PoE+2G full giga POE Switch (Built-in)
|
|
Model
|
TS8208P-2G
|
|
1000M POE Port
|
1 to 8 support IEEE802.3AF/AT Standard
|
|
UP link port
|
9th_ 10th port support 1000Mbps
|
|
Output Power
|
15.4W/30W IEEE802.3af/at
|
|
Power Pin
|
Both 1/2+、3/6- and 4/5+7/8-
|
|
Whole Power
|
120W
|
|
POE Protocol
|
IEEE 802.3af/IEEE 802.3at
|
|
POE Type
|
End-span
|
|
Power Distance
|
≤150m
|
|
Network Standard
|
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
|
Network Medium
|
100/1000BASE-TX: 5 class and above non shielded twisted pair
|
|
Switch Capability
|
20Gbps
|
|
Forwarding Mode
|
Store and forward
|
|
Forwarding Rate
|
100Mbps:14880pps
1000Mbps:14800pps
|
|
MAC Address
|
MAC address table 8K
|
|
Port Function
|
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
LED Indicator
|
Each port occupied 1 LINK/ACT.1000Mbps,
POE Status Indicator, Whole power indicator |
|
Working Environment
|
Working temperature: 0°– 55°C
|
|
Input
|
AC 100-240V 50/60HZ
|
|
Weight
|
1.5kg
|
|
Dimension
|
210mm*140mm*45mm(L*W*H)
|

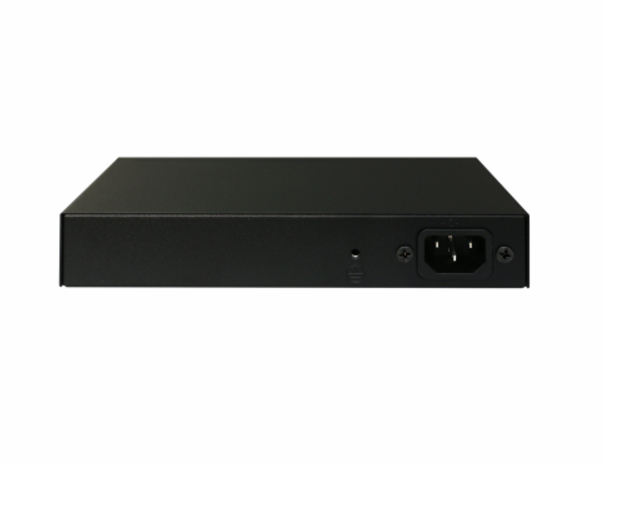

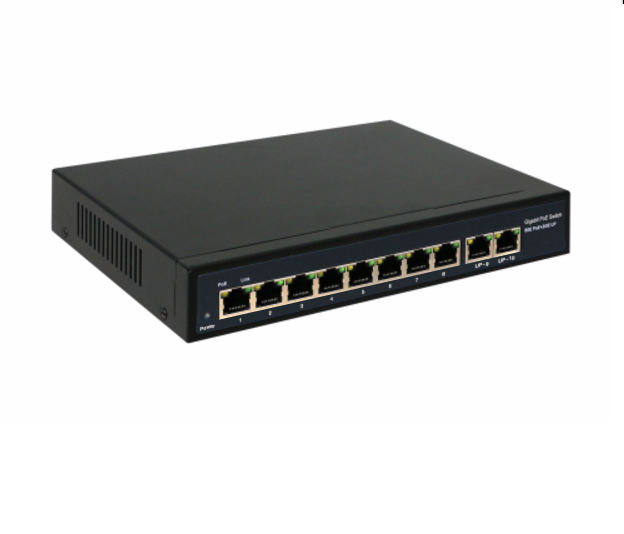

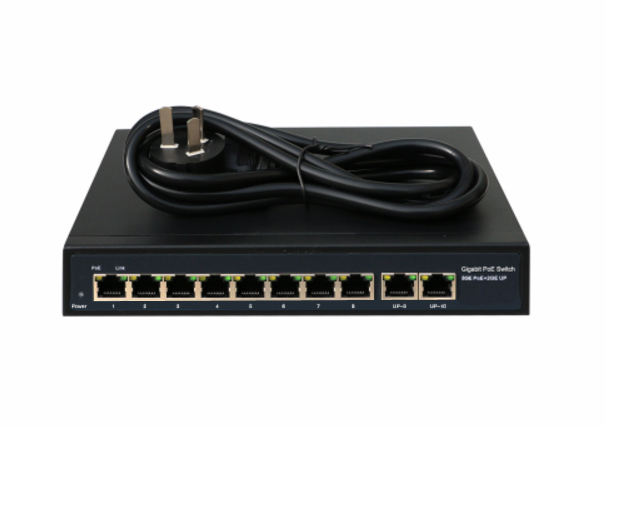

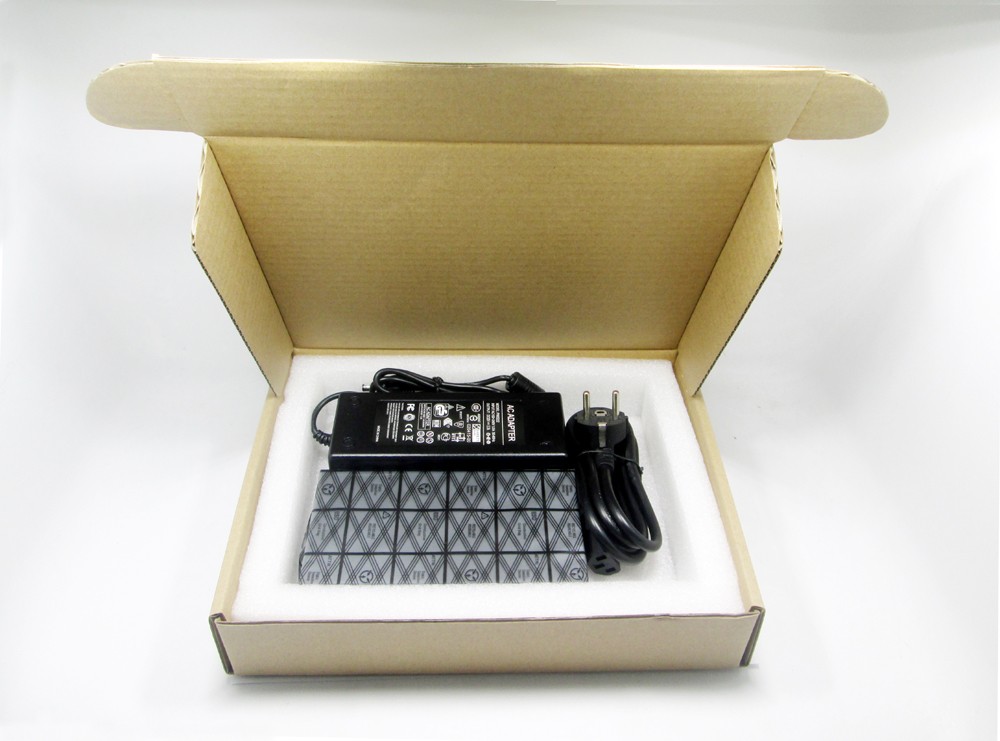

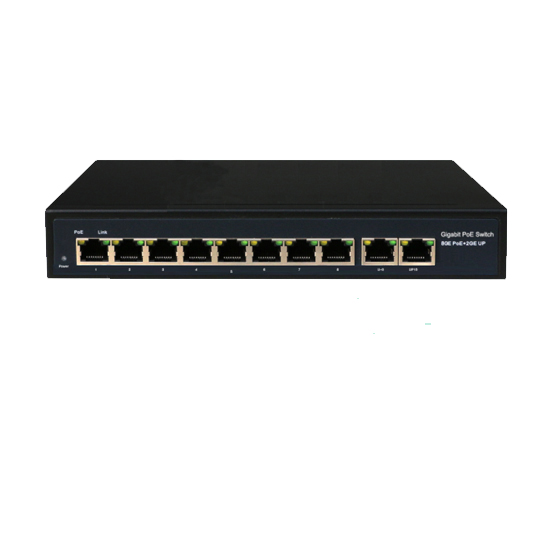

Detailed Images
