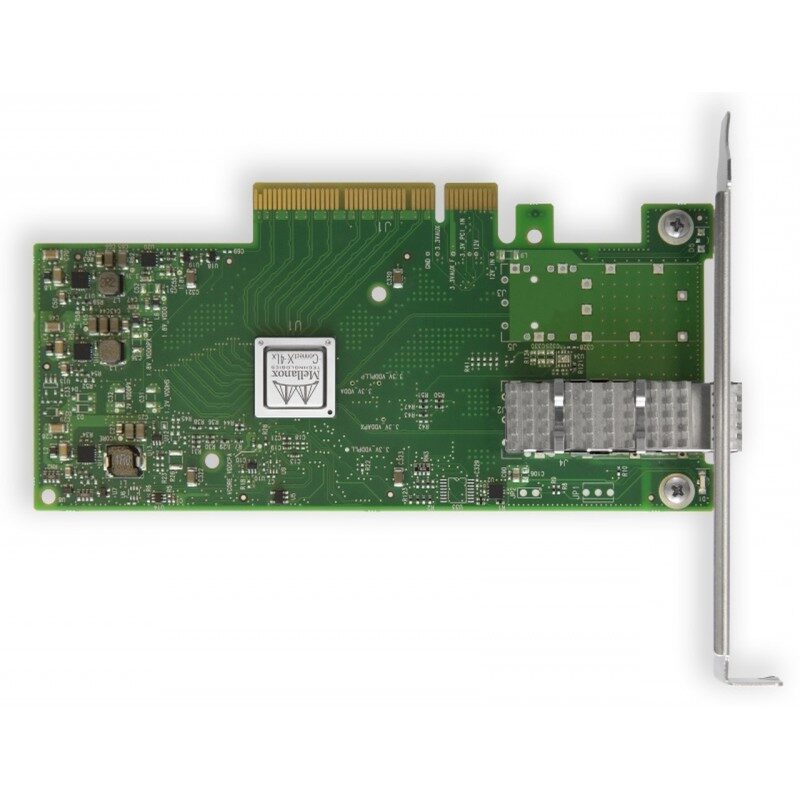

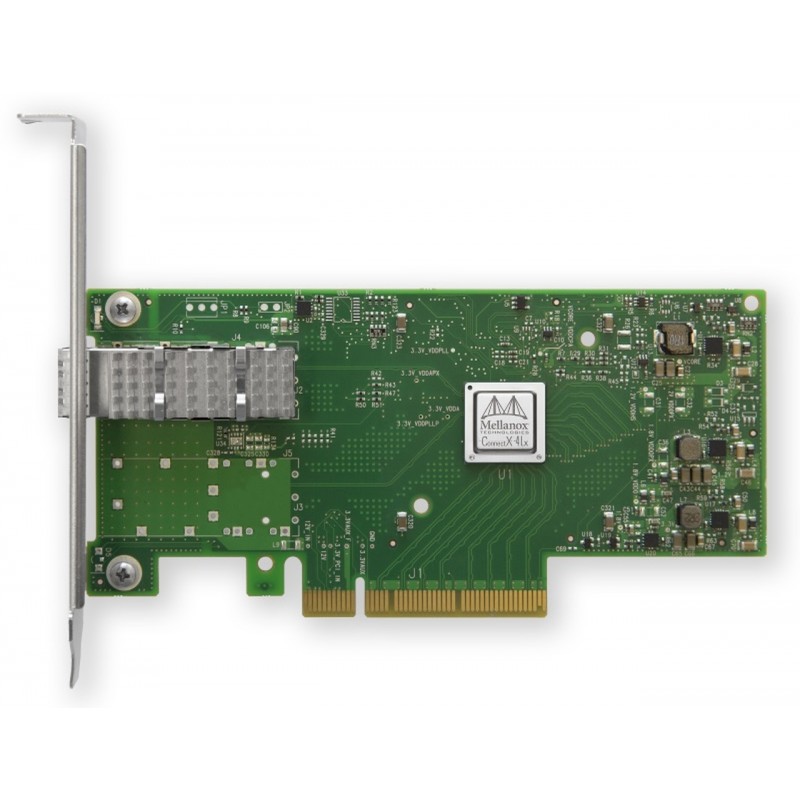

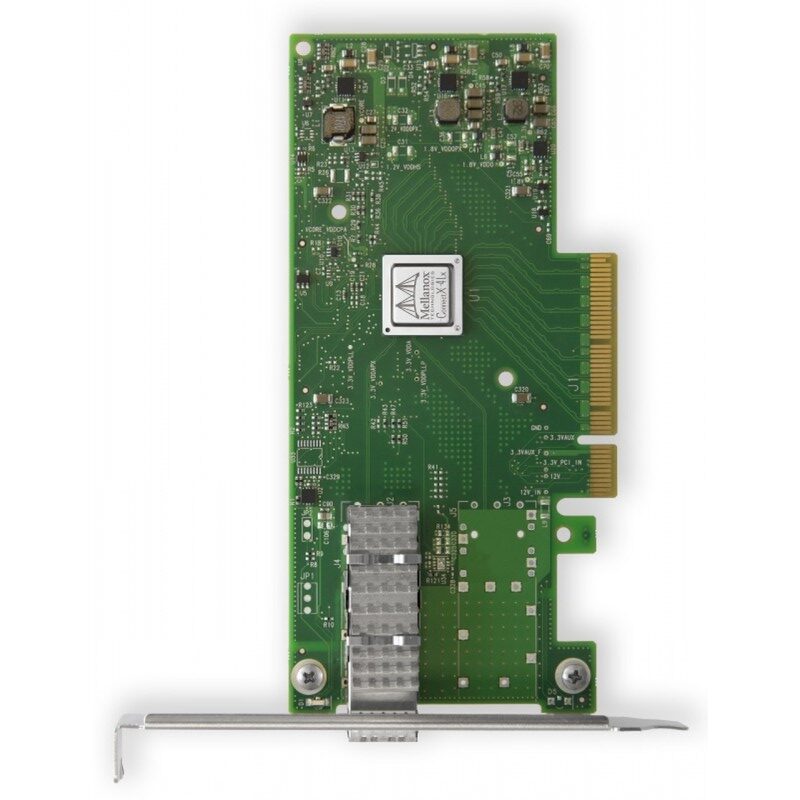

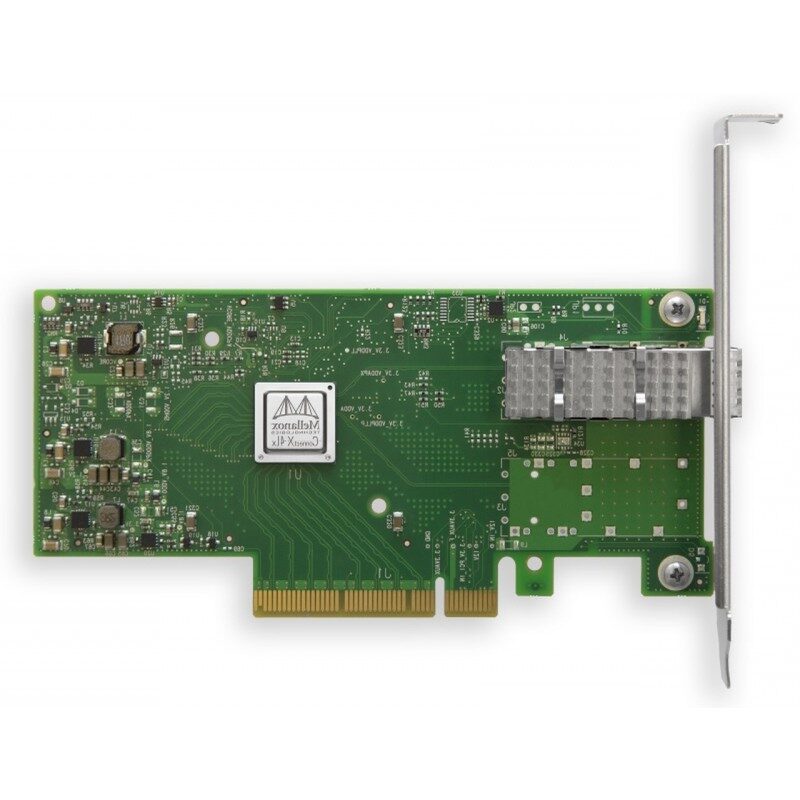

Mellanox MCX4111A-XCAT
The Mellanox MCX4111A-XCAT ConnectX-4 Lx EN is a high-performance single-port 10GbE network interface card (NIC) designed for enterprise IT, cloud computing, virtualization, and storage networking. Featuring PCIe 3.0 x8 connectivity and SFP28 interface, this NIC delivers low latency, high bandwidth, and efficient data transfer for demanding workloads.
Key Features
-
Single-Port 10GbE Connectivity – Supports high-speed networking with one SFP28 interface.
-
PCIe 3.0 x8 Interface – Ensures fast data transfer and maximum bandwidth utilization.
-
RDMA Over Converged Ethernet (RoCE v2) – Enables low-latency, high-performance networking.
-
Virtualization & Cloud Optimized – Supports SR-IOV, NVGRE, VXLAN, and Geneve tunneling protocols.
-
Hardware Offloading – Reduces CPU overhead and improves network efficiency.
-
Security Features – Includes Secure Boot and firmware protection for enhanced data security.
-
Energy-Efficient Design – Optimized for low power consumption.
-
Tall Bracket Included – Designed for standard server racks (low-profile bracket available separately).
BENEFITS of MCX4111A-XCAT
-
Reliable and high-speed connectivity for enterprise, cloud, and virtualized environments.
-
RoCE v2 support for efficient data transfers in storage and AI applications.
-
Optimized for virtualization, enabling fast and scalable network performance.
-
Enhanced networking acceleration for cloud computing, data centers, and IT infrastructure.
Technical Specifications: Mellanox MCX4111A-XCAT
| Parameter | Specification |
|---|---|
| Model | MCX4111A-XCAT |
| Network Speed | 10GbE |
| Ports | 1 × SFP28 |
| Interface | PCIe 3.0 x8 |
| RDMA Support | RoCE v2 |
| Virtualization | SR-IOV, VXLAN, NVGRE, Geneve |
| Hardware Offloading | Yes |
| Security Features | Secure Boot, Firmware Protection |
| Form Factor | Standard with Tall Bracket (low-profile option available) |
| Power Consumption | Low Power Design |
| Operating Temperature | 0°C to 55°C |
| Compliance | RoHS, IEEE 802.3 |
Applications
-
Enterprise IT & Cloud Data Centers – Provides high-speed, reliable networking.
-
Virtualized Environments – Enhances network performance and scalability.
-
Storage Networking – Supports fast data transfers for storage solutions.
-
AI & Machine Learning Workloads – Enables low-latency data processing.
