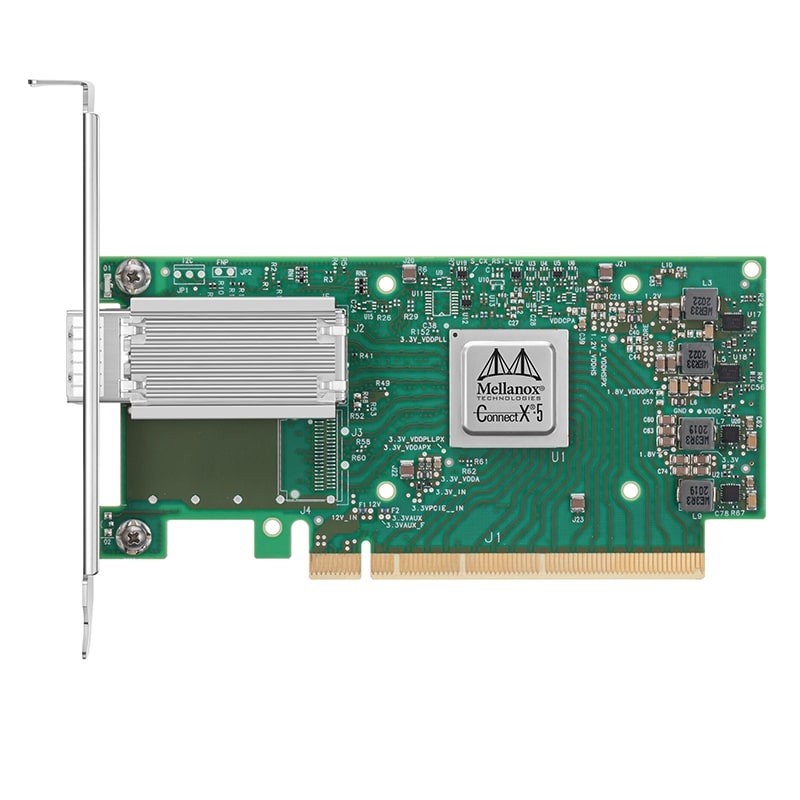

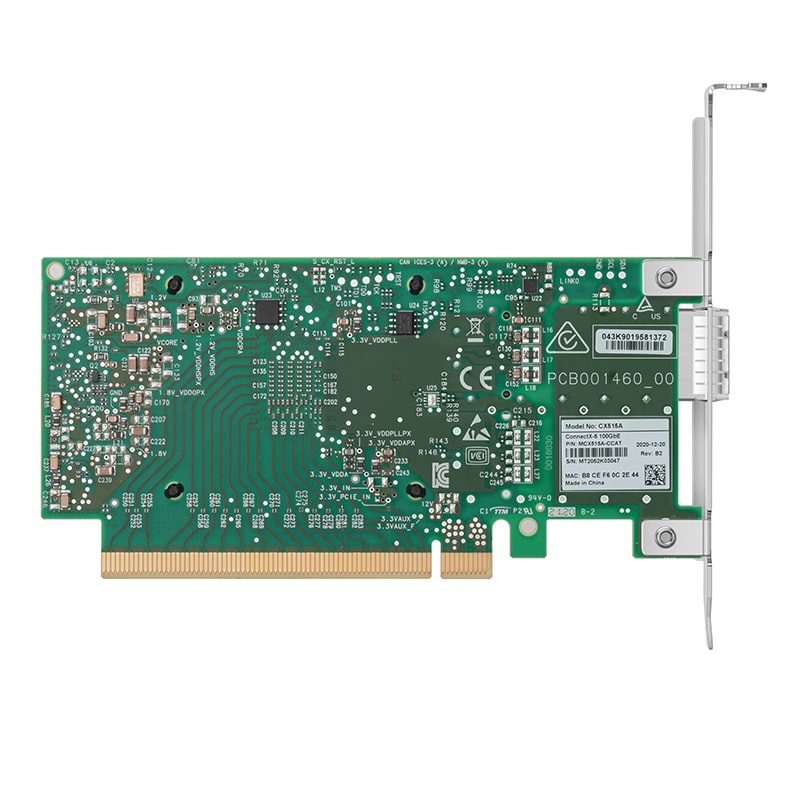

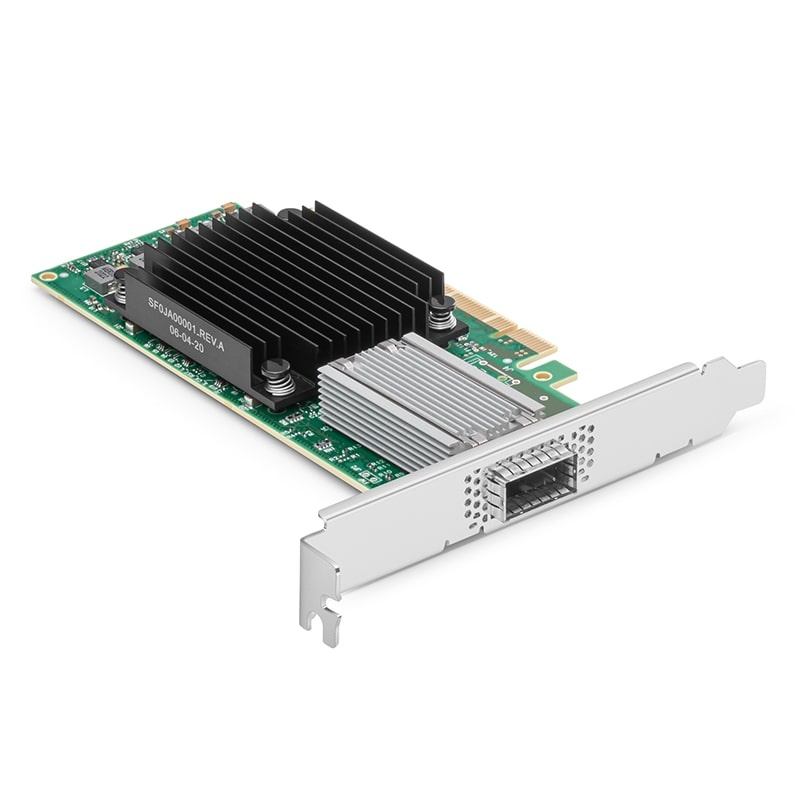

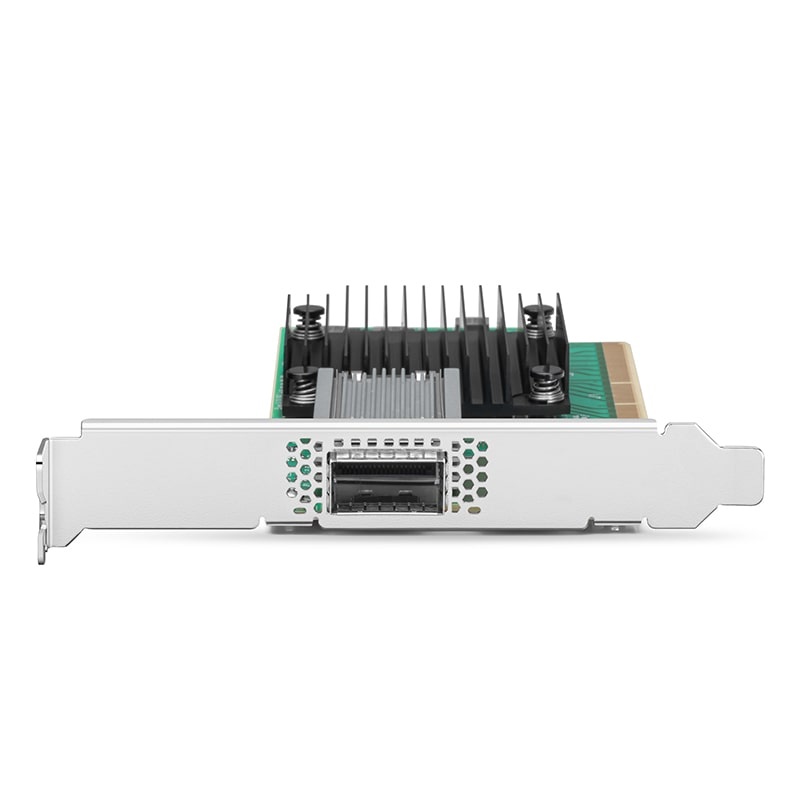

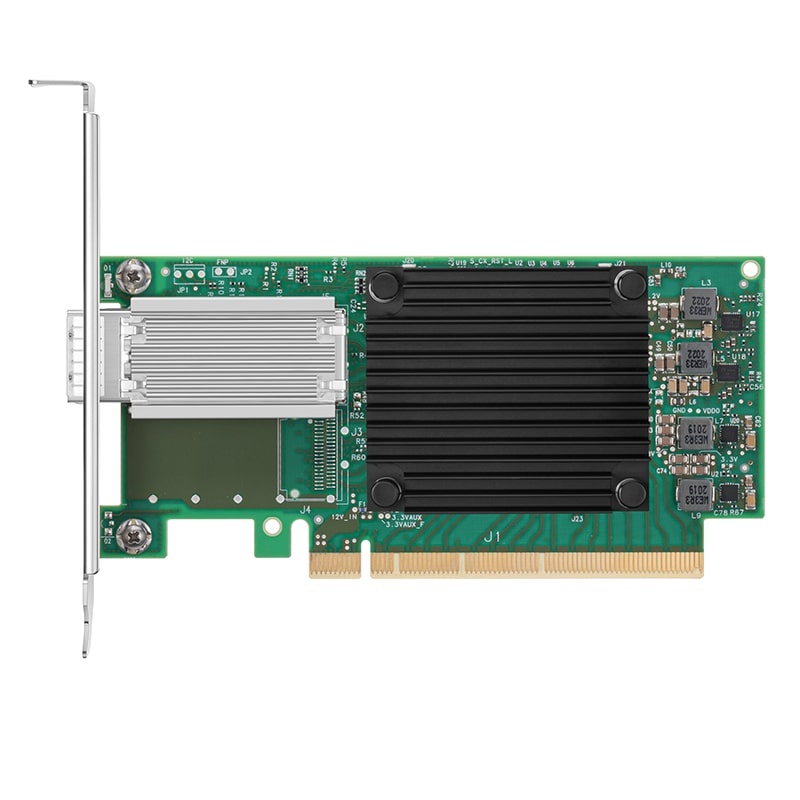

Mellanox MCX515A-CCAT
The Mellanox MCX515A-CCAT ConnectX-5 EN is a high-performance single-port 100GbE QSFP28 network interface card (NIC) designed for cloud data centers, high-performance computing (HPC), artificial intelligence (AI), and storage networking. With a PCIe 3.0 x16 interface, it delivers ultra-low latency, high throughput, and advanced networking features, making it ideal for demanding workloads such as machine learning, big data analytics, and enterprise IT environments.
Key Features
-
Single-Port 100GbE Connectivity – Supports ultra-high-speed networking via QSFP28 interface.
-
PCIe 3.0 x16 Interface – Ensures maximum bandwidth utilization and high-speed data transfer.
-
RDMA Over Converged Ethernet (RoCE v2) – Reduces CPU overhead, improves data movement efficiency, and enhances latency-sensitive applications.
-
Advanced Virtualization Support – Compatible with SR-IOV, NVGRE, VXLAN, and Geneve tunneling protocols.
-
Hardware Offloading – Accelerates packet processing and reduces CPU utilization for improved efficiency.
-
Secure Boot & Firmware Protection – Provides enhanced security features for data center and cloud deployments.
-
Energy-Efficient Design – Optimized for high performance with low power consumption.
-

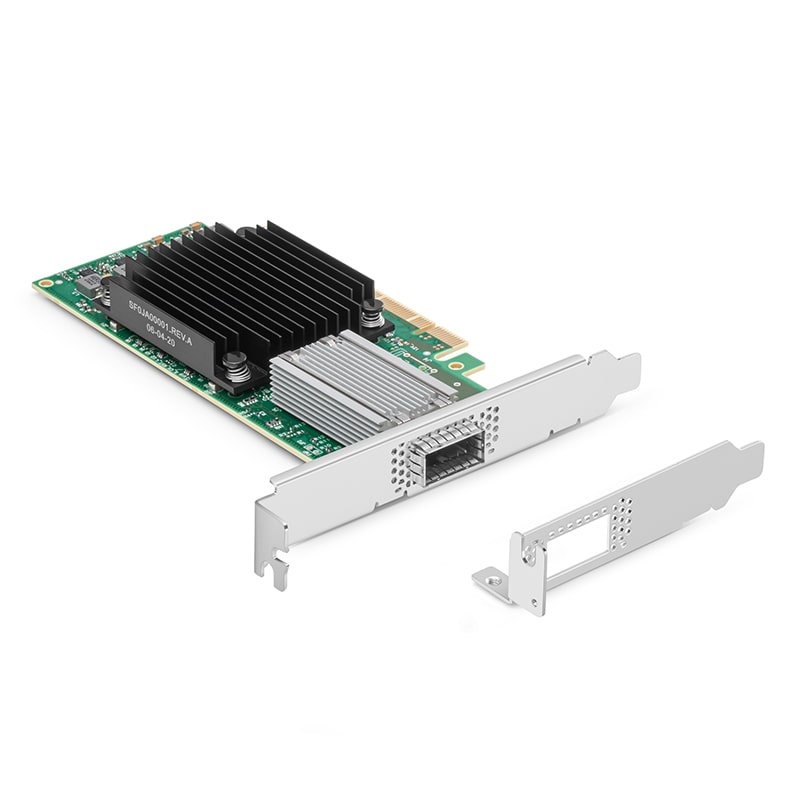

Tall Bracket Included – Designed for standard server racks (low-profile bracket available separately).
BENEFITS of MCX515A-CCAT
-
High-speed networking for enterprise, cloud, and HPC environments.
-
RoCE v2 support for low-latency, high-bandwidth data transfers in storage and AI workloads.
-
Optimized for virtualization, enabling faster network performance in virtualized environments.
-
Advanced networking acceleration for cloud computing, hyperscale data centers, and enterprise IT infrastructure.
-
High-speed storage networking with NVMe-over-Fabrics (NVMe-oF) support.
Technical Specifications: MCX515A-CCAT
| Parameter | Specification |
|---|---|
| Model | MCX515A-CCAT |
| Network Speed | 100GbE |
| Ports | 1 × QSFP28 |
| Interface | PCIe 3.0 x16 |
| RDMA Support | RoCE v2 |
| Virtualization | SR-IOV, VXLAN, NVGRE, Geneve |
| Hardware Offloading | Yes |
| Security Features | Secure Boot, Firmware Protection |
| Form Factor | Standard with Tall Bracket (low-profile option available) |
| Power Consumption | Low Power Design |
| Operating Temperature | 0°C to 55°C |
| Compliance | RoHS, IEEE 802.3 |
Applications
-
High-Performance Computing (HPC) – Provides high-bandwidth, low-latency connectivity for AI and scientific workloads.
-
Enterprise Data Centers – Ensures fast, reliable network connections for cloud and enterprise IT applications.
-
Cloud Computing & Virtualization – Supports efficient workload balancing and virtualization acceleration.
-
Storage Networks & NVMe-oF – Optimized for high-speed data transfer between storage arrays and compute nodes.
-
AI & Machine Learning Workloads – Enhances real-time data processing with ultra-low latency networking.
