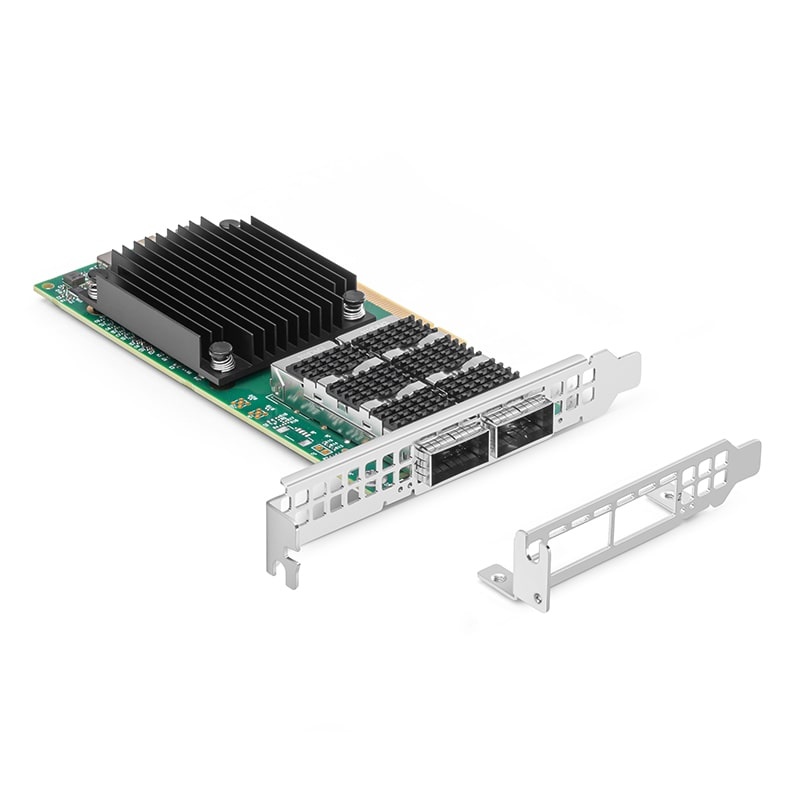

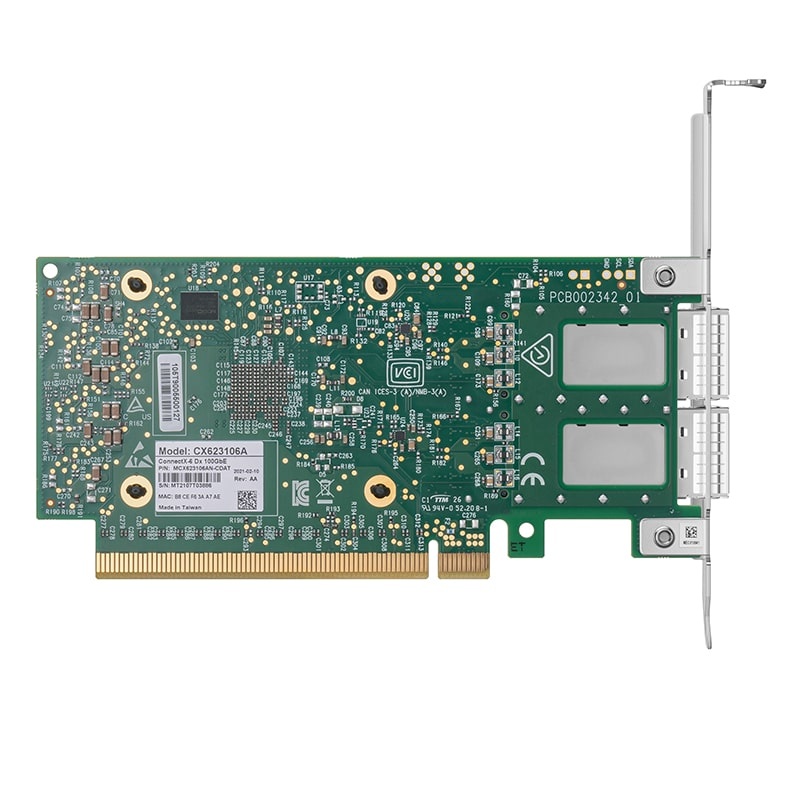

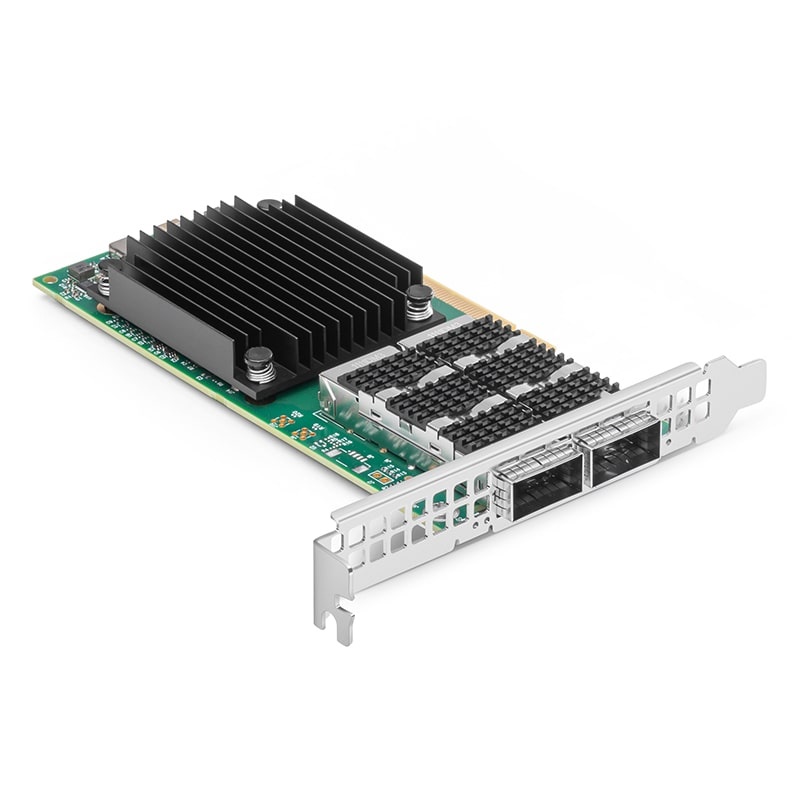

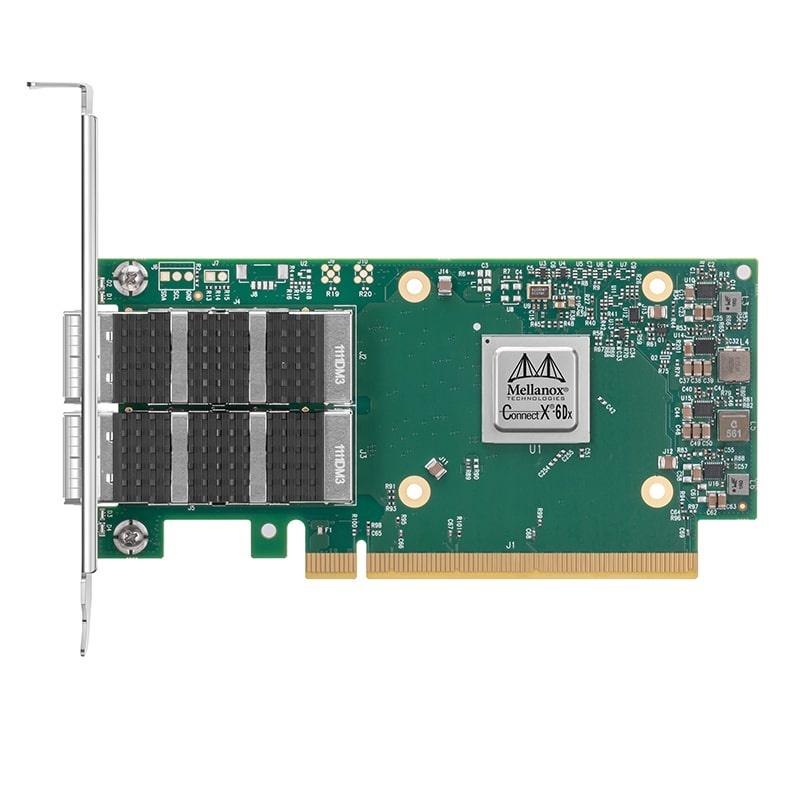

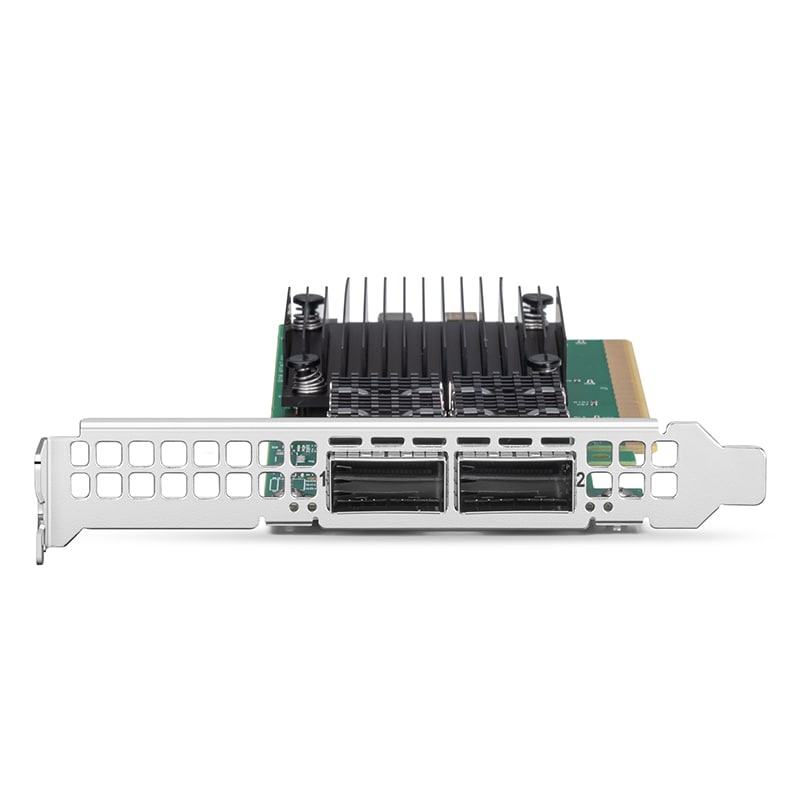

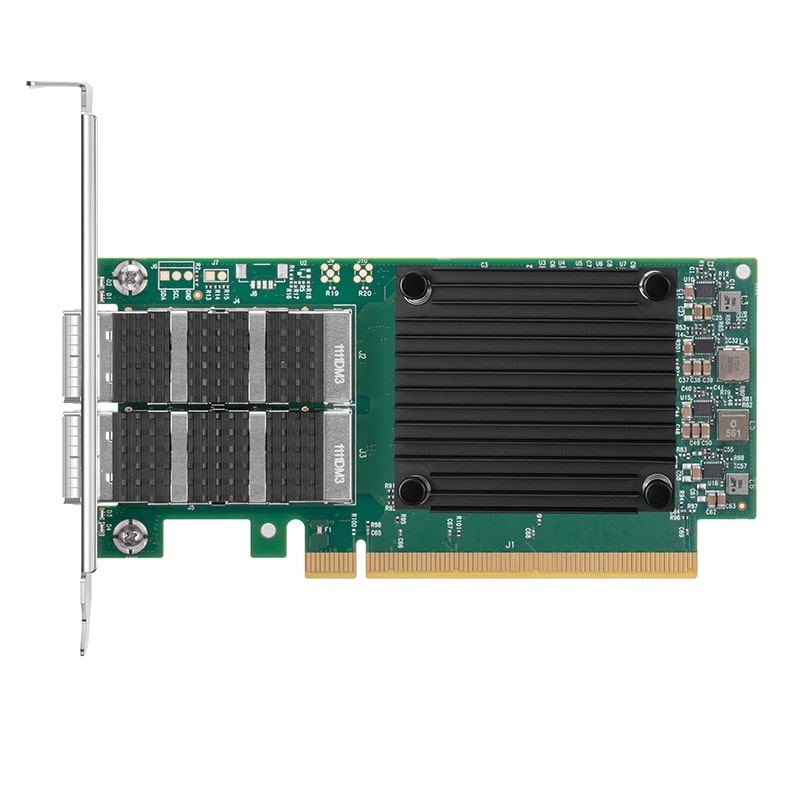

Mellanox MCX623106AN-CDAT
The Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN is a high-performance dual-port 100GbE network adapter designed for cloud computing, artificial intelligence (AI), high-performance computing (HPC), and enterprise data centers. With PCIe 4.0 x16 connectivity, this cutting-edge adapter provides ultra-low latency, high bandwidth, and advanced hardware acceleration, making it ideal for virtualization, security, and storage networking applications.
Key Features
-
Dual-Port 100GbE Connectivity – Supports ultra-high-speed networking with two QSFP56 ports.
-
PCIe 4.0 x16 Interface – Delivers maximum bandwidth and high-speed data transfer.
-
RDMA Over Converged Ethernet (RoCE v2) – Enables low-latency, high-performance networking for HPC and storage applications.
-
Advanced Virtualization Support – Features SR-IOV, VXLAN, NVGRE, and Geneve tunneling for cloud and virtualized environments.
-
AI & Security Acceleration – Offloads encryption, data compression, and network acceleration tasks for enhanced efficiency.
-
Secure Boot & Firmware Protection – Ensures data integrity and security in enterprise deployments.
-
Energy-Efficient Design – Optimized for low power consumption without compromising performance.
-
Tall Bracket Included – Standard server-ready form factor (low-profile bracket available separately).
BENEFITS of MCX623106AN-CDAT
-
Ultra-low-latency, high-bandwidth connectivity for AI, machine learning, and high-speed data processing.
-
Optimized for cloud computing with advanced virtualization features.
-
RoCE v2 support for high-efficiency storage and high-performance workloads.
-
Offloads security and networking tasks, reducing CPU overhead and enhancing network efficiency.
-
Supports NVMe-over-Fabrics (NVMe-oF) for high-speed storage networking.
Technical Specifications: Mellanox MCX623106AN-CDAT
| Parameter | Specification |
|---|---|
| Model | MCX623106AN-CDAT |
| Network Speed | 100GbE |
| Ports | 2 × QSFP56 |
| Interface | PCIe 4.0 x16 |
| RDMA Support | RoCE v2 |
| Virtualization | SR-IOV, VXLAN, NVGRE, Geneve |
| Security Features | Secure Boot, Firmware Protection |
| Hardware Offloading | Encryption, Compression, Network Acceleration |
| Form Factor | Standard with Tall Bracket (low-profile option available) |
| Power Consumption | Low Power Design |
| Operating Temperature | 0°C to 55°C |
| Compliance | RoHS, IEEE 802.3 |
Applications
-
High-Performance Computing (HPC) – Delivers ultra-low-latency, high-bandwidth networking for AI and deep learning.
-
Enterprise & Cloud Data Centers – Enables scalable, high-speed connectivity for cloud workloads.
-
Storage Networking & NVMe-oF – Optimized for high-speed storage solutions.
-
Virtualized Environments – Enhances workload scalability and network performance.
-
AI & Machine Learning Workloads – Supports real-time data processing and distributed computing.
