Mellanox MCX623106AS-CDAT

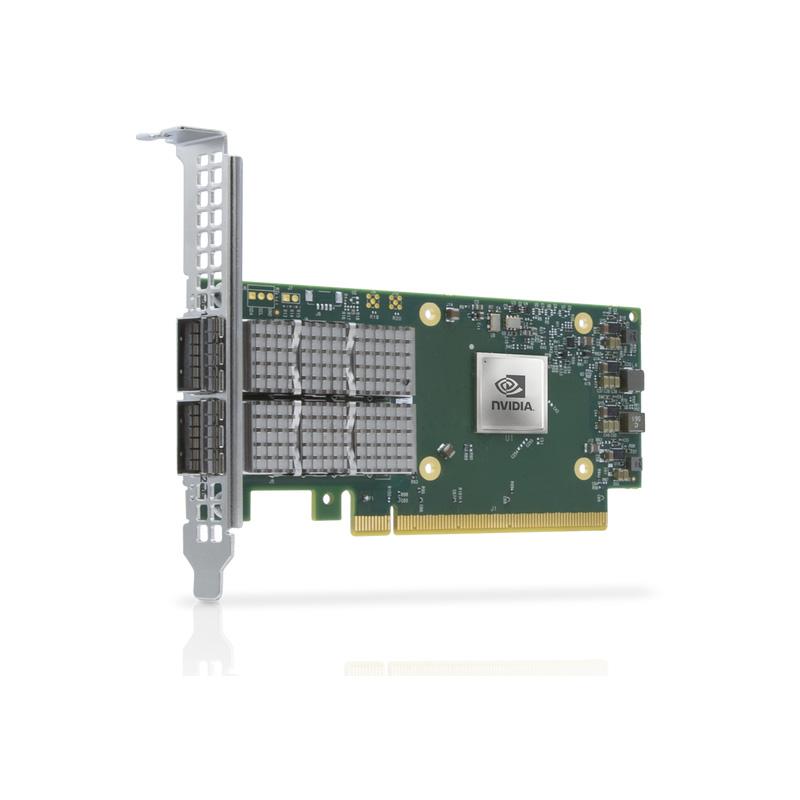

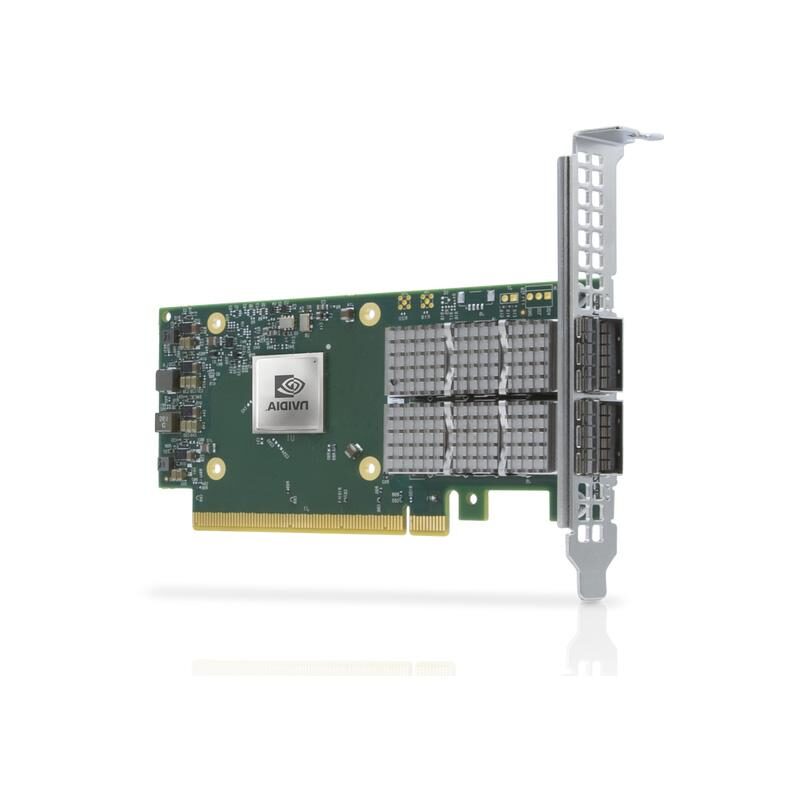

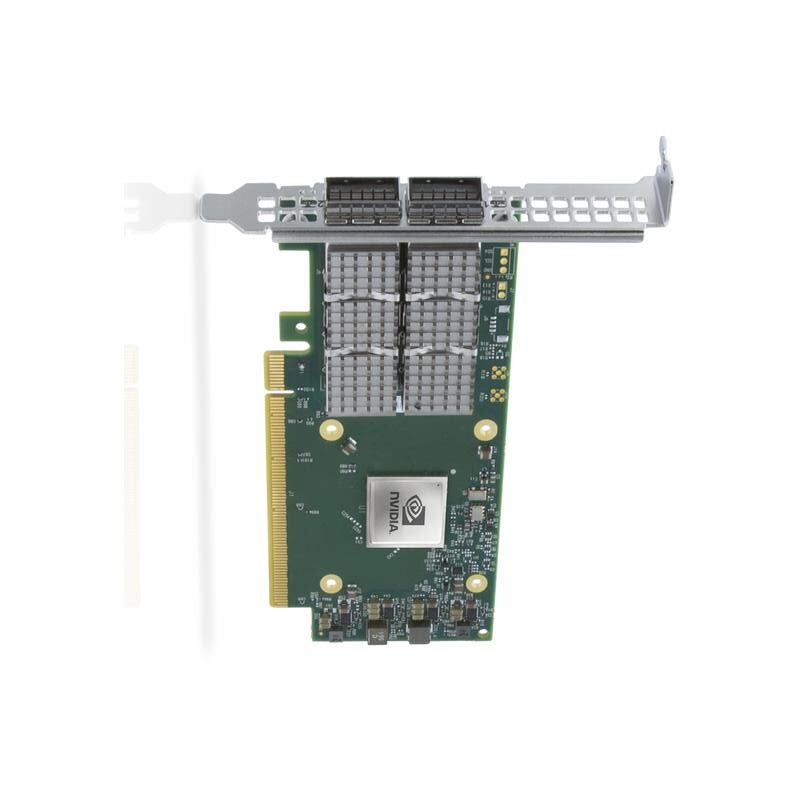

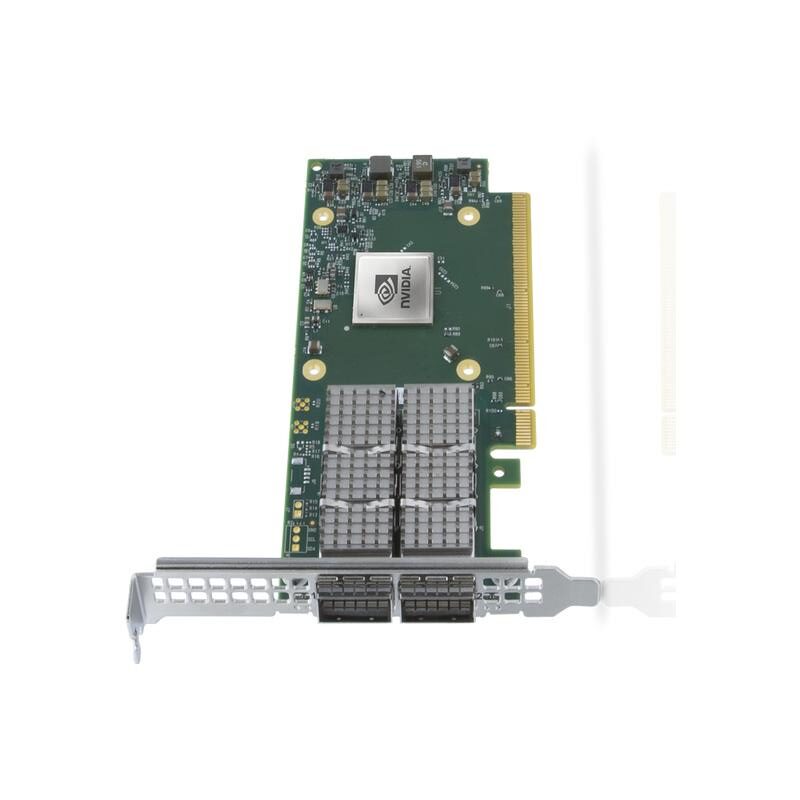

The Mellanox MCX623106AS-CDAT ConnectX-6 Dx EN is a high-performance dual-port 100GbE QSFP56 network interface card (NIC) designed to meet the demands of high-bandwidth applications, including high-performance computing (HPC), cloud data centers, and enterprise networking. Featuring PCIe 4.0 x16 connectivity, this card provides exceptional throughput and ultra-low latency for data-intensive workloads.
Key Features
- Dual-Port 100GbE Connectivity – Offers two QSFP56 ports for ultra-fast network speeds of up to 100GbE. Ideal for high-throughput and low-latency applications.
- PCIe 4.0 x16 Interface – Ensures maximum bandwidth utilization and fast data transfer speeds, supporting demanding applications in modern data centers.
- Secure Boot – Protects the system during boot-up, preventing unauthorized code from running and ensuring security in enterprise environments.
- No Crypto – The card does not include cryptographic features, focusing on high-speed data transmission and offloading without crypto acceleration.
- RDMA Over Converged Ethernet (RoCE v2) – Supports RoCE v2 for low-latency, high-performance networking in storage and HPC environments.
- Virtualization Optimized – Includes support for SR-IOV, VXLAN, NVGRE, and Geneve, making it ideal for virtualized environments.
- Hardware Offloading – Reduces CPU overhead, increasing overall network efficiency and reducing latency for high-performance applications.
- Tall Bracket – Includes a tall bracket for standard server racks (low-profile bracket available separately).
BENEFITS of MCX623106AS-CDAT
- Dual-Port 100GbE offers exceptional network performance for enterprise IT infrastructure, high-speed cloud, and data center operations.
- RoCE v2 support ensures high-efficiency data transfer for machine learning, AI, and storage applications.
- Designed for high-performance virtualized environments, improving scalability and network performance for cloud computing and IT services.
- Secure Boot enhances system integrity by ensuring only authorized firmware and software are loaded during the system startup.
- Hardware Offloading accelerates network packet processing, reducing CPU load and enabling efficient handling of large data volumes in enterprise workloads.
Technical Specifications: Mellanox MCX623106AS-CDAT
| Parameter | Specification |
|---|---|
| Model | MCX623106AS-CDAT |
| Network Speed | 100GbE |
| Ports | 2 × QSFP56 |
| Interface | PCIe 4.0 x16 |
| RDMA Support | RoCE v2 |
| Virtualization | SR-IOV, VXLAN, NVGRE, Geneve |
| Hardware Offloading | Yes |
| Security Features | Secure Boot |
| Form Factor | Standard with Tall Bracket (low-profile option available) |
| Power Consumption | Low Power Design |
| Operating Temperature | 0°C to 55°C |
| Compliance | RoHS, IEEE 802.3 |
Applications
- High-Performance Computing (HPC) – Perfect for AI, deep learning, and scientific research requiring high-speed, low-latency networking.
- Enterprise & Cloud Data Centers – Facilitates high-bandwidth, low-latency network connectivity for cloud computing and IT infrastructure.
- Virtualized Environments – Optimized for high-performance virtualization with fast data transfers in cloud and enterprise data centers.
- Storage Networking & NVMe-oF – Supports high-speed storage networking for NVMe-over-Fabrics (NVMe-oF) and other data transfer protocols in large-scale storage environments.
- AI & Machine Learning Workloads – Enhances real-time data processing and distributed computing in data-driven applications.
