- Application:data central
- Color:Customized
- Jacket:LSZH PVC
- Certification:CE RoHS, ISO
- Length:1.0m or customized
- Fiber type:OM3
- Packing:PE Bag
- fiber:12 core
- No. of Fiber:12.
- Use:FTTX
- Selling Units:Single item
- Single package size: 15X12X6 cm
- Single gross weight:0.300 kg
- Package Type:PE bags and carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)10To be negotiated
professional manufacturer mpo pigtail patchcord 12 core mpo-lc om3 fiber optic cable pigtail
MPO Fanout cable assemblies are with a single 12 core female MPO connector in one end and LC connectors for another end. Directly connecting the backbone cable with the equipment without MPO cassette, beside it, the cable is also used for cable expanding in the data center.
Features
12 to 144 core cable connection
Adopts 4, 8, 12 or 24 core MPO connector. Reduce fault failure rate and save space
Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
Optional multimode OM3, OM4, single mode OS1 OS2 fiber requirement
Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage
| Specifications | ||
| MTP/MPO Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.70 (Standard) | ≤0.70 (Standard) |
| ≤0.35 (Elite) | ≤0.35 (Elite) | |
|
Return Loss (dB)
|
≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
| LC/SC/FC/ST/E2000 Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 |
| Fiber Specification | ||||||
| Fiber Type | Multimode | Single Mode | ||||
| OM1 | OM2 | OM3 | OM4 | G.652 | G.657 | |
| Core Diameter (um) | 62.5/125 | 50/125 | 50/125 | 50/125 | 9/125 | 9/125 |
| Wavelengths (nm) | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 1310/1550 | 1310/1550 |
| Max. Attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.36/0.25 | 0.36/0.25 |
| Min. OFL Bandwidth (MHz·km) | 200/500 | 500/500 | 1500/500 | 3500/500 | – | – |
| Min. Effective Modal Bandwidth (MHz·km) | – | 500 | 2000 | 4700 | – | – |

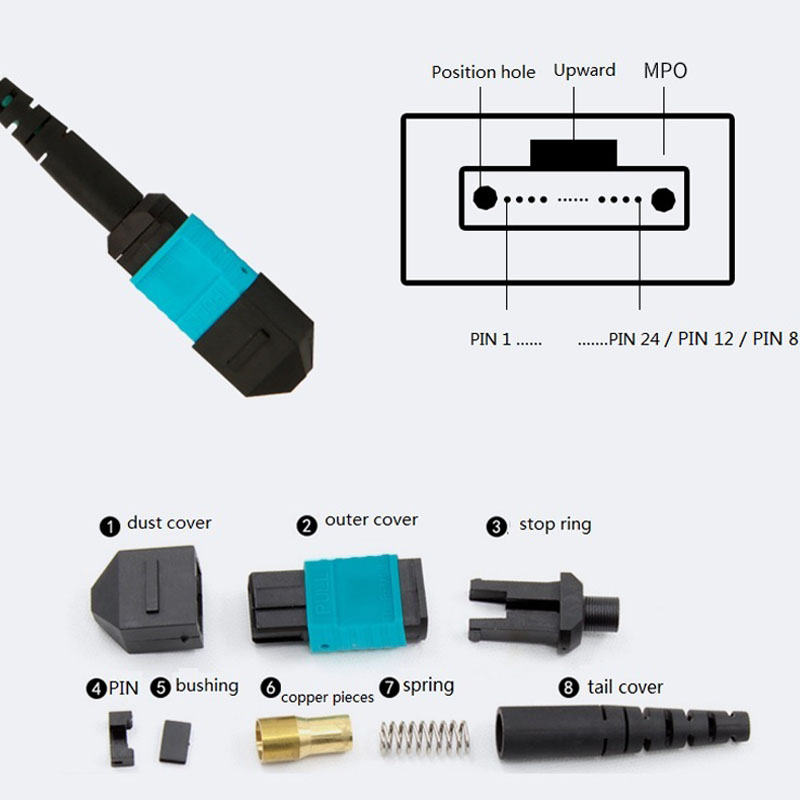

Structure:

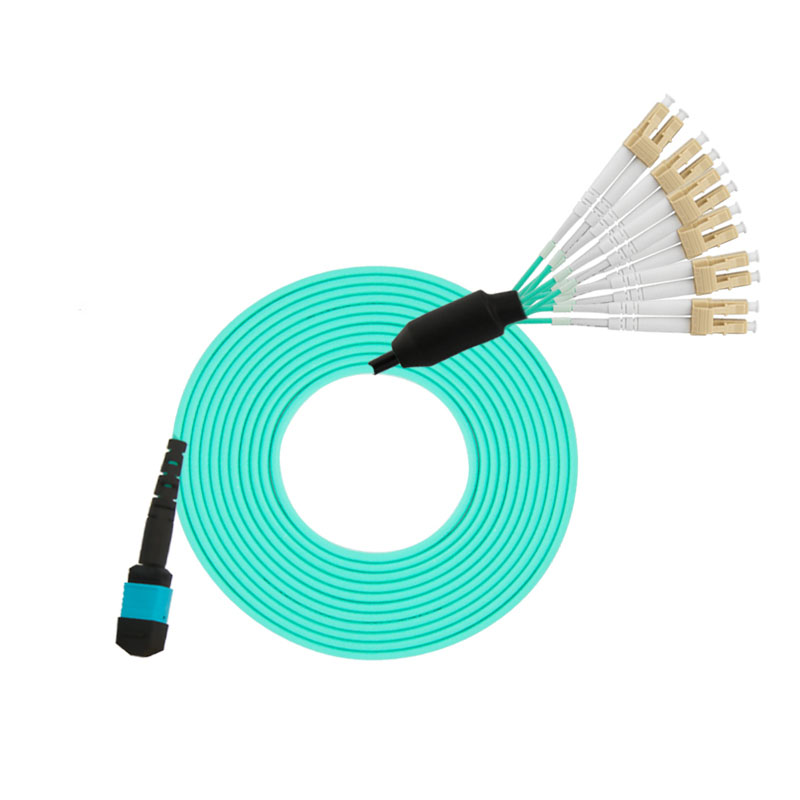

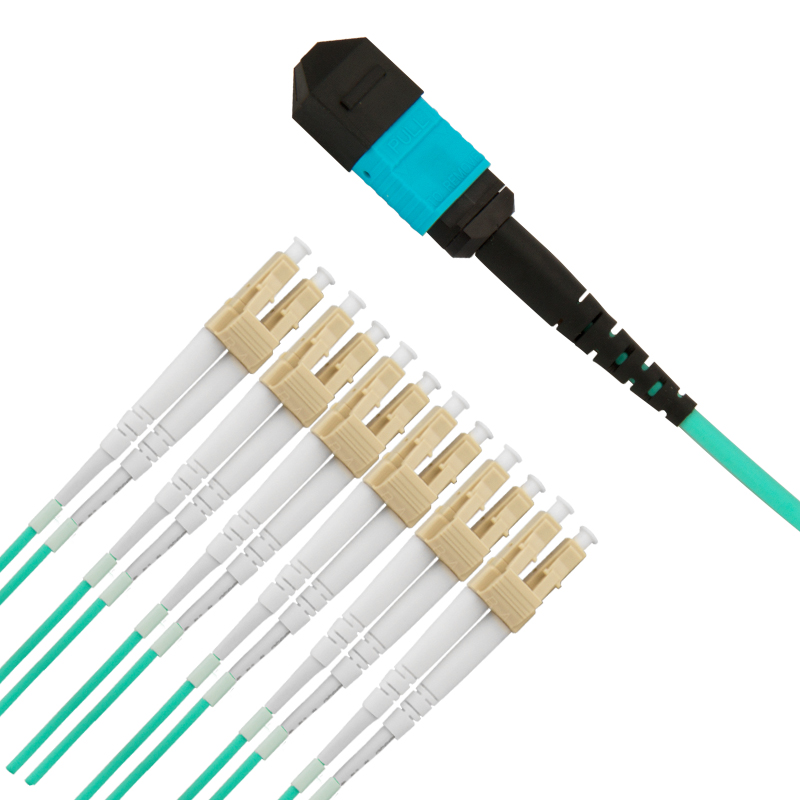

product pic:
