- Model Number:GPFD
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:SmartAX MA5680T/MA5683T/MA5608T
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
Shenzhen

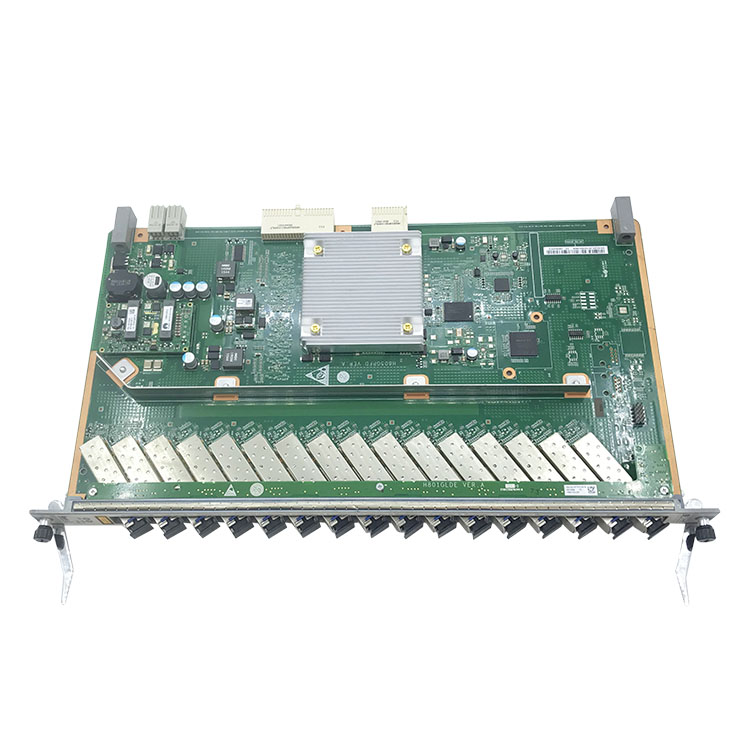

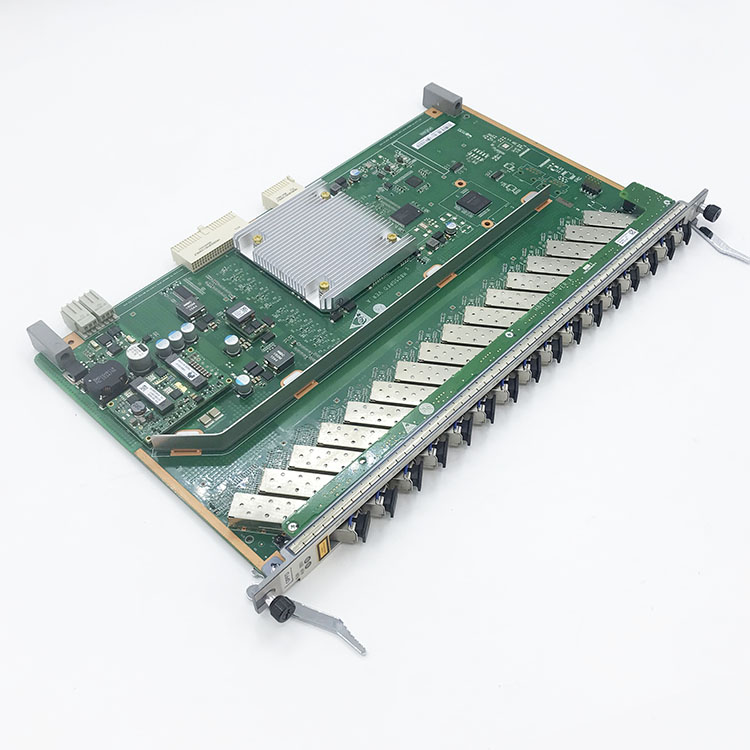

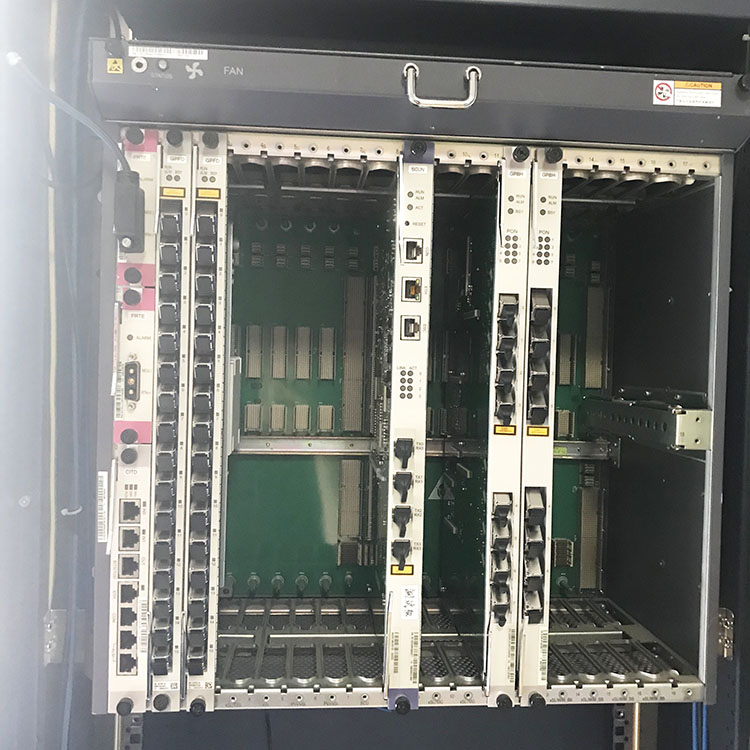

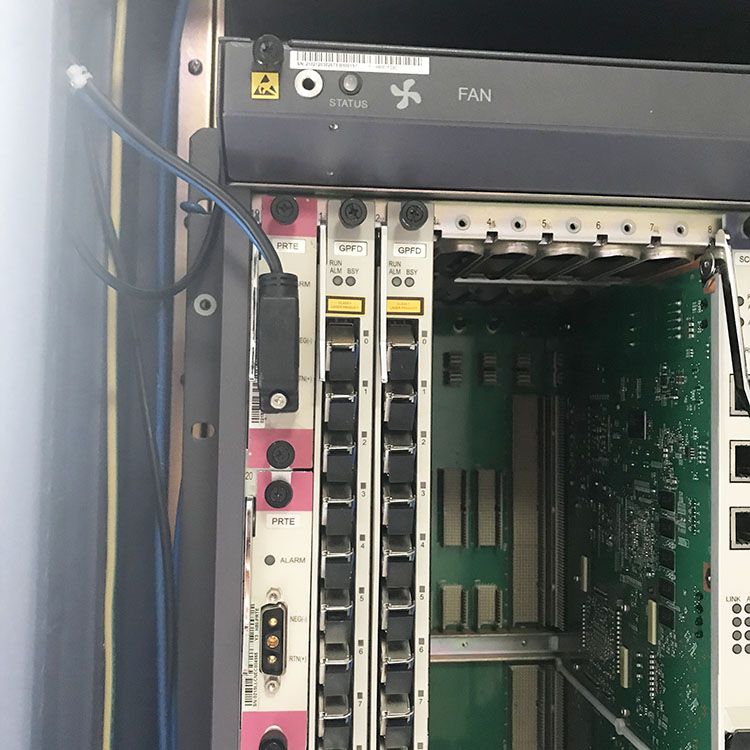

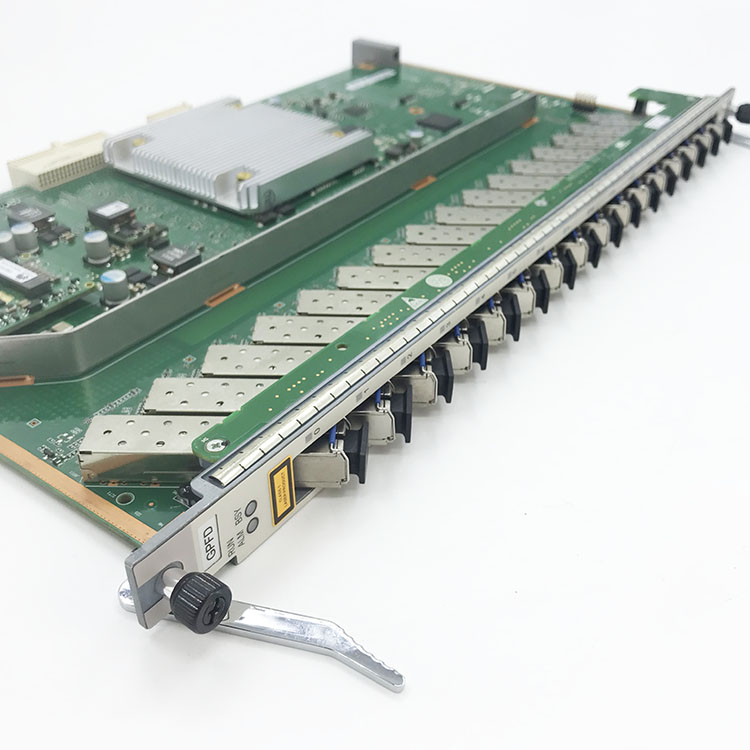

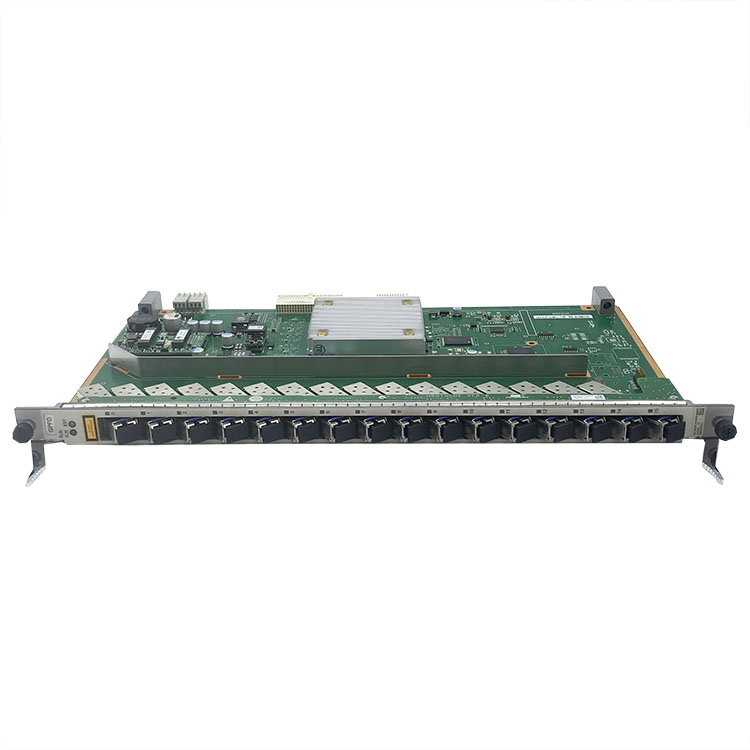

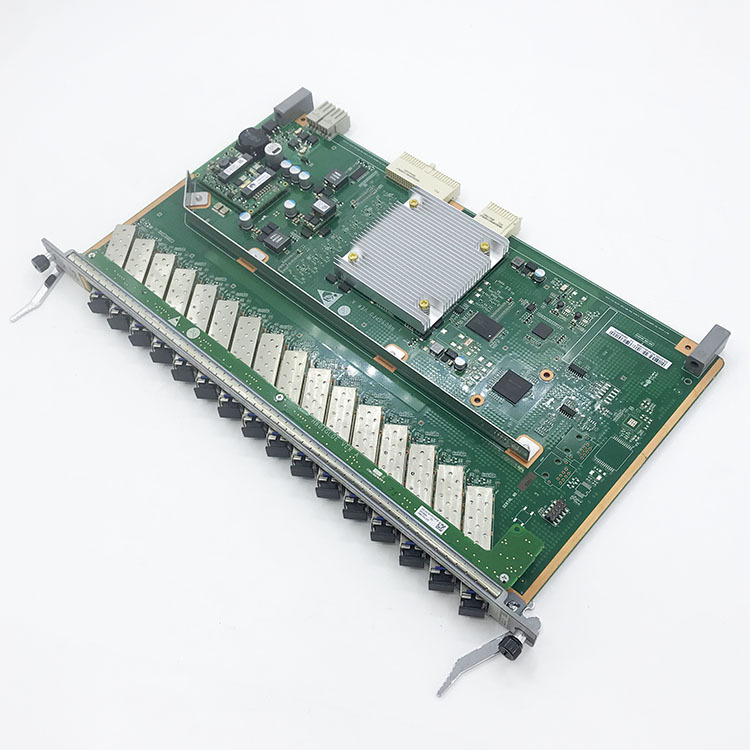

- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Specification
|
Brand
|
Huawei
|
|
Model
|
GPFD
|
|
GPON Port
|
16-GPON Port
|
|
Type
|
C+ Module : One-fiber bi-directional optical module, class C+
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
|
|
Minimum Output Optical Power
|
C+ Module : 3.00 dBm
|
|
Maximum Output Optical Power
|
C+ Module : 7.00 dBm
|
|
Maximum Receiver Sensitivity
|
C+ Module : -32.00 dBm
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20.00 km
|
|
Overload Optical Power
|
C+ Module : -12.0 dBm
|
|
Extinction Ratio
|
8.2 dB
|
|
Dimensions (W x D x H)
|
22.86 mm x 237.00 mm x 395.40 mm
|
|
Power Consumption
|
H802GPFD : Static: 45 W, Maximum: 73 W
|
|
H803GPFD : Static: 39 W, Maximum: 61 W
|
|
|
H805GPFD : Static: 26 W, Maximum: 50 W
|
|
|
Maximum Frame Size
|
2004 bytes
|
|
Operating temperature
|
-25°C to +65°C
|
