- Model Number:H807GPBH
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:FTTx
- Warranty Time:1 year
- Network:None
- Ports:8 Ports
-
- Supply Ability
- 500 Piece/Pieces per Week
-
- Packaging Details
Packed with cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Overview

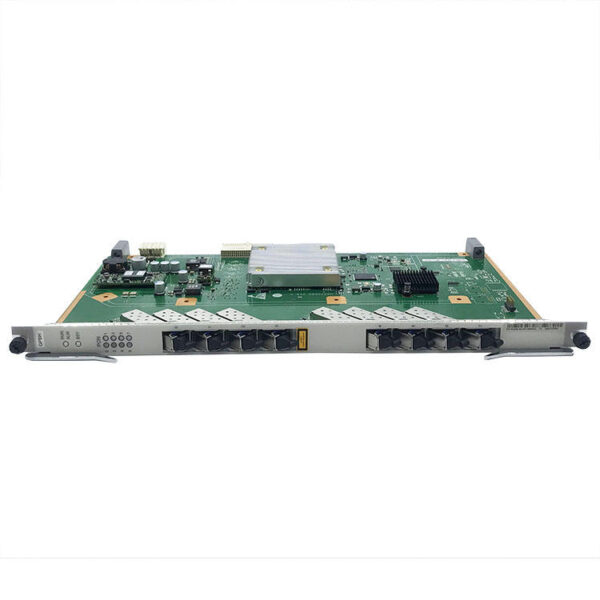

The H807GPBH board is an 8-port GPON OLT interface board. It works together with the ONU to provide the GPON access service.
High-precision clock and time synchronization: 50-ppb frequency synchronization and 100-ns phase synchronization
· Flexible SLA: 4-level HQoS, improving user experience
· High reliability
– Chip-level type B protection switching, shortening the switching time to less than 50 ms
– Type C protection dual-homing, providing geography-level disaster recovery
– Real-time rogue ONU detection and isolation, ensuring stable service running
· Easy OAM
– Variable-length OMCI, improving upgrade efficiency and reducing break off time
– A maximum distance difference of 40 km between two ONUs under the same PON port, simplifying network planning
– 1:64 eOTDR, supporting accurate fault demarcation and quick fault locating
Specifications
| Forwarding capability | 20 Gbit/s |
| T-CONTs per PON port | 1024 |
| Service flows per PON board | 8184 |
| Maximum frame size | 2004 bytes 9216 bytes (jumbo frame enabled) |
| MAC addresses | 16384 |
| Maximum distance difference between two ONUs under the same PON port | 40 km from V800R013 |
| N:1/1:1 VMAC | Supported |
| FEC | Bidirection |
| CAR group | Supported |
| IPv6 | Supported |
| 4-level HQoS | Supported |
| Variable-length OMCI | Supported from V800R013 |
| ONU-based shaping or queue-based shaping | Supported |
| Load sharing | Supported |
| High-precision clock time synchronization | Supported |
| Type B/Type C protection | Supported |
| Rogue ONU detection and isolation | Supported |
| Automatic shutdown at high temperature | Supported |
| Automatic shutdown of an idle port | Supported |
| 1:64 eOTDR | Supported (used together with the reflector) |
| Environment | |
| Operating temperature | -40° C to +65° C |
| Power consumption | • Static: 25 W • Maximum: 38 W |
