- Model Number:HG8546M
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:Huawei
- Use:FTTH
- Warranty Time:1 YEAR
- Network:wifi
- Product name:Huawei HG8546M ONU
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
Retail package for Huawei HG8546M ONU
-
- Port
Shenzhen/Guangzhou
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description

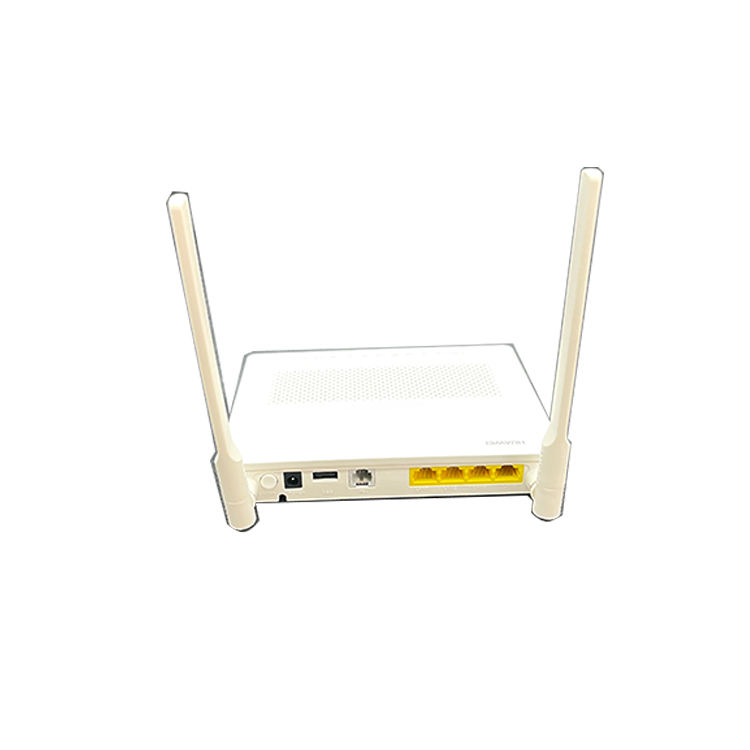

The EchoLife HG8546M provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the HG8546M a perfect choice for broadband access.
| Model | EG8141A5 |
| Dimensions (L x W x H) | 30 mm x 152 mm x 105 mm (without external antenna and pads) |
| Weight | < 180 g |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50/60 Hz |
| System Power Supply | 11V to 14V DC, 1.5A |
| Static Power Consumption | 3.1W |
| Maximum Power Consumption | 7.15W |
| NNI | GPON |
| UNI | 1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi |
| Optical Connector | SC/APC |
| Indicators | POWER/PON/LOS/LAN/TEL/WLAN/WPS |
