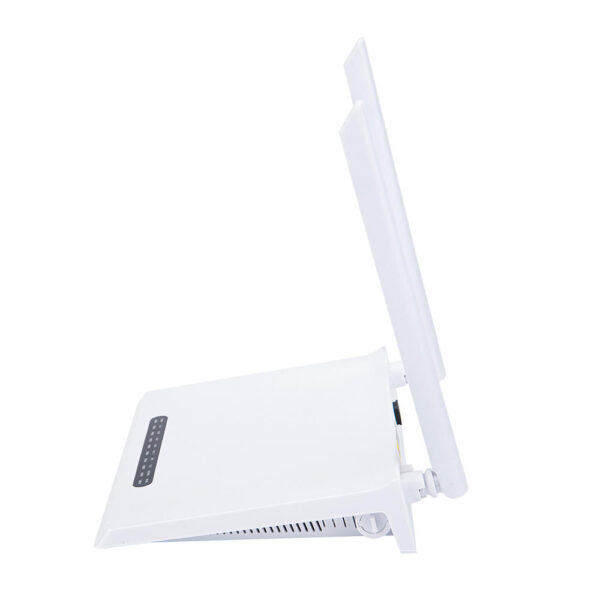

New catv onu GPON/EPON SC/UPC/APC 1GE + 1FE + Wi-Fi + CATV ONT

SKU: 1600497376958 Categories: , ,
Add to quote
Overview
Essential details
Model Number:
OEM
Type:
FTTx Solutions, ONU, FTTx Solutions
Place of Origin:
Guangdong, China, Guangdong, China
Brand Name:
OEM
Use:
FTTH FTTB FTTX network, FTTX FTTH
Warranty Time:
12month, 12months
Similiar Model:
EG8143A5
Configuration:
1GE + 1FE + Wi-Fi + CATV
Color:
White
Fiber Type:
Gpon
Firmware:
English
Ports:
SC/APC/UPC
Supply Ability
Supply Ability
5000 Piece/Pieces per Month
Packaging & delivery
Packaging Details

Carton packing

Port

Shanghai,Shenzhen,Yiwu or as your request

Picture Example:
package-img
Lead time:
Quantity(pieces) 1 – 500 >500
Lead time (days) 7 To be negotiated
Product Description

 Function: 1G1F+WIFI+CATV+POTS
 WIFI 2.4G 2×2 MIMO
 Compatible with HGU
 BOSA with BOB
PON Interface: SC/APC
 Upstream: 1310nm; Downstream: 1490nm
 CATV: 1550nm
 DC Power: 12V/1A
 Supports Dual Mode for GPON and EPON
Pilot Lamp
Status
Description



WIFI
On
The WIFI interface is up.
Blink
The WIFI interface is sending or/and receiving data (ACT).
Off
The WIFI interface is down.


WPS
Blink
The WIFI interface is securely establishing a connection.
Off
The WIFI interface does not establish a secure connection.


PWR
On
The device is powered up.
Off
The device is powered down.


LOS
Blink
The device doses not receive optical signals or with low signals.
Off
The device has received optical signal.



PON
On
The device has registered to the PON system.
Blink
The device is registering the PON system.
Off
The device registration is incorrect.



LAN1~LAN2
On
Port (LANx) is connected properly (LINK).
Blink
Port (LANx) is sending or/and receiving data (ACT).
Off
Port (LANx) connection exception or not connected.
Worn
(CATV)
On
Input optical power is higher than 3dbm or lower than -15dbm
Off
Input optical power is between -15dbm and 3dbm
Normal
(CATV)
On
Input optical power is between -15dbm and 3dbm
Off
Input optical power is higher than 3dbm or lower than -15dbm
