- Model Number:HS8545M5
- Type:ONU
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:FTTH
- Warranty Time:1 year
- Network:Wired LAN, wifi, 4g
-
- Supply Ability
- 2500 Piece/Pieces per Week
-
- Packaging Details
Cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 5000>5000Lead time (days)15To be negotiated
Overview
Huawei HS8545M5 FTTH is a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. Huawei HS8545M5 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Huawei HS8545M5 FTTH gives a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Specifications
| Brand | Huawei | |
| Model | Huawei HS8545M5 | |
| Power supply | 12V,1.5A | |
| Port | 1GE 3 FE I USB 1POT | |
| WiFi | YES | |
| Power consumption | ≤15W | |
| (full loaded) | ||
| Outline dimensions | 240*160*35mm | |
| (mm) (W*D*H) | ||
| Weight (in maximum | ≤0.5kg | |
| configuration) | ||
| WIFI | Antenna | 2×2, 5dBi external antenna |
| EIRP | Max 25dBm | |
| VoIP | REN | Max 5REN |
| Connector | 1x RJ11 | |
| Ringing | 65V RMS ringing voltage | |
| USB | Max 1A for each port | |
| Environmental requirements | Working temperature:0ºC~50ºC | |
| Storage temperature:-40ºC~70ºC | ||
| Working humidity:5%~90% Storage temperature:5%~95% no condensing |

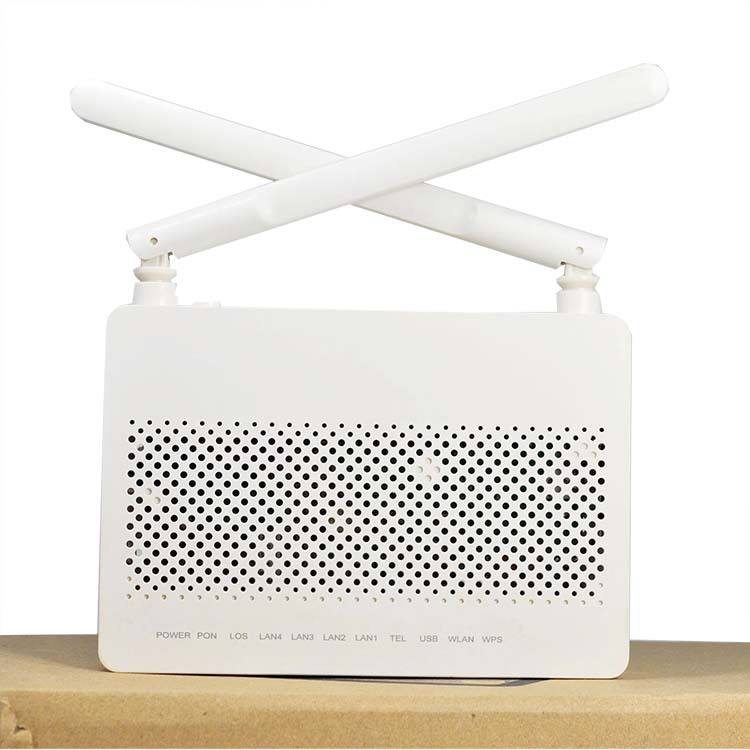

Product Pictures
