- Products Status:Stock
- Ports:8
- Transmission Rate:10/100/1000Mbps
- Function:POE, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:16Gbps
- Model Number:TS8208P-2F
- Place of Origin:Guangdong, China
- PoE Ports:8 Ports
- Uplink Ports:2*1000M SFP
- PoE Standard:IEEE802.3af /IEEE802.3at
- Whole Power:150W
- Max Power Per Port:30W
- Input:100-240VAC 50/60HZ
- Certification:CE FCC RoHS
- Operating temperature:0°– 55°C
- Dimensions (W x D x H):210X140X45mm( W*L*H)
-
- Supply Ability
- 5000 Piece/Pieces per Month
-
- Packaging Details
bubble box, carton
-
- Port
GUANGZHOU SHENZHEN

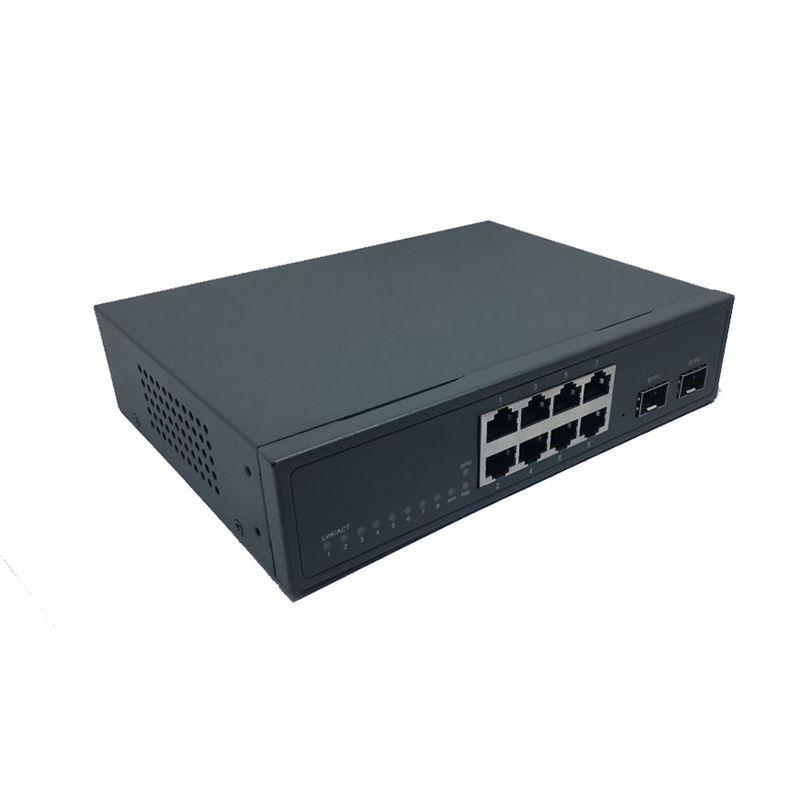

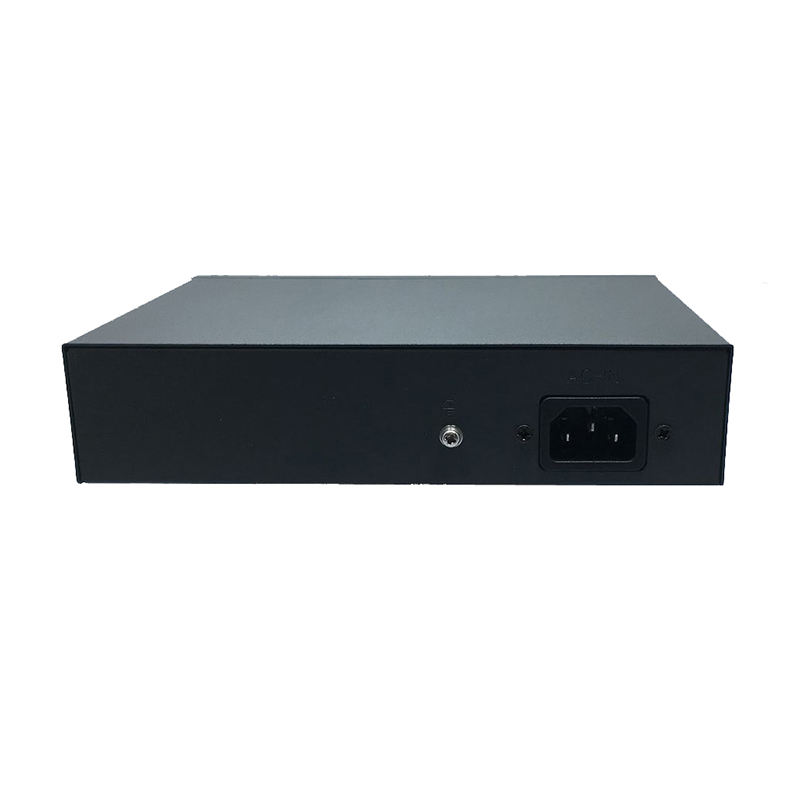

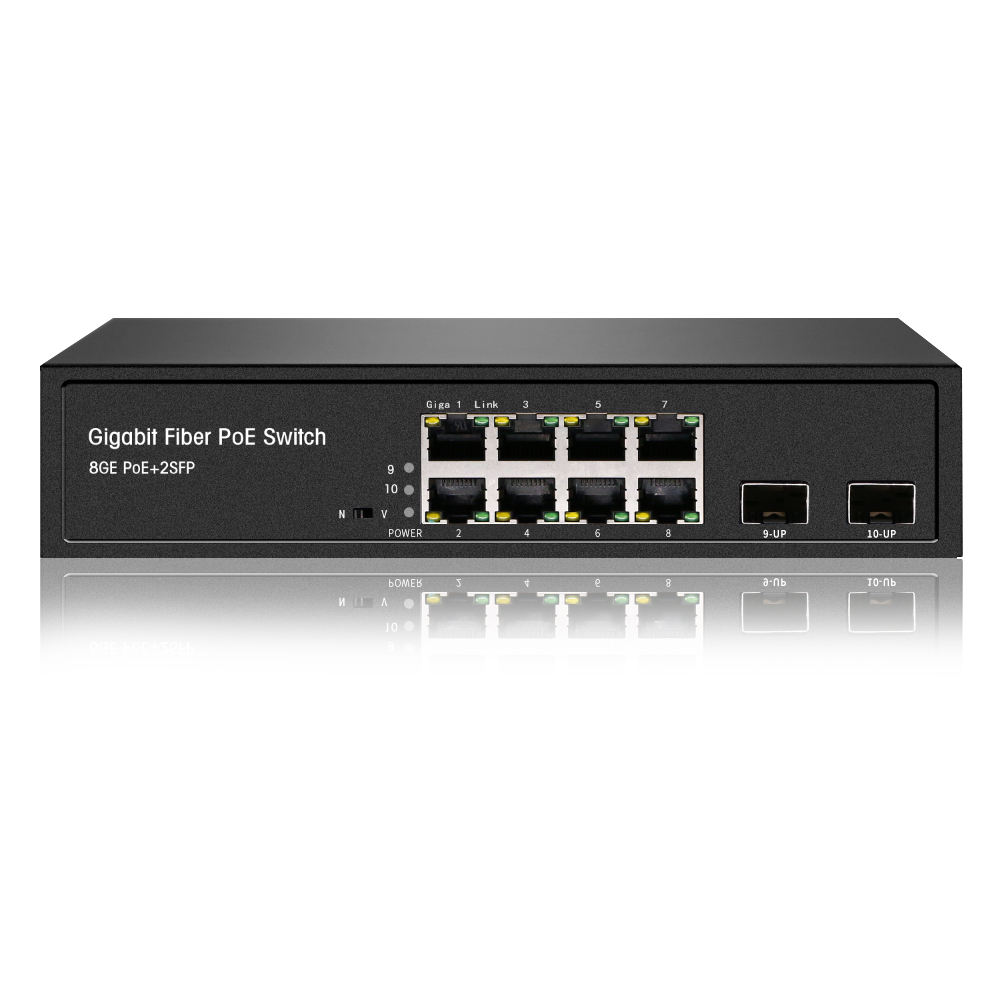

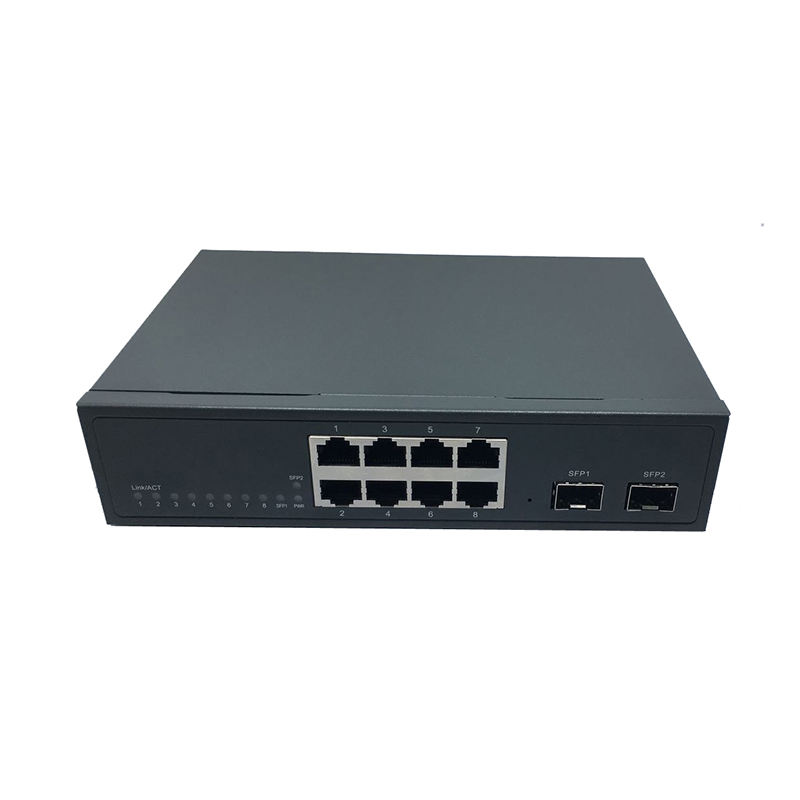

- Picture Example:
Product Description
8 Port PoE+2F Port Full Gigabit PoE Switch (Built-in 150W)
Key Features:
8*10/100/1000mbps POE port; 2*10/100/1000mbps uplink SFP Port
100m Distance
Vlan support
Support IEEE802.3AF/AT
Whole Power:150W
All port supported by MDI/MDIX auto flip and self-negotiation
Supply 8*10/100/1000Mpbs adaptive high-speed forwarding data packet non-lost port.
Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Each port max. power supply reached 30W.
Applications:
Wireless Access Point
IP Camera
IP Phone
Computer Networks
8*10/100/1000mbps POE port; 2*10/100/1000mbps uplink SFP Port
100m Distance
Vlan support
Support IEEE802.3AF/AT
Whole Power:150W
All port supported by MDI/MDIX auto flip and self-negotiation
Supply 8*10/100/1000Mpbs adaptive high-speed forwarding data packet non-lost port.
Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Each port max. power supply reached 30W.
HARDWARE FEATURES
|
Product
|
8G Port PoE+2F full giga POE Switch (Built-in)
|
|
Model
|
TS8208P-2F
|
|
1000M POE Port
|
1 to 8 support IEEE802.3AF/AT Standard
|
|
SFP port
|
9th_ 10th port support 1000Mbps
|
|
Output Power
|
15.4W/30W IEEE802.3af/at
|
|
Power Pin
|
Both 1/2+、3/6- and 4/5+7/8-
|
|
Whole Power
|
150W
|
|
POE Protocol
|
IEEE 802.3af/IEEE 802.3at
|
|
POE Type
|
End-span
|
|
Power Distance
|
150m
|
|
Network Standard
|
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
|
Network Medium
|
100/1000BASE-TX: 5 class and above non shielded twisted pair
|
|
Data Distance
|
≤150m
|
|
Switch Capability
|
20Gbps
|
|
Forwarding Mode
|
Store and forward
|
|
Forwarding Rate
|
100Mbps:14880pps
1000Mbps:14800pps |
|
MAC Address
|
MAC address table 8K
|
|
Port Function
|
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
Working Environment
|
Working temperature：0°– 55°C
|
|
Input
|
AC 100-240V 50/60HZ
|
|
Weight
|
1.8kg
|
|
Size
|
210mm*140mm*45mm(L*W*H)
|
