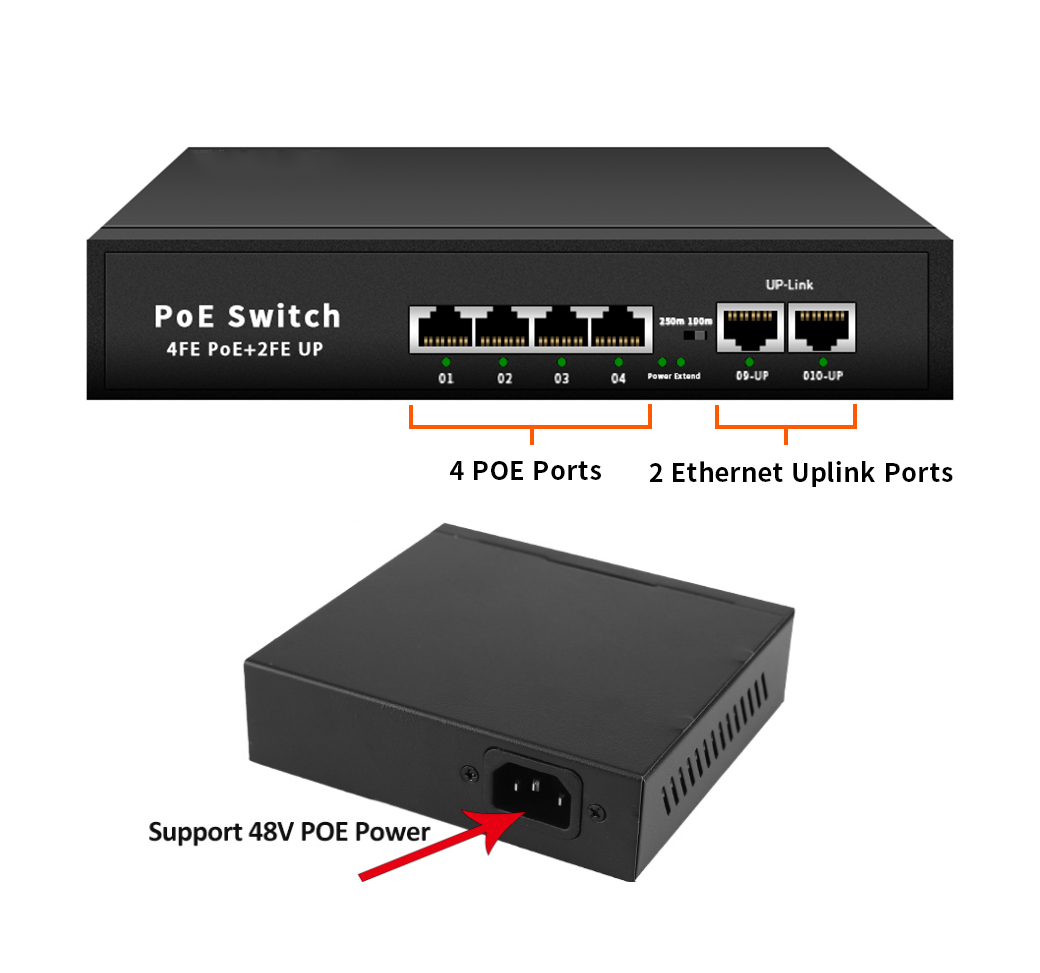

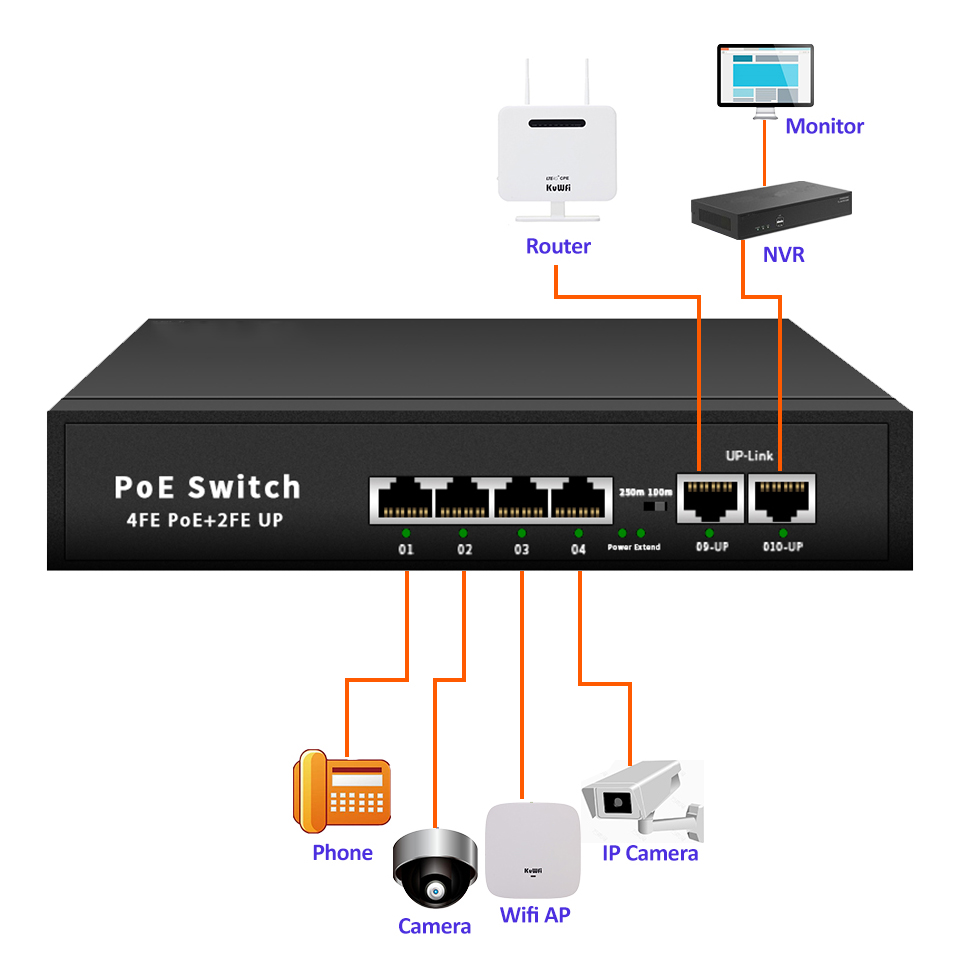

1.4-Port PoE Switch:4 x 10/100 Mbps PoE ports for Security IP Camera Connection +2 x 10/100Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. 3.RJ45 hub Switcher can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. 4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products

Product Name:MINI 4 Port 10/100M ACTIVE POE Switch(4+2)Data Pin:1/2+,3/6- Power Supply Type:Build in, 1/2+,3/6- PoE Output Power:15.4W/30W Connector:4*10/100mbps POE port,2*10/100mbps uplink portNetwork Medium Cat5 (UTP) or moreNetwork Standards:IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TXIEEE 802.3x Flow Control IEEE 802.3af Power over EthernetPoE power:15.4W per port(IEEE802.3af).Wiring: Data & power provided over pairs 1/2 and 3/6Half-duplex back pressure and IEEE 802.3x full-duplex flow controlBuffer memory:48Kb embedded memory per unitBackboard Bandwidth :1 .2GNetwork Latency:Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmissionPowerInput:52V DC inputPoE power consumption:15.4W per port(IEEE802.af)LED Indicators System: Power, PoE Maximum powerPer port: Link, Activity, Speed, PoE active, PoE error
