- Products Status:Stock
- Ports:4
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Brand Name:HTF
- Model Number:HT-POE8606G
- Place of Origin:Guangdong, China
- Interface:1~4 port 10/100/1000Mbps PoE ports
- 1000M SFP:1 SFP
- 1000M UPLINK:1 UPLINK
- MAC:2K
- PoE Port Power:30W Max
- Metal case:Desktop/Wall mounted
- Manufacturer:Shenzhen
- Power input:AC 100-265V 50/60Hz
- Operating Temperature:0℃~40℃ (32℉~104℉)
- Warranty:12 months
- Certification:FCC, ce, RoHS
- Selling Units:Single item
- Single package size: 23.8X18.6X7 cm
- Single gross weight:1.200 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)32028To be negotiated

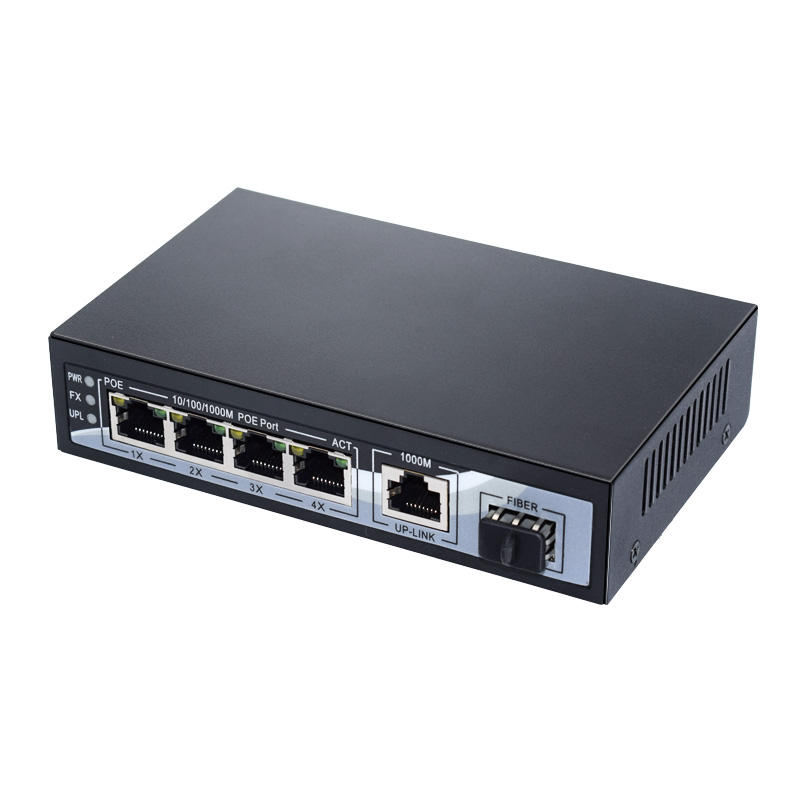

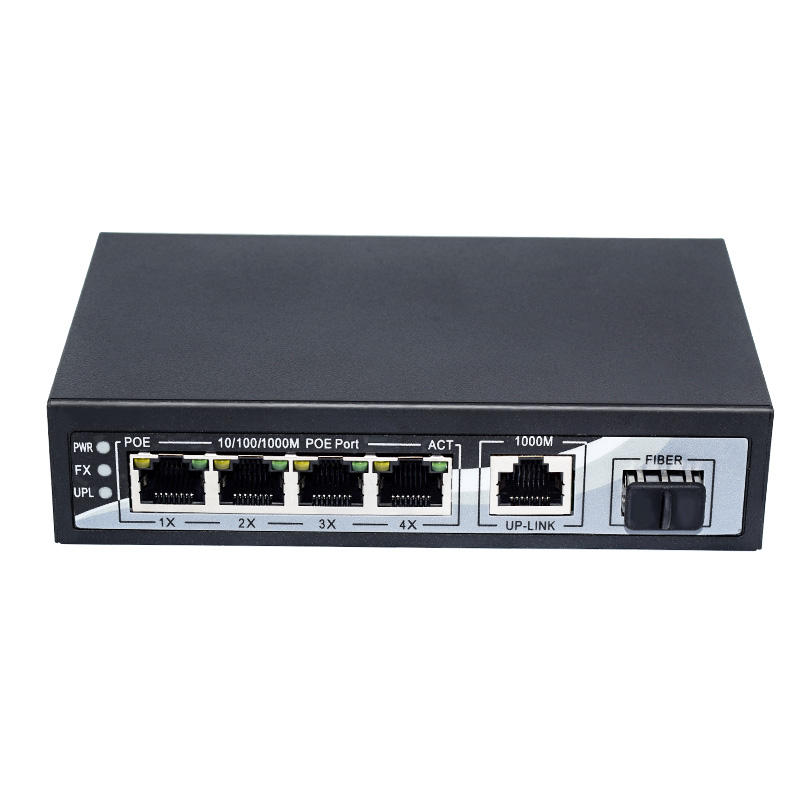

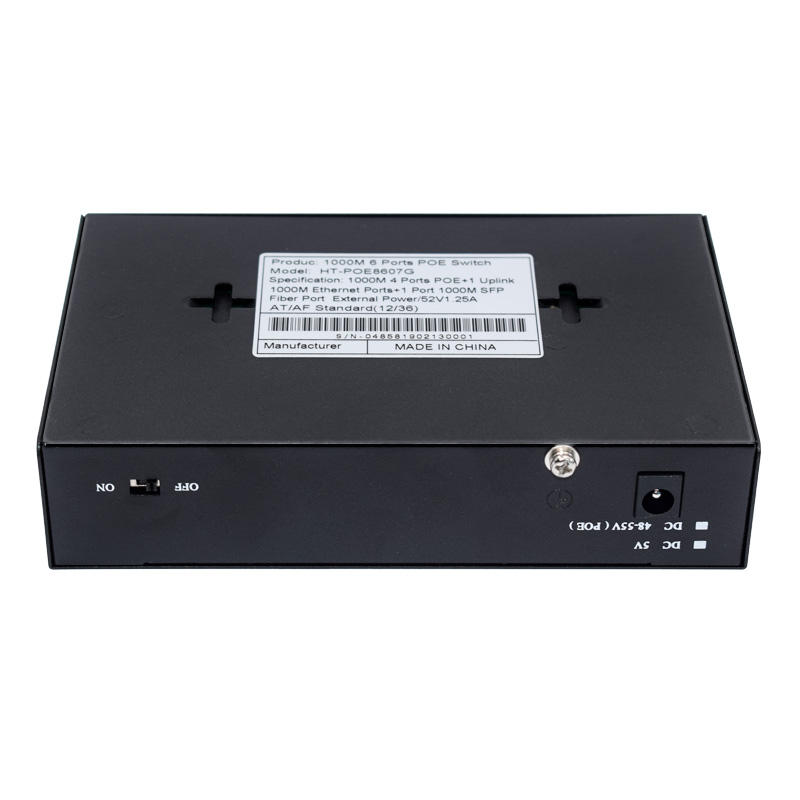

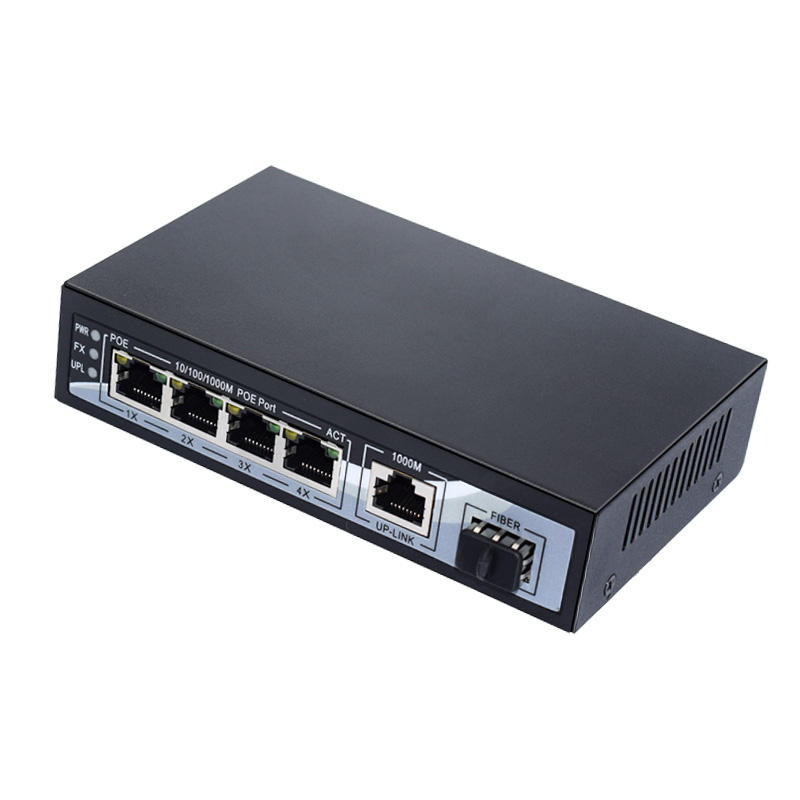

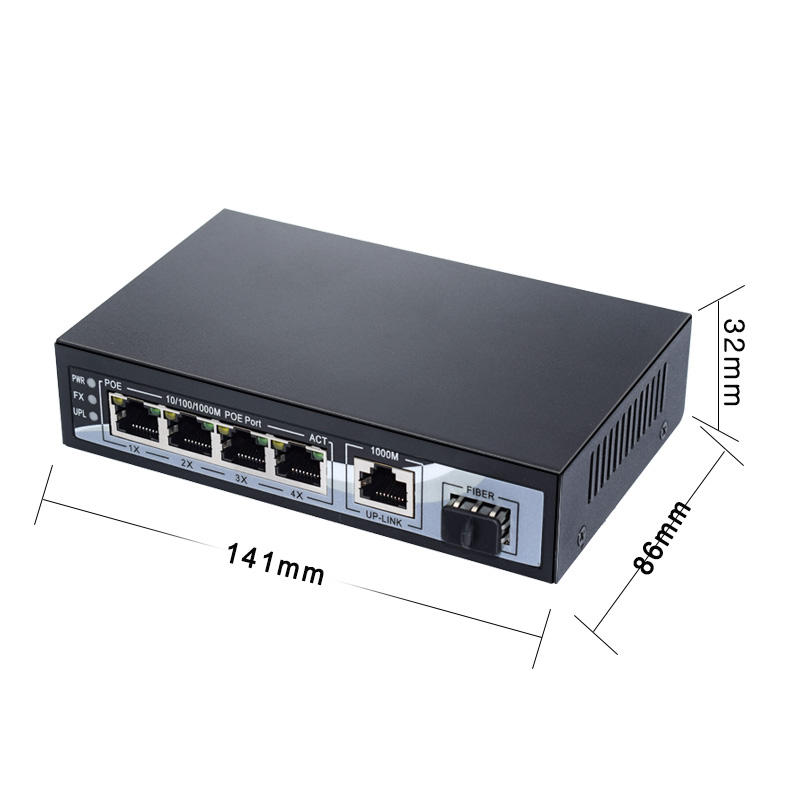

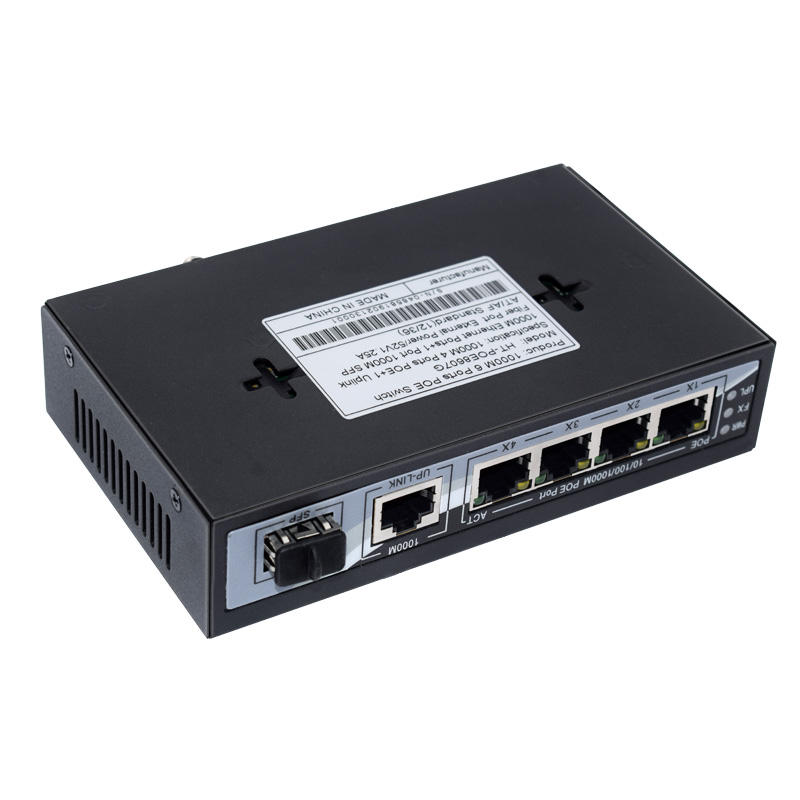

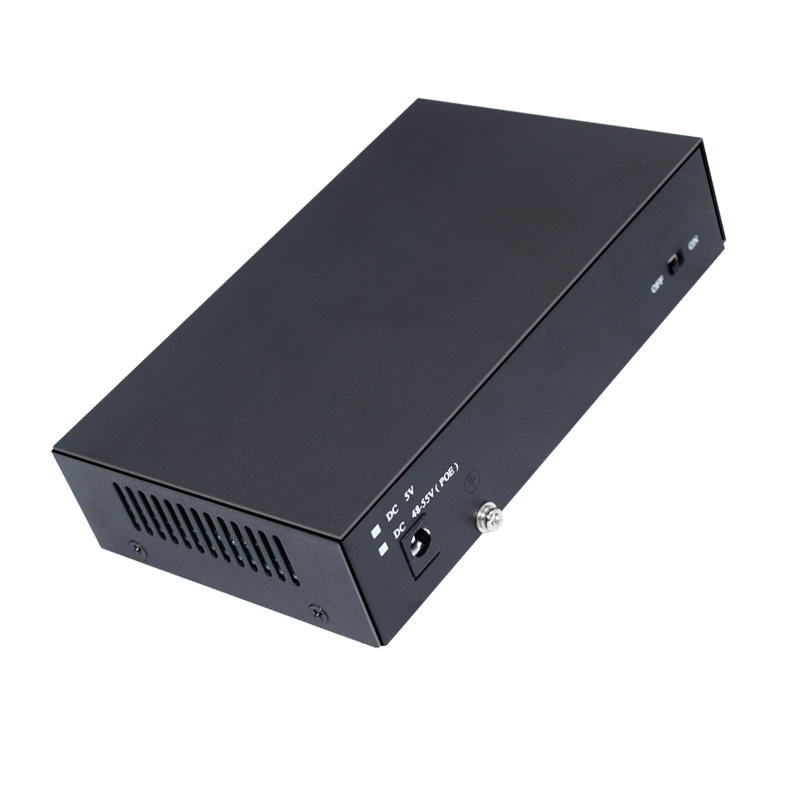

OEM ODM 4 Port 10 100 1000M Gigabit Network Ethernet Unmanaged POE Switch with1 SFP port and 1 Uplink Port
- 4 10/100/1000Mbps Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4)
- 1 Gigabit SFP port, 1 Gigabit uplink port
- 250M cable power support 65W MAX power output
- Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex
- Mode LED indicators for monitoring power, link, activity and speed
- Desktop mode with Metal Case
- Each POE port Up to 30W of power on
- Compatible With All IEEE 802.3at or Legacy
- Safe: Low Power Devices Receive Only the Power They Need
- Automatic Detection and Protection of Non–standard Ethernet
- Terminals Supports 10/100 Base-T applications
- Plug-and-Play no configuration required Internal power supply Easy installation and maintenance
- complies to IEEE 802.3af/at PoE standard and is backward
|
Model |
HT-POE8606G |
|
1000M POE Rj45 |
4 |
|
|
|
|
1000M UPLINK |
1 SFP ports, 1 Gigabit LAN port |
|
Exchange Mechanism |
Store-and-forward |
|
Bandwidth |
10G |
|
MAC |
2K |
|
|
Working Temperature: -10℃~55℃ |
|
|
Storage temperature: -40℃~70℃ |
|
Environmental |
Working Humidity :10%~90% RH non-condensing |
|
|
Storage Humidity:5%~90% RH non-condensing |
|
Power input |
AC 100-240V 50/60Hz MAX65W |
|
POE |
IEEE802.3af/at, per PoE Port up to 30W, |
|
|
IEEE 802.3 |
|
|
IEEE 802.3i 10BASE-T |
|
Standards Protocols |
IEEE 802.3u 100BASE-TX |
|
|
IEEE 802.3ab 1000BASE-T |
|
|
IEEE 802.3z 1000BASE-X |
|
|
IEEE 802.3af/at |
|
|
IEEE 802.3x |
|
|
Ethernet 10Mbps half-duplex, 20Mbps full-duplex |
|
Speed |
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex |
|
|
|
|
|
Gigabit Ethernet 2000Mbps full-duplex |
|
|
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) |
|
Network Media |
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) |
|
|
|
|
|
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m) |
|
|
1000Base-SX:62.5μm/50μm MMF(2m~550m) |
|
|
1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
