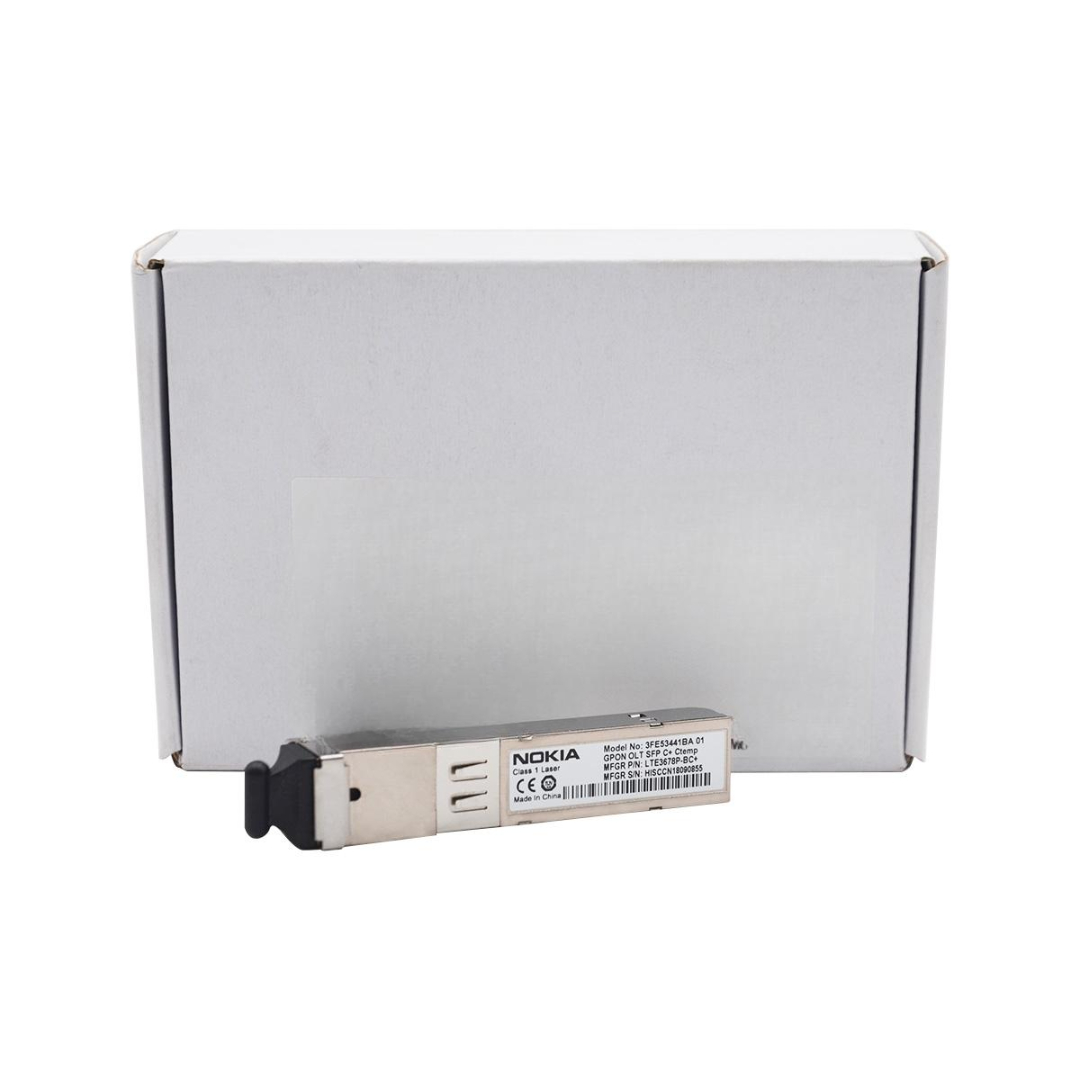

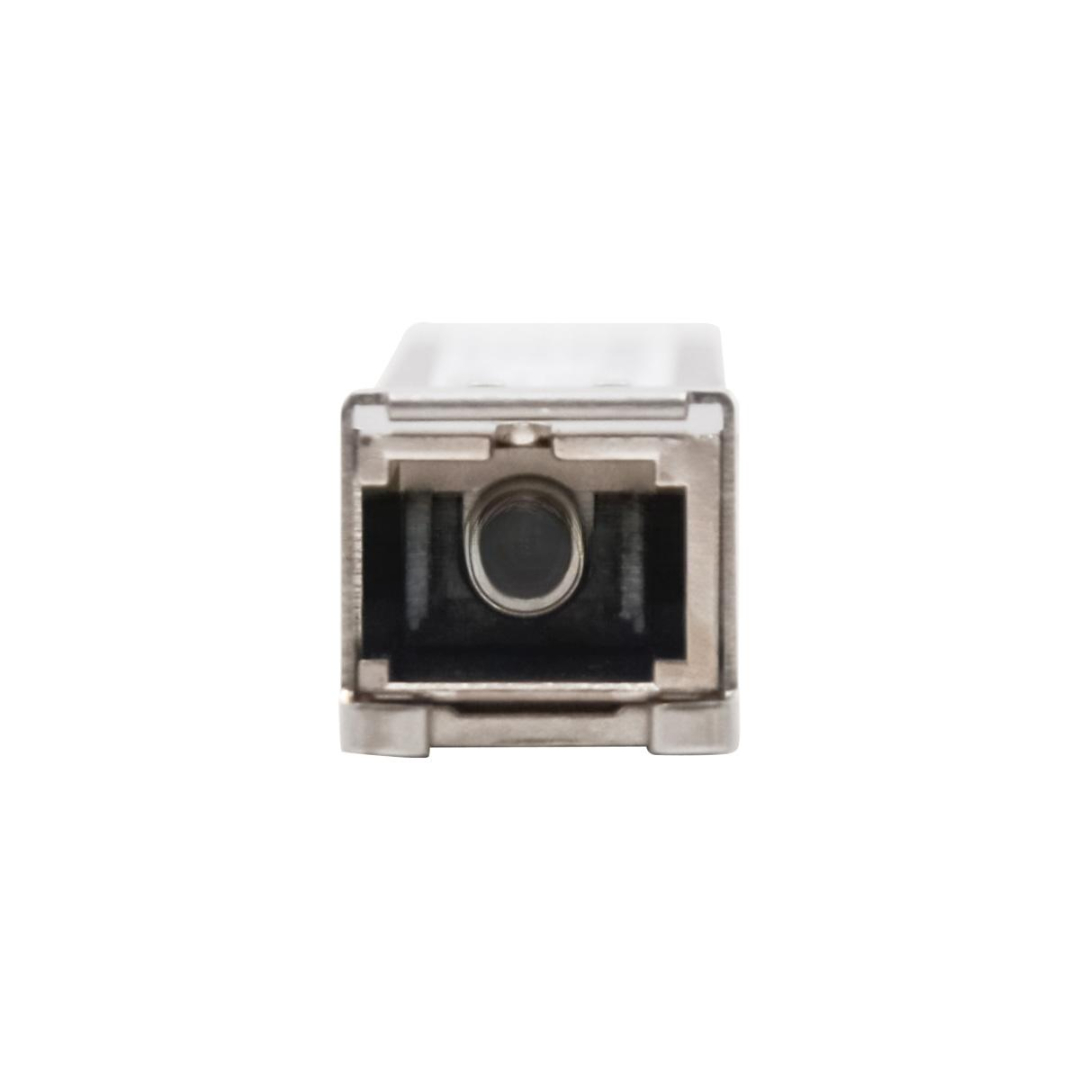

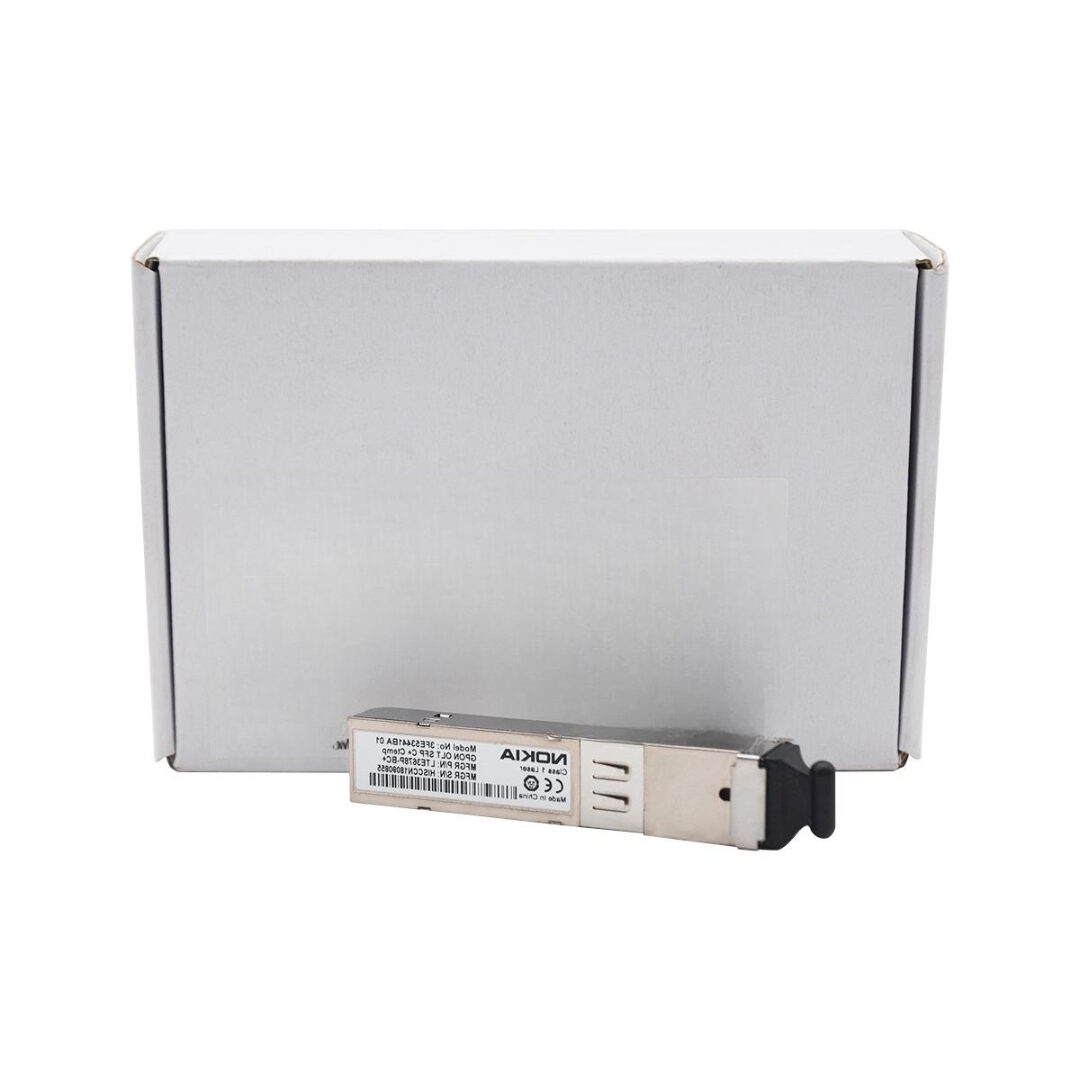

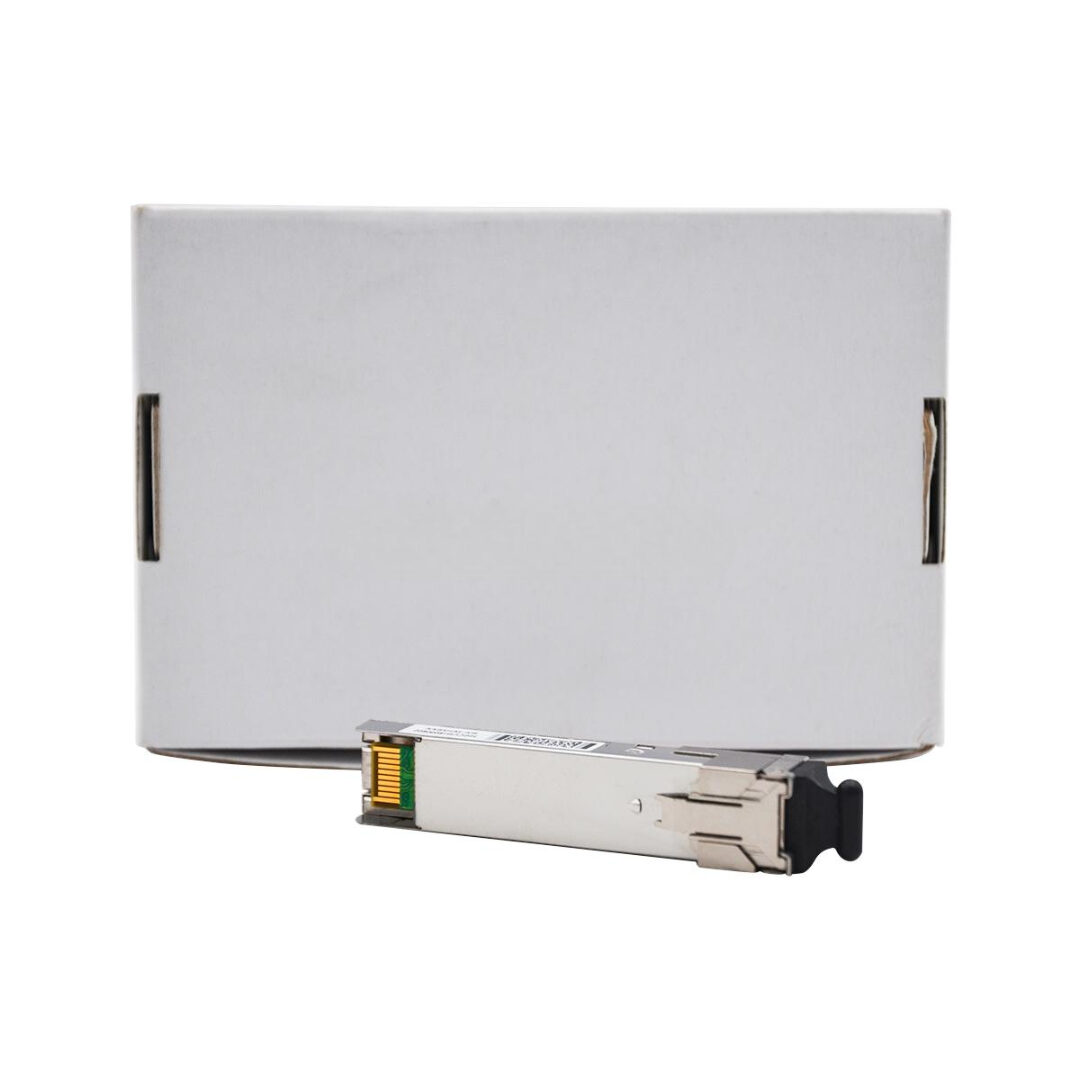

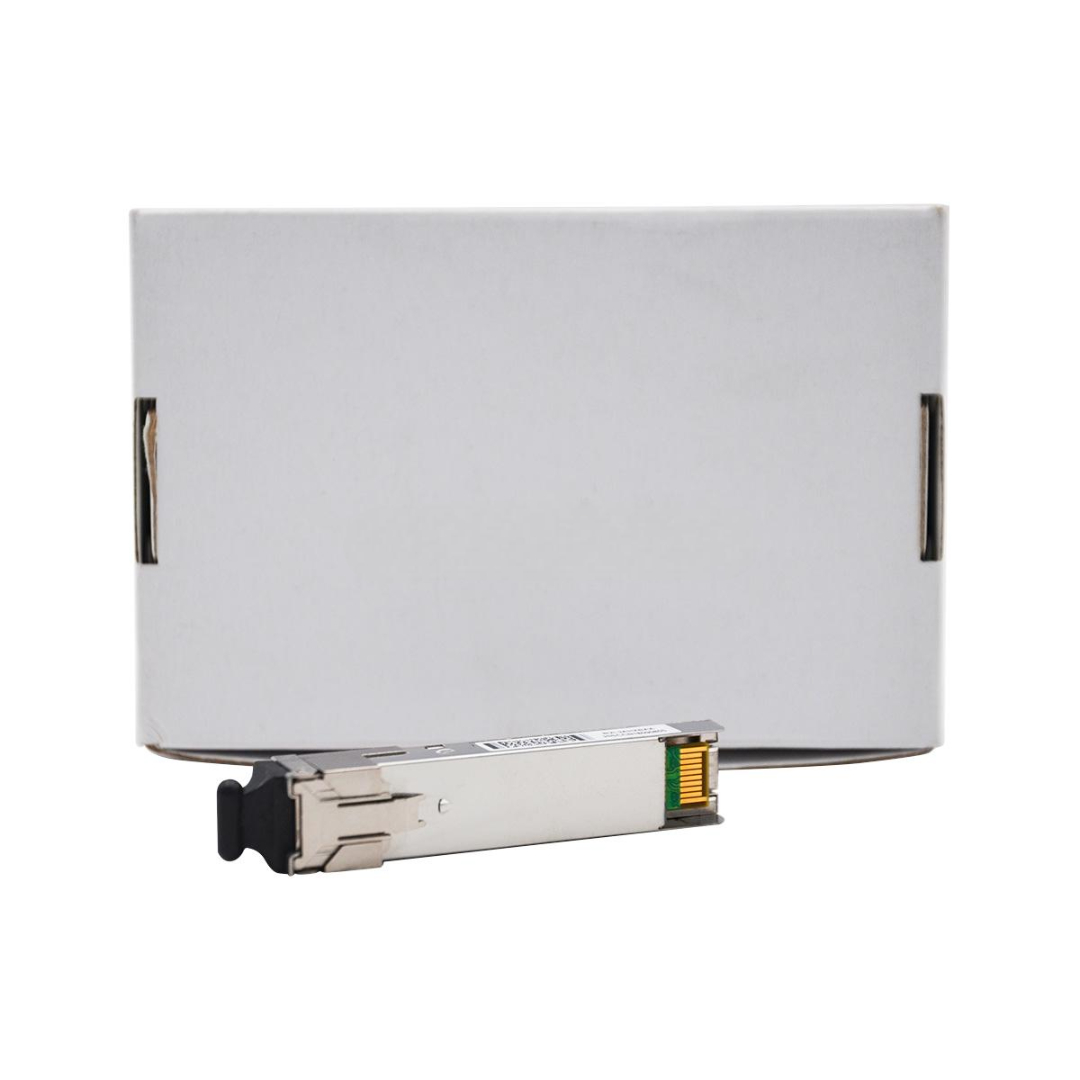

OLT SFP C+ NOKIA GPON Huawei Brand New Optical Transceiver
The OLT SFP C+ NOKIA GPON is a high-quality Huawei-manufactured optical transceiver, fully compatible with Nokia GPON OLT platforms. This C+ class SFP transceiver offers enhanced optical performance and extended reach, making it ideal for large-scale FTTx deployments in telecom and ISP networks.
Designed for Gigabit-capable Passive Optical Networks (GPON), the module features a TX power of +3 to +7 dBm, RX sensitivity down to -32 dBm, and supports a transmission distance of up to 20 km over single-mode fiber. It operates at 1490 nm (TX) and 1310 nm (RX) wavelengths with digital diagnostic monitoring (DDM) support.
Key Features
- Model: OLT SFP C+ (Nokia Compatible)
- Manufacturer: Huawei OEM
- Form Factor: SFP (Small Form-Factor Pluggable)
- Protocol: GPON (Gigabit Passive Optical Network)
- Compatibility: Nokia OLTs (e.g., ISAM FX-4/8/16/64)
- Transmission Distance: Up to 20 km
- Wavelengths: 1490 nm (TX), 1310 nm (RX)
- TX Power: +3 to +7 dBm
- RX Sensitivity: ≤ -32 dBm
- Fiber Type: Single-Mode Fiber (SMF)
- Connector Type: SC/UPC
- Digital Diagnostics Monitoring (DDM): Supported
- Hot-Pluggable: Yes
- Laser Type: DFB (TX), APD (RX)
Technical Specifications
| Specification | Details |
|---|---|
| Form Factor | SFP |
| Transmission Distance | Up to 20 km |
| TX Wavelength | 1490 nm |
| RX Wavelength | 1310 nm |
| TX Power | +3 ~ +7 dBm |
| RX Sensitivity | ≤ -32 dBm |
| Connector Type | SC/UPC |
| Fiber Type | Single-mode (G.652) |
| Laser Type | DFB (TX), APD (RX) |
| Data Rate | 2.5 Gbps (downlink), 1.25 Gbps (uplink) |
| DDM/DOM | Supported |
| Power Supply | 3.3V |
| Power Consumption | < 2W |
| Operating Temperature | -5°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Standard Compliance | ITU-T G.984.2 Class C+ / RoHS |
| Hot-Pluggable | Yes |
OLT SFP C+ NOKIA GPON Applications
- Telecom OLT Platforms — Compatible with Nokia ISAM FX OLT series
- FTTH/FTTx Deployments — High-sensitivity GPON upstream/downstream optics
- ISPs & Network Operators — Long-distance customer connectivity (up to 20 km)
- Urban & Rural Broadband — Scalable optical delivery over GPON architecture
- Enterprise Campus Networks — Centralized GPON-based fiber access
Customization & OEM Options
- EEPROM Programming — Customized for specific Nokia OLT firmware
- Private Labeling — Branding, SN coding, and packaging customization
- Compliance Documentation — CE, FCC, and RoHS certification included
- Industrial Grade Option — For extended temperature range environments
- Bulk Packaging — Trays or anti-static sleeves per customer request
Wholesale & Global Supply Info
- Huawei OEM Quality — Reliable and tested for telecom-grade performance
- Mass Stock Readiness — Ideal for network rollouts and urgent delivery
- Worldwide Shipping — Export-certified packaging and documentation
- Volume Pricing — Cost-effective for ISPs, integrators, and distributors
- Technical Support — Pre-sale and post-sale guidance available
Why Choose the OLT SFP C+ NOKIA GPON
High Optical Budget — Ideal for dense GPON deployments and extended reach
Seamless Nokia Compatibility — Plug-and-play with most FX OLT modules
Enhanced Receiver Sensitivity — Up to -32 dBm ensures stable links
Proven Huawei Reliability — Built to telecom standards with long lifecycle
Smart Monitoring — Integrated DDM/DOM functions for remote diagnostics
Request Your Quote Today
Deploy with confidence using the Huawei OLT SFP C+ Nokia GPON Transceiver — engineered for compatibility, performance, and operational excellence in today’s demanding fiber networks.
Contact us now for datasheets, pricing, and bulk order support.
