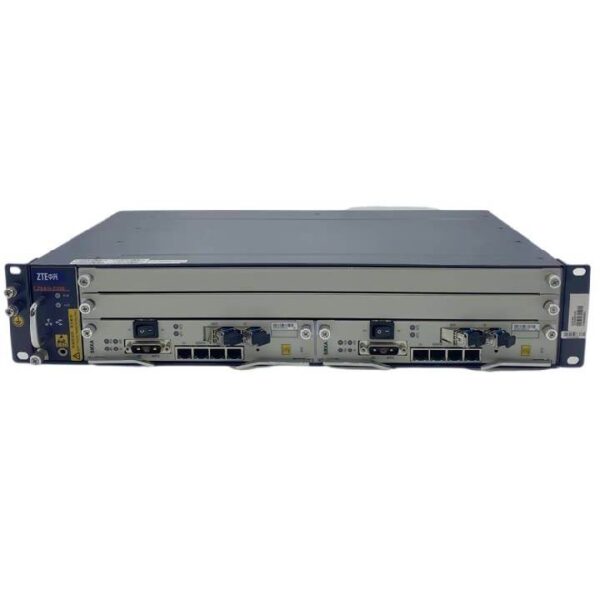

OLT ZTE C320 GPON OLT With GTGH 16 Ports OLT GPON 10G+1G AC Uplink Board

SKU: 1600615244212 Categories: ,
  • Model Number:ZTE C320
  • Type:OLT
  • Place of Origin:Guangdong, China
  • Brand Name:ZTE
  • Use:FTTH FTTB FTTX Network
  • Warranty Time:1 year
  • Network:POE
  • Power Cable::2 Power Cables
  • Power Supply::-48V/-60V DC, 110/220V AC
  • Supply Ability10000 Piece/Pieces per Month
  • Packaging DetailsRetail Carton
  • PortGuangzhou
  • Picture Example:
  • Lead time:Quantity(pieces)1 – 200>200Lead time (days)15To be negotiated
Product Description


ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

Product Overview

ZTE ZXA10 C320 OLT  (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS and security reliability.

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.

Control, Uplink and power supply: 2 x SMXA(1 x 10GE, 2 x GE Uplink (2 x SFP, 1 x RJ45), power in 48 V DC, switching throughput: 84 Gb/s)

Product Specification

Brand ZTE
Model ZXA10 C320
Backplane capacity 420 Gbit/s
Switching capacity 84 Gbit/s
Number of service cards 2 (GPON/P2P/XG-PON1)
Number of combined control cards 2
Number of power supply cards 1
Number of uplink cards 1 (10GE/GE/FE/E1/T1)
Maximum number of GPON subscribers 4096
Management Interfaces CLI, SSH, SNMP, telnet
Power -48 V (DC), 230V (AC)
Working temperature and humidity -25°C – +55°C, 5% – 95%
Split Ratio up to 1:128
Range 20-60 km
Maximum attenuation SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation NSR-DBA, SR-DBA
Support FEC, AES128, SCB, OLS
Dimensions 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
Power Supply Dual DC: 48V/60VAC: 100V~240V
Cabinet Indoor: 2200mm x 600mm x 300mm standard cabinet  Outdoor: EC90EB, EC70E
Main-Control Switching Card SMXA Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical)                                                                                                                   +1*serial port+ 1*management FE+ 1*environment detecting port                               Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE
Service Card  (2 slots) GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1)
Packaging & Shipping

 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
