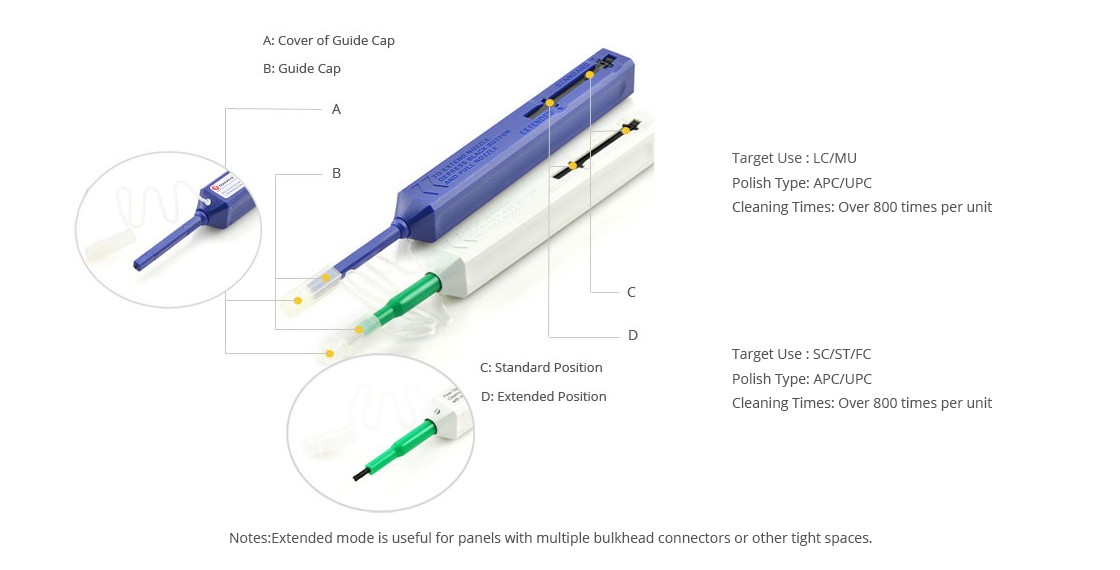

Structure Drawing & Specification
AS for the structure of cleaner, It can be divided into the cover guide cap, guide cap, cleaning tip and a body part. Cover guide cap protects cleaner from dust; guide cap is used for connecter cleaning; cleaning tip can be extended for adapter cleaning; cleaning body is used for adjusting the position of tip as standard position or extended position.
Features
Ø Cleans connectors on jumpers and in adapters
Ø Ergonomic, comfortable design with single action cleaning

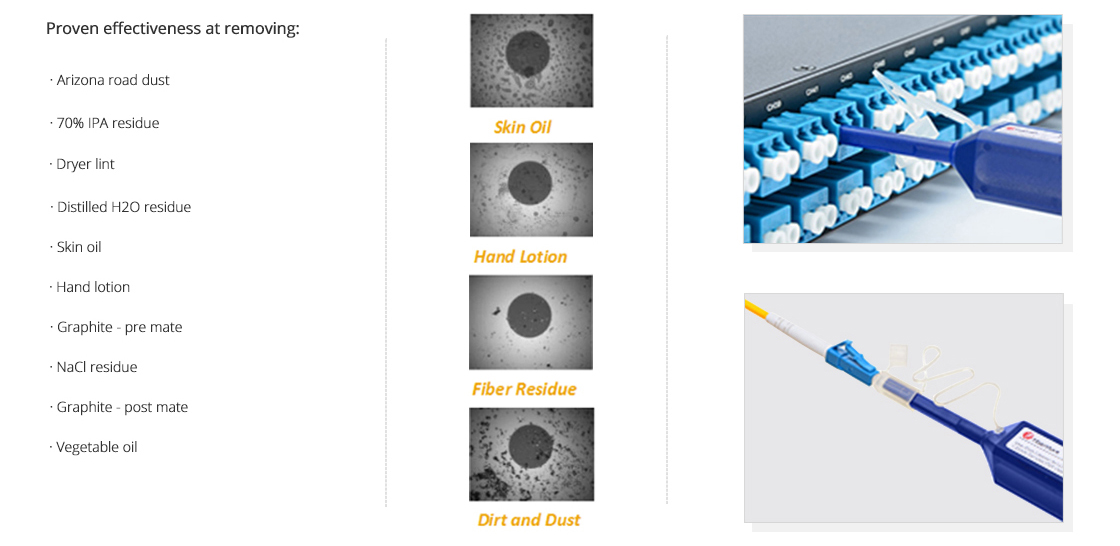

Ø Effective on a variety of contaminators including dust and oils
Ø Disposable with 800+ cleanings per unit
Ø Made from anti-static resin
Ø Cleaning micro fibers are densely stranded and debris free
Ø Extendable tip reaches recessed connectors
Ø Cleaning system rotates 180 for a full sweep
Ø Audible click when engaged
Application:

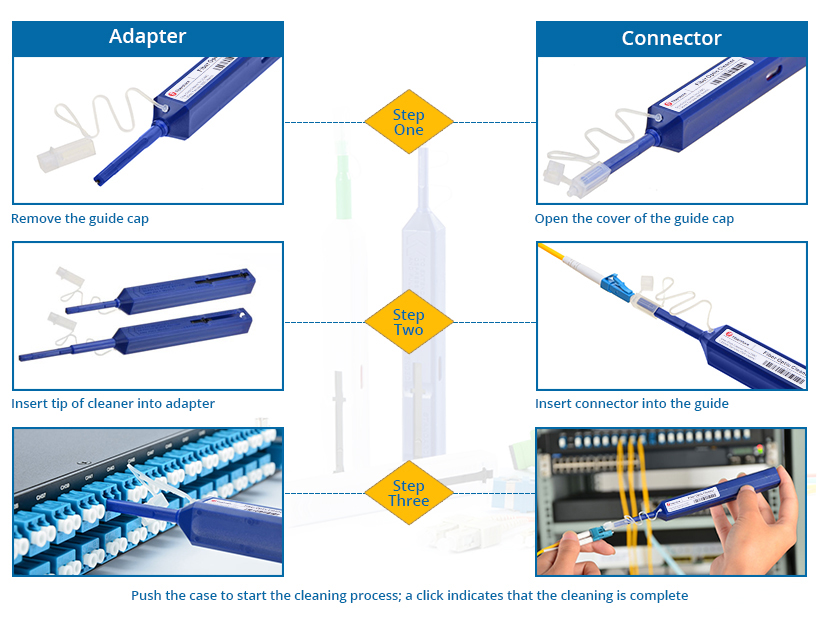

The LC/MU 1.25mm One-click Cleaner is dry cloth cleaners specially designed to clean single connector residing in an adapter, faceplate or bulkhead. They are simple to use and highly effective at removing oil and dust contaminants. That can negatively impact optical performance.
Fiber Optic Cleaning Guide

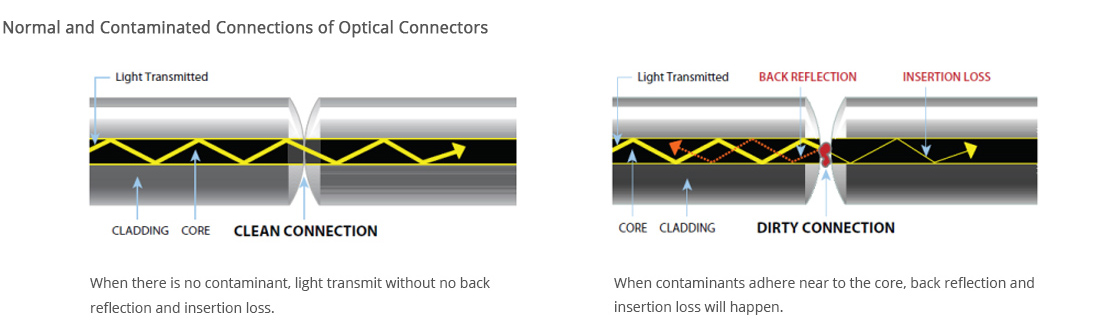

Why Should We Clean the Connectors?
Research has shown over 85% of fiber optic network failures in data centers, campus, and other optical communication facilities are caused by contamination on the optical connector end face.

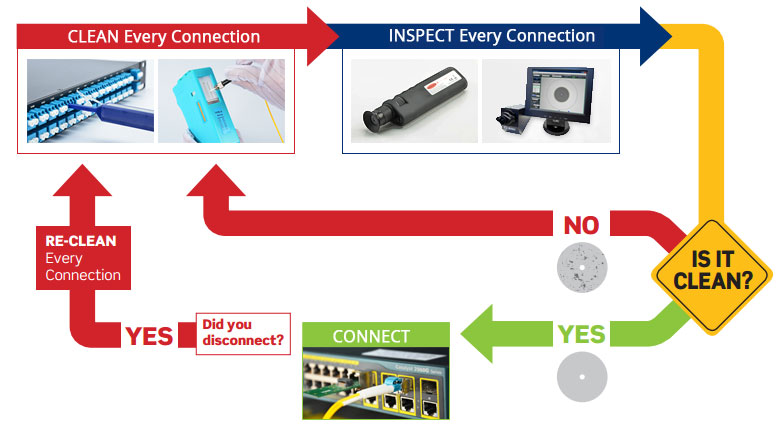

For best optical performance, it is imperative that all optical fiber connections are clean and free of contaminants. Fiber optic cleaning products is being highly recommended as a kind of very important tool for electrical manufactures. One of the most basic and important procedures for the maintenance of fiber optic systems is to clean the fiber optic equipment.
Wolon‘s fiber optic connector cleaner is designed to effectively and quickly clean connector endfaces, both the unmated patch cord and through the adapter. It cleans the ferrule end faces removing dust, oil, and other debris without nicking or scratching the end face. It is very easy to use and suitable for all LC/ MU connectors and ferrule
