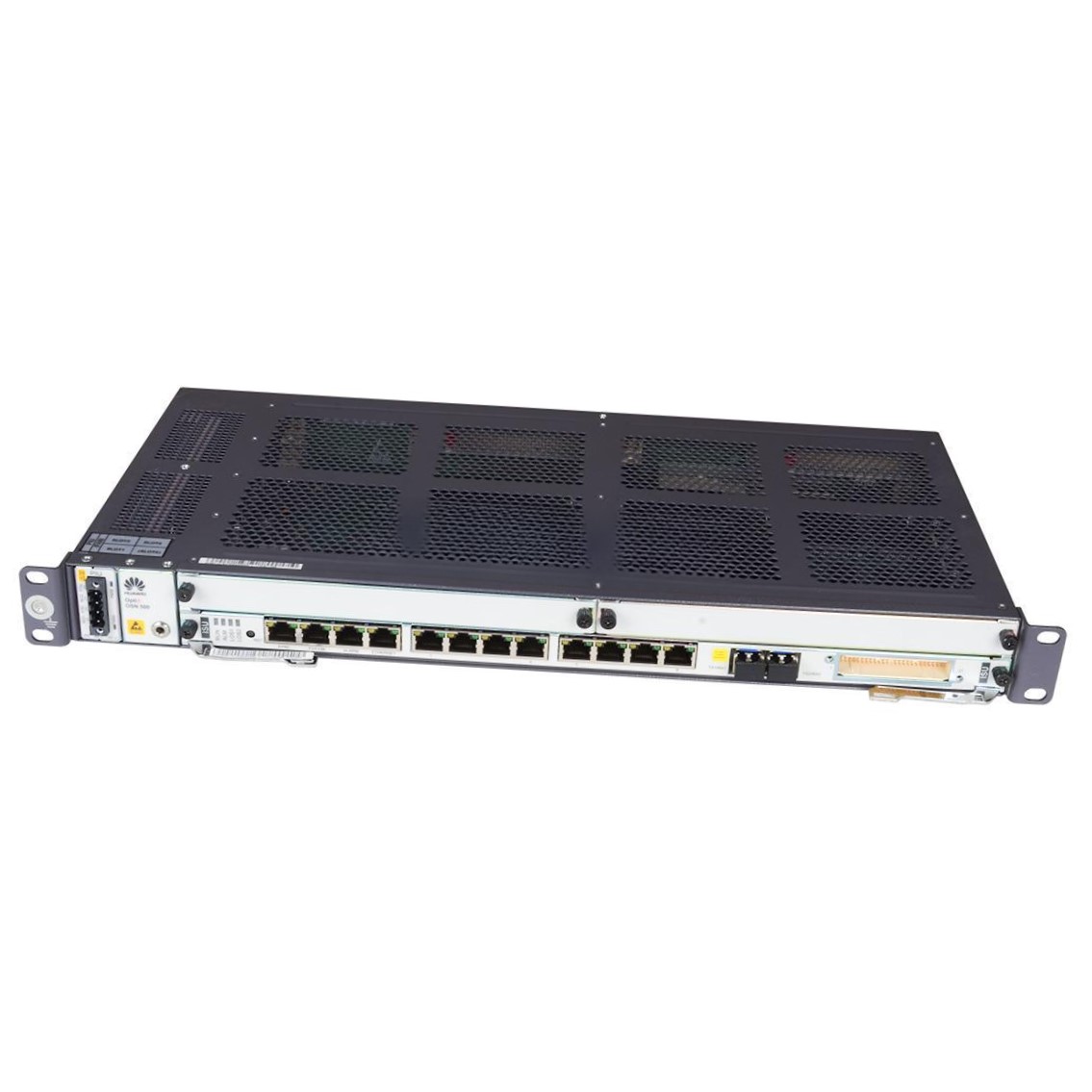

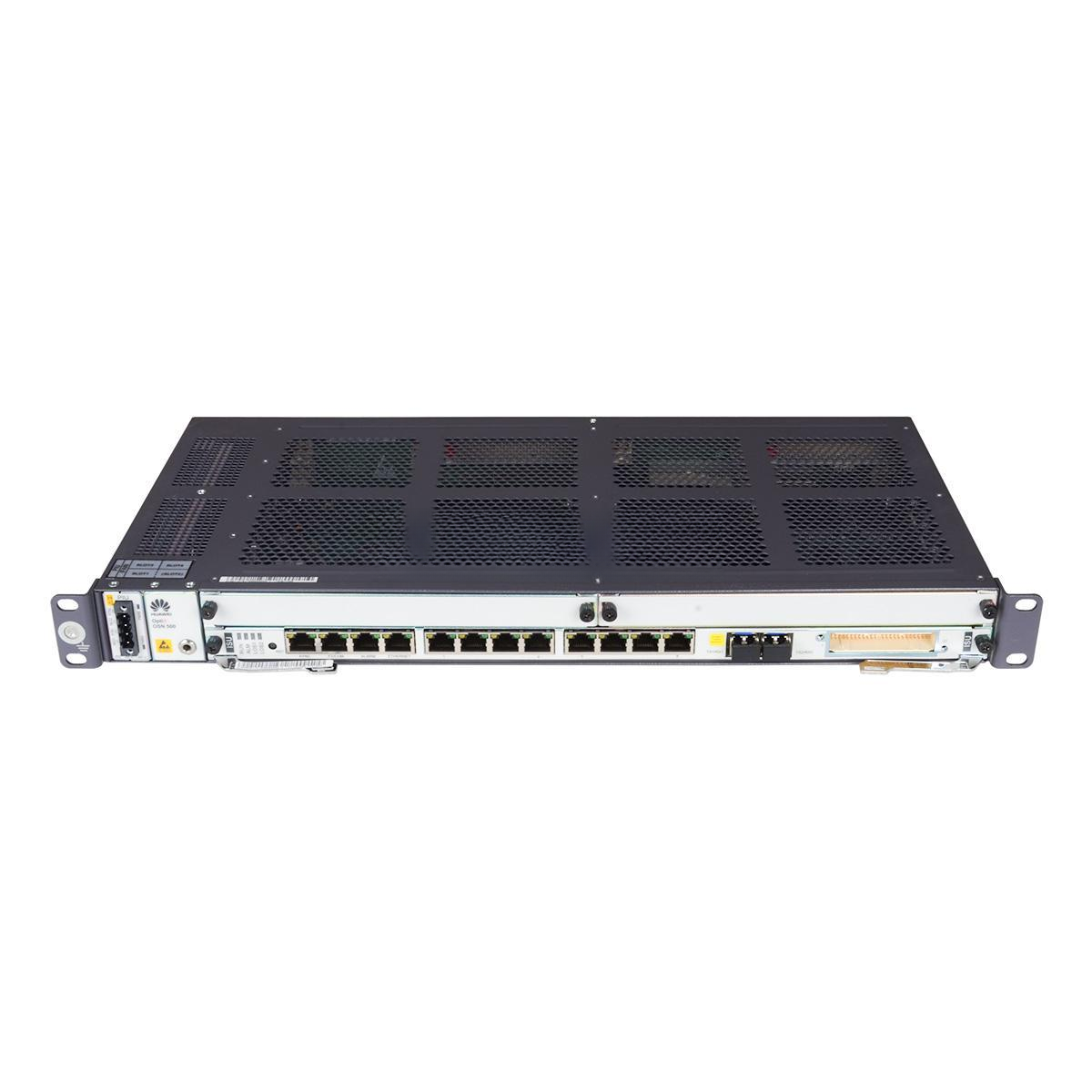

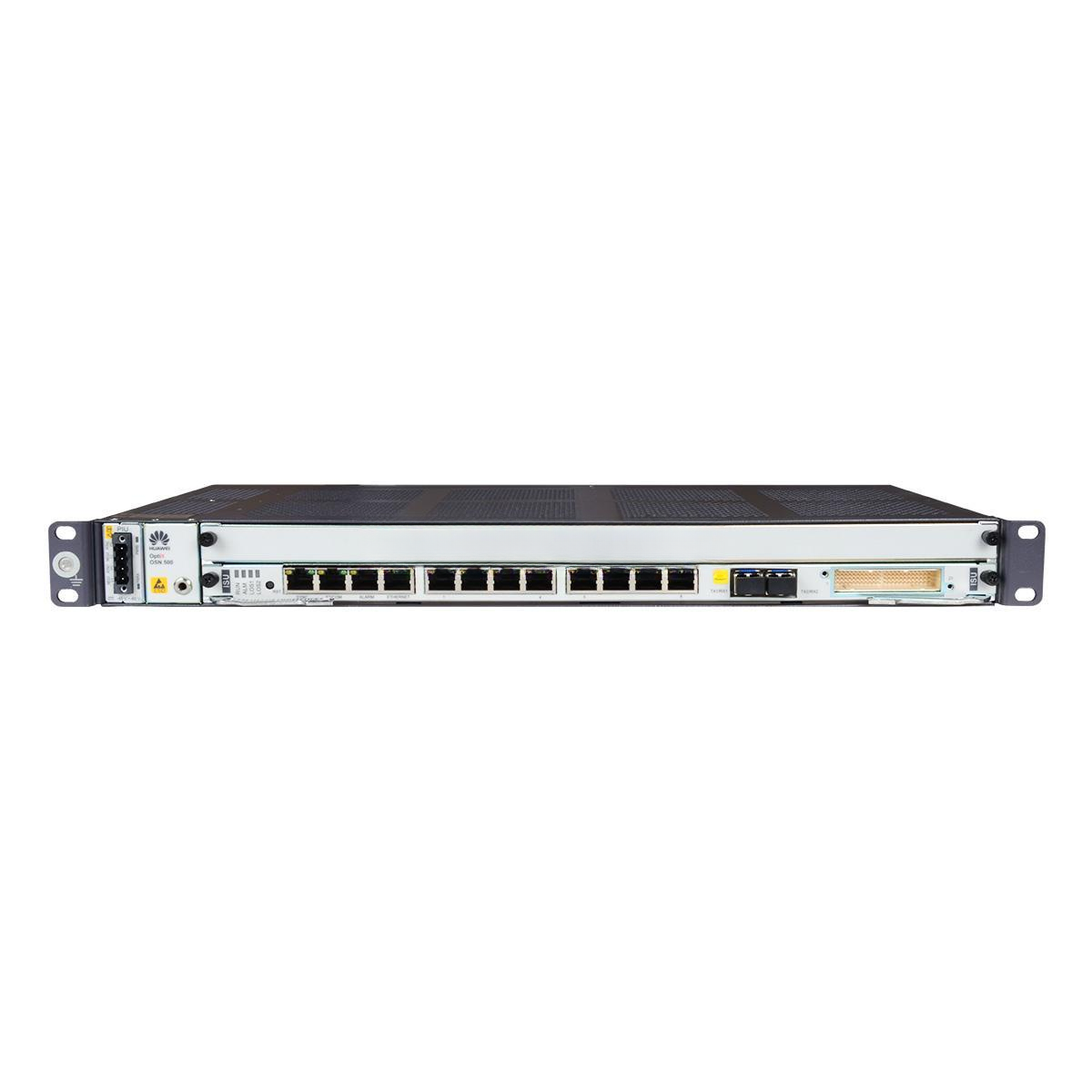

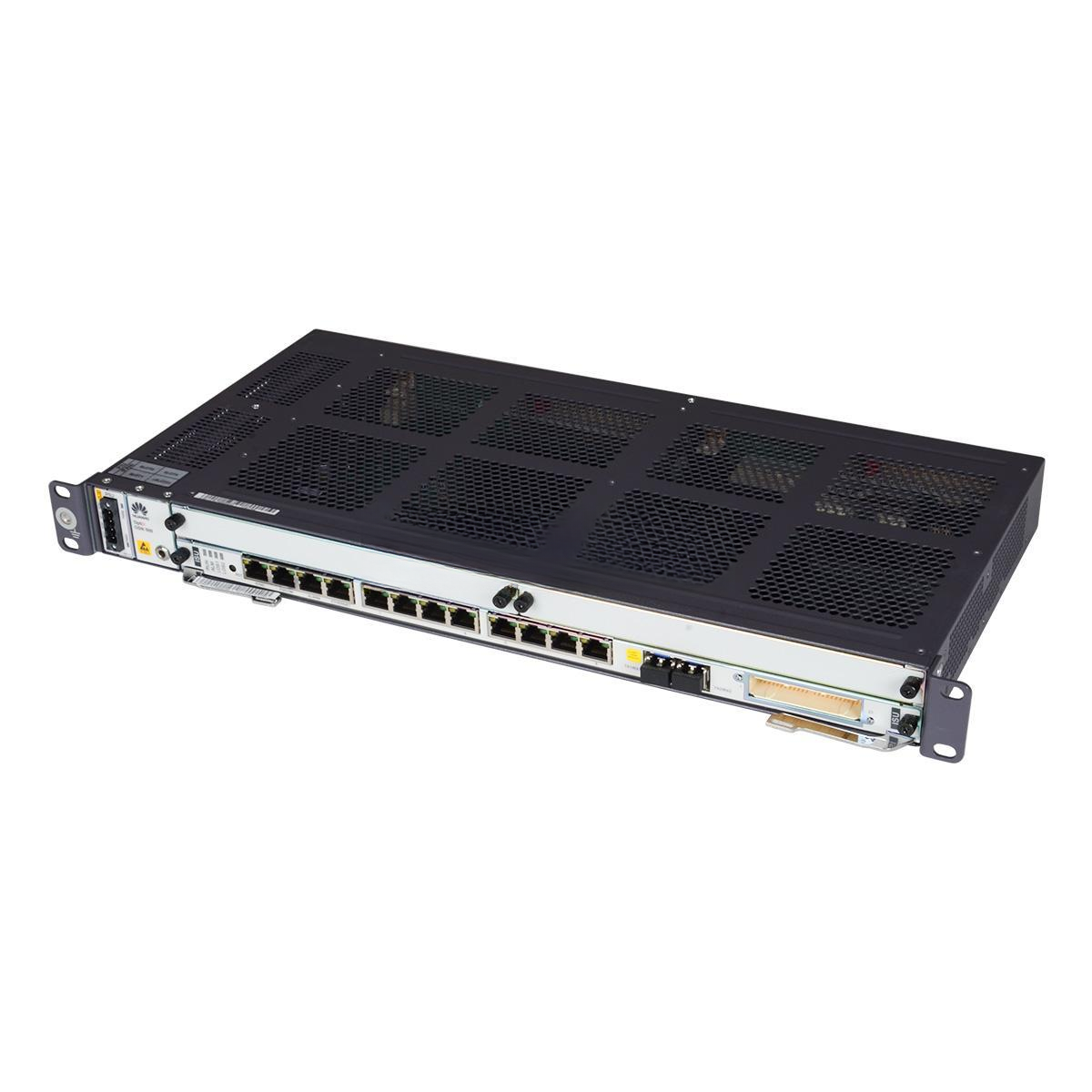

OptiX OSN500 Huawei Brand New STM-1/STM-4 Level MSTP
The OptiX OSN500 Huawei is a brand new Multi-Service Transport Platform (MSTP) designed for access and edge-layer transmission in telecom networks. Compact and robust, it supports STM-1 and STM-4 SDH interfaces, offering flexible service access and efficient transport for voice, data, and video traffic. Engineered for carrier-class reliability, the OSN500 is ideal for metro access, enterprise connectivity, and backhaul networks.
Key Features
-
Model: OptiX OSN500
-
Condition: 100% Brand New, Original Huawei
-
Transmission Type: SDH-based MSTP (Multi-Service Transport Platform)
-
Interface Support: STM-1 (155 Mbps), STM-4 (622 Mbps)
-
Compact Design: Ideal for indoor/outdoor cabinet or wall-mount deployment
-
Integrated Cross-Connect: VC-4/VC-12 level switching capability
-
Service Access: E1, FE, GE, RS232, and Ethernet over SDH
-
Synchronization: Supports clock synchronization (SSM, BITS, etc.)
-
Network Management: Integrated with U2000 NMS for remote provisioning
-
Reliability: Carrier-grade redundancy and alarm reporting
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Huawei OptiX OSN500 |
| Type | Compact MSTP |
| Supported Interfaces | STM-1/STM-4, E1, Fast Ethernet, Gigabit Ethernet |
| Switching Capacity | 2.5 Gbps |
| Cross-Connect Granularity | VC-4/VC-12 |
| Service Ports | Up to 2x STM-1/STM-4, 8x E1, 2x FE/GE (slot dependent) |
| Synchronization | Line timing, external clock, BITS, SSM |
| Installation | 1U 19-inch rack mount / wall mount |
| Power Supply | DC -48V (typical) |
| Power Consumption | ≤ 30W |
| Operating Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| EMC & Safety Compliance | IEC, ETSI, CE, RoHS compliant |
| Network Management | Huawei U2000, SNMP v1/v2/v3 |
| Warranty | 1–3 Years Manufacturer Warranty |
OptiX OSN500 Huawei Applications
-
Metro Access & Aggregation — Cost-effective solution for STM-1/STM-4 connectivity
-
Enterprise Networks — Secure, dedicated links for government and business use
-
Cellular Backhaul — Transport for 2G/3G/4G base stations over SDH infrastructure
-
Power & Rail Utilities — Robust communication platform for SCADA, video, and voice
-
Remote Site Connectivity — Ideal for rural/isolated site deployments
Customization & OEM Options
-
Interface Customization — Configurable with various port modules (E1, GE, FE)
-
Labeling & Branding — Private label/OEM support with custom logos & part numbers
-
Pre-configured Kits — Factory-loaded with software, NMS parameters, and cross-connect maps
-
Deployment Ready Units — Cabinets, patch cords, and accessories bundled on request
-
Integration Testing — Factory QA and soak testing before shipment for critical networks
OptiX OSN500 Huawei Wholesale & Global Distribution
-
Huawei Original OEM Supply — Direct from certified manufacturing channels
-
Ready Stock — Bulk availability for regional rollouts and urgent deployments
-
Export Packaging — Shock-proof, anti-static with complete documentation
-
Global Logistics — Delivered worldwide with customs and freight compliance
-
Technical Assistance — Post-sales support for NMS setup and configuration
Why Choose OptiX OSN500 Huawei
-
Compact & Versatile — Space-saving design for flexible deployment
-
Dual-Level SDH Support — Ideal for STM-1/STM-4 transmission networks
-
Field-Proven Stability — Deployed in thousands of global carrier environments
-
Full-Service Access — Voice, data, and Ethernet over a unified transport layer
-
Easy to Manage — U2000 and SNMP-based centralized control
Request a Quote or Technical Datasheet Today
Upgrade your access transport network with the Huawei OptiX OSN500 — a compact, reliable, and scalable SDH/MSTP solution for modern telecommunications.
