- Model Number:SCXN
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:Multiple applications
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Overview
ZTE ZXA10 SCXN is the core part for ZXA10 C300, and it monitors and controls the entire system and performs non-blocking switching of all line cards.
SCXL: supports 800 Gbps switching capacity and 32 K MAC address table.
SCXM: supports 480 Gbps switching capacity and 32 K MAC address table.
SCXN: supports 480 Gbps switching capacity, 64 K MAC address table, and VoIP function (with VoIP daughter-card).
ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance.
Specifications
| Control and switching cards |
SCTM – Suitable for XGPON1, supports 16 port GPON cards, higher switching power, 4x 10GE uplink interface, 2x management interface |
| SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface |
| SCXM– supports 480 Gbps switching capacity and 32 K MAC address table. |
| SCXL – No uplink interfaces, 2x management interface |
| GPON cards |
GTXO – 4/8 XGPON1 ports, split ratio up to 1:256 |
| GTGO – 8 GPON ports, split ratio up to 1:256 |
| GTGH – 16 GPON ports, split ratio up to 1:128 |
| FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibres for uplink/downlink) |
| Uplink cards |
GUFQ – 4x SFP (GE) |
| GUSQ – 2x SFP (GE), 2x RJ45 (GE) |
| XUTQ – 4x SFP (10GE) |
| HUTQ – 4x SFP (2x10GE, 2xGE) |
| HUVQ – 4x SFP (2x10GE/GE, 2xGE/FE) |
| Power consumption |
SCXL (without uplink interfaces): 90 W |
| SCXM (with uplink interfaces): 70 W |
| SCXN (without uplink interfaces): 62 W |
| Dimensions |
395.5 mm × 25 mm × 225 mm (Height × Width × Depth) |
| Weight |
SCXL: 1.14 kg |
| SCXM: 1.132 kg |
| SCXN: 1.132 kg |

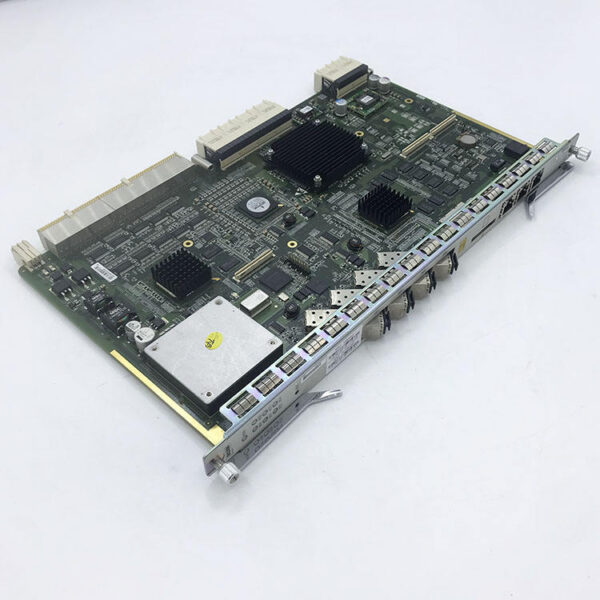

Product Pictures
