- Model Number:Huawei HG8546M
- Type:ONU
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:FTTH
- Warranty Time:1 year
- Network:Wired LAN, wifi, 4g
- Supply Ability5000 Piece/Pieces per Week
- Packaging DetailsCartons
- PortShenzhen
- Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)15To be negotiated
Overview

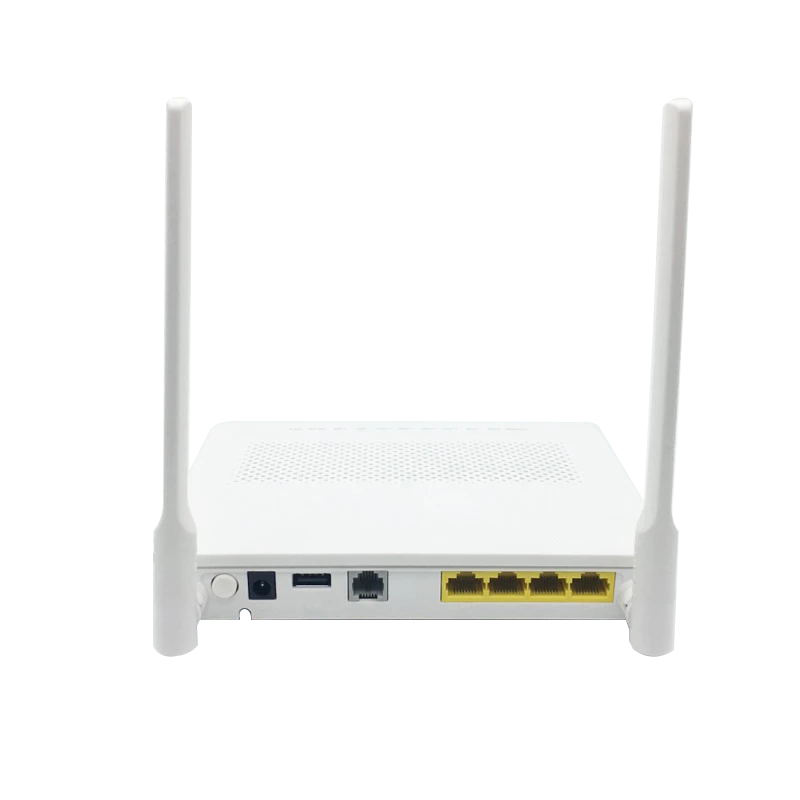

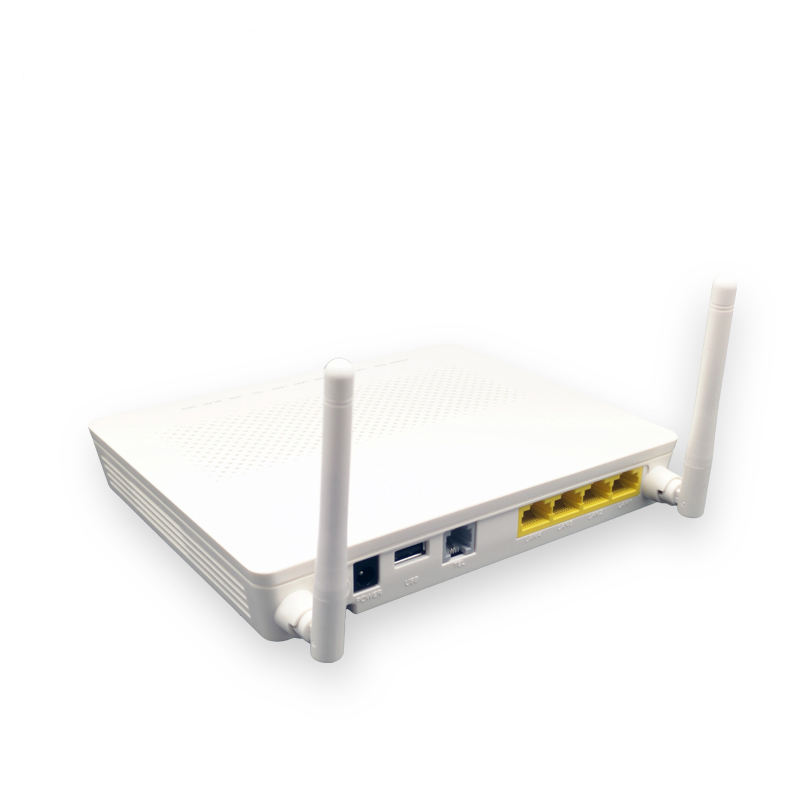

Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video.
Specification
Brand Huawei Model HG8546M Power supply 12V,1.5A Power consumption (full loaded) ≤15W Outline dimensions (mm) (W*D*H) 240*160*35mm Weight (in maximum configuration) ≤0.5kg WIFI Antenna 2×2, 5dBi external antenna EIRP Max 25dBm VoIP REN Max 5REN Connector 1x RJ11 Ringing 65V RMS ringing voltage USB Max 1A for each port Environmental requirements Working temperature:0ºC~50ºC Storage temperature:-40ºC~70ºC Working humidity:5%~90% Storage temperature:5%~95% no condensing Ethernet Standard;IEEE802.3 IEEE802.3au IEEE802.3x Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45 Auto negotiation
Auto MDI/MDIX
| Specification | USED ONU (4FE 2dbi ) + POWER, USED ONU ONLY (1GE+3FE 2dbi antenna), USED ONU ONLY ( 4FE 2dbi antenna) |
|---|
