SKU 1600628328291 Categories ,
  • Model Number:GPBH
  • Type:OLT
  • Place of Origin:Guangdong, China
  • Brand Name:Huawei
  • Use:FTTH FTTB FTTX Network
  • Warranty Time:1 year
  • Network:POE
  • Supply Ability
    1000 Piece/Pieces per Month
  • Packaging Details

    Retail Carton

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated
Product Description

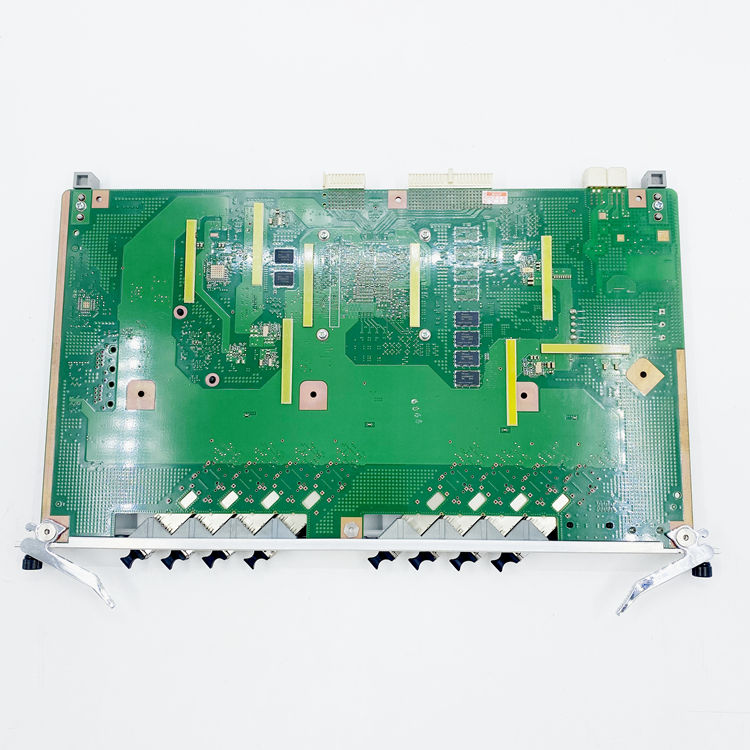

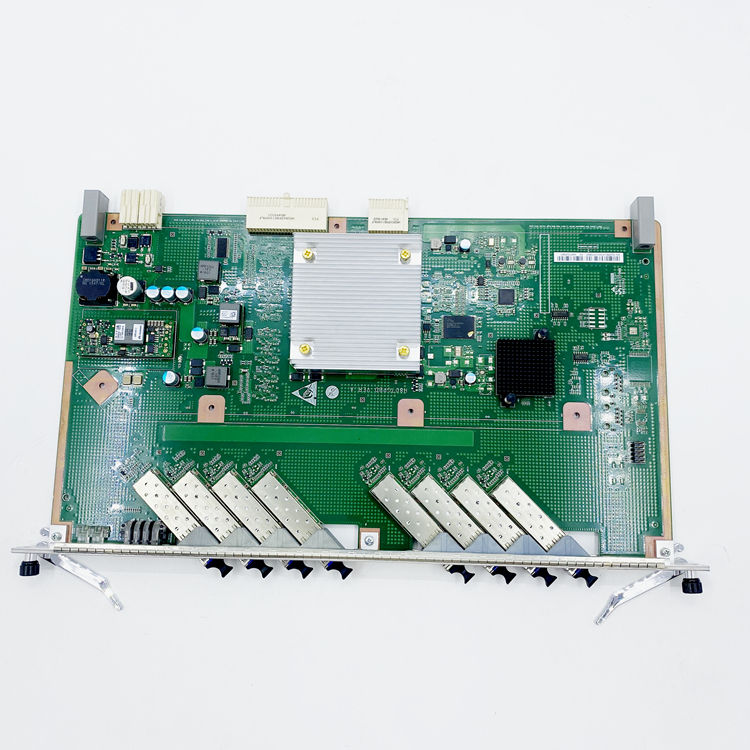

Huawei GPBH Service Card is 8-port GPON OLT interface board with C+ SFP module for Huawei MA5608T MA5683T MA5680T

Huawei GPBH Service Card supports TDM, ATM, and Ethernet private lines, enabling smooth triple-play services and highly reliable enterprise access. service. Huawei GPBH Service Card can also cascade DSLAMs, MSANs, and remote access devices directly to the BRAS network. While saving investment in network construction, it enhances network reliability and saves operation and maintenance costs.

Huawei SmartAX MA5600T is the global first OLT which integrates the functionality of aggregation switch and edge router. It can provide high density GPON, 10GPON and Ethernet P2P optical access, triple play service, TDM/ATM/Ethernet leased line services for business customers and high precision clock, and high-density GE/10GE interfaces for cascading remote access equipments. MA5600T helps to simplify network architecture, to improve network reliability and lower TCO essentially. Models & Appearance

There are three types of frame of MA5600T series product. The large frame has 16 service slots while the middle frame (which named MA5603T) has 6 service slots, the small frame (which named MA5608T) has 2 service slots. The service card and software are all compatible between MA5600T, MA5603T and MA5608T.

Product Specification



Brand Huawei
Model GPBH
GPON Port 8-GPON Port
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimum Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Dimensions (mm) 22.86 (W) x 237.00 (D) x 395.40 (H)
Power Consumption H806GPBH : Static: 32 W, Maximum: 46 W
H807GPBH:  The data is being tested.
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C

Huawei GPBH Service Board Product Feature

  • Convergence and access integration

Huawei GPBH Service Card ultra-high aggregation switching capability, 3.2T backplane capacity, 960G switching capacity, 512K MAC address capacity; ultra-high-density cascading capability, Huawei GPBD single-box maximum 768 GE ports, no additional investment aggregation switch Ultra-high reliability networking capability, which can directly connect to BRAS, support OLT dual-system hot backup, remote disaster recovery, and upgrade services.

  • Full-service access

IPTV users of Huawei GPBH Service Card have no convergence access, and single-frame supports 8000 multicast users and 4000 multicast channels. Huawei GPBD’s unique video enhancement engine greatly enhances the user’s service experience; hierarchical high QoS guarantee, H-QoS function meets the SLA requirements of diverse commercial customers; Huawei GPBD supports Native TDM or CESoP functions to implement multiple E1 leased lines Access; Huawei GPBD supports inter-VLAN internal traffic interworking to meet enterprise and campus networking applications.

  • Green energy saving

Huawei GPBH Service Card unique chip technology, high-density 8-port GPON single-board power consumption does not exceed 55 watts; unique energy-saving bus technology, deep energy saving.

Huawei GPBH Service Board and More Service Board

GPON XG-PON XGS-PON XG-PON and GPON Combo XGS-PON and GPON Combo Port

MA5608T/MA5680T/

MA5683T

  XGBC       4
GPBD/GPBH XGBD       8
GPFD         16
MA5800 X2/X7/X15/X17   XGHD

TWED/XSHD/

TWHD

CGID/CGHD CSHD 8

GPLF/GPSF/

GPUF/GPHF

XGSF XSHF CGHF CSHF 16
Packaging & Shipping

 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.





Specification

GPBH 8 port
