- Model Number:MA5683T
- Place of Origin:Guangdong
- Brand Name:Huawei
- Warranty Time:1 year
- Supply Ability
- 250 Piece/Pieces per Week
- Packaging Details
- Lead time:Quantity(pieces)1 – 500>500Lead time (days)15To be negotiated

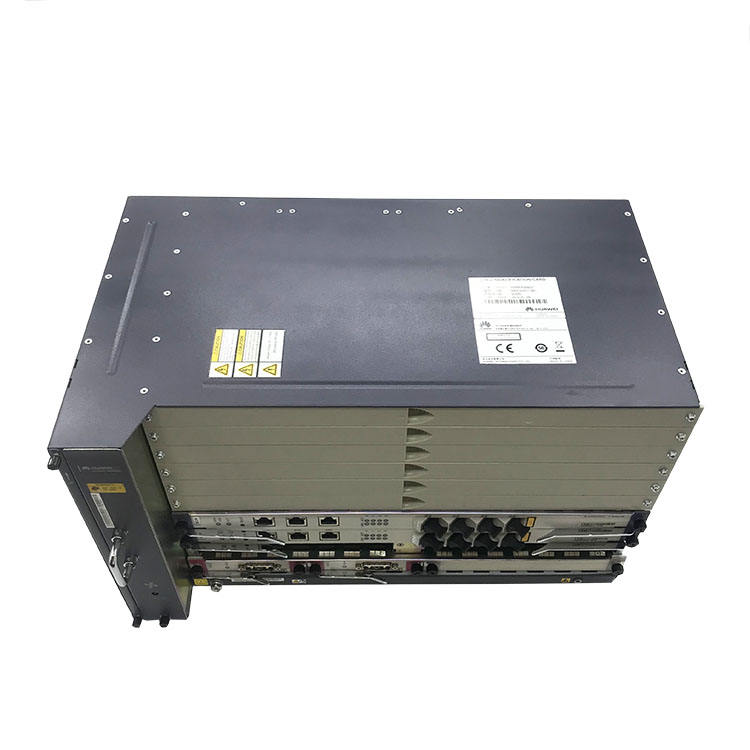

Huawei SmartAX MA5683T OLT is optical access device functions as an OLT device in a GPON/EPON system. Its function are similar to those of the Huawei MA5680T. It is a small-to-medium-capacity OLT device. Huawei SmartAX MA5683T OLT is 19inch, with 5U height 6 service slots, supporting EPON, GPON, 10G PON, P2P service; H802MABO subrack equipped with 2xH801SCUN, 2xH801PRTE.
MA5683T HUAWEI is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and service boards.
Huawei MA5683T provides 13 slots, including 6 service board slots; 2 main control board slots; 2 GIU upstream board slots; 2 power board slots; and 1 common interface board slot.
|Compatible cabinet||Indoor cabinet:N63E-22,N66E-18||Indoor cabinet:N66E-22||Indoor cabinet:N66E-18|
|outdoor cabinet:F01T500||outdoor cabinet||outdoor cabinet:F01S300,F01T500,F01T300|
|Service Card||Main control board: 2 slots||Main control board: 2 slots||Main control board: 2 slots|
|Service board: 16 slots||Service board: 16 slots||Service board: 6 slots|
|Universal interface board: 1 slot||Universal interface board: 1 slot||Universal interface board: 1 slot|
|Uplink interface board: 2 slots||Uplink interface board: 2 slots||Uplink interface board: 2 slots|
|Power interface board: 2 slots||Power interface board: 2 slots||Power interface board: 2 slots|
|Supportable main control board and switching capacity||SCUN/SCUK:480Gbit/s(Active/standby mode),960Gbit/s(Load sharing mode)|
|SCUH/SCUV:960Gbit/s(Active/standby mode),1920Gbit/s(Load sharing mode)|
|System Layer 2 packet forwarding rate||SCUN/SCUK:726Mpps(Active/standby mode),1452Mpps(Load sharing mode)|
|SCUH/SCUV:1428Mpps(Active/standby mode),2856Mpps(Load sharing mode)|
|Exchange forwarding delay||Has a lower forwarding delay. The 100Mbit/s Ethernet port sends 64Byte Ethernet packets with a delay of no more than 20μs.|
|Full load error rate||When the port is transmitting at full load, the bit error rate (bit error rate) is <10 e-7.|
