Original Huawei MA5680T 5608T 5683T OLT 16 ports GPON interface card Service Card GPFD C++

SKU: 1600617267646 Categories: ,
  • Model Number:Huawei GPFD
  • Type:OLT
  • Place of Origin:Guangdong, China
  • Brand Name:ZTE
  • Use:FTTX
  • Warranty Time:1 year
  • Network:None
  • GPON Port::16-GPON Port
  • Encapsulation Type::SFP
  • Supply Ability
    10000 Piece/Pieces per Month
  • Packaging Details

    Retail Carton

  • Port


  • Picture Example:
  • Lead time:Quantity(pieces)1 – 200>200Lead time (days)15To be negotiated
Product Description

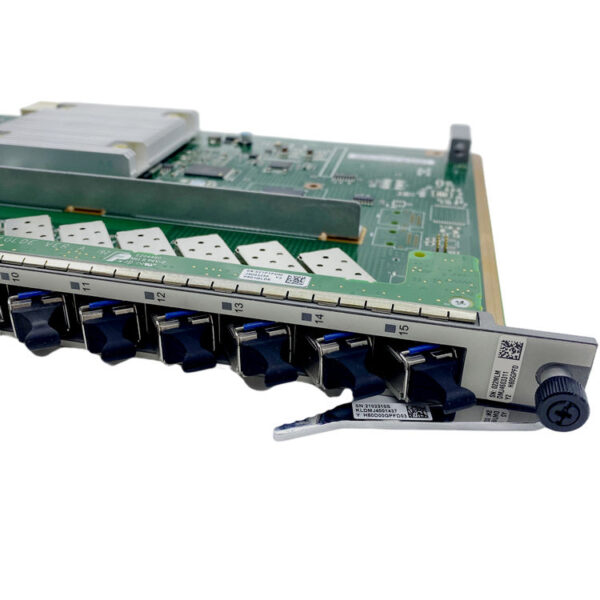

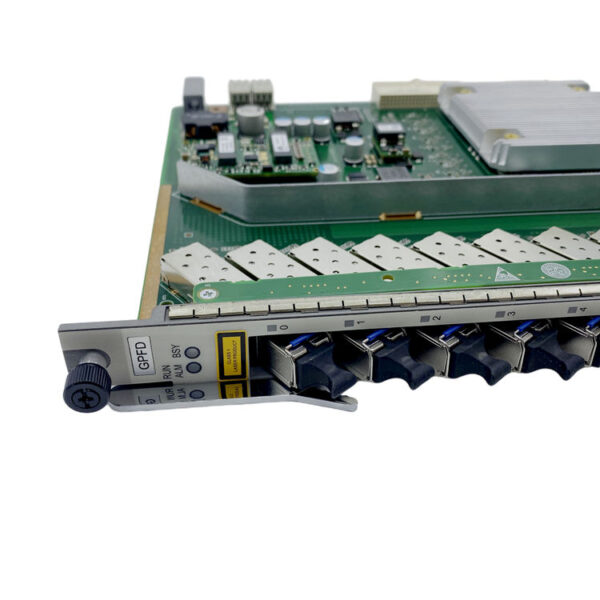

Huawei GPFD Service Board is 16-port GPON OLT interface board with B+ or C+ SFP module for Huawei MA5608T MA5683T MA5680T

Huawei GPFD Service Board is a 16 port GPON interface card This board offers GPON service access from ONT which get maximum access 16*128 GPON subscribers. The OLT product is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and service boards.

SmartAX MA5680T/MA5683T/MA5608T equipment is a GPON/EPON integrated optical access product launched by Huawei Technologies Co., Ltd. It has ultra-high aggregation switching capacity, 3.2T backplane capacity, 960G switching capacity, 512K MAC address capacity, and supports up to 44 channels of 10 GE or 768 GE access.The software versions of the three specifications are fully compatible with the user board, saving the types and quantity of spare parts and reducing maintenance costs.

Brand Huawei
Model GPFD
GPON Port 16-GPON Port
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimum Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption H802GPFD : Static: 45 W, Maximum: 73 W
H803GPFD : Static: 39 W, Maximum: 61 W
H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C
Packaging & Shipping

 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


GPFD 16 port
