SKU 1600617650478 Category
  • Model Number:MA5800 X17
  • Type:OLT
  • Place of Origin:Guangdong
  • Brand Name:Huawei
  • Use:FTTx
  • Warranty Time:1 year
  • Network:None
  • Supply Ability
    250 Piece/Pieces per Week
  • Packaging Details

    cartons with wooden cage

  • Port

    Shenzhen

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 500>500Lead time (days)15To be negotiated

Overview

Huawei SmartAX MA5800 X17 OLT is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video experience, multi-service virtualization common platform, and smooth evolution of 50G PON.

MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2and they support various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.

Specifications

Item MA5800-X17 MA5800-X15 MA5800-X7 MA5800-X2
Dimensions (W x D x H) 493 mm x 287 mm x 486 mm 442 mm x 287 mm x 486 mm 442 mm x 268.7 mm x 263.9 mm 442 mm x 268.7 mm x 88.1 mm
Switching Capacity of the System 7 Tbit/s 480 Gbit/s
Maximum Number of Ports in a Subrack 272 x GPON/EPON 240 x GPON/EPON 112 x GPON/EPON 32 x GPON/EPON
816 x GE/FE 720 x GE/FE 336 x GE/FE 96 x GE/FE
136 x 10G GPON/10G EPON 120 x 10G GPON/10G EPON 56 x 10G GPON/10G EPON 16 x 10G GPON/10G EPON
136 x 10G GE 120 x 10G GE 56 x 10G GE 16 x 10G GE
544 x E1 480 x E1 224 x E1 64 x E1
Ambient Temperature -40°C to 65°C*
*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range -38.4V DC to -72V DC DC power supply:
-38.4V to -72V
AC power supply:
100V to 240V

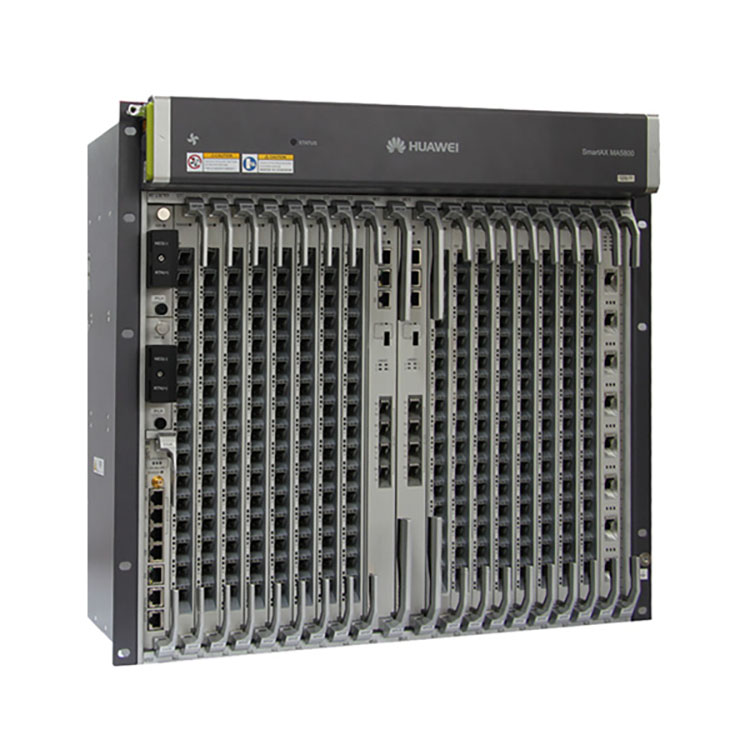

Product Pictures

Original Huawei Ma5800 X17 10G Uplink Gpon Epon Chassis Olt Ftth Optical line TerminalOriginal Huawei Ma5800 X17 10G Uplink Gpon Epon Chassis Olt Ftth Optical line Terminal



Specification

535.0mm*268.7mm*88. 1mm
