Product Description

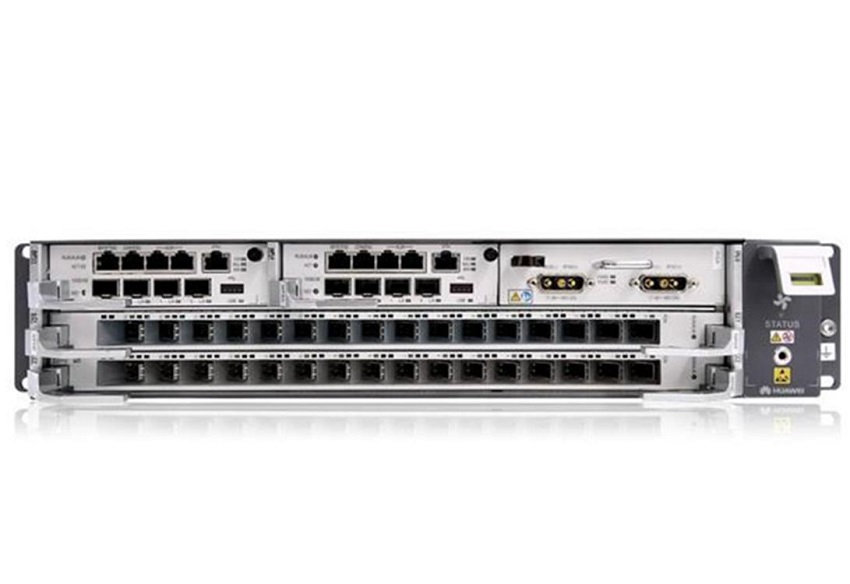

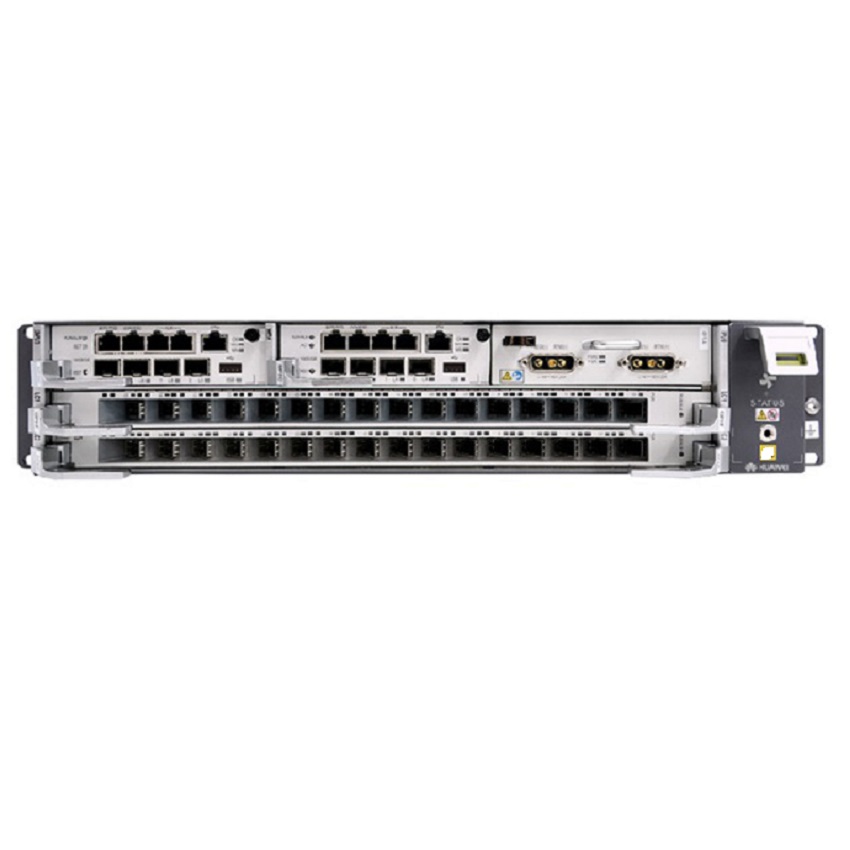

Original MA5800 x2 10ge gpon olt
Huawei MA5800 X2 is a next generation, 40G capacity Optical line Terminal (OLT), has 2 service slots, each service slot has 200G throughput capacity, smoothly evolve to 40G/100G PON. Support up to 8 times MAC address and ARP table than MA5608T, makes service configuration and expansion more easily.
Control and integrated boards:
MPSC*2 (with 4 10G ports)
DC power:PISA*1 or AC power:PISB*1
Service boards
16 ports 1G GPON board:GPHF and GPSF
16 ports 1G EPON board:EPHF
8 ports 10G GPON board:XGLD and XGHD
8 ports 10G EPON board:XELD and XEHD
MPSC*2 (with 4 10G ports)
DC power:PISA*1 or AC power:PISB*1
Service boards
16 ports 1G GPON board:GPHF and GPSF
16 ports 1G EPON board:EPHF
8 ports 10G GPON board:XGLD and XGHD
8 ports 10G EPON board:XELD and XEHD
Specification
|
Huawei Model
|
configuration
|
slots
|
|
MA5800-X2 AC
|
1. Main control board: MPSC*2 2.Power board:PISB*1
3. FAN:FMSM |
2U
|
|
MA5800-X2 DC
|
1. Main control board: MPSC*2 2.Power board:PISA*1
3. FAN:FMSM |
2U
|
|
MA5800-X7 DC
|
Main control board: MPLA*2
Power board:PILA*2 FAN:FMLA/FMMA |
7U
|
|
MA5800-X15 DC
|
Main control board: MPLA*2
Power board:PILA*2 FAN:FMLA/FMMA |
15U
|
|
MA5800-X17 DC
|
Main control board: MPLA*2
Power board:PILA*2 FAN:FMLA/FMMA |
17U
|
Huawei MA5800 series OLT Service Board
|
Item
|
Technique parameters
|
|
GPHF
|
16 GPON Port (SFP Optical Module:Class B+,C+,C++), Version 901/902
|
|
GPSF
|
16 GPON Port (SFP Optical Module:Class B+,C+,C++),Version 901/902
|
|
GPLF
|
16 GPON Port (SFP Optical Module:Class B+,C+,C++),Version 901/902
|
|
GPUF
|
16 GPON Port (SFP Optical Module:Class B+,C+,C++),Version 901/902
|
|
EPHF
|
16 EPON Port (SFP Optical Module:PX20+), Version 901/902
|
|
XEHD
|
8 10G EPON Port (SFP Optical Module:PX30 PRX30), Version 901/902
|
|
XELD
|
8 10G EPON Port (SFP Optical Module:PX30 PRX30), Version 901/902
|
|
XGHD
|
8 XG-PON Port (SFP Optical Module:XGPON N1/N2), Version 901/902
|
|
XGLD
|
8 XG-PON Port (SFP Optical Module:XGPON N1/N2), Version 901/902
|
|
XGLF
|
16 XG-PON Port (SFP Optical Module:XGPON N1/N2), Version 901/902
|
|
XGSF
|
16 XG-PON Port (SFP Optical Module:XGPON N1/N2), Version 901/902
|
Order Guide
(1)AC or DC power
(2)with what service board

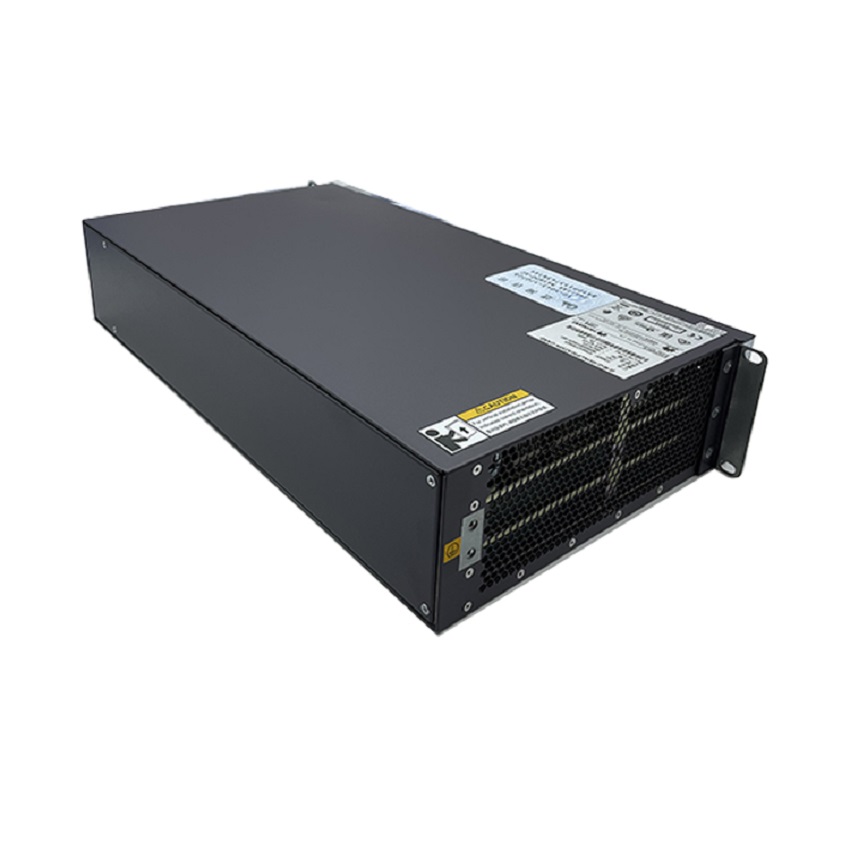

(3)with what model of 220V-48V Power converter
Service boards
16 ports 1G GPON board:GPHF/GPLF/GPSF/GPUF(B+,C+,C++)
16 ports 1G EPON board:EPHF
8 ports 10G GPON board:XGHD/XGLD
16 ports 10G GPON board:XGSF/XGLF
8 ports 10G EPON board:XEHD/XELD
8 ports XG-PON&GPON board:CGHD/CGID
16 ports XG-PON&GPON board:CGHF/CGUF
(2)with what service board
(3)with what model of 220V-48V Power converter
Service boards
16 ports 1G GPON board:GPHF/GPLF/GPSF/GPUF(B+,C+,C++)
16 ports 1G EPON board:EPHF
8 ports 10G GPON board:XGHD/XGLD
16 ports 10G GPON board:XGSF/XGLF
8 ports 10G EPON board:XEHD/XELD
8 ports XG-PON&GPON board:CGHD/CGID
16 ports XG-PON&GPON board:CGHF/CGUF

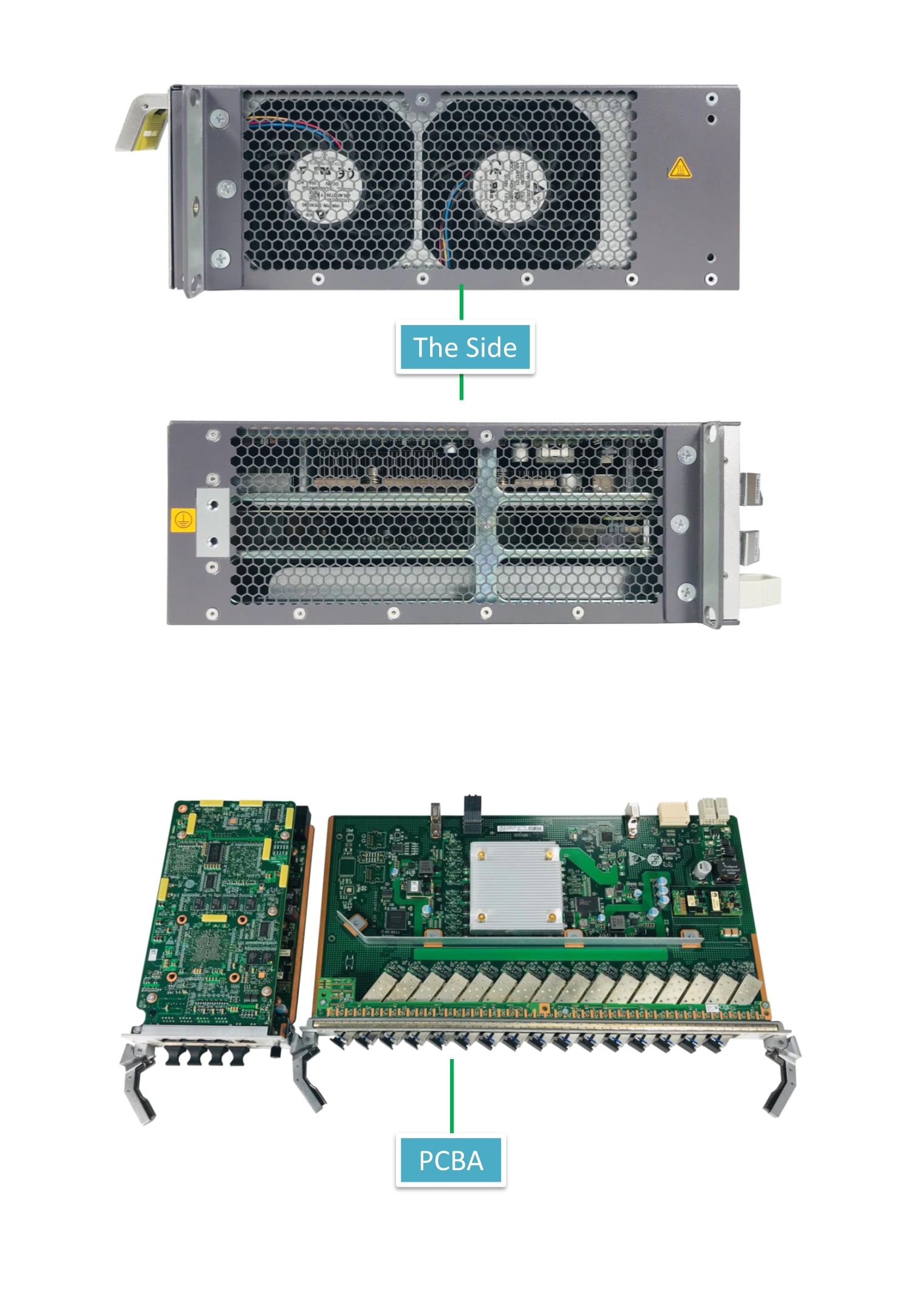

Details Images

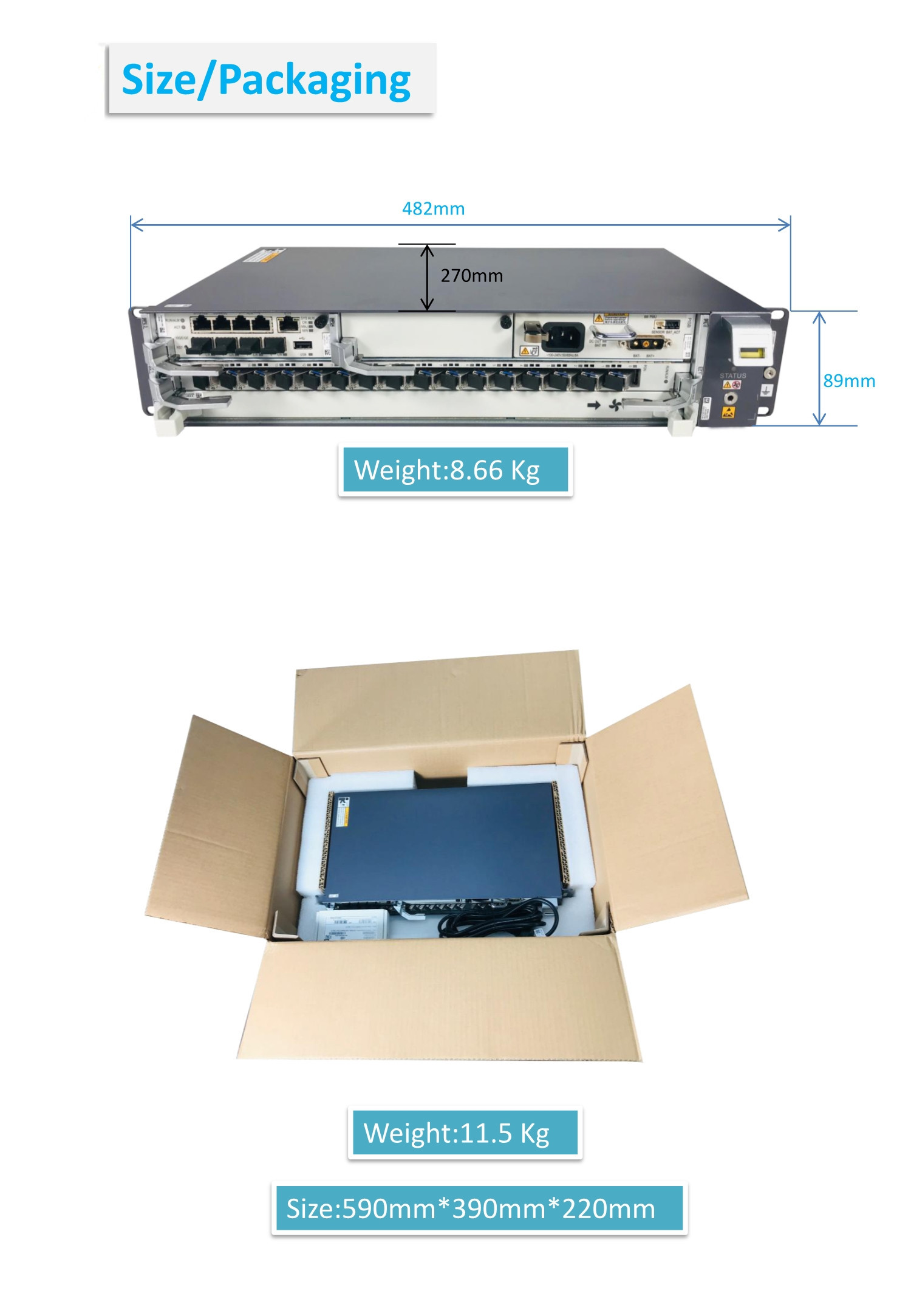

Package
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo available
Inner packing: individual package 1pcs in a box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
Label printing : Customer logo available
Inner packing: individual package 1pcs in a box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
