Product Description

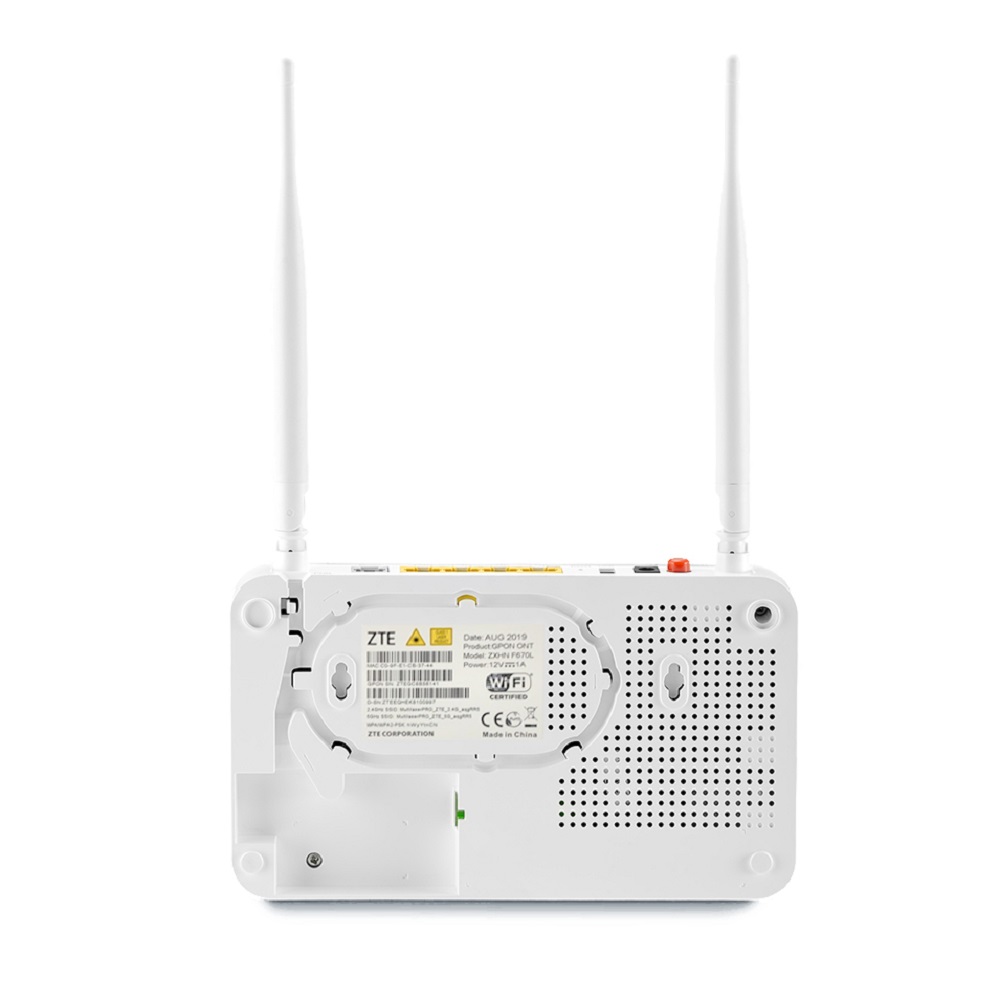

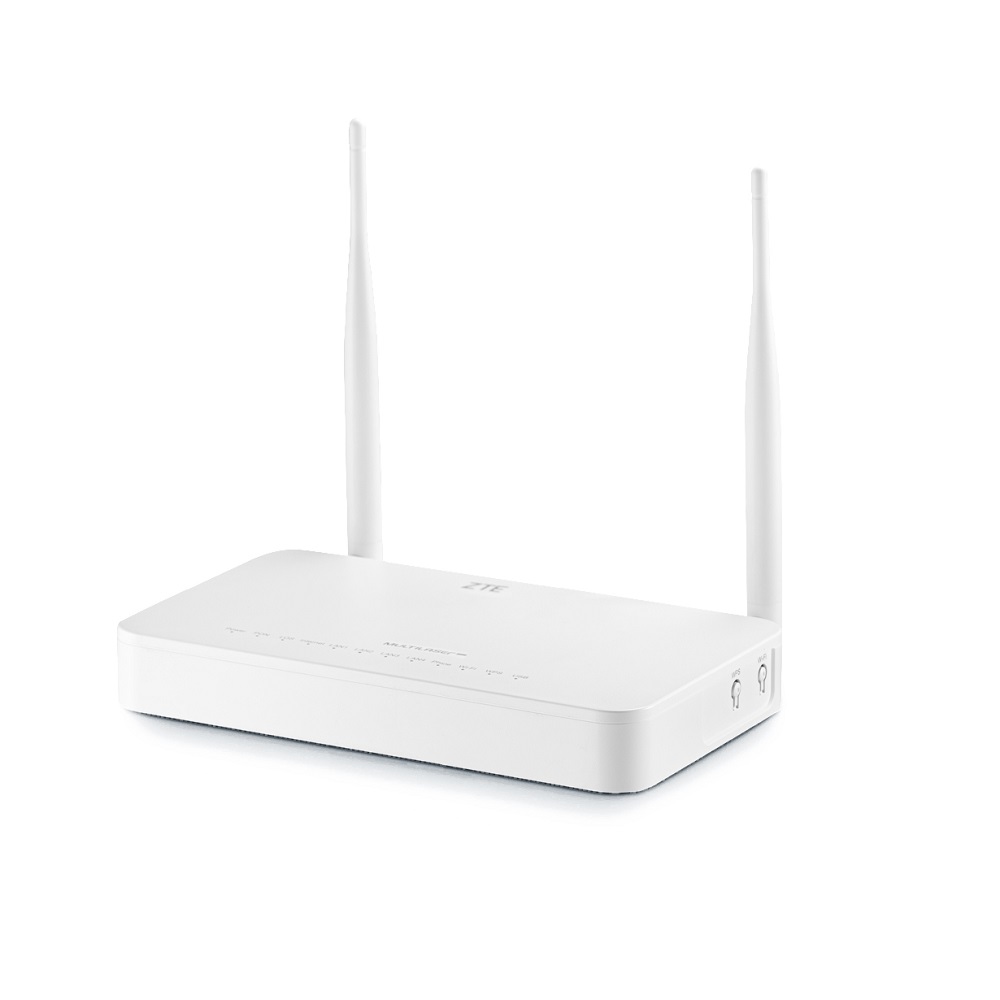

Original new external antenna gpon onu F609 V5.2, 4GE 1TEL USB WIFI modem 2.4G Gpon Ont F609 V3

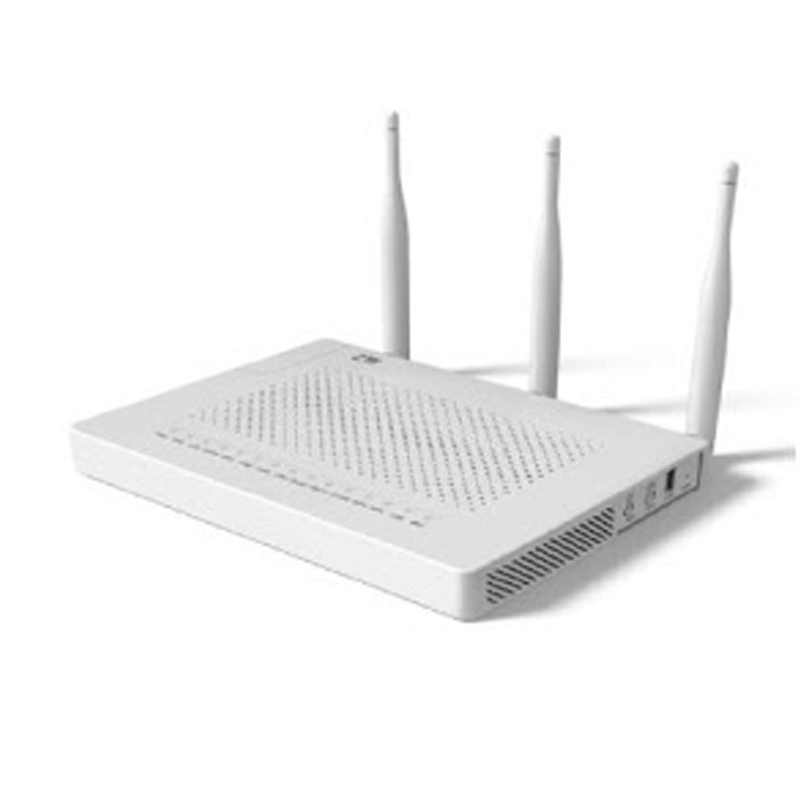

F609 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users.It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting.

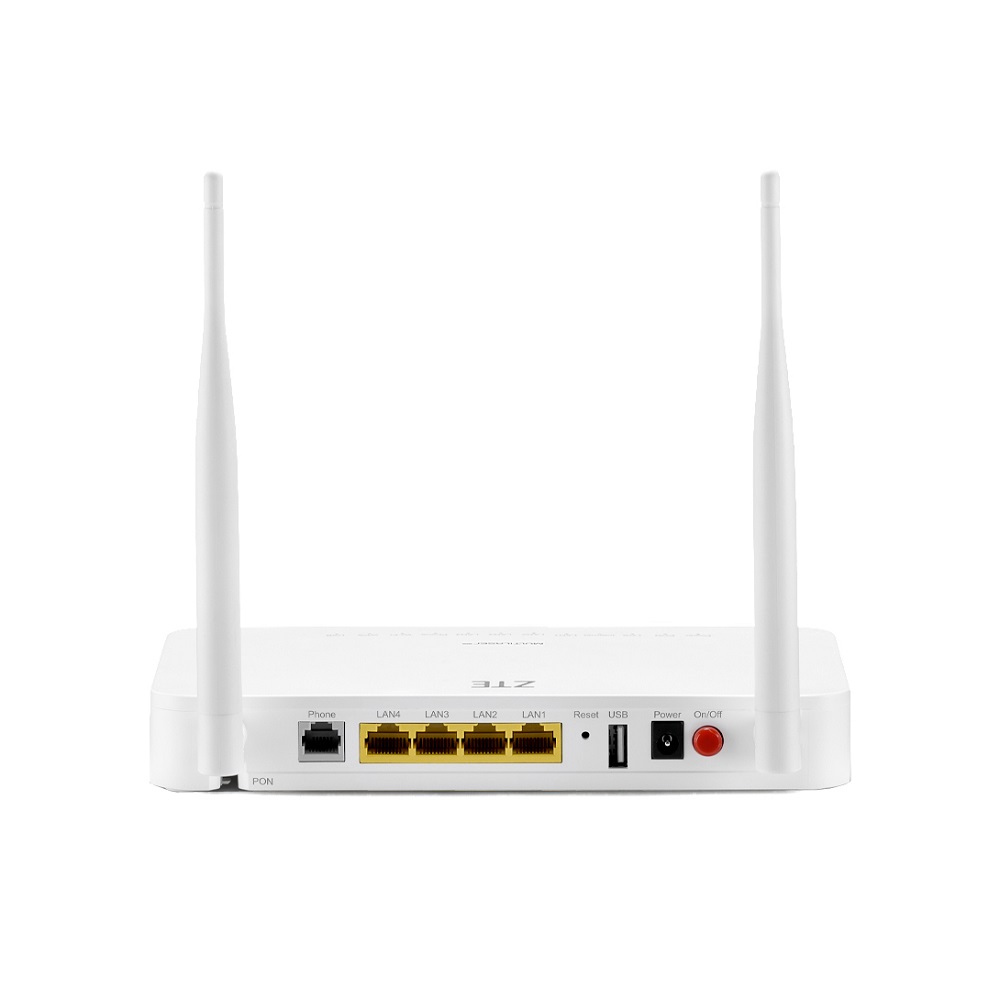

At the network side, it supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS
ports, one USB 2.0 port, and Wi-Fi 802.11n 2×2 2.4GHz & 802.11ac 3×3 5GHz concurrent. By using the ZXHN F670, the home users can
access data, video and voice services, and enjoy high-speed internet connection.
At the network side, it supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS
ports, one USB 2.0 port, and Wi-Fi 802.11n 2×2 2.4GHz & 802.11ac 3×3 5GHz concurrent. By using the ZXHN F670, the home users can
access data, video and voice services, and enjoy high-speed internet connection.
* Supported service: VoIP, Internet, IPTV
•GPON: 8 T-CONTs, 32 GEM Ports
•VLAN: 802.1Q, 802.1P, 802.1ad
•MAC address table: 1k
•L3 function: DHCP server/Client, DNS Client, NAT
•IPv6: Dual Stack, DS-Lite
•VoIP: SIP/H.248, G.711/G.722, T.30/T.38
•Wi-Fi: 4 SSIDs, 2×2 MIMO 2.4G, 3×3 MIMO 5G , WPS
•Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK
•Multicast: IGMP v1/v2/V3 Snooping/Proxy, MLD v1 Snooping
•Multicast group: 64
•QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
•Management: local web management, OMCI, TR069
•USB: DLNA DMS, USB backup
•GPON: 8 T-CONTs, 32 GEM Ports
•VLAN: 802.1Q, 802.1P, 802.1ad
•MAC address table: 1k
•L3 function: DHCP server/Client, DNS Client, NAT
•IPv6: Dual Stack, DS-Lite
•VoIP: SIP/H.248, G.711/G.722, T.30/T.38
•Wi-Fi: 4 SSIDs, 2×2 MIMO 2.4G, 3×3 MIMO 5G , WPS
•Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK
•Multicast: IGMP v1/v2/V3 Snooping/Proxy, MLD v1 Snooping
•Multicast group: 64
•QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
•Management: local web management, OMCI, TR069
•USB: DLNA DMS, USB backup
Specification
F670 GPON ONT Features
Net dimensions
|
220 mm (W) x 315 mm (H) x 35 mm (D)
|
Net weight
|
0.63kg
|
Typical Power consumption
|
12.5 W
|
Noise
|
Null
|
Heat dissipation mode
|
Natural heat dissipation
|
Power supply
|
Rated 12 V DC (through the external AC/DC adapter)
|
Mounting
|
the desktop or on the wall
|
Operating environment
|
0℃–40℃
|
Relative humidity
|
5%–95%
|
Atmospheric pressure
|
70–106 kPa
|
MTTR
|
30 minutes
|
