SKU 1600624342329 Categories ,
  • Model Number:X2CS
  • Type:OLT
  • Place of Origin:Guangdong, China
  • Brand Name:Huawei
  • Use:FTTH FTTB FTTX Network
  • Warranty Time:1 year
  • Network:POE
  • Supply Ability
    10000 Piece/Pieces per Month
  • Packaging Details

    Retail Carton

  • Port


  • Picture Example:
  • Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated
Product Description

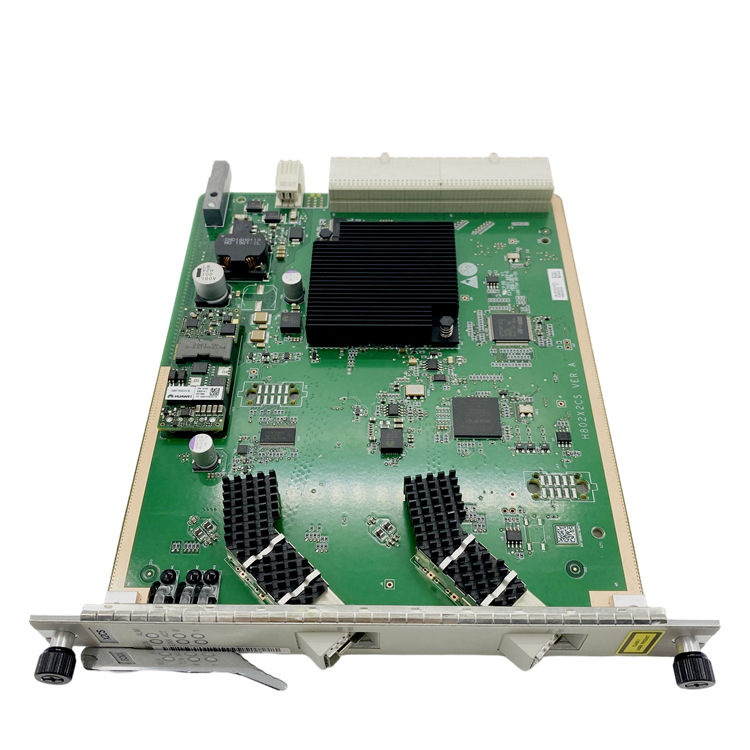

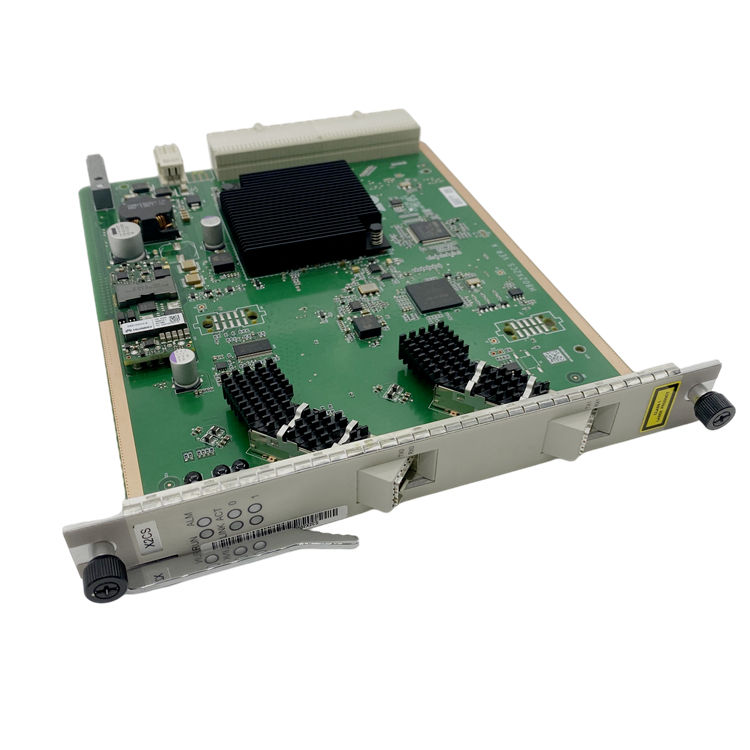

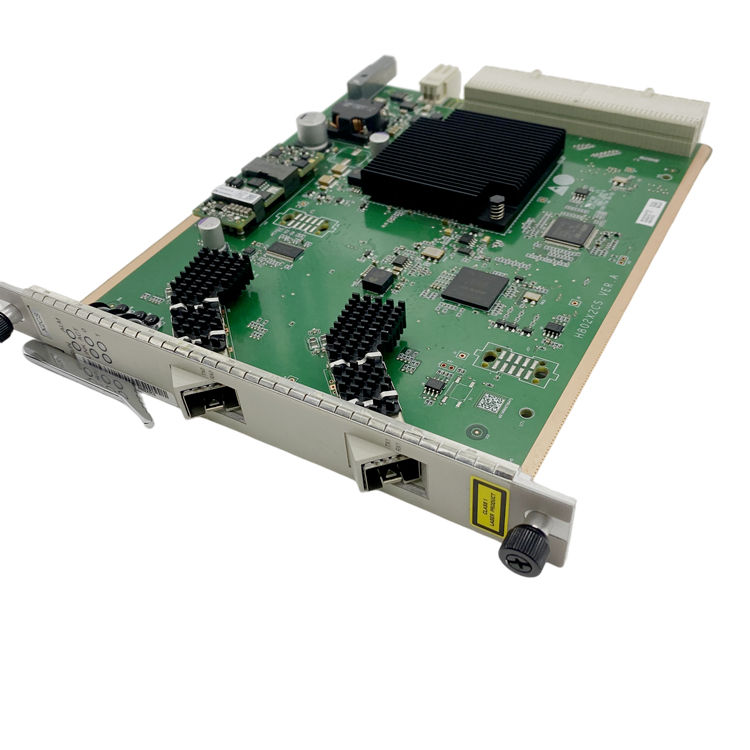

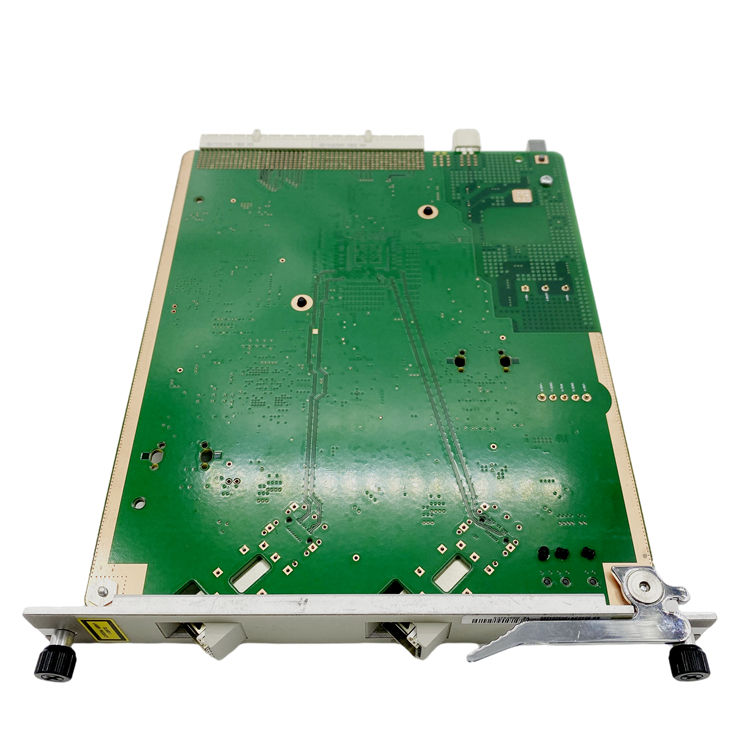

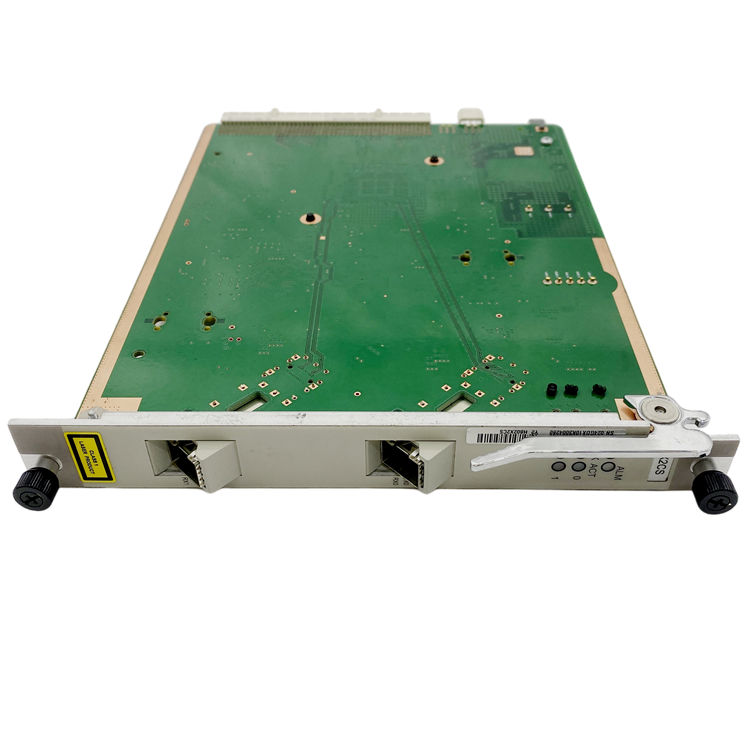

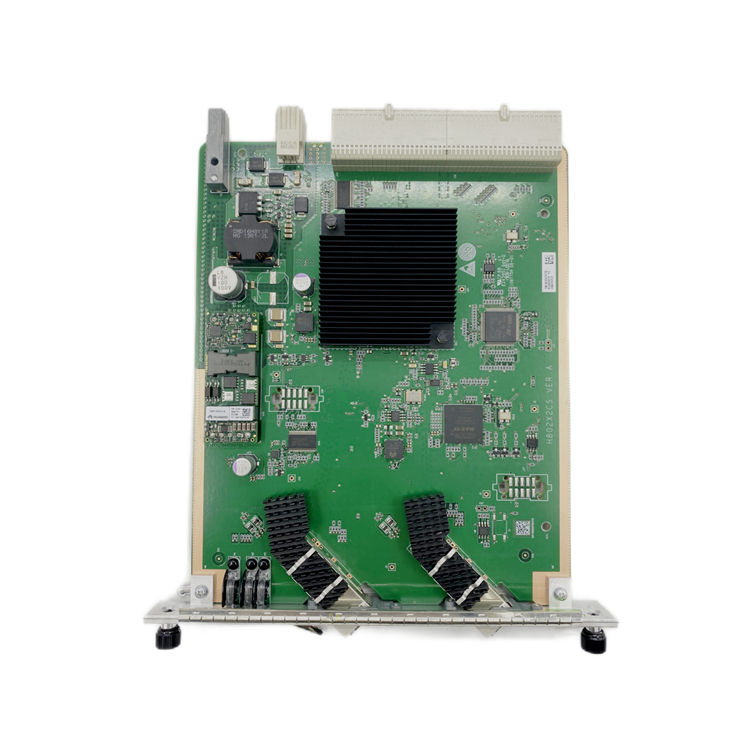

Huawei X2CS uplink board is 2-port 10GE optical card for Huawei MA5683T MA5680T

Huawei X2CS uplink board Product Overview

Huawei X2CS uplink board is a 2 port 10GE uplink optical uplink card of Huawei OLT.This card offers upstream or cascading optical ports. Without 10GE SFP+ module equipped as default.

The OLT product is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and business boards.

  • Large size equipment MA5680T
  • Medium specification equipment MA5683T
  • Small size equipment MA5608T

Product Specification


Brand Huawei
Model X2CS
Port 2 10GE Uplink Ports
Pluggable Module SFP+ Module
Corresponding Control Board SCUF/SCUN/SCUL/SCUH
Dimensions (mm) 25.40 (W) x 237.00 (D) x 197.20 (H)
Power Consumption Static: 17.6 W
Maximum: 18 W
Maximum Frame Size 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported
Operating temperature -25°C to +65°C
Packaging & Shipping

 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
