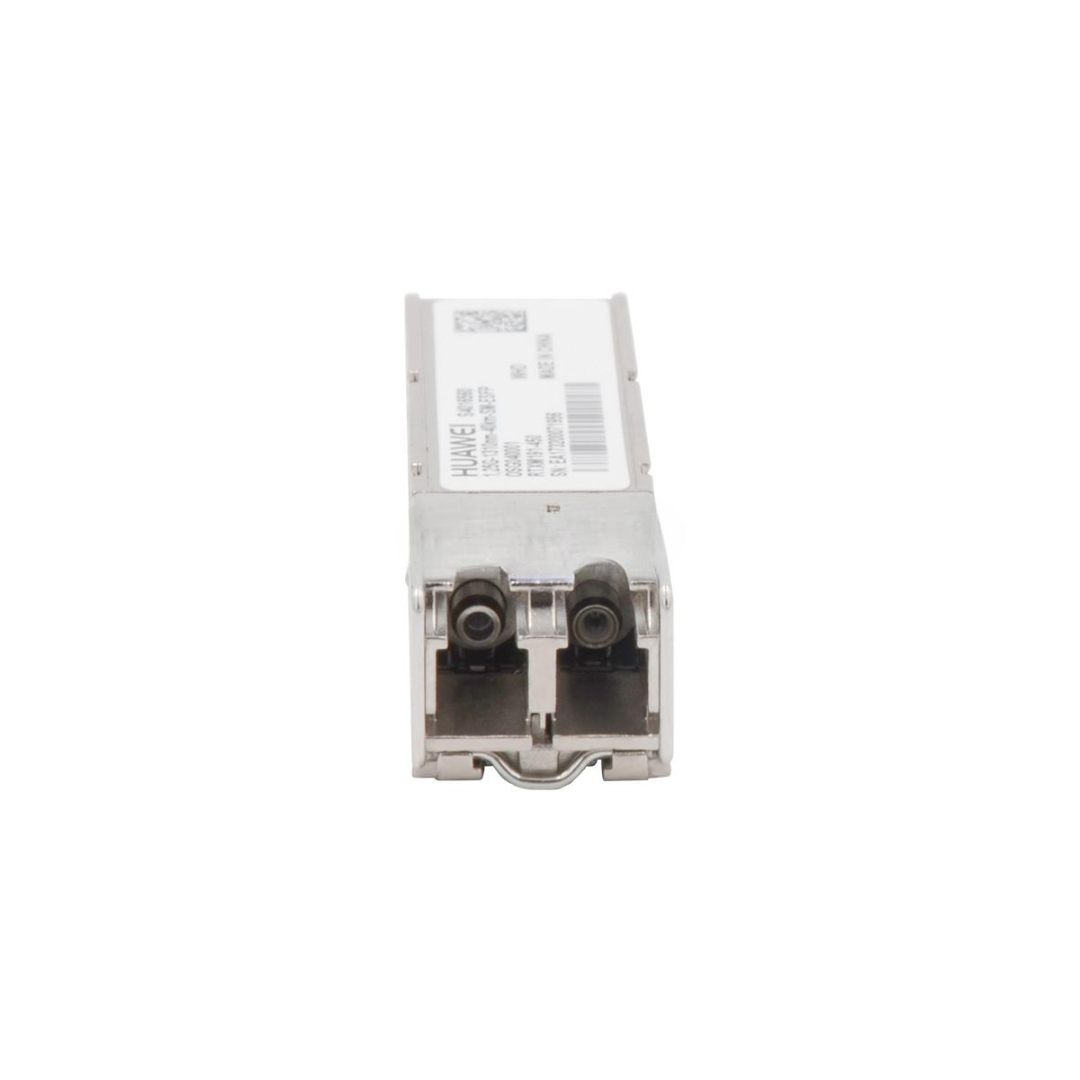

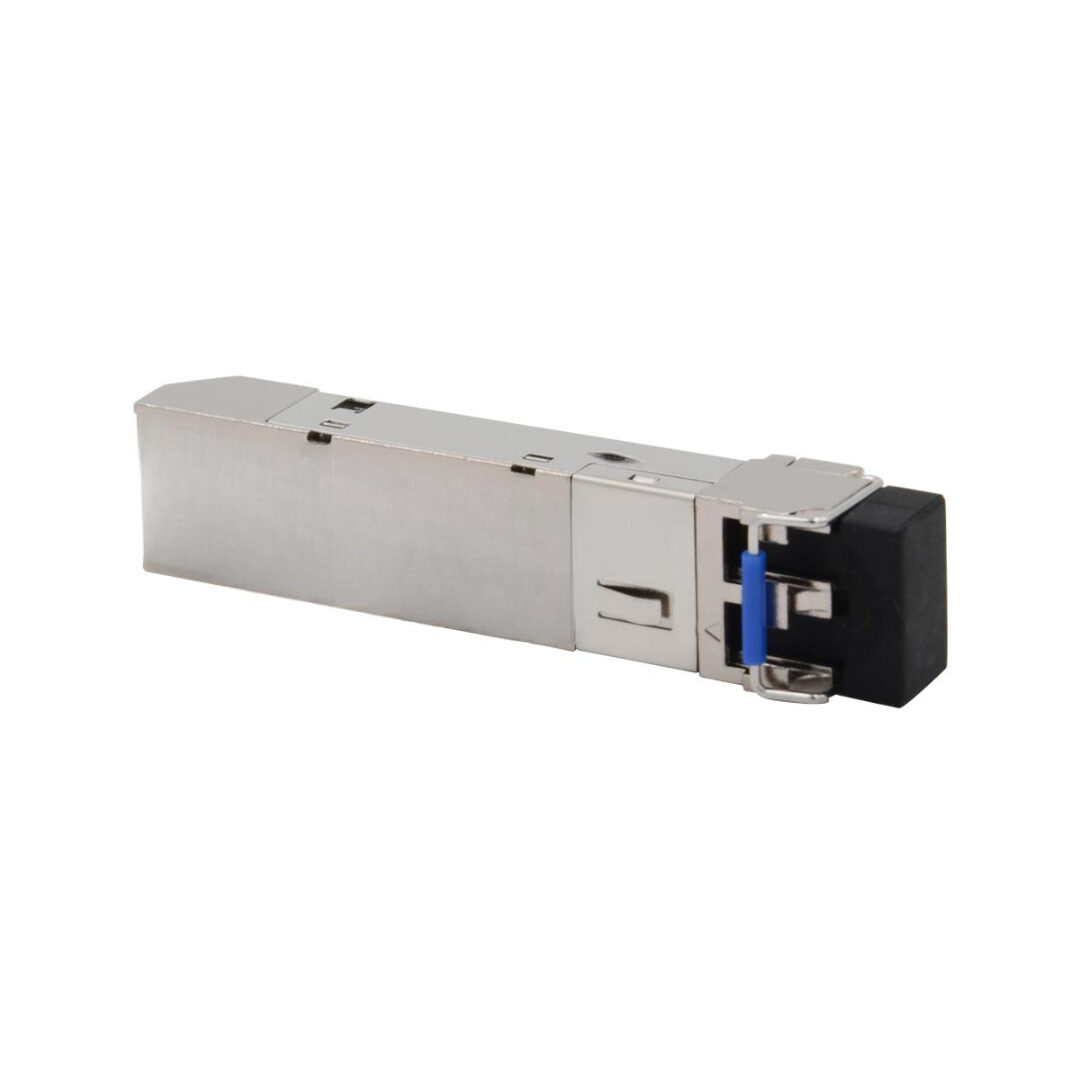

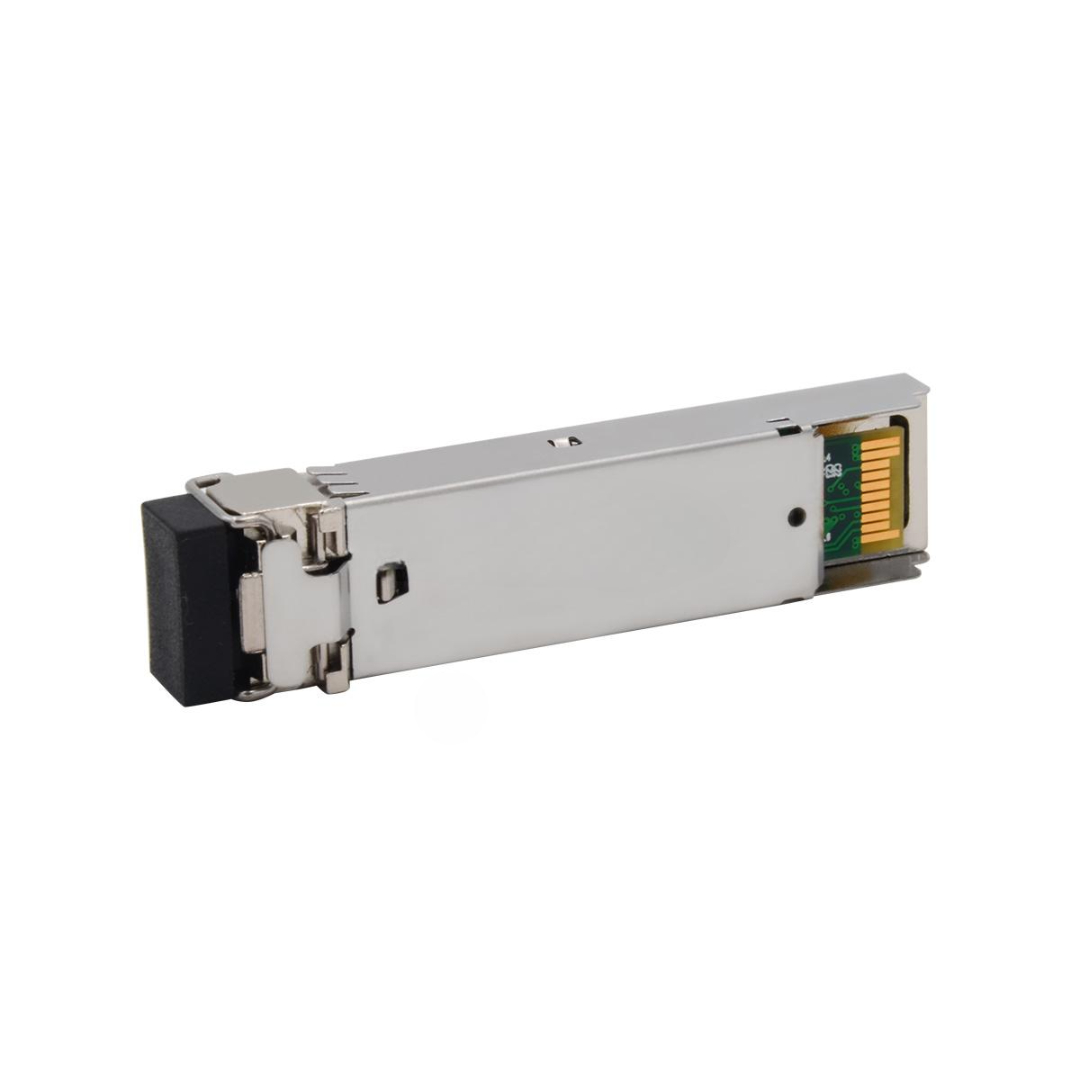

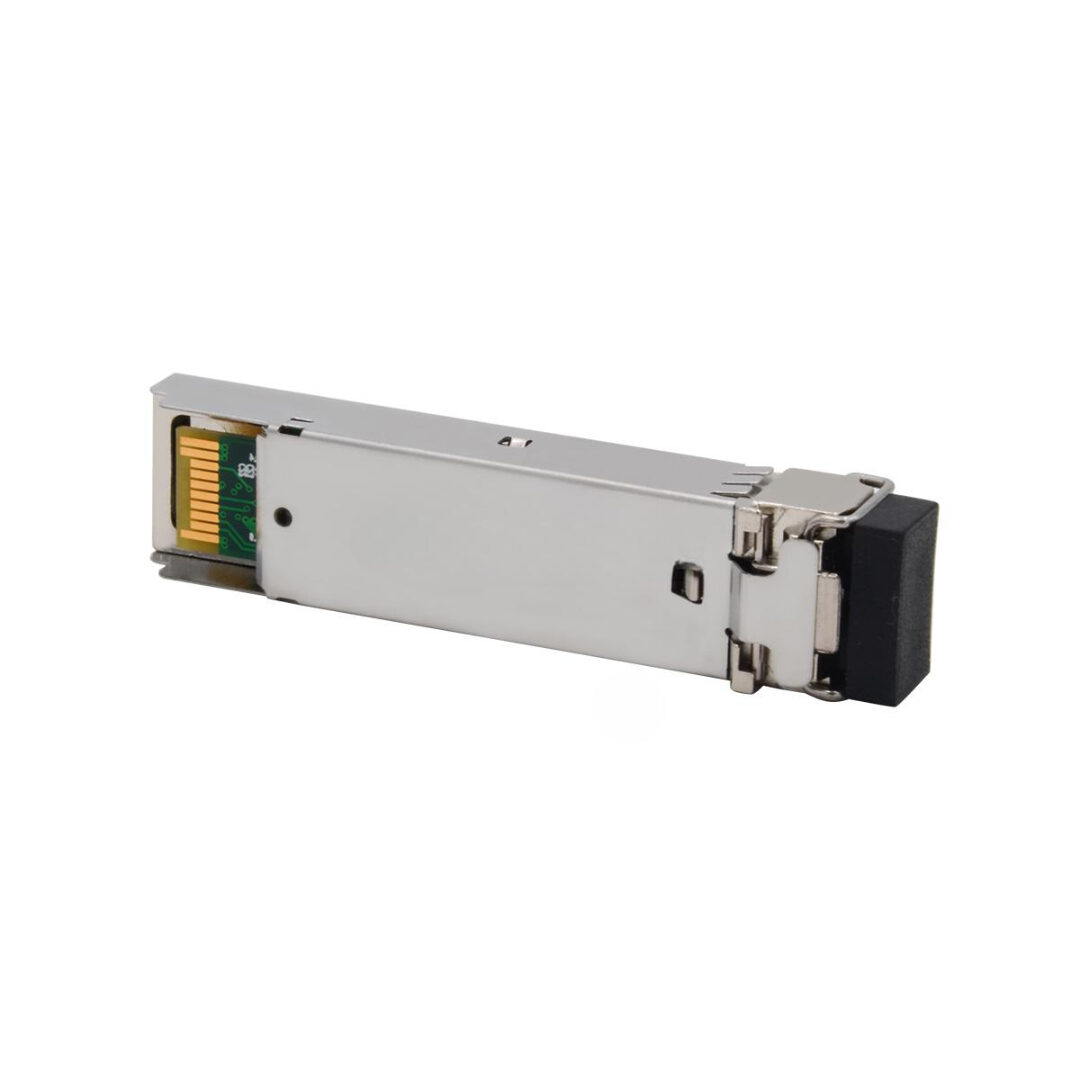

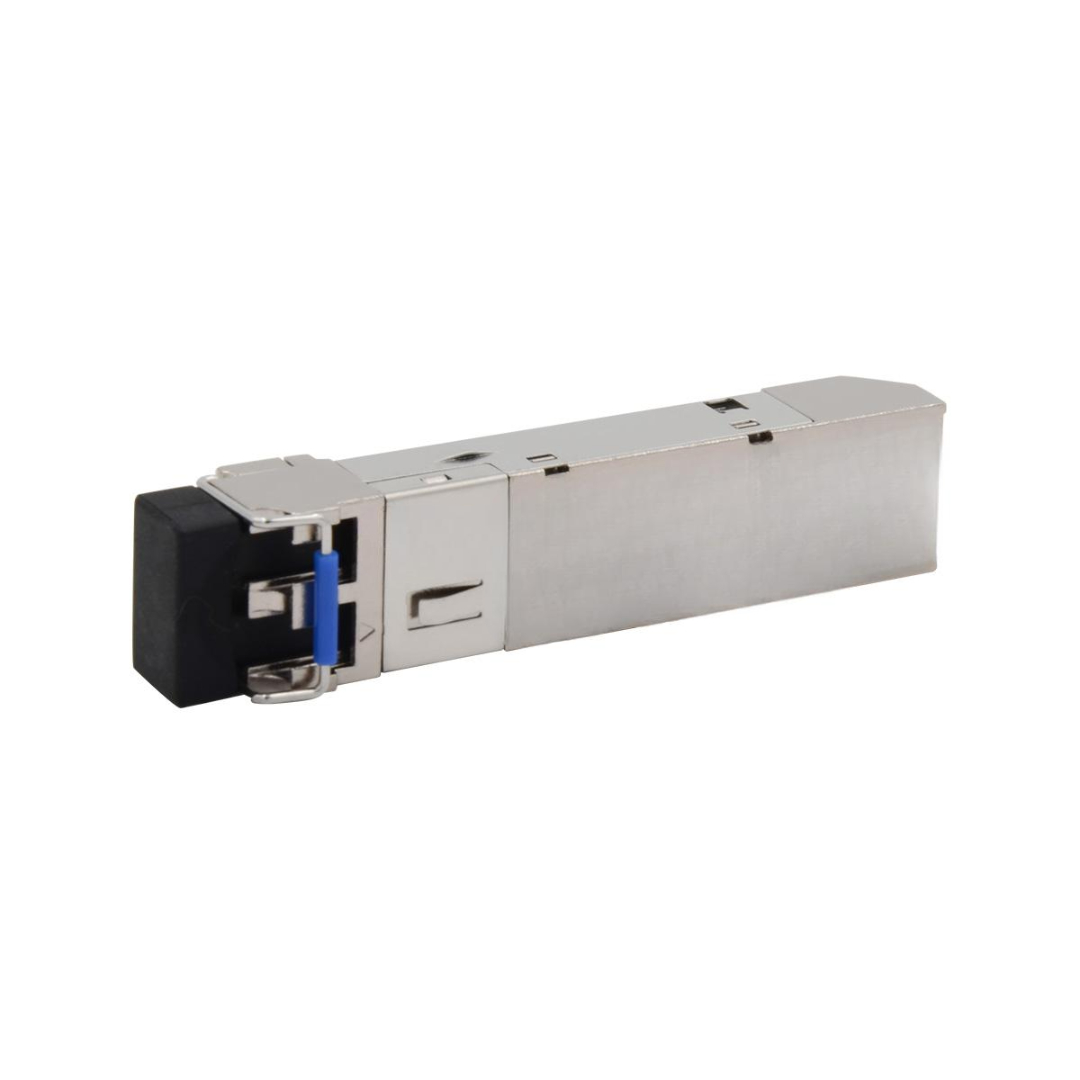

OSG040001 WHD Huawei GE 40KM SFP/ Brand New Optical Transceiver
The OSG040001 WHD Huawei original brand new GE SFP transceiver, designed for 1.25Gbps Gigabit Ethernet applications over single-mode fiber (SMF). With a transmission distance of up to 40 kilometers and an operating wavelength of 1310 nm, this SFP module is an ideal solution for medium to long-range network deployments including metropolitan area networks (MANs), enterprise backbones, and telecom access layers.
This hot-pluggable SFP transceiver features Digital Diagnostic Monitoring (DDM), enabling real-time performance tracking of parameters such as optical power, temperature, and voltage. Engineered for compatibility, it integrates easily into Huawei switches, routers, and MSA-compliant network devices.
Key Features
- Model: OSG040001 WHD
- Condition: 100% Brand New, Original Huawei OEM
- Data Rate: 1.25 Gbps (Gigabit Ethernet)
- Wavelength: 1310 nm
- Transmission Distance: Up to 40 km
- Fiber Type: Single-Mode Fiber (SMF)
- Connector Type: LC Duplex
- DDM (Digital Diagnostic Monitoring): Supported
- Form Factor: SFP
- Hot-Pluggable: Yes
- Compliance: IEEE 802.3z, SFF-8472, RoHS
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSG040001 WHD |
| Form Factor | SFP |
| Data Rate | 1.25 Gbps (1000BASE-LX) |
| Wavelength | 1310 nm |
| Transmission Distance | 40 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Interface | LC Duplex |
| Laser Type | FP/DFB |
| TX Power | -5 to 0 dBm |
| Receiver Sensitivity | < -23 dBm |
| DDM/DOM | Supported |
| Power Supply Voltage | 3.3V |
| Power Consumption | < 1.2W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | IEEE 802.3z, SFF-8472, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
OSG040001 WHD Huawei Applications
- Enterprise Campus Networks – Core switch uplinks and building-to-building links
- Telecom Metro Aggregation – Carrier-grade access layer connectivity
- FTTx/GPON Backhaul – Stable uplink for fiber distribution networks
- Security & Surveillance – Backbone connections for remote IP camera feeds
- Data Center Extensions – Cost-effective interconnects between remote racks or rooms
Customization & OEM Options
- Brand Labeling – Custom logo printing and serial tracking
- Multi-Vendor Coding – Compatibility with Cisco, HP, Juniper, and more
- Extended Temp Models – Optional versions for industrial environments
- Packaging Options – Bulk, custom-labeled, or retail ready
- Test Reports – Optional eye pattern and BER validation available
- Certifications – CE, FCC, RoHS or specific regional approvals upon request
Wholesale & Global Supply Information
- Huawei OEM Assured – Factory-sealed, new production batch
- Bulk Availability – Ample stock for ISP, VAR, and integrator projects
- Rapid Logistics – Global delivery with secure handling
- Tiered Pricing – Discounts for high-volume procurement
- After-Sales Support – Setup guidance and technical consultation available
Why Choose the OSG040001 WHD Huawei
Reliable 40km Connectivity — Optimized for long-distance fiber networks
Huawei Quality — Backed by trusted OEM design and manufacturing
Full DDM Support — Real-time monitoring for proactive network maintenance
Universal Compatibility — Integrates with Huawei and standard SFP platforms
Energy-Efficient Design — Low power draw for sustainable operations
Contact Us for Pricing & Datasheets
Strengthen your optical infrastructure with the Huawei OSG040001 WHD 40KM SFP Transceiver — designed for performance, stability, and global scalability.
Get in touch today for bulk quotes, compatibility details, or OEM solutions.
