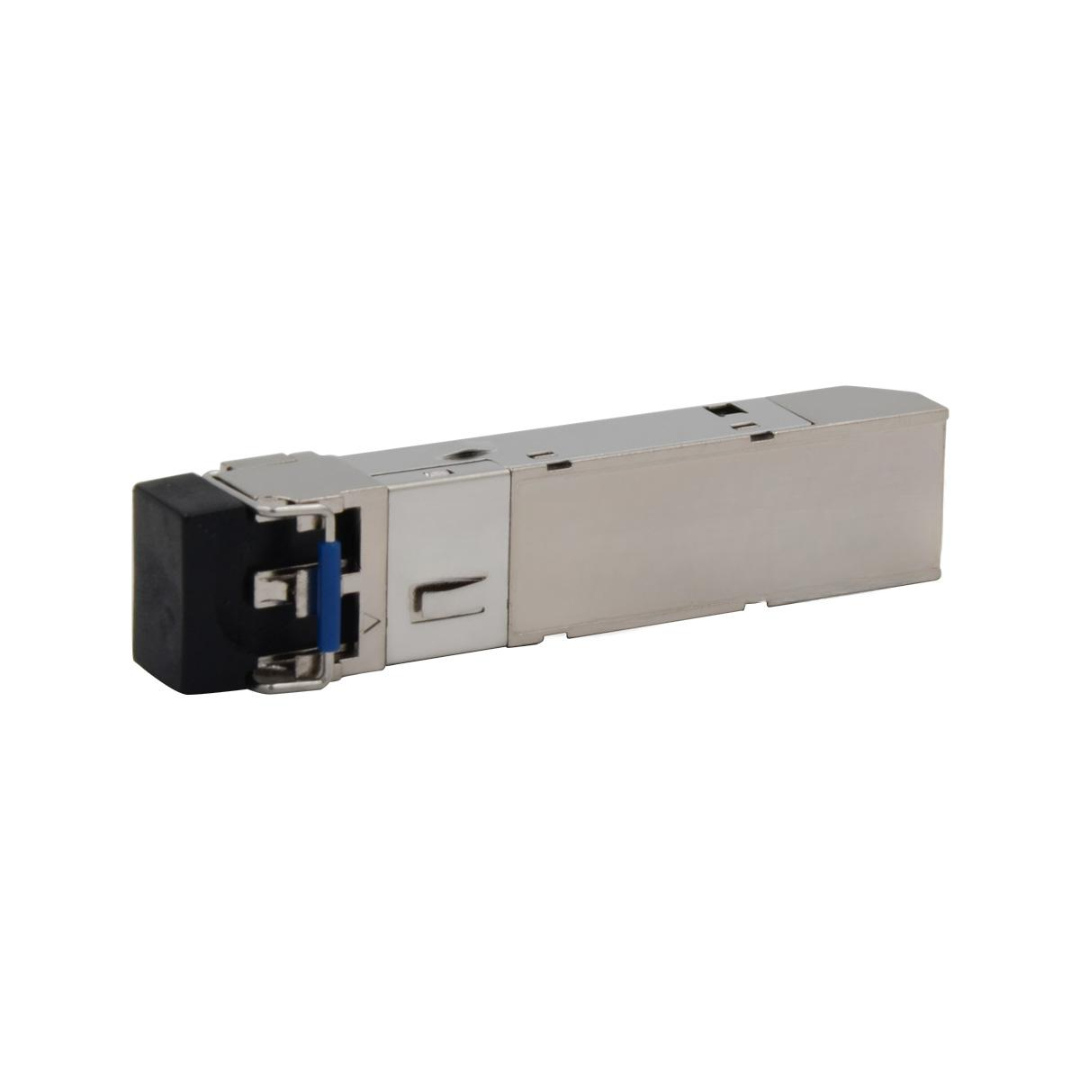

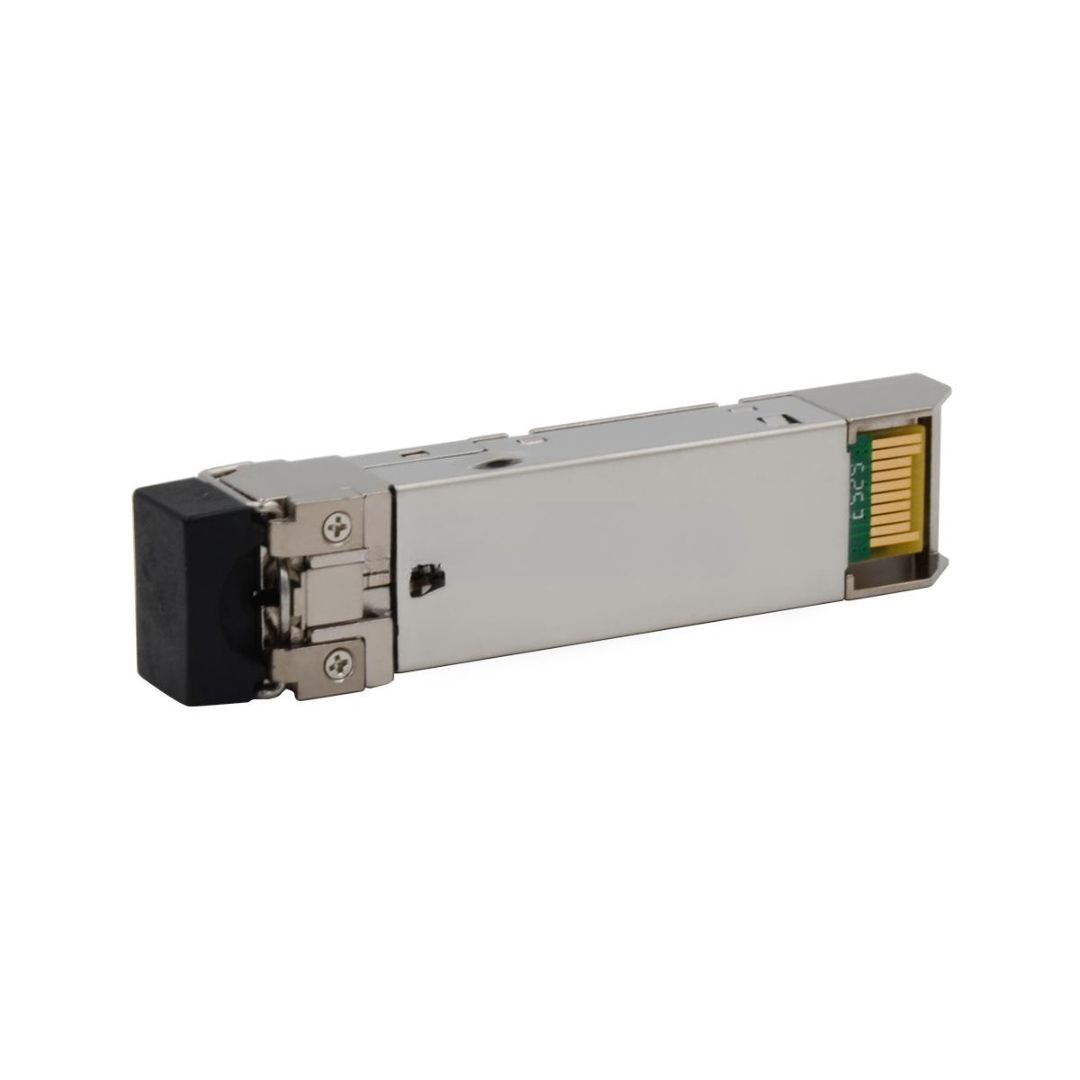

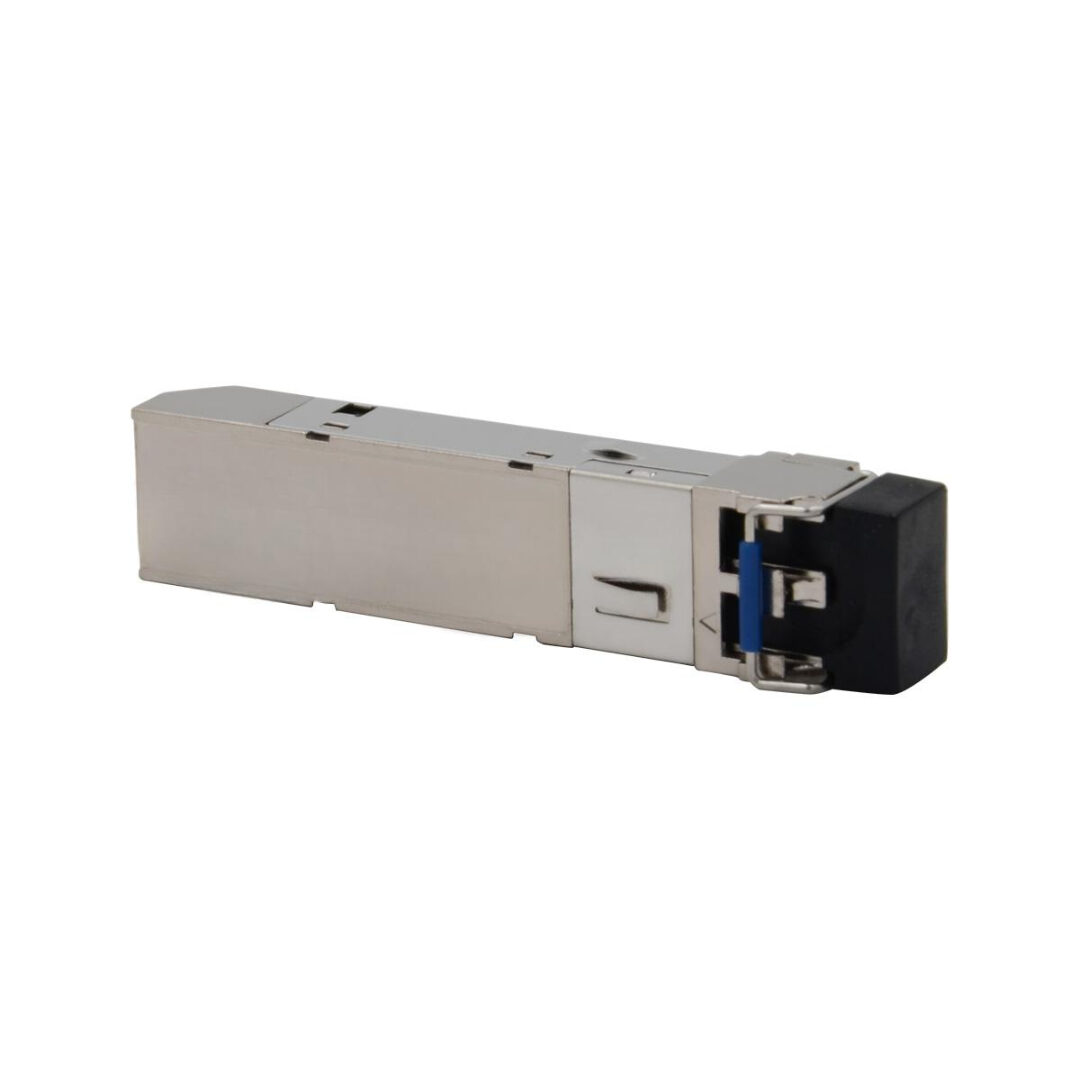

OSG040N02 Huawei GE SFP/40KM High Quality Transceiver
The OSG040N02 Huawei high-performance Gigabit Ethernet SFP optical transceiver, designed for long-distance transmission up to 40 kilometers over single-mode fiber (SMF). Operating at a 1310 nm wavelength, this module delivers 1.25 Gbps data rates and is equipped with an LC duplex interface, making it ideal for backbone networks, metro access, and enterprise fiber links.
Compliant with IEEE 802.3z and SFP MSA standards, the OSG040N02 offers full hot-pluggability, digital diagnostics monitoring, and low power consumption, providing a reliable and cost-effective solution for high-speed, long-reach fiber optic communication.
Key Features
- Model: OSG040N02
- Condition: 100% Brand New, Original Huawei
- Form Factor: SFP (Small Form-Factor Pluggable)
- Transmission Rate: 1.25 Gbps (Gigabit Ethernet)
- Wavelength: 1310 nm
- Reach: Up to 40 km over SMF

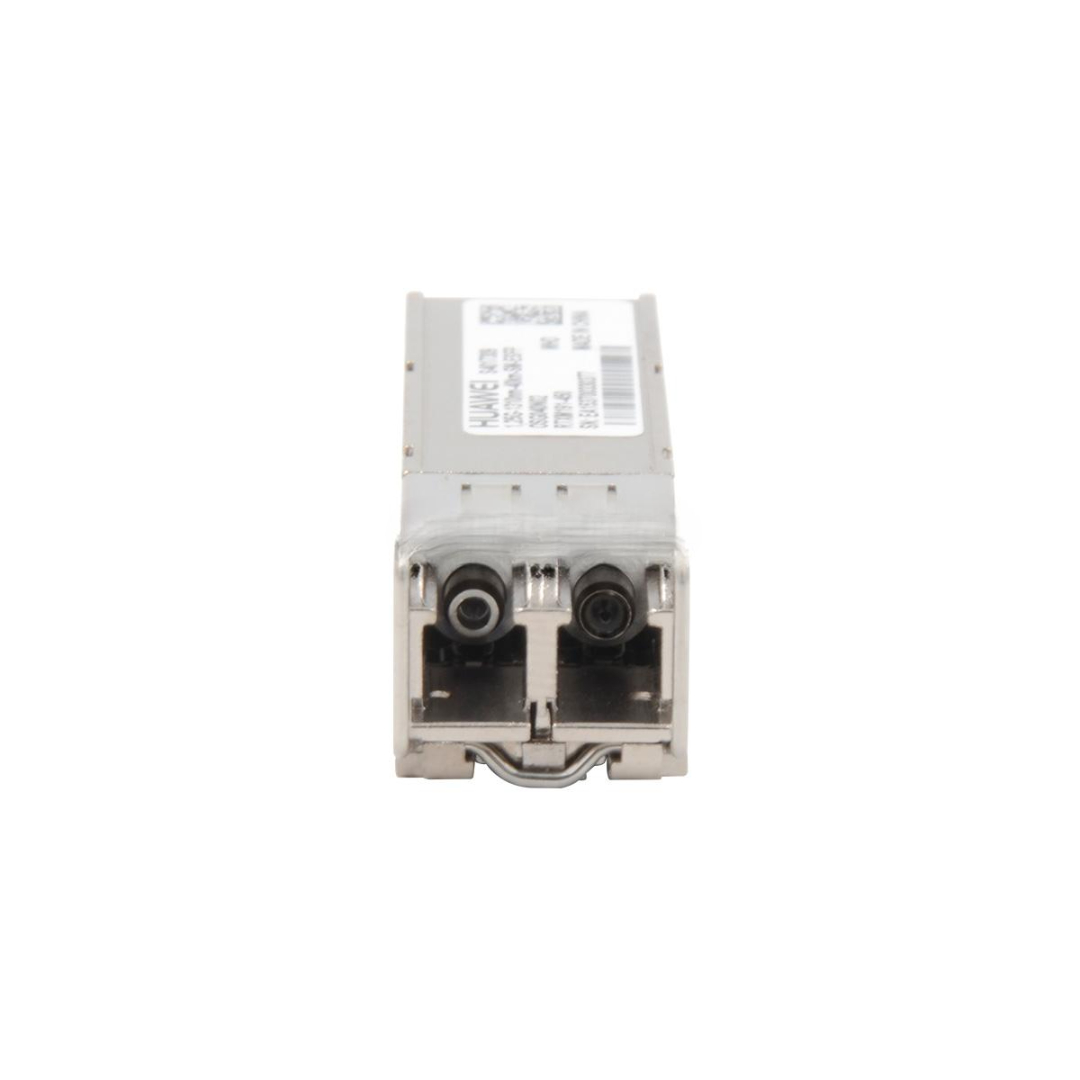

- Connector Type: LC Duplex Interface
- Hot-Pluggable: Yes
- DDM/DOM Support: Yes (Digital Diagnostics Monitoring)
- Compliance: IEEE 802.3z, SFP MSA, RoHS
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSG040N02 |
| Data Rate | 1.25 Gbps (GE) |
| Wavelength | 1310 nm |
| Transmission Distance | Up to 40 km |
| Fiber Type | Single-mode (SMF) |
| Connector Interface | LC Duplex |
| TX Power Range | -5 to 0 dBm |
| Receiver Sensitivity | ≤ -24 dBm |
| Laser Type | DFB (Distributed Feedback Laser) |
| Power Supply Voltage | 3.3V DC |
| Power Consumption | <1W |
| DDM Functions | Temperature, Voltage, Bias, RX/TX |
| Operating Temp. | 0°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Standards Compliance | IEEE 802.3z, RoHS, SFP MSA |
| Warranty | 1–3 Years Manufacturer Warranty |
OSG040N02 Huawei Applications
- Enterprise Campus Networks — Reliable fiber uplinks between distributed buildings
- Metro Access Rings — Long-distance aggregation and backhaul links
- Data Centers — Fiber extension from edge to aggregation/core switches
- Service Provider Networks — Fiber-based infrastructure for access and distribution
- Industrial and Government Systems — High-reliability data transport
Customization & OEM Options
- Label Customization — Add your logo, part number, or barcodes
- EEPROM Programming — Compatible with Cisco, HP, Juniper, and other brands
- Temperature Grade Options — Industrial (-40°C to +85°C) versions available
- Pre-Tested Modules — Certification reports for power budget and BER included
- Custom Packaging — Bulk or individual packaging with private branding
- Multilingual Manuals — Documentation available in various languages
OSG040N02 Huawei Wholesale & Global Supply Info
- OEM Direct Supply — 100% original Huawei component
- Stock Readiness — Available for immediate shipment
- Global Fulfillment — Export-compliant and customs-ready
- Secure Packaging — Static-safe box with foam protection
- Volume Discounts — Available for ISPs, integrators, and project resellers
- Technical Support — Provided for configuration, NMS setup, and compatibility
Why Choose the Huawei OSG040N02 Transceiver
Long-Reach Transmission — Up to 40 km for wide area deployment
Huawei OEM Quality — Built to carrier-grade standards
Hot-Pluggable & DDM — Easy installation with real-time diagnostics
Low Power Design — Efficient operation in dense fiber environments
Multi-Vendor Compatibility — Interoperable across most SFP platforms
Contact Us for Bulk Orders, Pricing & Datasheets
Maximize your fiber performance with the Huawei OSG040N02 GE SFP — an ideal long-distance transceiver for reliable and high-speed optical networking.
Reach out now to request volume pricing, compatibility details, or technical specs.
