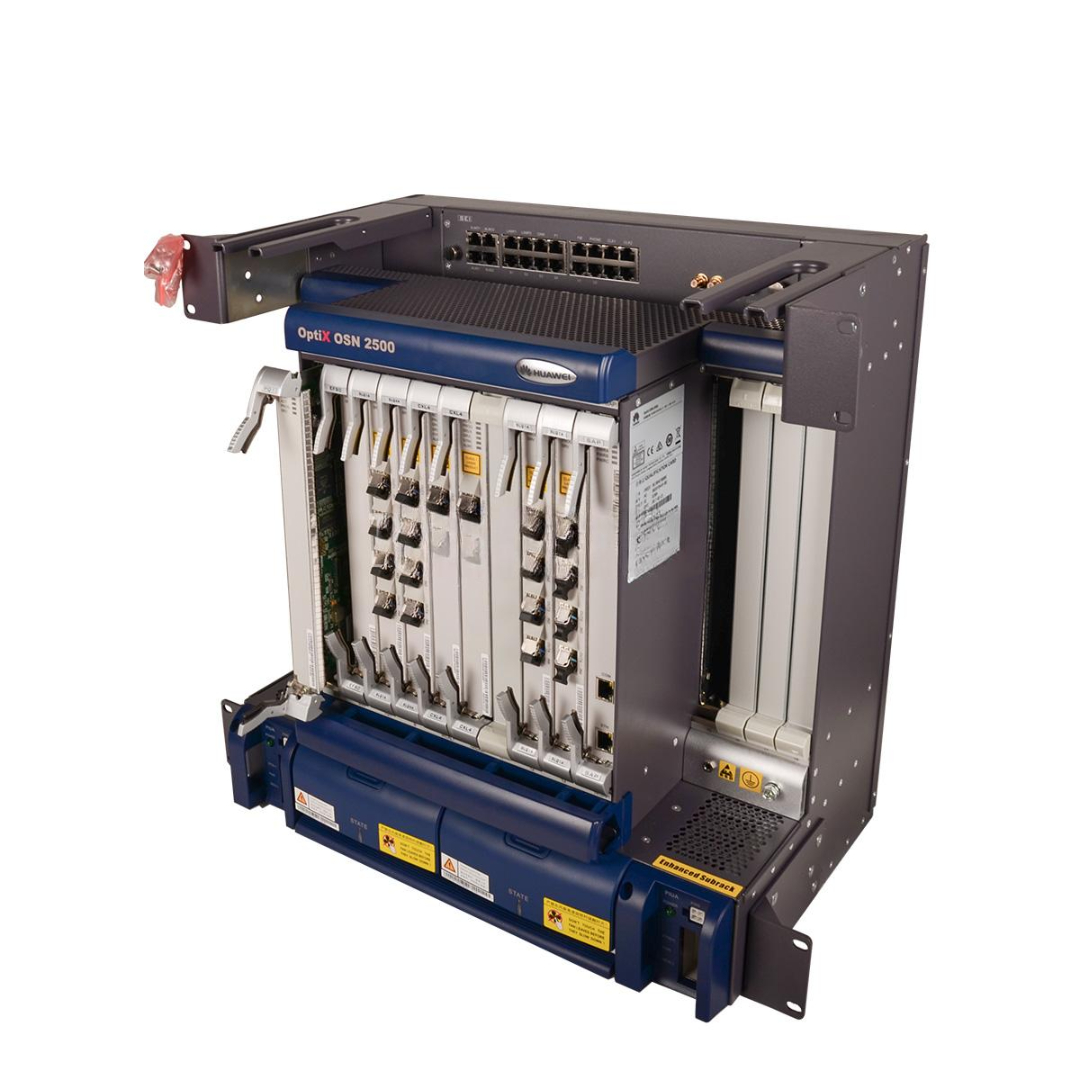

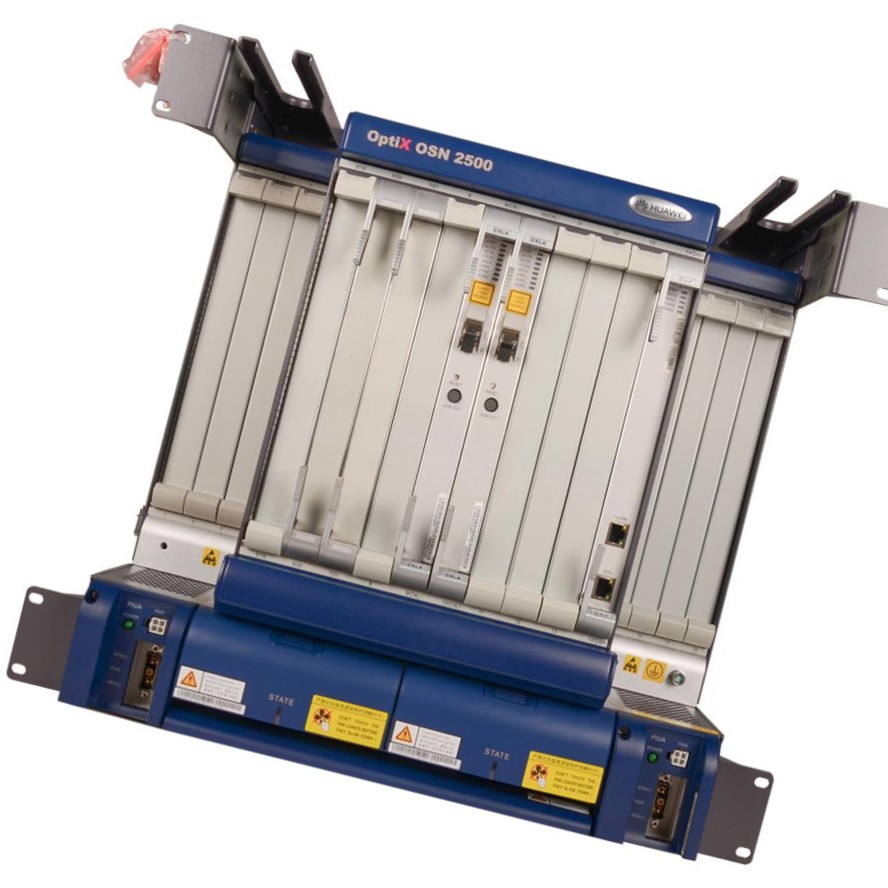

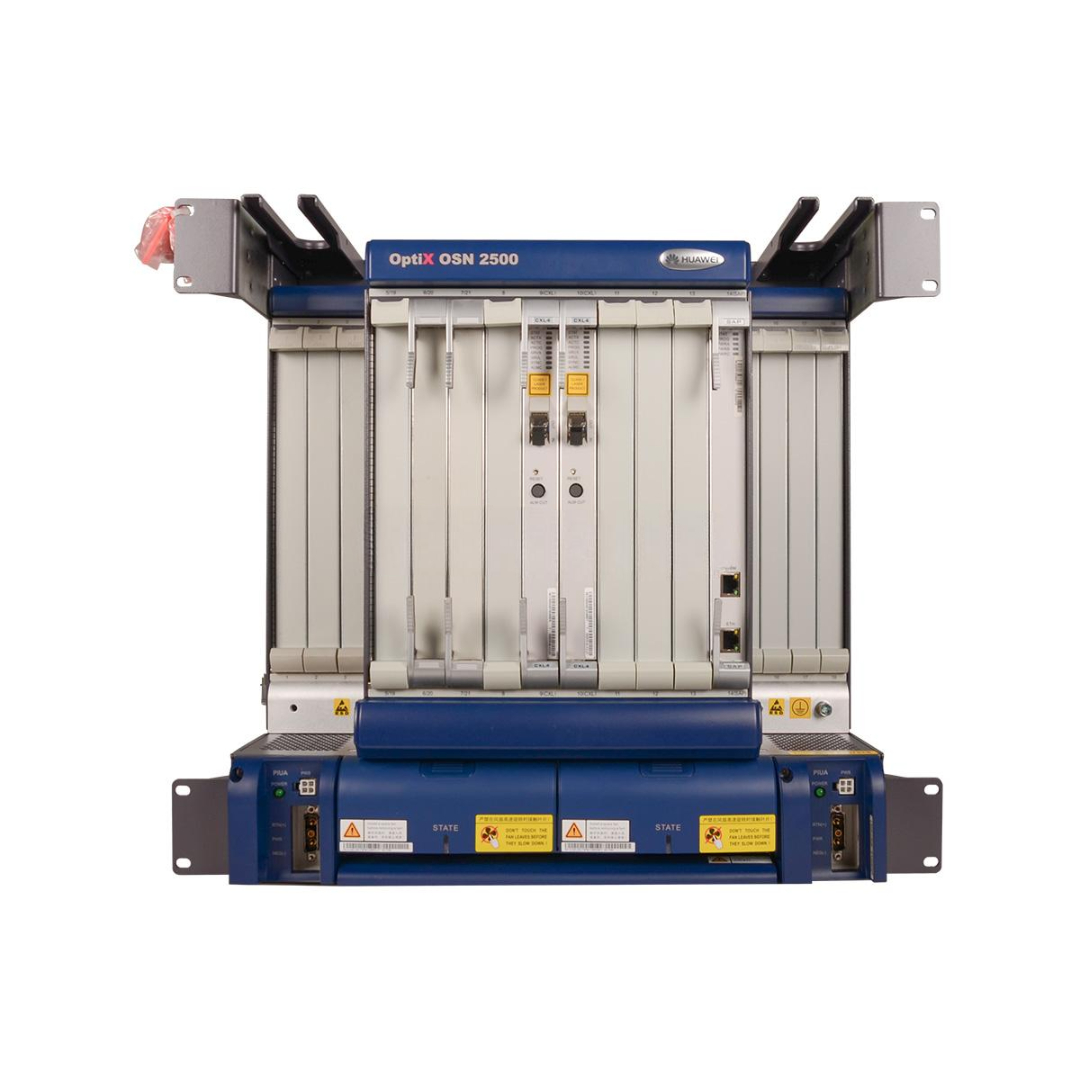

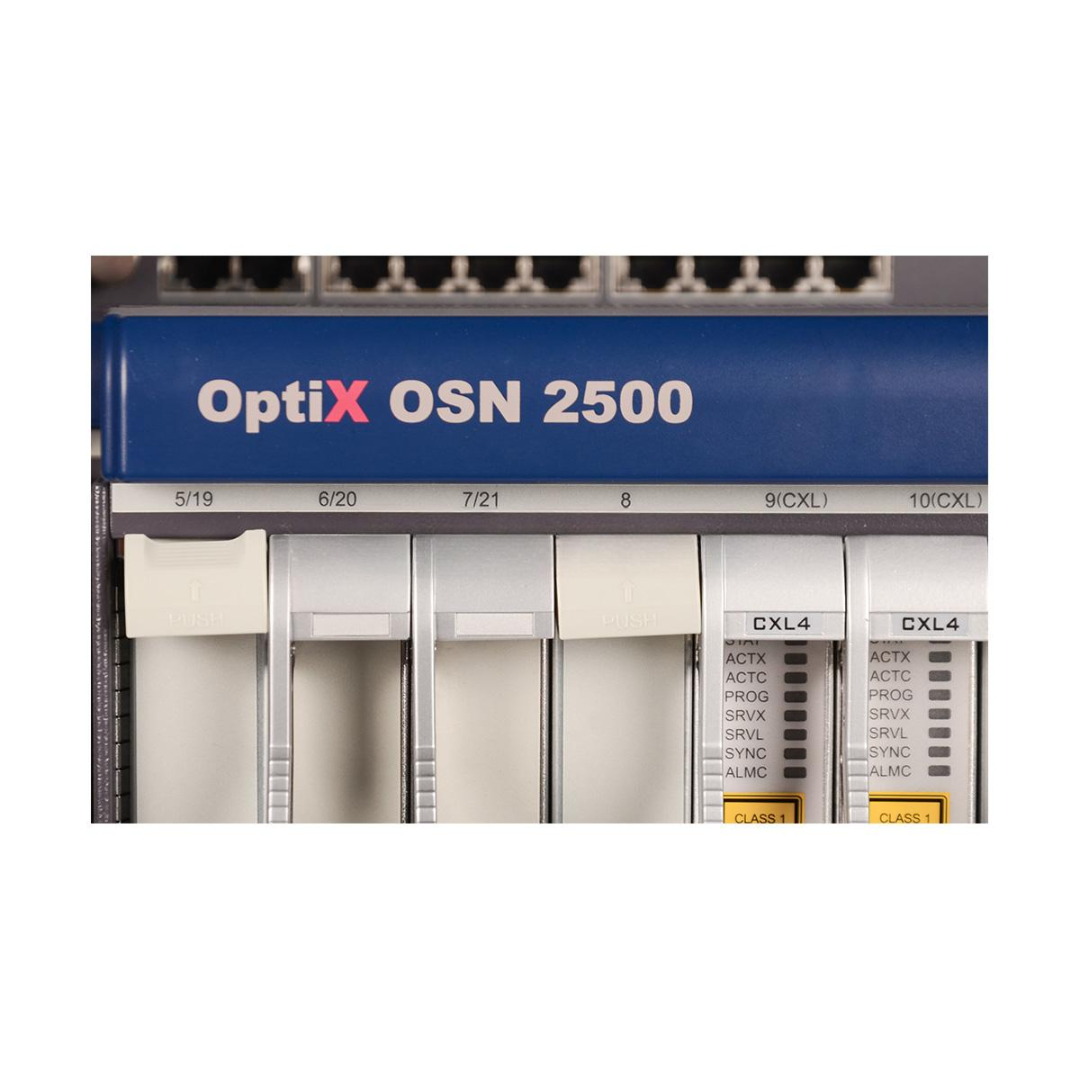

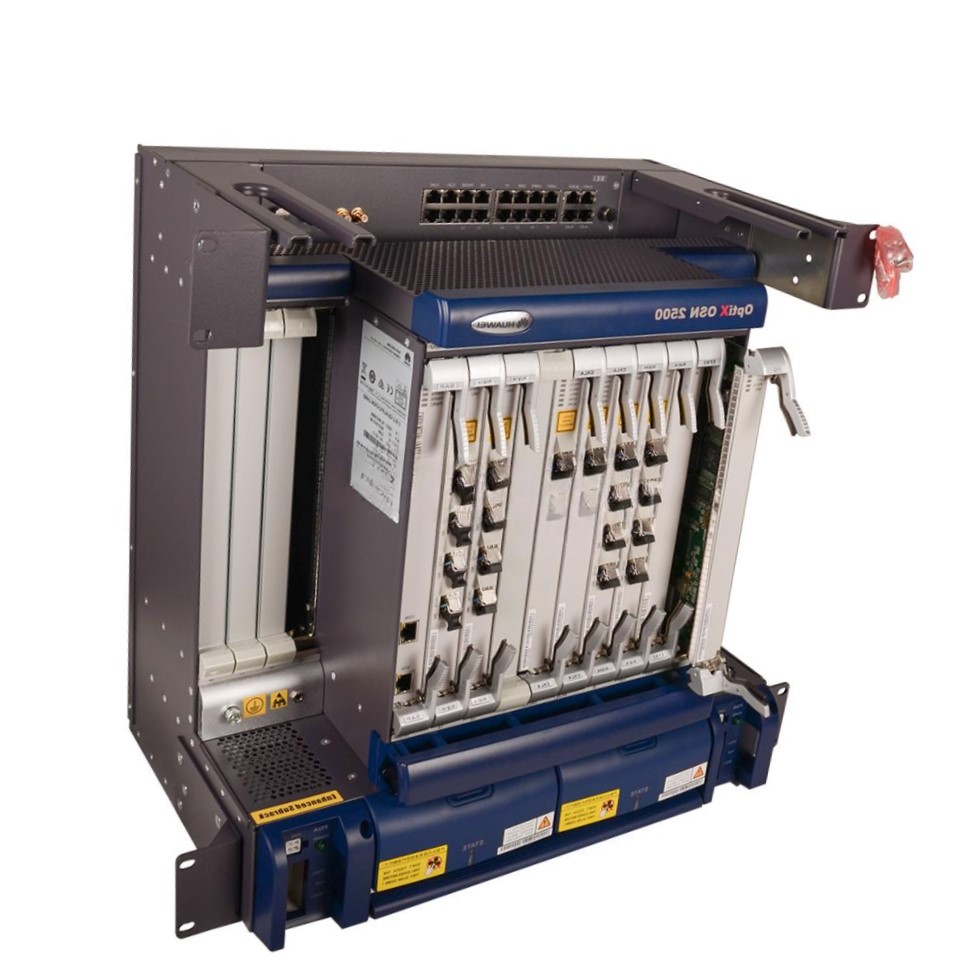

OSN2500 Huawei OptiX High Quality Subrack 12 Service Slots
The OSN 2500 Huawei is a high-performance, medium-capacity Multi-Service Transport Platform (MSTP) subrack designed for metro aggregation, access, and enterprise-level transmission. Equipped with 12 flexible service slots, the OSN2500 combines SDH, PDH, and Ethernet services into a unified and reliable transport solution. It supports TDM and packet-based traffic with full redundancy options, making it ideal for telecom carriers, government, power utilities, and transportation sectors.
Key Features
-
Model: Huawei OptiX OSN2500
-
Condition: 100% Brand New, Huawei Original
-
Service Slots: 12 modular slots for various service and interface boards
-
Supported Services: SDH (STM-1/4/16), PDH (E1), Ethernet (FE/GE), CES
-
System Architecture: Integrated MSTP with electrical cross-connect and optional packet support
-
Cross-Connect Capacity: Up to 40G electrical switching
-
Redundancy: Supports 1+1 control board, dual power inputs, and SNCP/linear MSP protection
-
Management: Compatible with Huawei U2000 and NCE-T platforms; CLI and SNMP access
-
Deployment Mode: Rack-mountable (19” or ETSI), indoor cabinet installation
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSN2500 |
| Service Slots | 12 (modular) |
| Supported Interfaces | E1, STM-1, STM-4, STM-16, FE, GE, CES |
| Cross-Connect Capacity | Up to 40 Gbps (non-blocking, electrical) |
| Power Supply | DC -48V (dual input for redundancy) |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5%–95% RH, non-condensing |
| Dimensions (W×D×H) | 442 × 236 × 266 mm (standard 6U subrack) |
| Mounting | 19-inch/ETSI standard rack compatible |
| Compliance | ITU-T G.707, G.783, G.841, IEEE 802.3, CE, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
OSN 2500 Huawei Applications
-
Metro Access & Aggregation Networks — Ideal for mid-size telecom and ISP networks
-
Legacy Service Migration — Combines SDH and Ethernet for hybrid service delivery
-
Power & Utility Networks — Reliable transmission for SCADA, video, and control signals
-
Transport & Railway Networks — Stable platform for voice/data/signaling services
-
Government & Enterprise Networks — Secure backhaul and internal communication networks
Customization & OEM Options
-
Pre-Assembled Racks — OSN2500 subracks fully loaded with customer-specified boards
-
Board Configuration — Includes STM-1/4/16, E1, GE, CES boards as per network design
-
Labeling & OEM Branding — White-label options with custom part numbers and logos
-
Topology Setup — Factory preloaded configurations (VC-mapping, Ethernet bridging, SNCP rings)
-
Extended QA Testing — Stability tested for harsh environments and critical infrastructure
OSN 2500 Huawei Wholesale & Global Procurement
-
OEM Original Supply — 100% genuine Huawei products with original packaging and documentation
-
Bulk Availability — In-stock units and accessories ready for immediate shipping
-
Professional Packaging — Anti-static protection and foam-padded boxes for secure transport
-
Global Shipping — DHL/FedEx/Sea freight with all necessary customs documentation
-
Technical Integration Support — Assistance with board selection, initial configuration, and NMS integration
-
Optional Accessories — Power cables, optical patch cords, manuals, and mounting kits
Why Choose OSN 2500 Huawei MSTP Platform
-
Flexible 12-Slot Capacity — Perfect balance between performance and space-efficiency
-
Multi-Service Transport — Seamlessly handles legacy and modern Ethernet traffic
-
Carrier-Class Quality — High MTBF, redundant architecture, hot-swappable modules
-
Wide Deployment Use Cases — Suitable for telecom, industrial, and governmental applications
-
Cost-Efficient Expansion — Scalable transport without overbuilding infrastructure
Contact Us Now for Bulk Orders, Configuration Support & Price Quotes
Boost your network’s performance and reliability with the Huawei OptiX OSN2500 — a compact yet powerful MSTP subrack solution with 12 service slots, built to meet the evolving demands of multi-service transport across industries.
