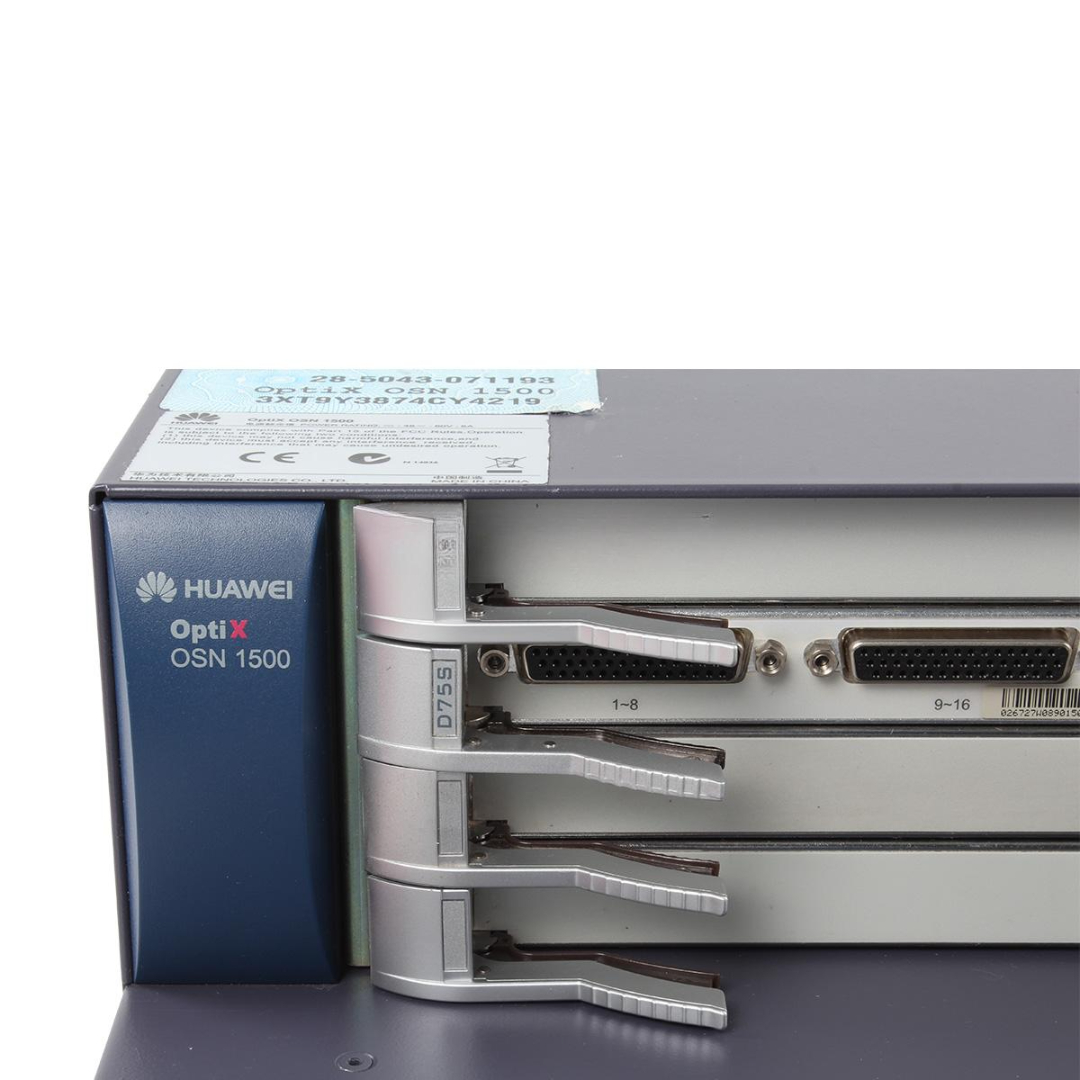

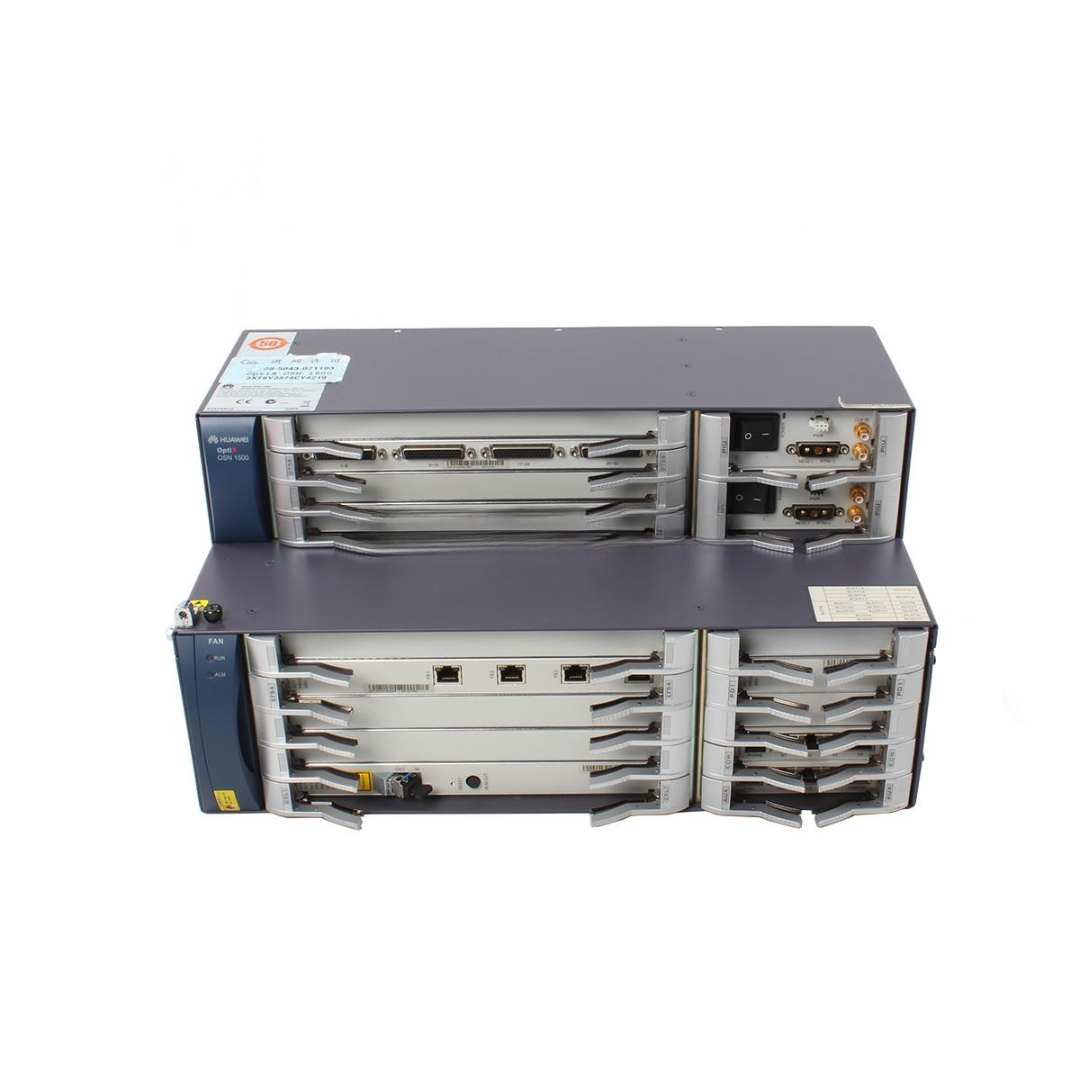

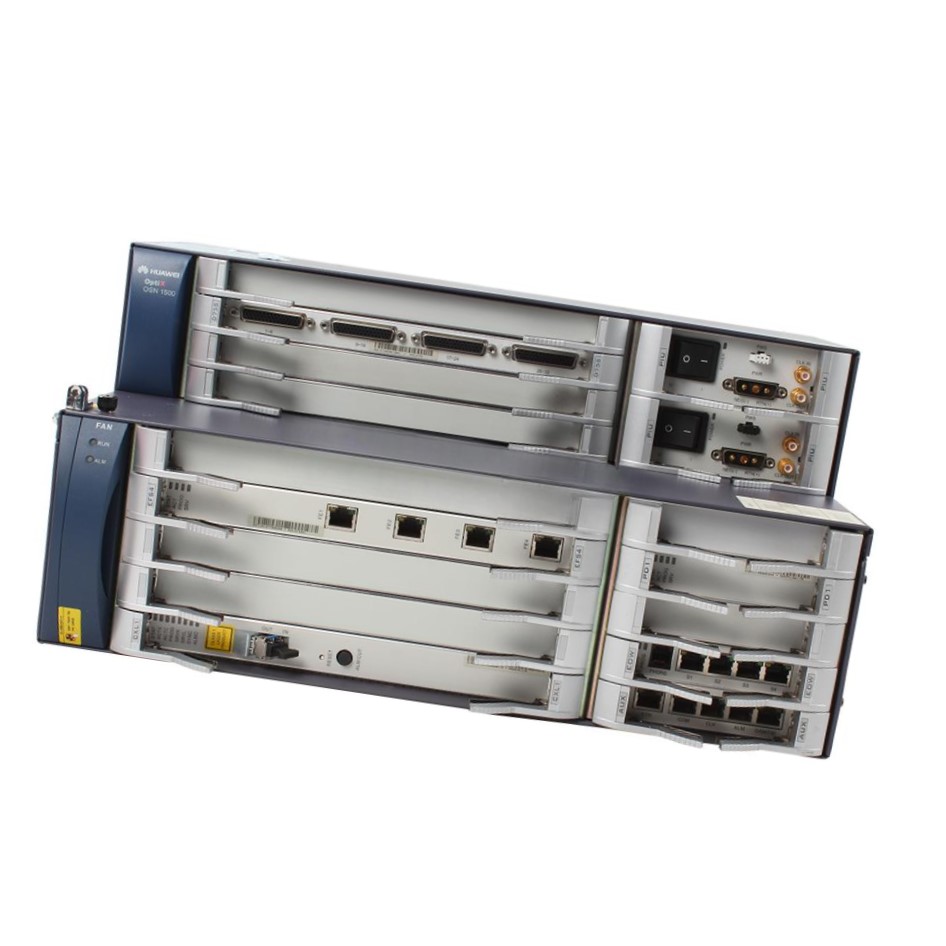

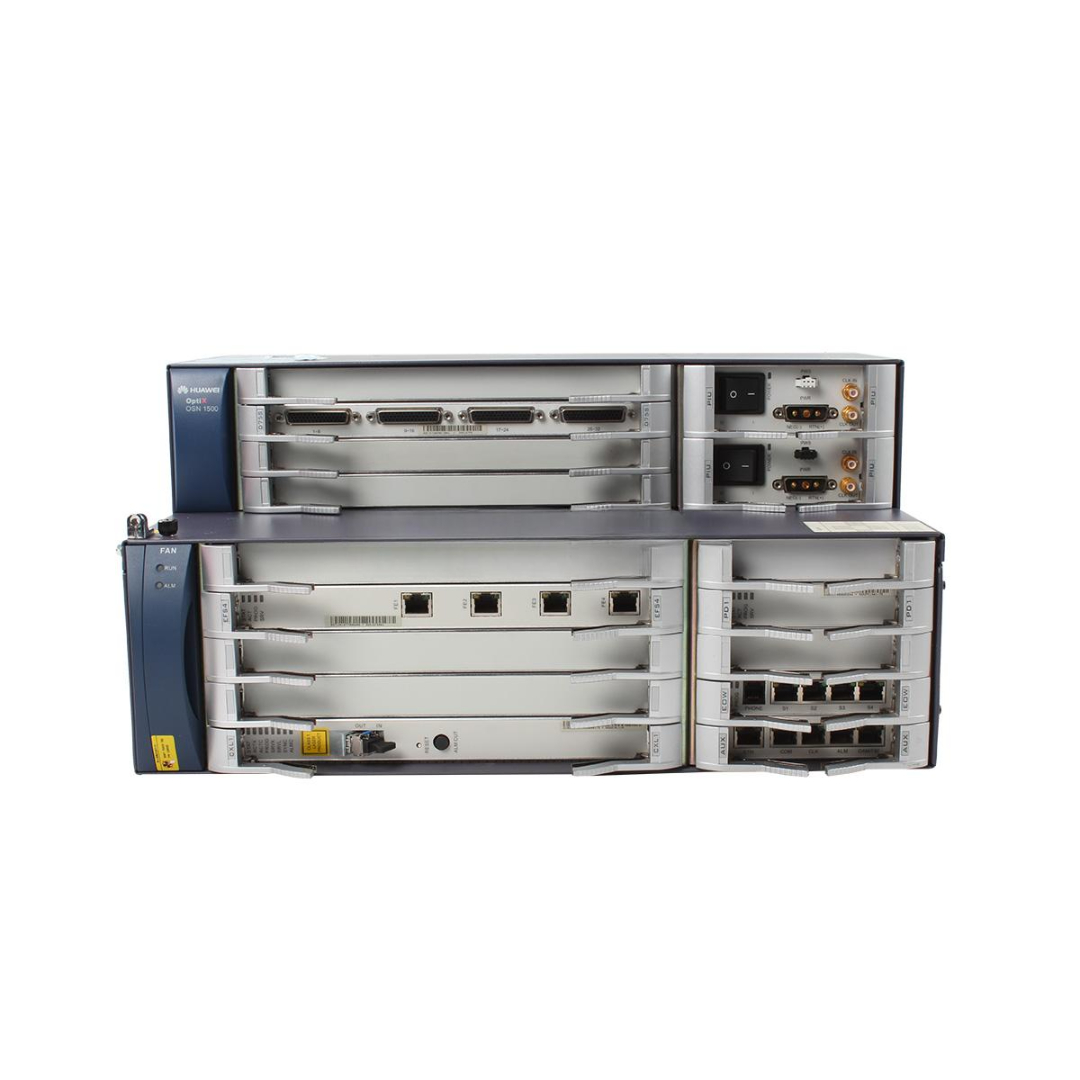

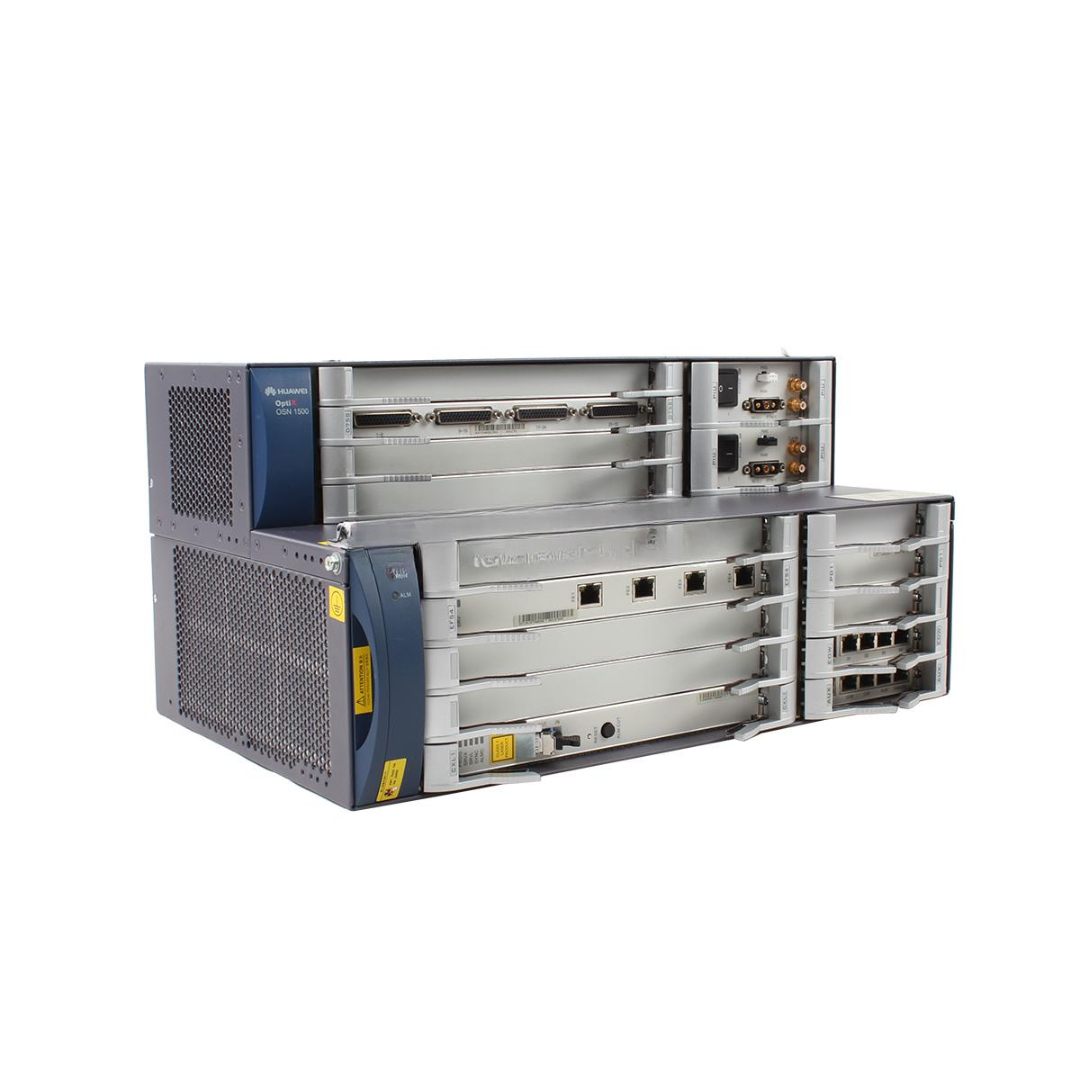

OSN1500B Huawei OptiX Brand New Subrack with 12 Service Slots
The OSN1500B Huawei is a compact, versatile Multi-Service Transport Platform (MSTP) subrack designed to deliver efficient TDM and packet-based service transmission. With 12 service slots, the OSN1500B is ideal for metro access, enterprise edge, and utility communications requiring high reliability, service convergence, and easy scalability. It supports SDH, PDH, Ethernet, and CES services and is widely deployed in telecommunications, transportation, power grids, and government networks.
Key Features
-
Model: Huawei OptiX OSN1500B
-
Condition: 100% Brand New, Original Huawei
-
Service Slots: 12 available slots for service and interface boards
-
Supported Services: SDH, PDH (E1), Ethernet (FE/GE), ATM, CES
-
Architecture: TDM-based MSTP with optional packet switching support
-
Backplane Capacity: Up to 40 Gbps cross-connect (with appropriate control unit)
-
Flexibility: Supports point-to-point, ring, and mesh networking topologies
-
Control and Cross-Connect: Modular with optional redundancy
-
Management: Fully managed via Huawei U2000/NCE-T, SNMP, CLI, and Web GUI
-
Deployment: Suitable for indoor racks and compact installations (19″/ETSI compliant)
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSN1500B |
| Subrack Height | 3U (132 mm) |
| Slot Configuration | 12 service slots + 2 control + 2 power + fan module |
| Cross-Connect Capacity | Up to 40 Gbps (electrical) |
| Service Interfaces | E1, STM-1/STM-4, FE, GE, CES |
| Power Input | -48V DC, dual input supported |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | 19-inch or ETSI standard rack |
| Compliance | ITU-T G.707, G.783, G.841, IEEE 802.3, RoHS |
| Dimensions (W×D×H) | 442 × 236 × 132 mm |
| Warranty | 1–3 Years Manufacturer Warranty |
OSN1500B Huawei Applications
-
Metro Access & Aggregation — Aggregates customer access traffic and interfaces to the core
-
Telecom Transmission — Offers high-reliability E1 and Ethernet service delivery
-
Power Utilities — Provides SCADA, voice, and video backhaul for power networks
-
Transportation & Rail — Used in signaling and operation networks across national rail systems
-
Enterprise & Government Networks — Robust backhaul and site-to-site connectivity
Customization & OEM Options
-
Pre-Equipped Subracks — Fully loaded with E1, STM, or Ethernet boards per project specs
-
Service Profile Setup — VLANs, VC-4/VC-12 mapping, Ethernet bridging configurations
-
OEM Branding — Optional part labeling and logo etching for resellers or integrators
-
Protection Configurations — SNCP, MSP, and 1+1 setups preloaded on delivery
-
Burn-In Testing & Pre-Integration — Factory testing under customer service model requirements
OSN1500B Huawei Wholesale & Global Procurement
-
Direct OEM Supply — 100% original Huawei subracks with full documentation
-
Bulk Orders Available — In-stock units for urgent telecom rollouts and infrastructure builds
-
Secure Packaging — Foam-protected, static-safe packaging for international shipping
-
Global Logistics — DHL/FedEx shipping with full export compliance documentation
-
Technical Assistance — Support for initial deployment, configuration, and NMS integration
-
Optional Accessories — Patch panels, cables, and optical/electrical interface modules
Why Choose the OSN1500B Huawei MSTP Subrack
-
Compact & Powerful — 12 service slots in a 3U design ideal for space-limited sites
-
Full MSTP Functionality — Transport SDH, Ethernet, and legacy TDM in one chassis
-
Carrier-Class Reliability — Redundant power, control, and cross-connect capabilities
-
Multi-Industry Versatility — Proven in telecom, transport, energy, and enterprise deployments
-
Future-Ready Integration — Smooth interface with OSN3500, OSN500, OSN8800, and Huawei U2000
Contact Us Now for Pricing, Bulk Orders & Technical Documentation
Streamline your access and aggregation network with the Huawei OSN1500B — a high-quality, service-rich MSTP subrack with 12 service slots, engineered for long-term reliability and flexible deployment across various network environments.
