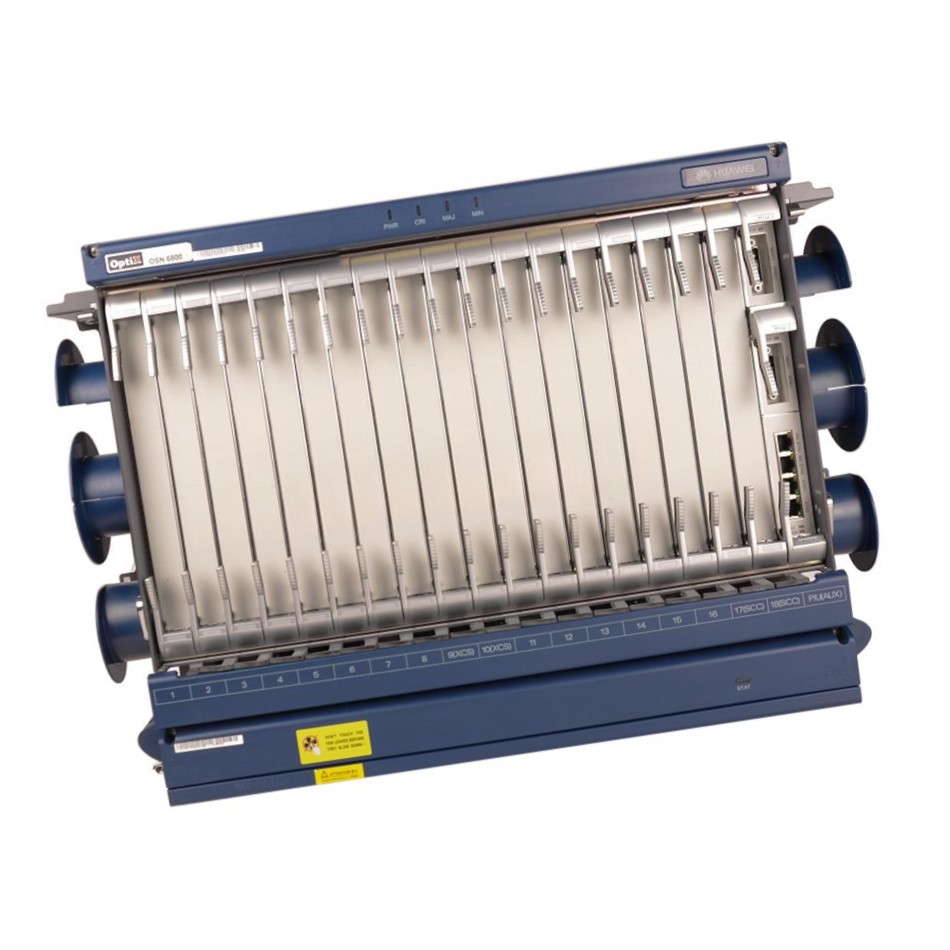

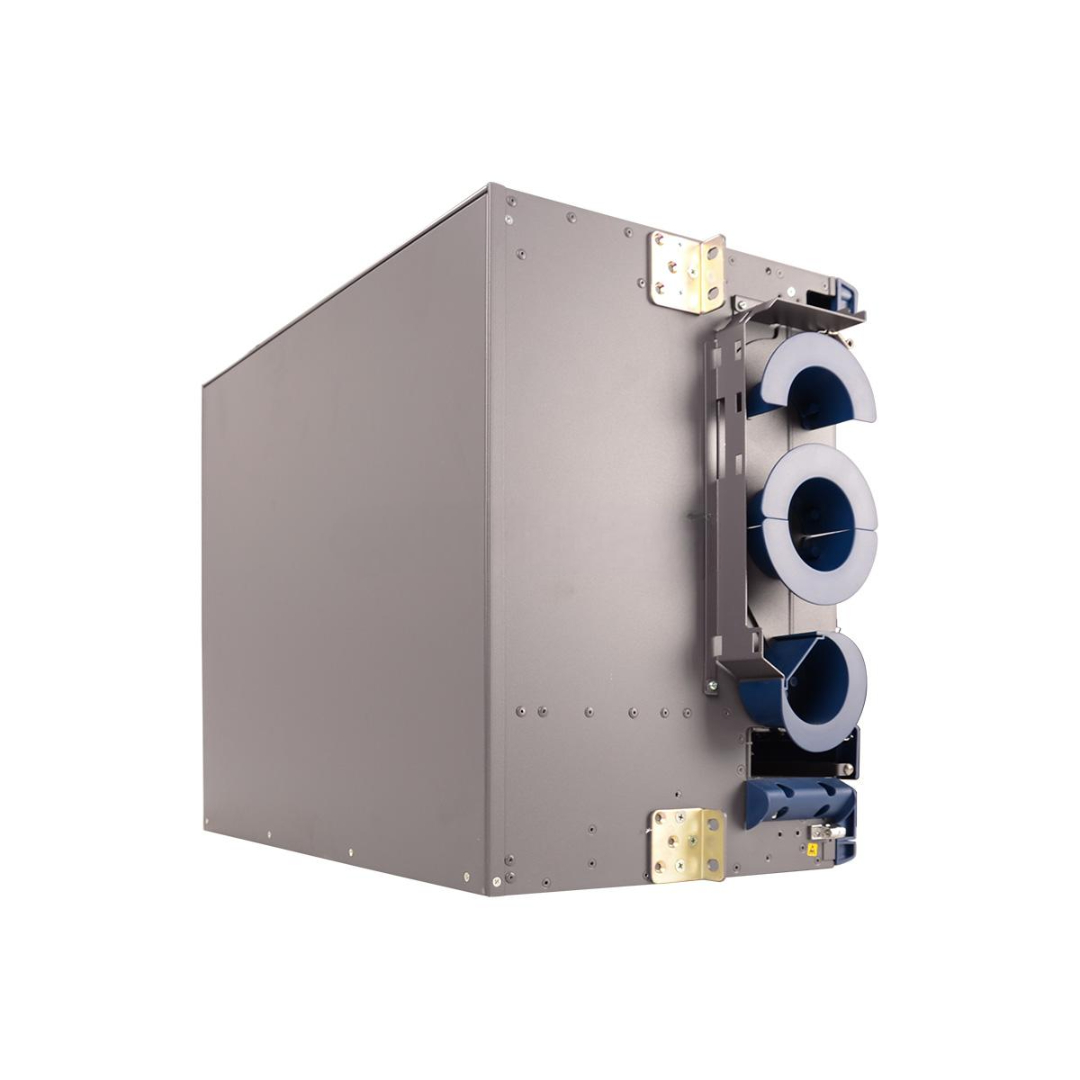

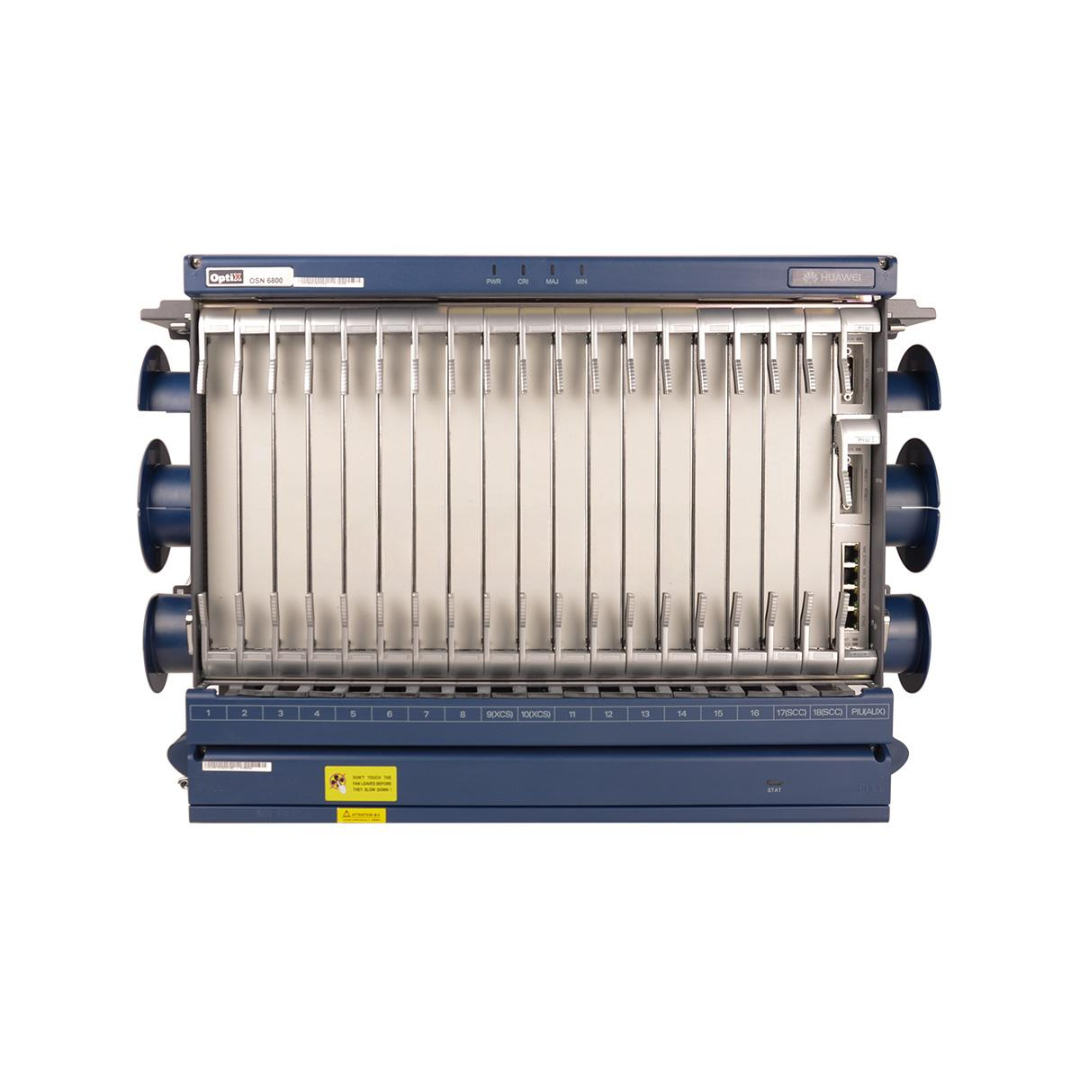

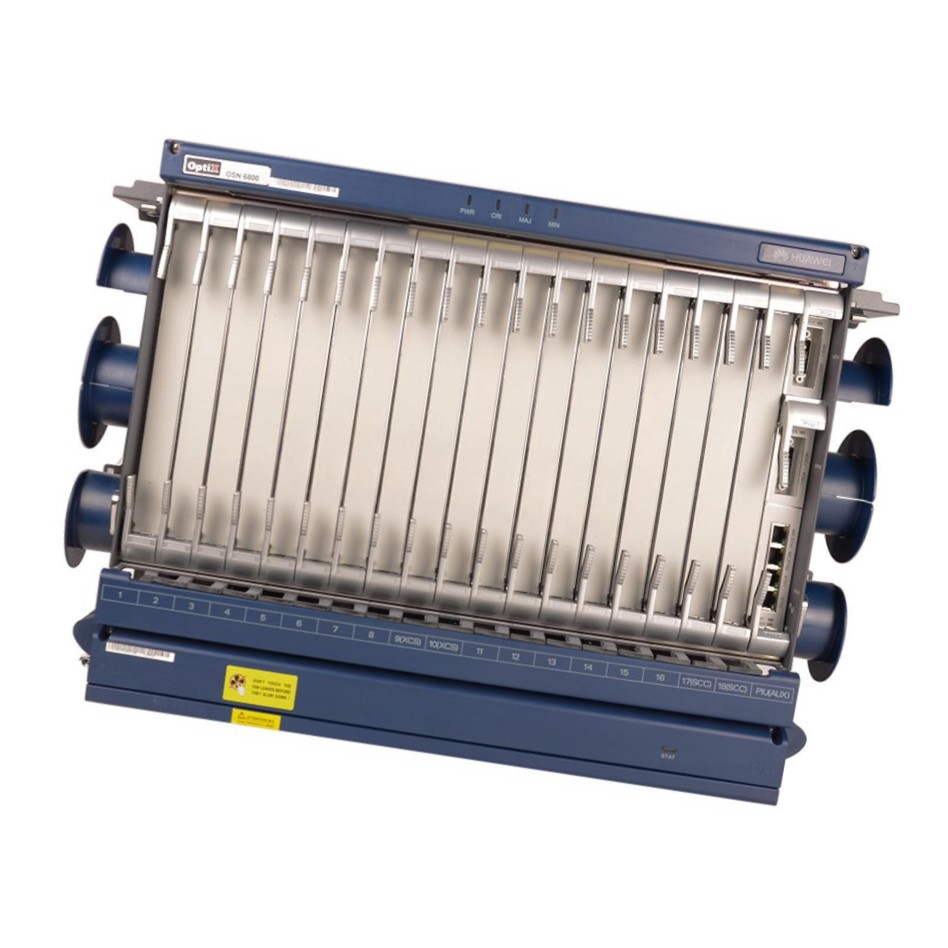

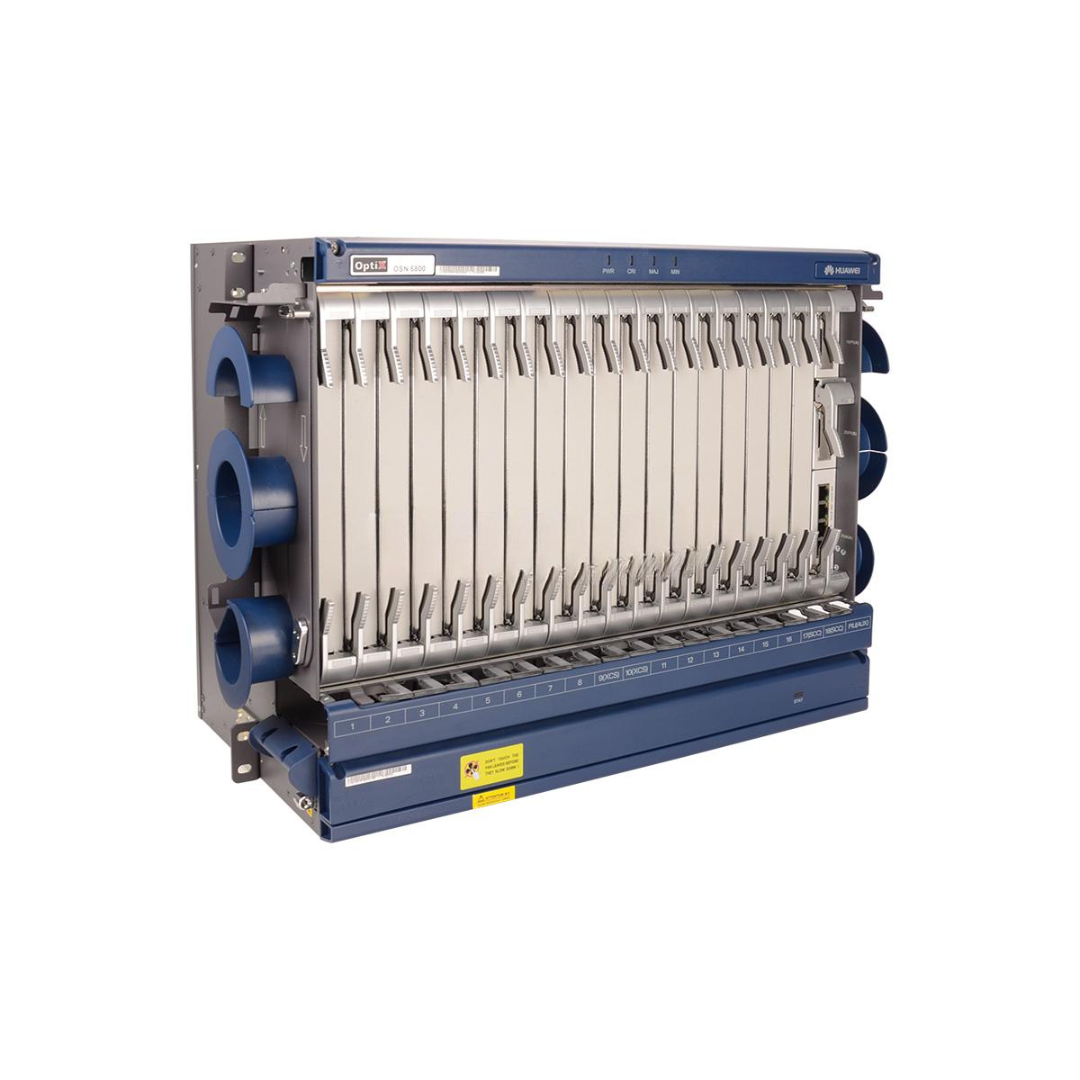

Huawei OSN6800 High Quality Level Cross-Connect Capacity
The OSN6800 Huawei is a next-generation DWDM/OTN transport platform, engineered for ultra-high bandwidth, full-service convergence, and flexible deployment. With optical and electrical cross-connect capabilities, the OSN6800 delivers terabit-level switching, supporting 10G/40G/100G/200G/400G line rates. It is widely used in backbone networks, metro cores, and data center interconnects, enabling end-to-end WDM/OTN transmission with dynamic optical grooming, low latency, and high reliability.
Key Features
-
Model: Huawei OptiX OSN6800
-
Condition: 100% Brand New, Huawei Original
-
Cross-Connect Capacity: Up to 1.28 Tbps electrical and 32×32 optical cross-connect
-
Switch Fabric Options: Supports U16, U64, T16, T64 universal platforms
-
Line Rates Supported: 10G, 40G, 100G, 200G, 400G
-
Architecture: Optical-Electrical-Optical (OEO) and ROADM-based switching
-
Wavelength Count: Up to 96 channels (C-band)
-
Topologies Supported: Point-to-point, chain, ring, mesh
-
Protection Schemes: OLP, 1+1 MSP, SNCP, optical-layer protection
-
Management: Compatible with Huawei U2000 and NCE-T intelligent network controllers
Technical Specifications
| Specification | Details |
|---|---|
| Model | Huawei OSN6800 |
| Cross-Connect Capacity | Up to 1.28 Tbps (electrical) / 32×32 (optical) |
| Supported Line Rates | 10G/40G/100G/200G/400G (based on board configuration) |
| Slot Count | Varies by chassis (supports large modular expansion) |
| Client Interfaces | STM-64, OC-192, 10GE LAN/WAN, FC, GE, OTU2, OTU4 |
| Transmission Distance | Up to 2500 km with DCM or Raman/amplifier modules |
| ROADM Support | Colorless, Directionless, Contentionless (CDC) |
| Power Supply | -48V DC (dual power inputs) |
| Operating Temperature | -5°C to +45°C |
| Humidity | 5% to 95% RH, non-condensing |
| Rack Mounting | ETSI or 19” standard racks |
| Compliance | ITU-T G.709, G.872, G.798, G.694.1 |
| Warranty | 1–3 Years Manufacturer Warranty |
OSN6800 Huawei Applications
-
National & International Backbone Networks — Ultra-long-haul and high-capacity WDM/OTN transmission
-
Metro Core Networks — Aggregation and dynamic grooming of multi-service traffic
-
Data Center Interconnect (DCI) — High-speed, low-latency interconnection of cloud/data centers
-
Mobile 5G Transport — High bandwidth and deterministic latency for 5G xHaul solutions
-
Power Utilities & Industries — Stable DWDM backbone for SCADA, IEC 61850, and protection circuits
Customization & OEM Options
-
Pre-Configured Subracks — Delivered with OTN, WDM, amplification, and cross-connect boards
-
Topology Optimization — Customized setups for ring, mesh, or hybrid architectures
-
Wavelength Planning — Factory-programmed channel spacing, power levels, and ROADM filters
-
OEM Branding & Labeling — Logo printing and part number customization for global resellers
-
Extended Burn-In Testing — Certified operation under full-load, high-temperature conditions
OSN6800 Huawei Wholesale & Global Procurement
-
Bulk Availability — OSN6800 chassis and boards in-stock for global telecom operators
-
Certified OEM Source — All units are genuine Huawei with full traceability and barcodes
-
Safe Packaging — Anti-static, vibration-protected shipment with optional pre-cabled kits
-
Expedited Delivery — Global air and sea freight options with customs documentation
-
Technical Assistance — OEM-trained engineers for site commissioning, cutover, and upgrades
-
Documentation Provided — Configuration guides, MIBs, CLI manuals, and network diagrams
Why Choose OSN6800 Huawei for Cross-Connect & Transport
-
High Cross-Connect Bandwidth — Electrical and optical switching for terabit-scale traffic
-
Multi-Service Integration — TDM, OTN, Ethernet, SAN, and more over unified infrastructure
-
Dynamic Optical Grooming — ROADM and OXC for bandwidth efficiency and path automation
-
Carrier-Grade Reliability — 99.999% uptime with redundant power, control, and switching paths
-
Future-Proof Scalability — 10G to 400G evolution with modular slot-based upgrades
Contact Us Now for OSN6800 Huawei Pricing, Bulk Orders & Datasheets
Upgrade to Huawei’s OSN6800 and transform your optical network with high-quality, intelligent cross-connect capabilities. Perfect for telecom, cloud, ISP, and enterprise network operators seeking scalable, resilient, and high-bandwidth infrastructure.
