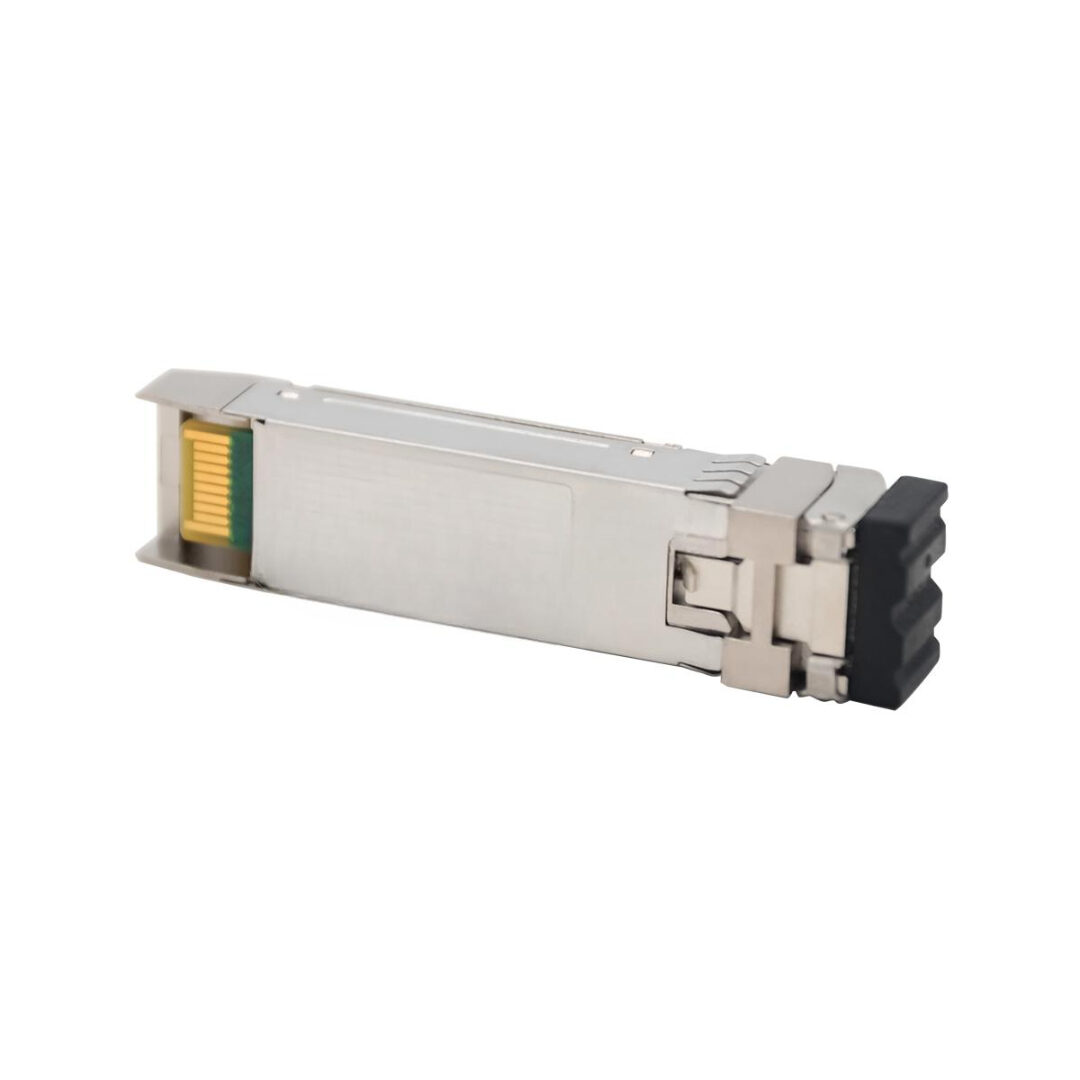

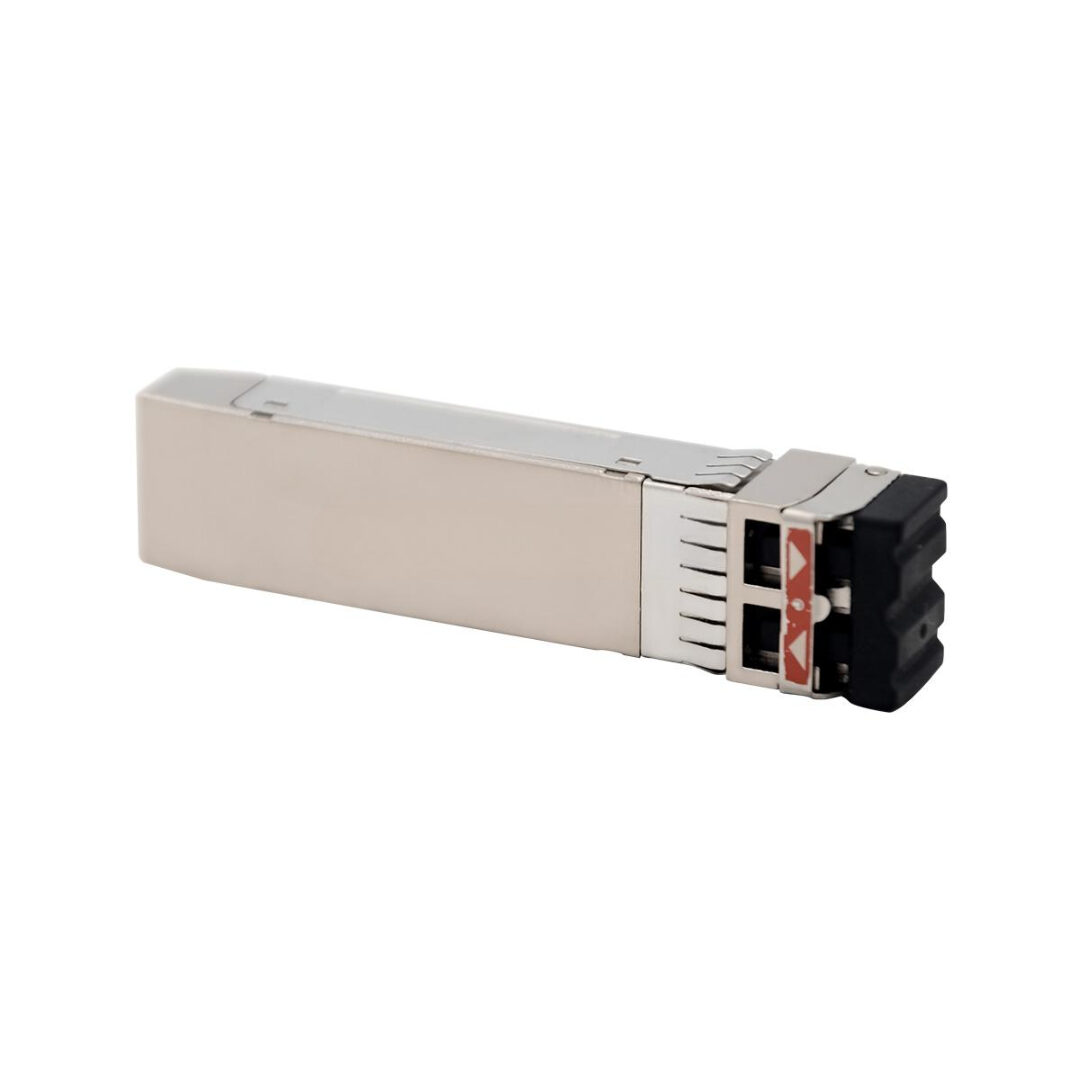

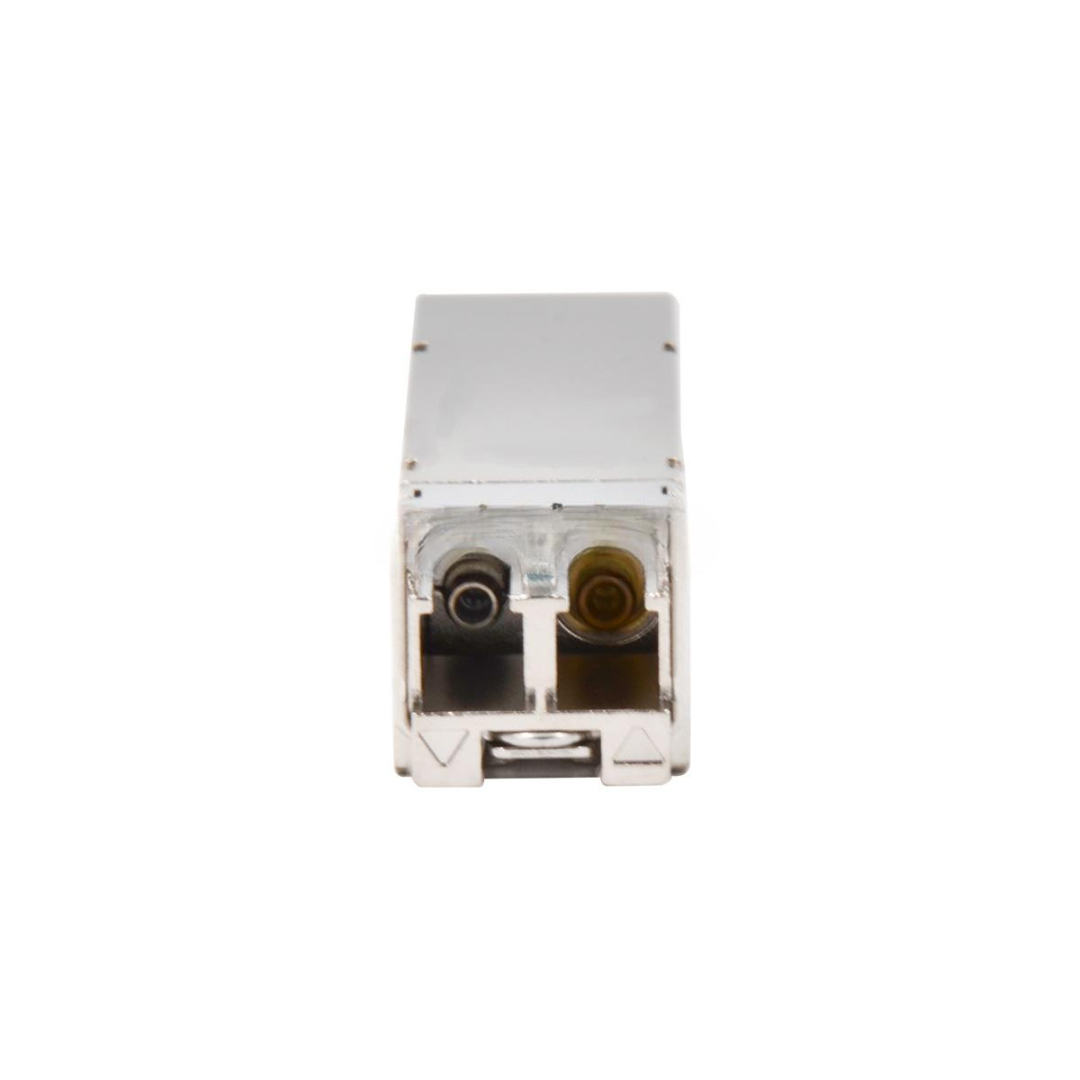

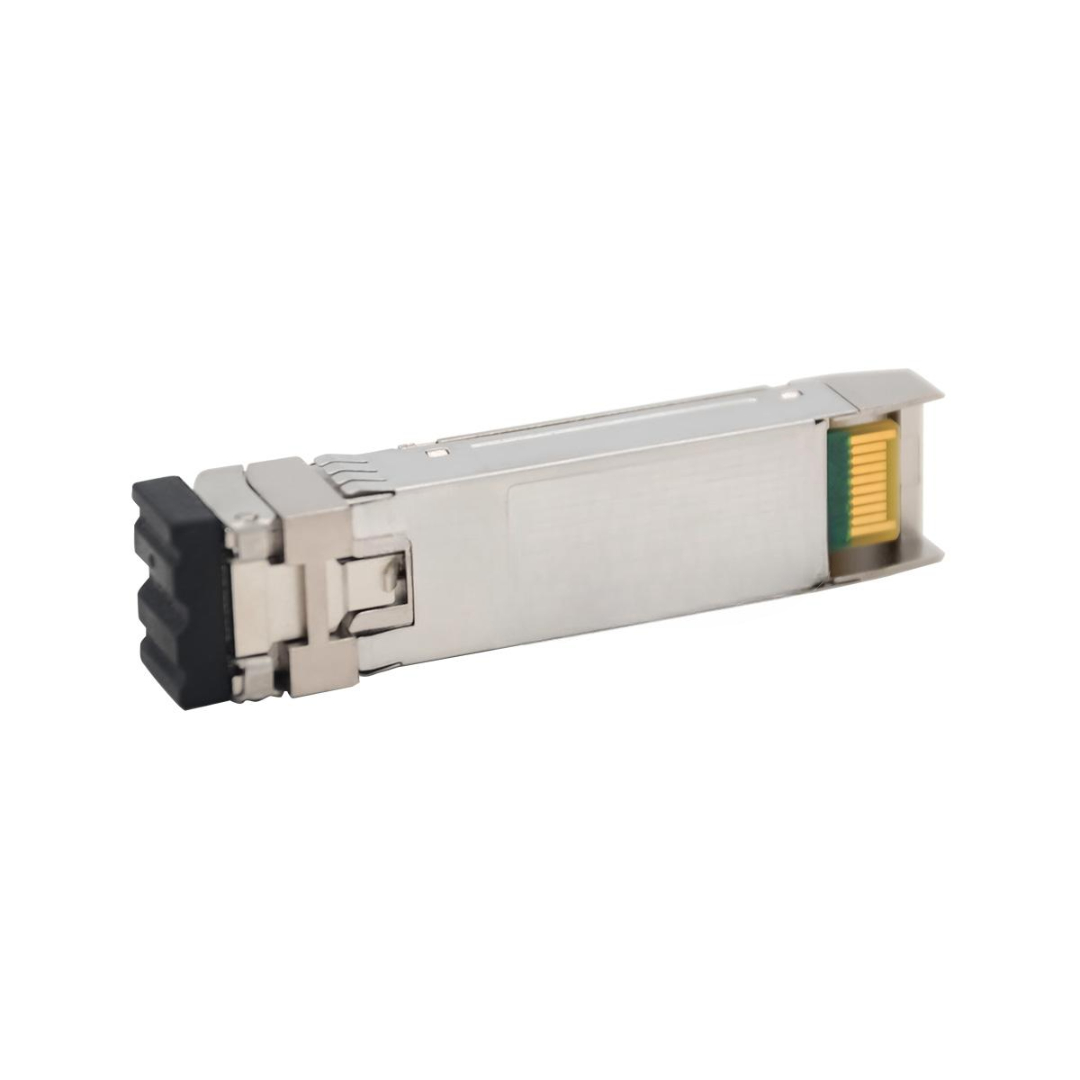

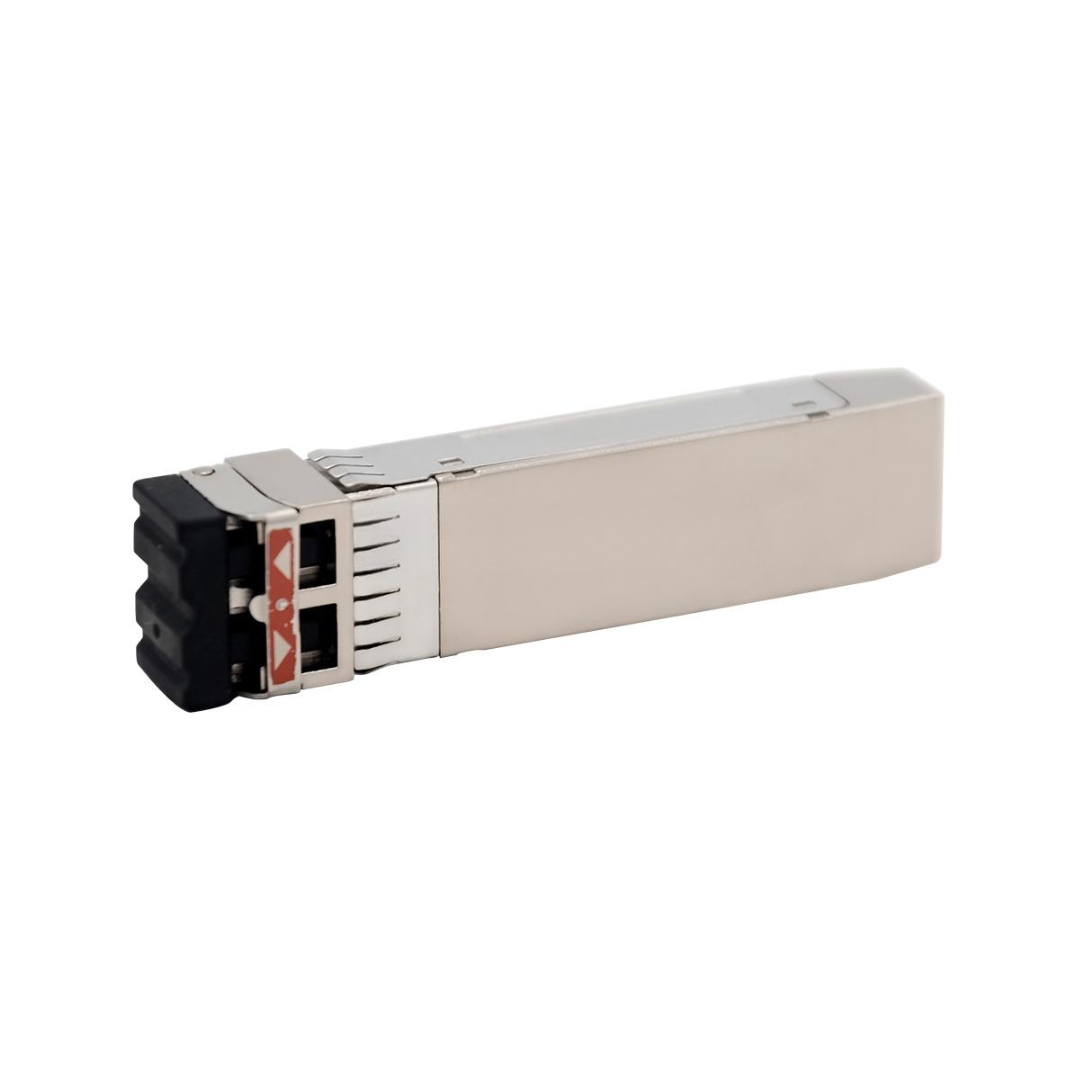

OSX040N01 INT 10G 40KM SFP+ Huawei Brand New Transceiver
The OSX040N01 INT Huawei 10G SFP+ Optical Transceiver is a high-performance, hot-pluggable module designed for 10G Ethernet and SDH/SONET transmission over long distances. With a reach of up to 40 kilometers over single-mode fiber (SMF), this module is ideal for service providers, data centers, and enterprise networks requiring stable and long-range 10G connectivity.
Fully compliant with SFP+ MSA, IEEE 802.3ae, and ITU-T standards, it integrates seamlessly with Huawei switches, routers, and transport systems, ensuring plug-and-play deployment and interoperability.
Key Features
- Model: OSX040N01 INT
- Condition: 100% Brand New, Huawei Original
- Data Rate: 10.3125 Gbps (10G Ethernet) / 9.953 Gbps (SDH/SONET)
- Transmission Distance: Up to 40 km over single-mode fiber
- Connector Interface: LC Duplex
- Wavelength: 1310 nm
- Form Factor: SFP+ (Hot-swappable)
- Digital Diagnostics (DDM): Supported
- Laser Type: Cooled 1310nm DFB with PIN Receiver
- Compatibility: Huawei S-series switches, CloudEngine, OSN series, and more
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSX040N01 INT |
| Form Factor | SFP+ |
| Transmission Distance | 40 km (SMF) |
| Wavelength | 1310 nm |
| Connector Type | LC Duplex |
| Laser Type | DFB (Tx) / PIN (Rx) |
| Transmit Power | -1 dBm to +4 dBm |
| Receiver Sensitivity | ≤ -16.5 dBm |
| Power Supply | +3.3V |
| Power Consumption | <1.5W |
| DDM/DOM Support | Yes |
| Operating Temperature | 0°C to +70°C (Commercial Grade) |
| Storage Temperature | -40°C to +85°C |
| Protocols | 10GBASE-LR, 10G Ethernet, SONET/SDH |
| Standards Compliance | MSA, SFF-8472, IEEE 802.3ae, RoHS |
OSX040N01 INT Applications
- Metro Ethernet & Core Networks — Long-range point-to-point 10G connections
- Data Center Interconnect (DCI) — Low-latency links between data facilities
- Enterprise Networks — Secure backbone connectivity over single-mode fiber
- Telecom Infrastructure — Compatible with Huawei carrier-grade equipment
- FTTH & FTTB Solutions — Cost-effective and scalable fiber deployment
Customization & OEM Services
- Private Branding — Custom logo, label, or serial number printing
- Tailored Firmware — Optical thresholds or alarm levels pre-configured
- Extended Temperature Option — Industrial grade available on request
- Bulk Packaging — Tray, foam, or ESD-safe packaging for high-volume projects
- DWDM/CWDM Variants — Available for multi-wavelength transport systems
Wholesale & Global Supply Chain Support
- Huawei Original Stock — 100% factory-sealed, quality-assured
- Volume Discounts — Competitive prices for 50/100/500+ units
- Fast Global Shipping — Delivered to telecom partners and integrators worldwide
- OEM-Compliant Packaging — Foam-protected, anti-static, and sealed
- Technical Services — Setup consultation, compatibility checks, and NMS support
Why Choose the OSX040N01 INT
Long-Distance Connectivity — Ideal for 40 km SMF links with high signal integrity
Huawei OEM Assurance — Verified, tested, and certified original part
Energy Efficient — Less than 1.5W power draw for lower OPEX
Full Compatibility — Seamless integration with Huawei and MSA-compliant devices
Enterprise-Grade Reliability — Designed for demanding network environments
Request a Quote Today
Contact us now to receive a datasheet, pricing, and volume deal for the OSX040N01 INT Huawei 10G 40KM SFP+.
Equip your network with trusted, long-reach Huawei transceivers — optimized for speed, efficiency, and performance.
