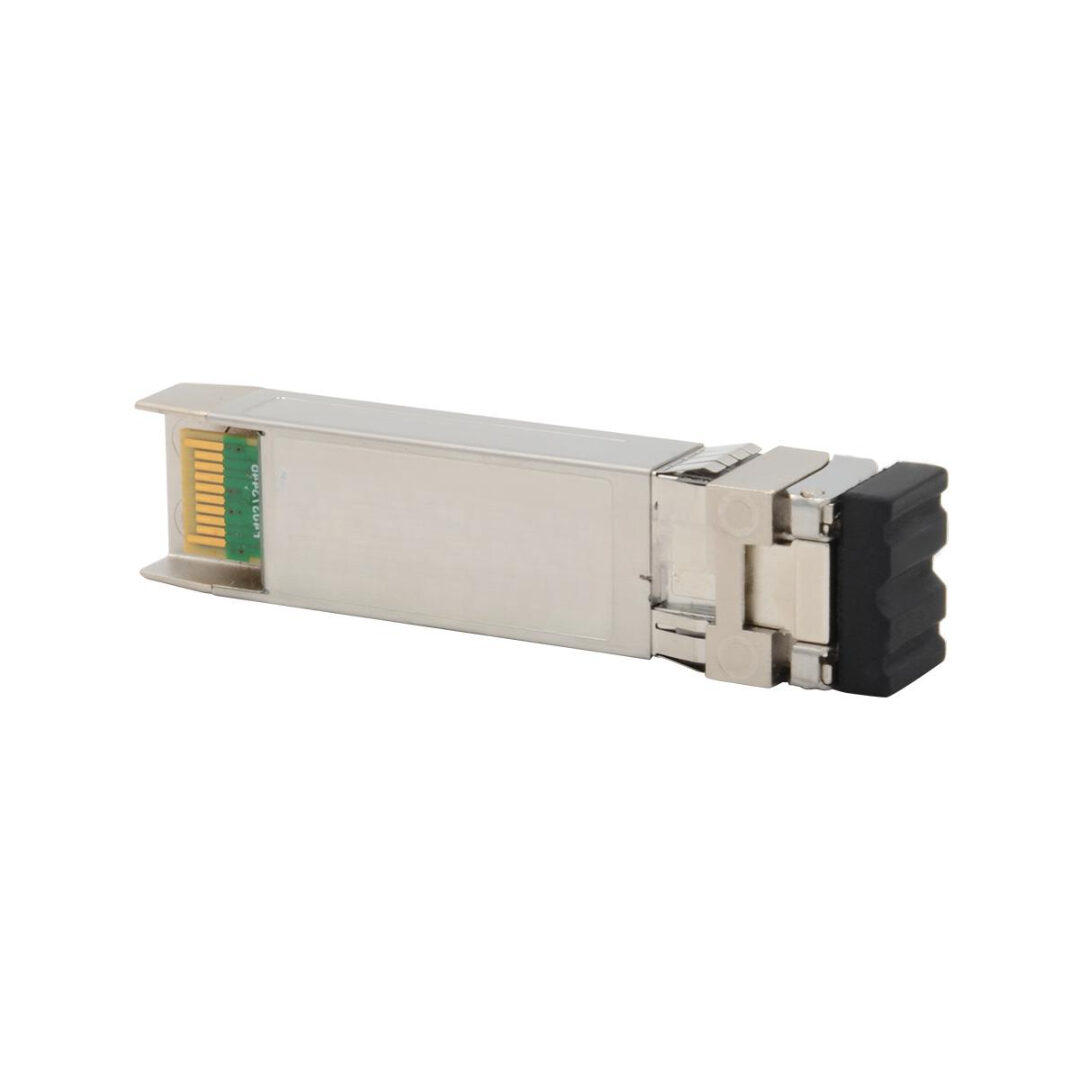

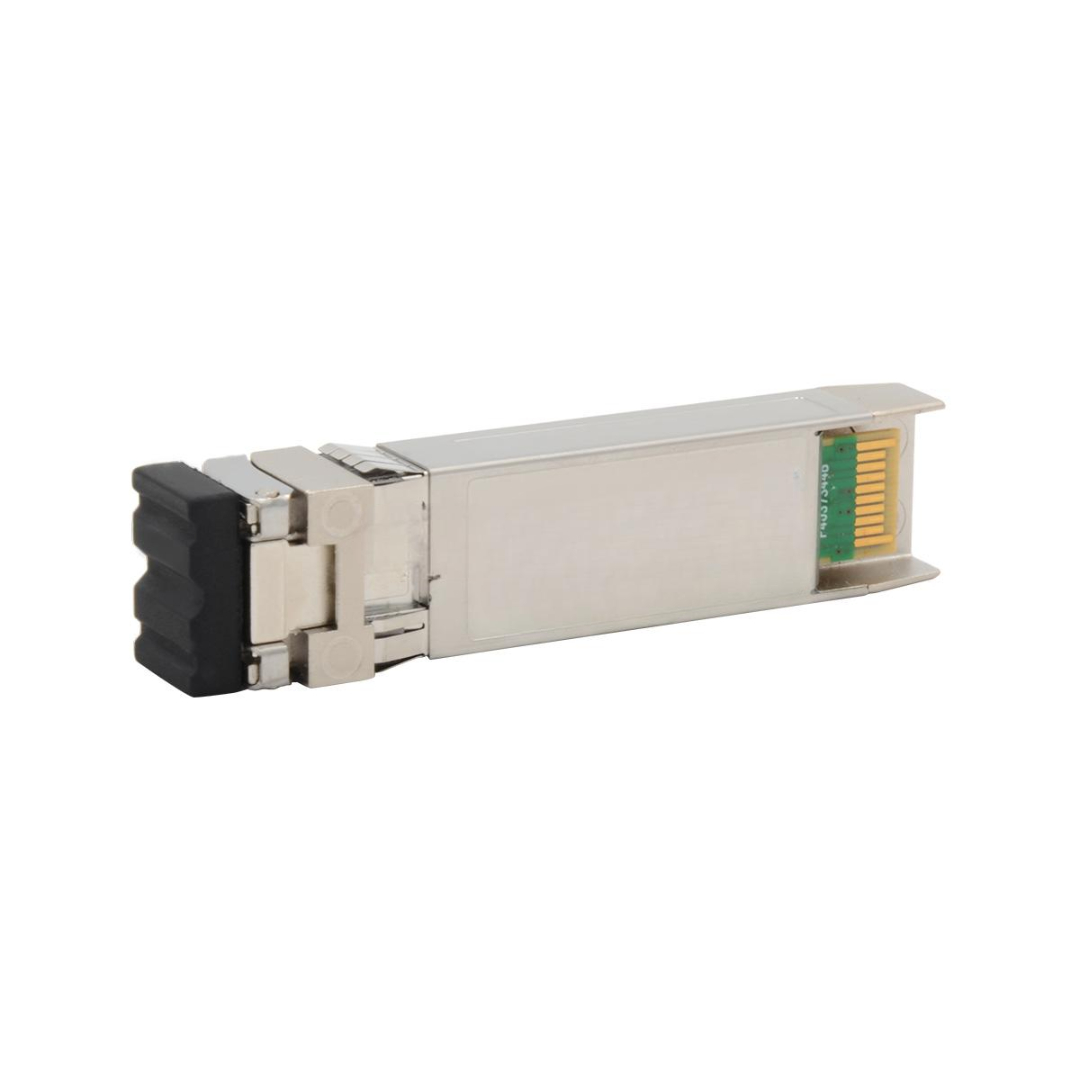

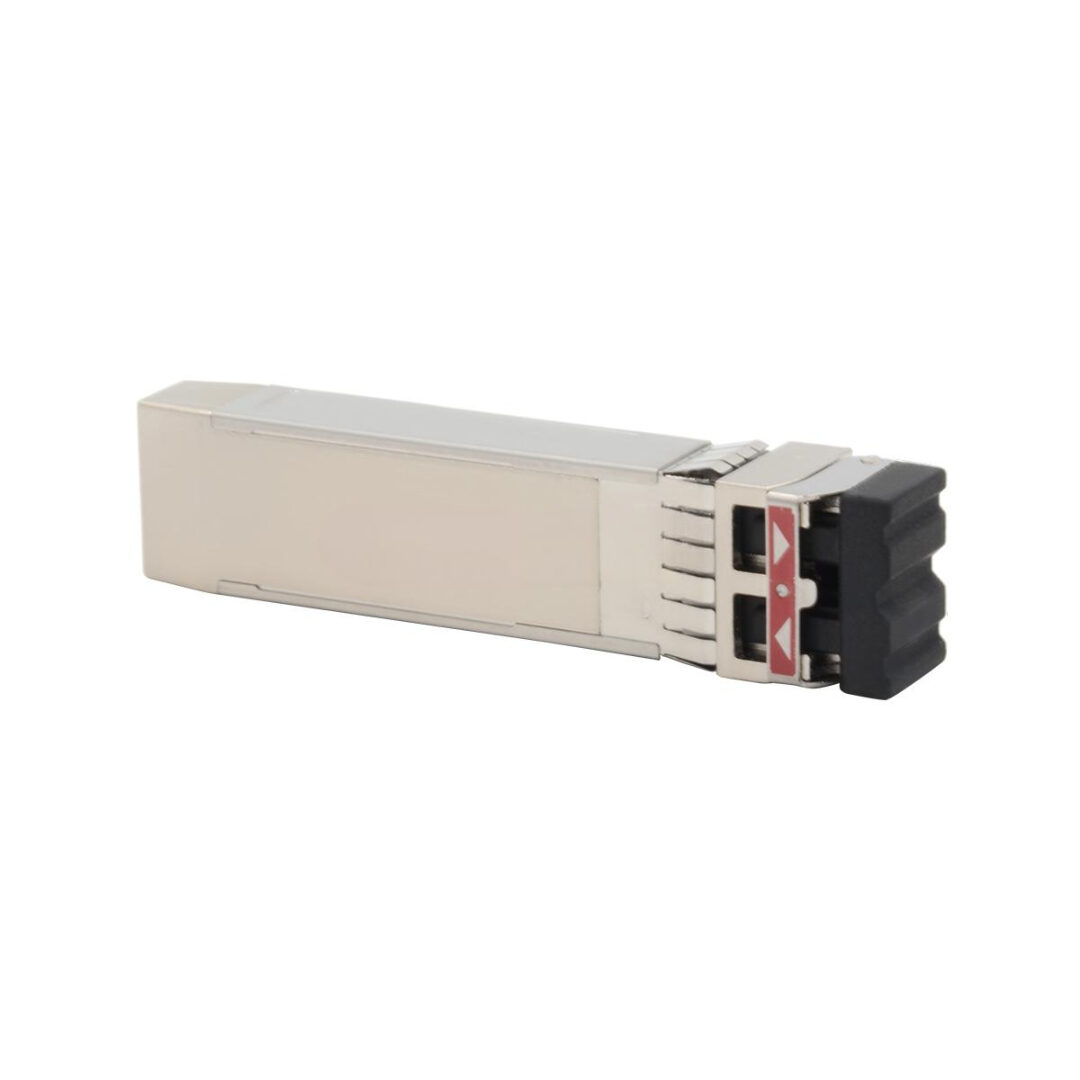

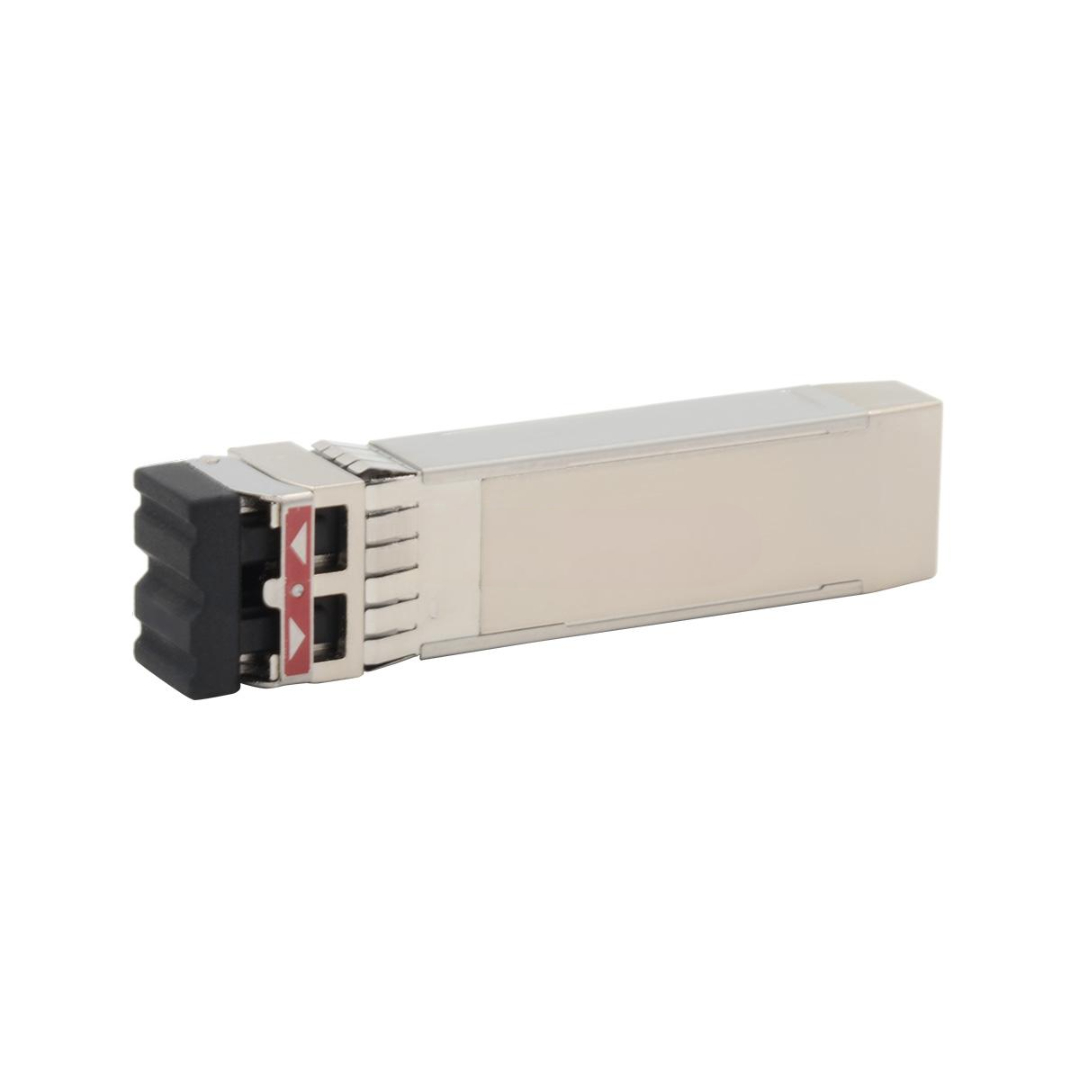

OSX040N01 OPX 10G 40KM Huawei Brand New SFP+ Transceiver
The OSX040N01 OPX is a Huawei brand new 10G SFP+ optical transceiver, designed for long-distance, high-speed data transmission in enterprise, data center, and carrier-grade optical networks. With support for 10 Gigabit Ethernet and optical reach up to 40 km, this transceiver is fully compliant with SFP+ MSA, IEEE 802.3ae, and ITU-T standards, offering reliable and energy-efficient performance across dense wavelength-division multiplexing (DWDM) and point-to-point optical links.
It uses LC duplex connectors, operates on single-mode fiber (SMF), and is ideal for metro Ethernet, IP transport, and optical access networks requiring extended range and stable connectivity.
Key Features
- Model: OSX040N01 (OPX)
- Condition: 100% Brand New, Original Huawei
- Form Factor: SFP+ (Small Form-Factor Pluggable Plus)
- Transmission Speed: 10 Gbps
- Wavelength: 1550 nm
- Distance: Up to 40 km over single-mode fiber (SMF)

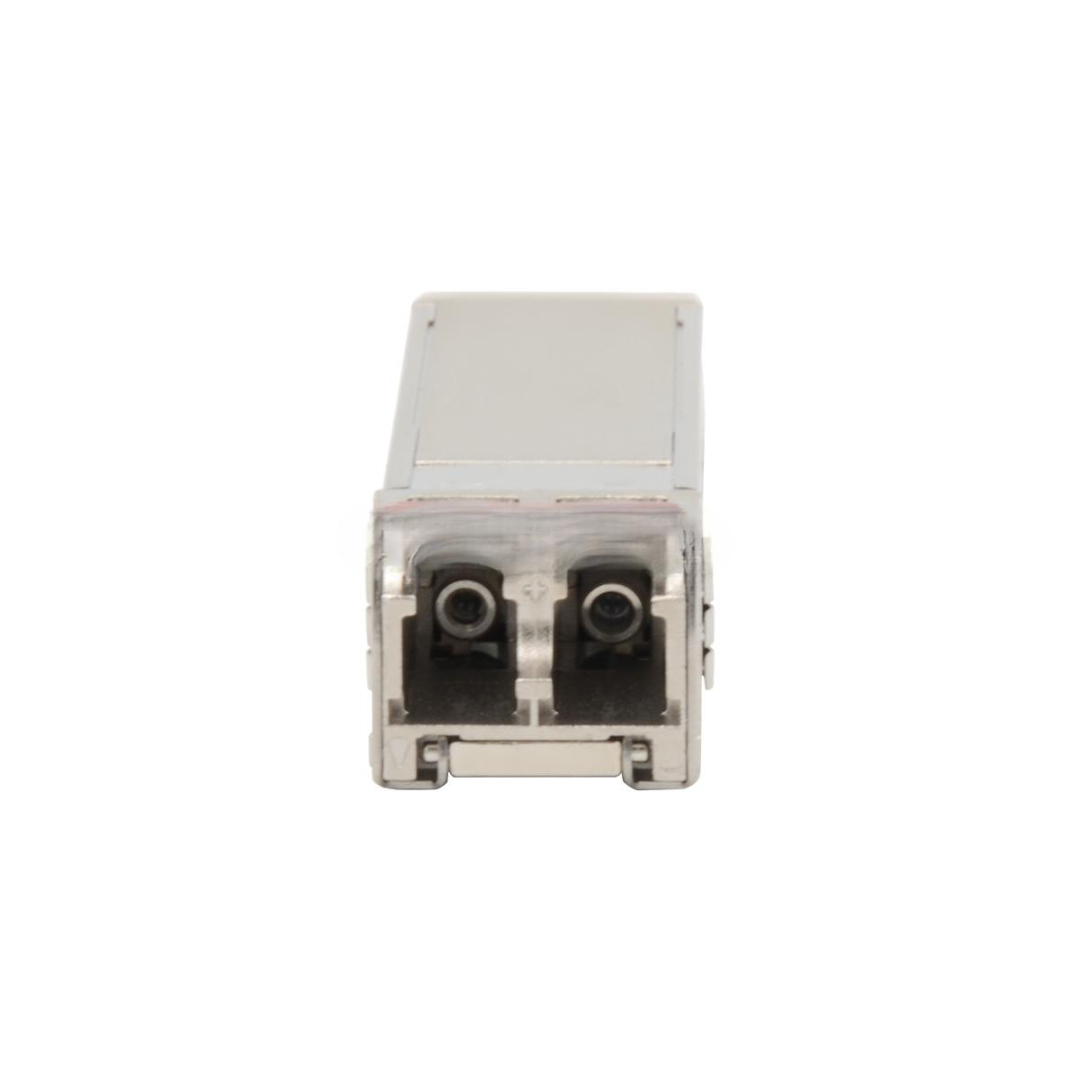

- Connector Interface: LC Duplex
- Fiber Type: Single-mode (SMF)
- Digital Diagnostics Monitoring (DDM): Supported
- Hot-Pluggable: Yes
- Standard Compliance: IEEE 802.3ae (10GBASE-ER), SFP+ MSA, ITU-T G.959.1
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSX040N01 OPX |
| Data Rate | 10.3 Gbps |
| Max Transmission Distance | 40 km (Single-mode fiber) |
| Wavelength | 1550 nm |
| Optical Interface | LC Duplex |
| Fiber Type | Single-mode (SMF) |
| DDM (Digital Diagnostics) | Yes (Real-time monitoring) |
| Power Budget | Typically ≥15 dB |
| TX Power | 0 to +4 dBm |
| RX Sensitivity | ≤ -16.9 dBm |
| Laser Type | EML (Externally Modulated Laser) |
| Power Supply | +3.3V |
| Power Consumption | <1.5W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS, CE, FCC, IEEE 802.3ae, MSA |
| Warranty | 1–3 Years Manufacturer Warranty |
OSX040N01 OPX Huawei Applications
- Metro Ethernet — Long-distance Layer 2/3 backbone connectivity
- Data Center Interconnect (DCI) — Reliable high-speed links between facilities
- Carrier & ISP Networks — Aggregation and core layer long-haul connectivity
- FTTX & GPON Backhaul — 10G uplinks in fiber-to-the-building or fiber-to-the-node
- Enterprise WAN — Secure and stable links for high-performance business environments
Customization & OEM Options
- Private Branding — Custom labels with your company name or logo
- Pre-testing & Certification — Optical power, wavelength, and eye-pattern validation reports
- Wavelength Tuning — Optional fixed DWDM channel configuration on request
- Temperature Range Extensions — Industrial-grade variants for harsh environments
- Packaging Customization — OEM anti-static bags, bulk packs, or boxed kits
- Compatibility Adjustment — Pre-configured EEPROM for third-party switch/router models
OSX040N01 OPX Huawei Wholesale & Global Supply
- Bulk Stock Available — Perfect for telecom operators and equipment resellers
- Original & Authentic — 100% Huawei OEM units with original serialization
- Safe International Packaging — Foam-cushioned anti-static clamshell cases
- Rapid Dispatch — Short lead times for urgent fiber projects
- Worldwide Shipping — Fully compliant with international transport and optical safety standards
- Expert Support — Configuration, integration, and compatibility consulting available
Why Choose the Huawei OSX040N01 OPX SFP+ Transceiver
True Long-Haul Capability — 10G transmission up to 40 km
Carrier-Grade Quality — Huawei OEM for guaranteed performance and durability
Energy Efficient — Low power consumption <1.5W
Fully Standards-Compliant — Compatible with most SFP+ platforms
Ready for Global Networks — Trusted in enterprise, ISP, and data center environments
Contact Us for Pricing, Datasheets & Bulk Orders
Power your long-range 10G networks with Huawei’s OSX040N01 OPX — a high-performance SFP+ transceiver designed for mission-critical and extended-range optical connectivity.
Get in touch now for wholesale quotes, technical data, and OEM branding services.
Huawei 10G Optical Solutions — Built for Distance, Engineered for Speed.
