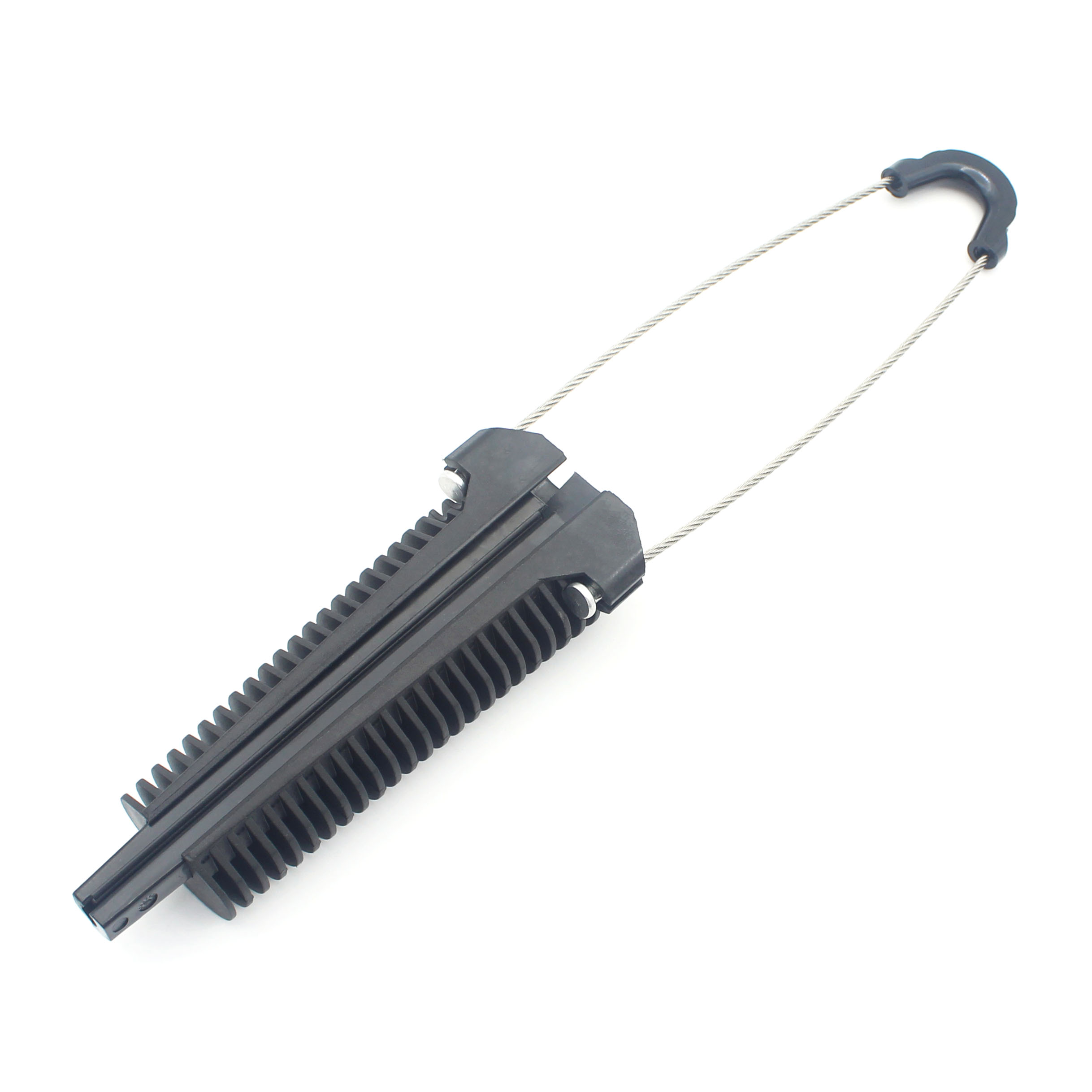

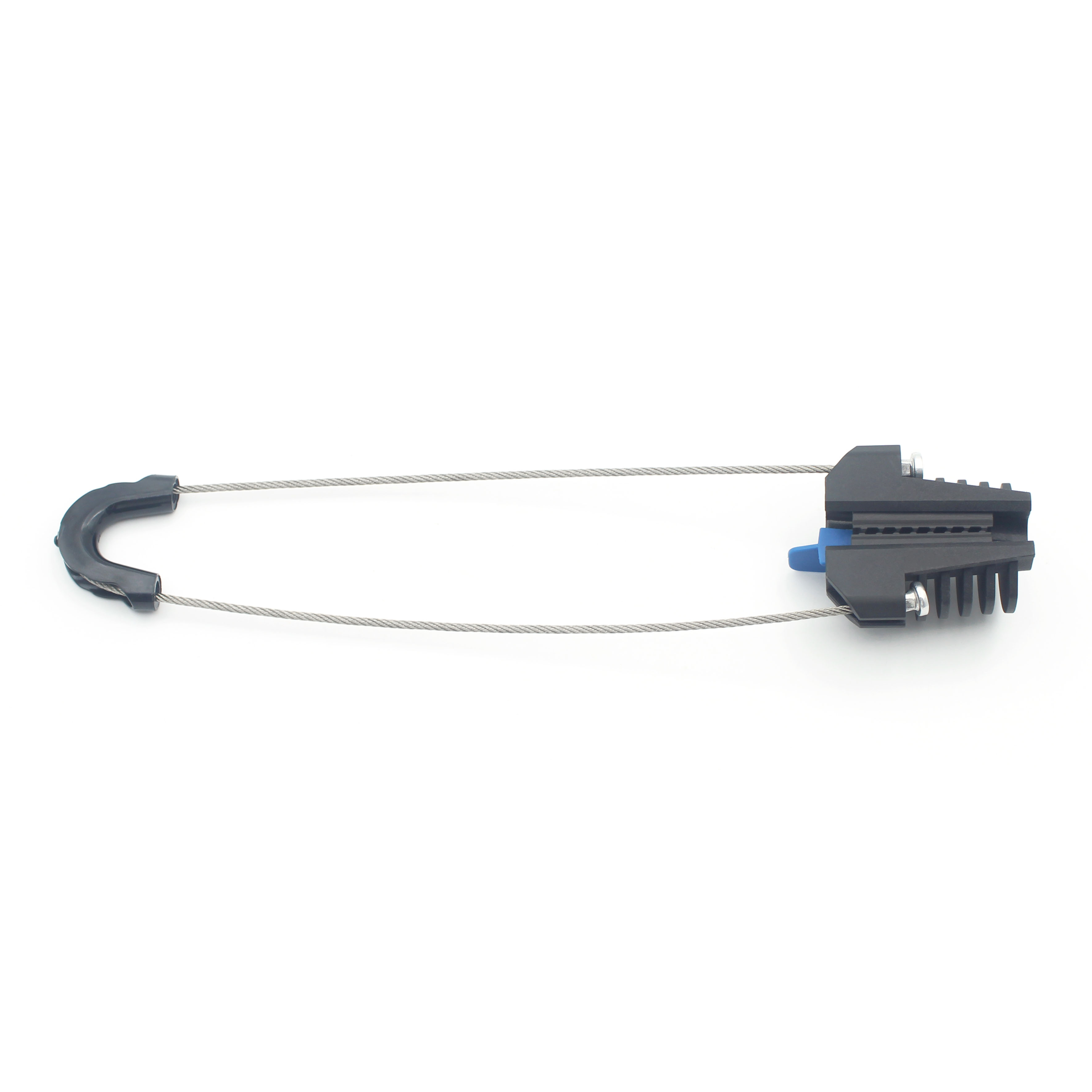

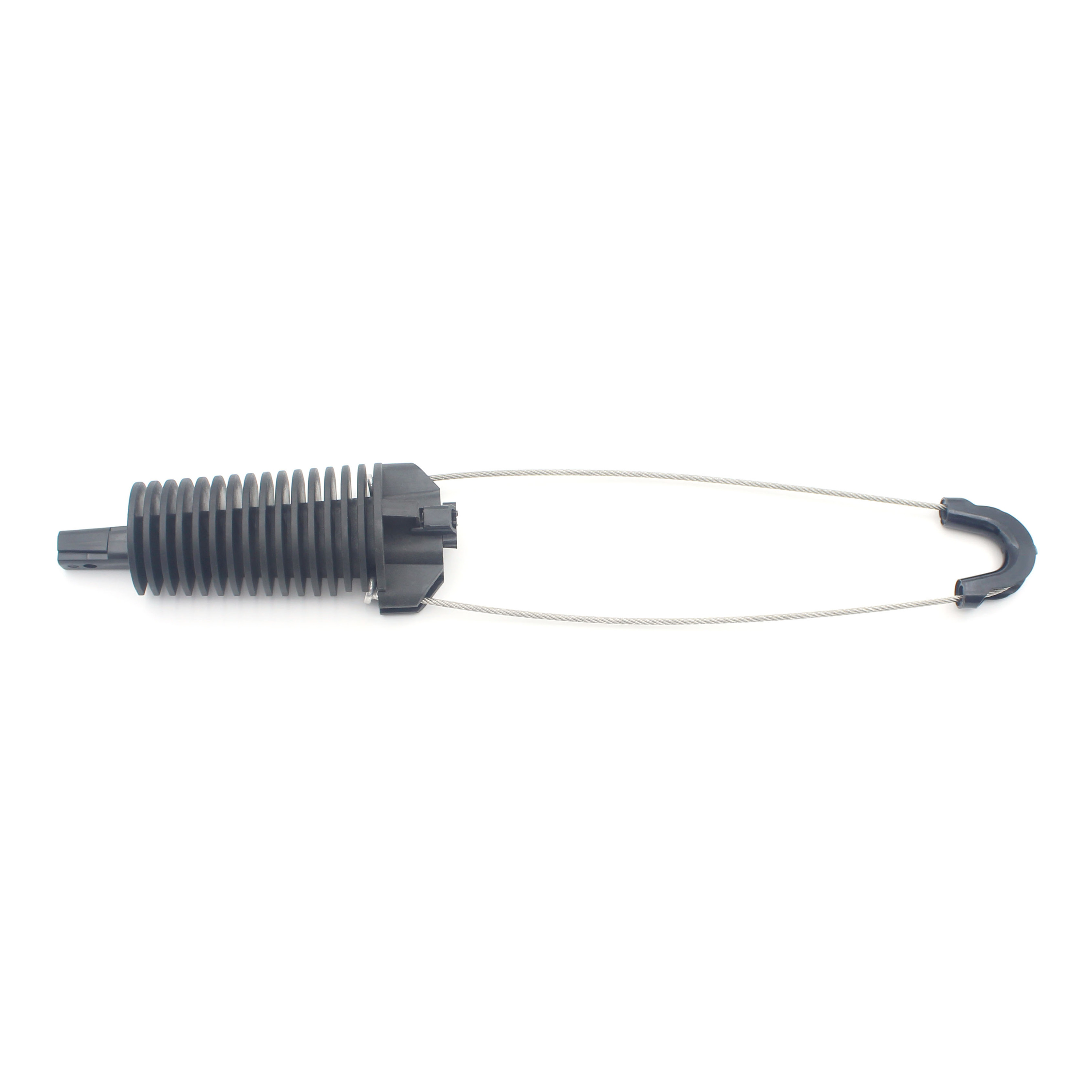

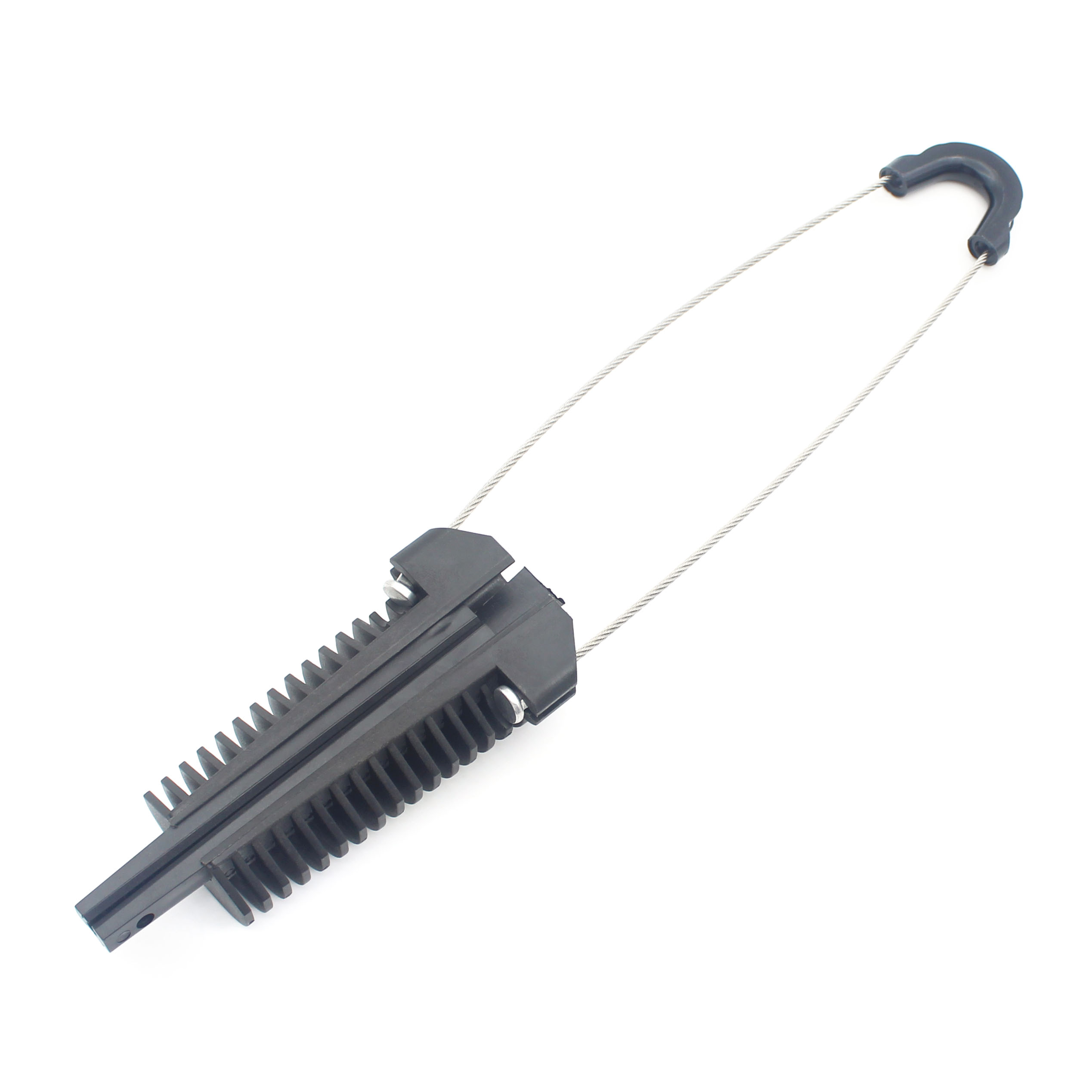

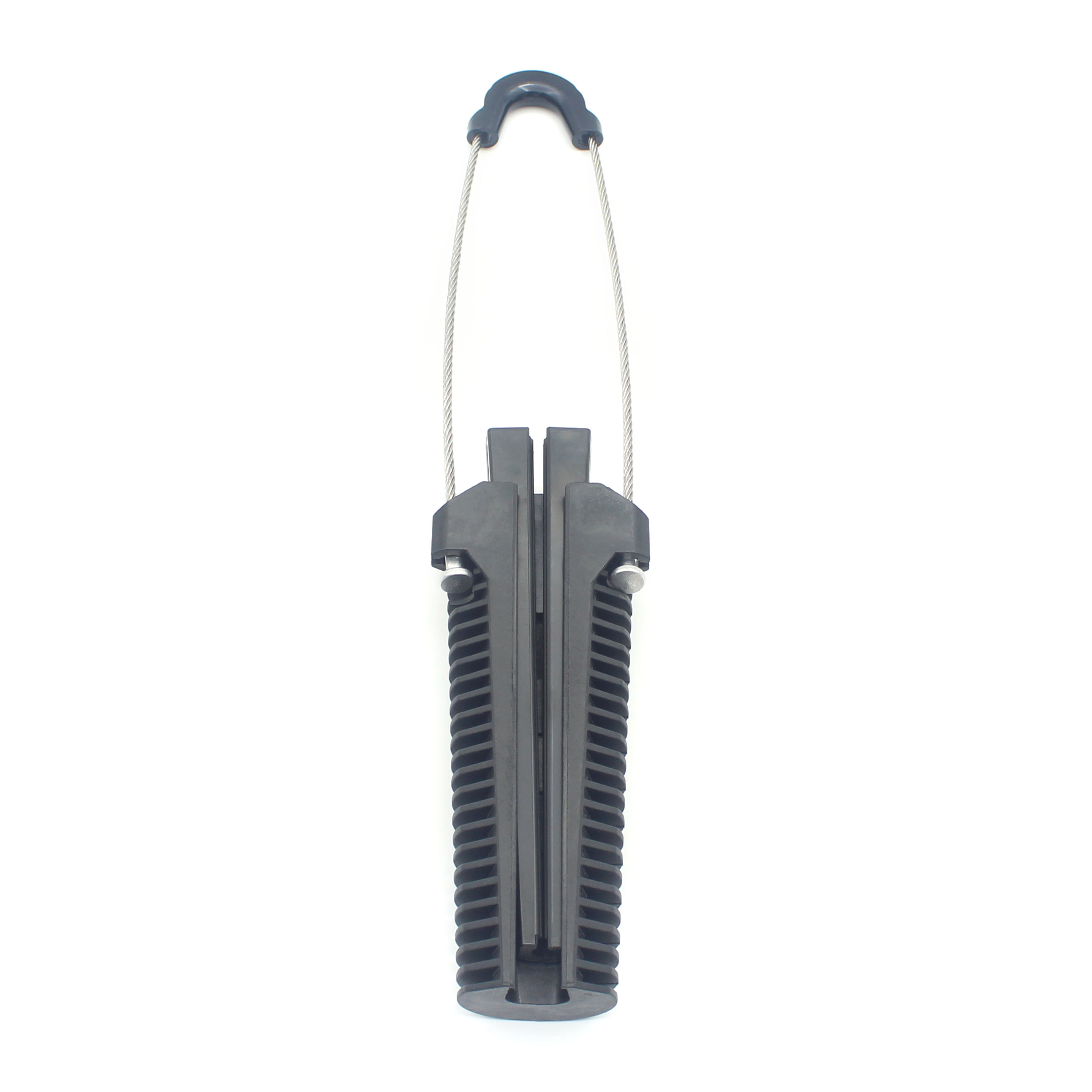

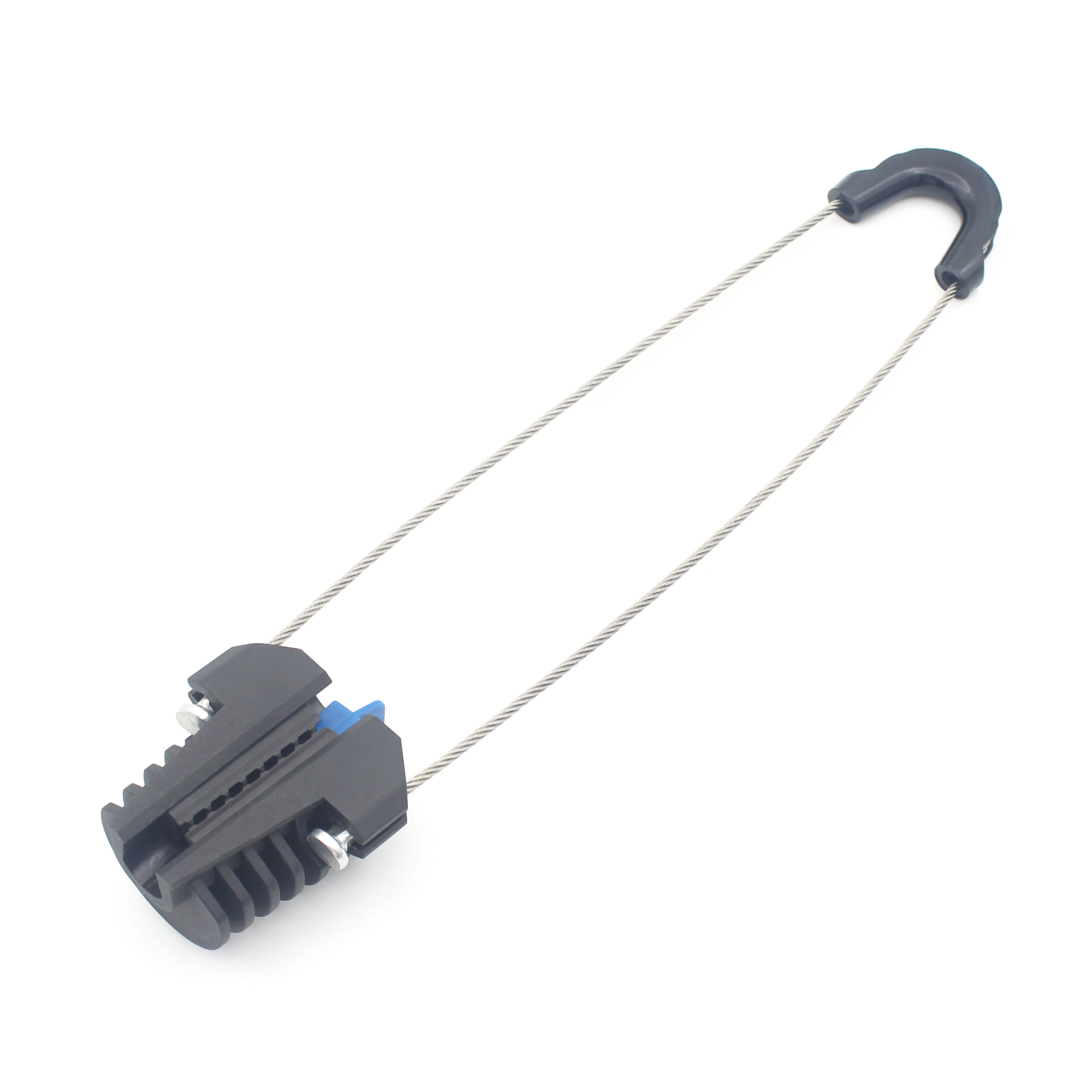

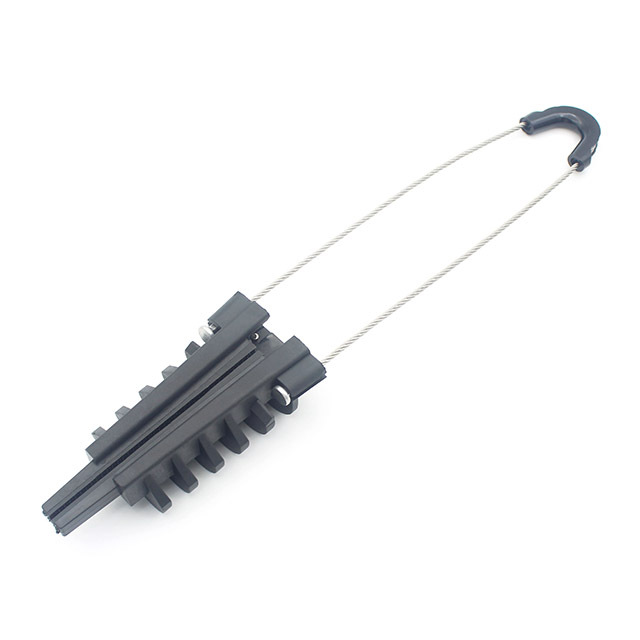

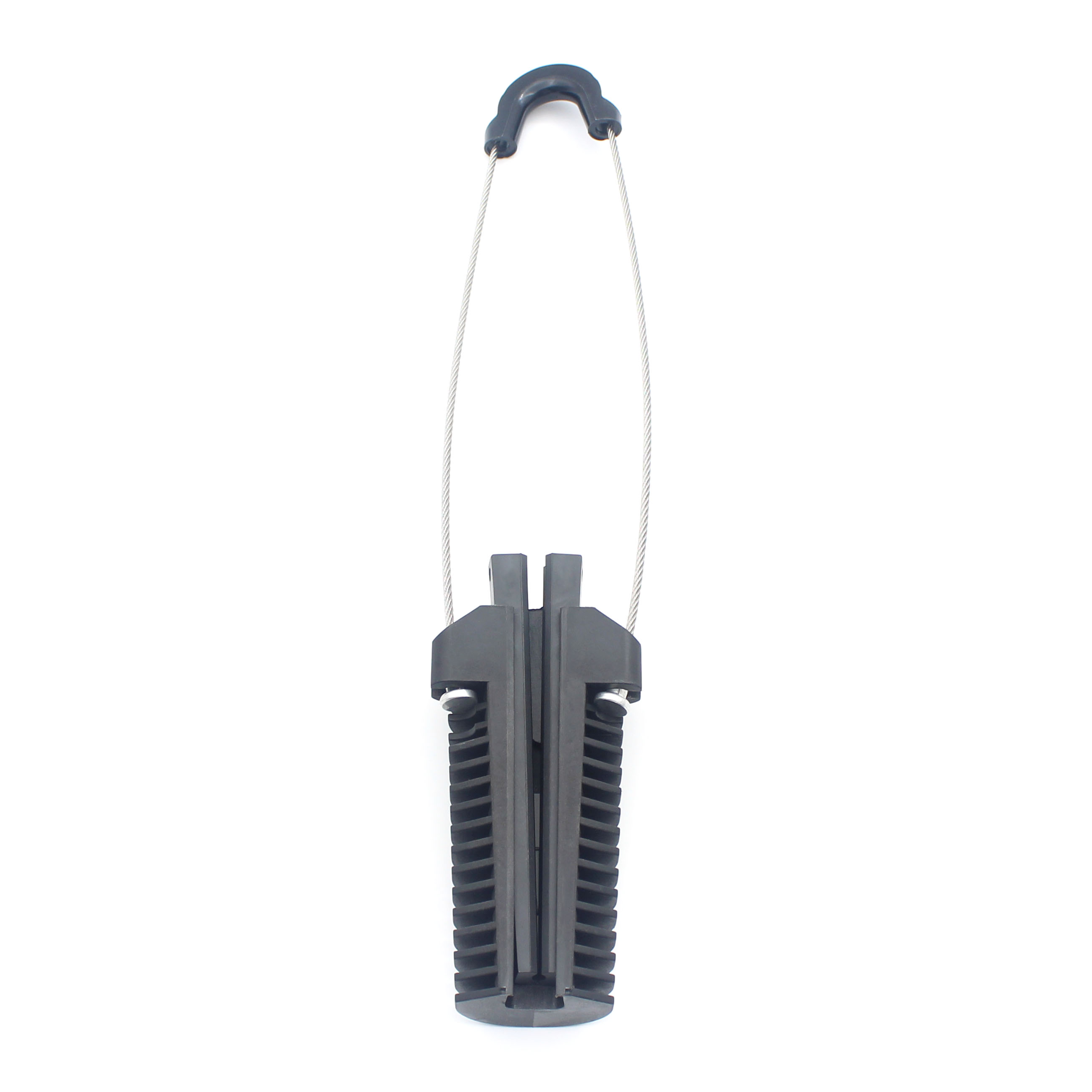

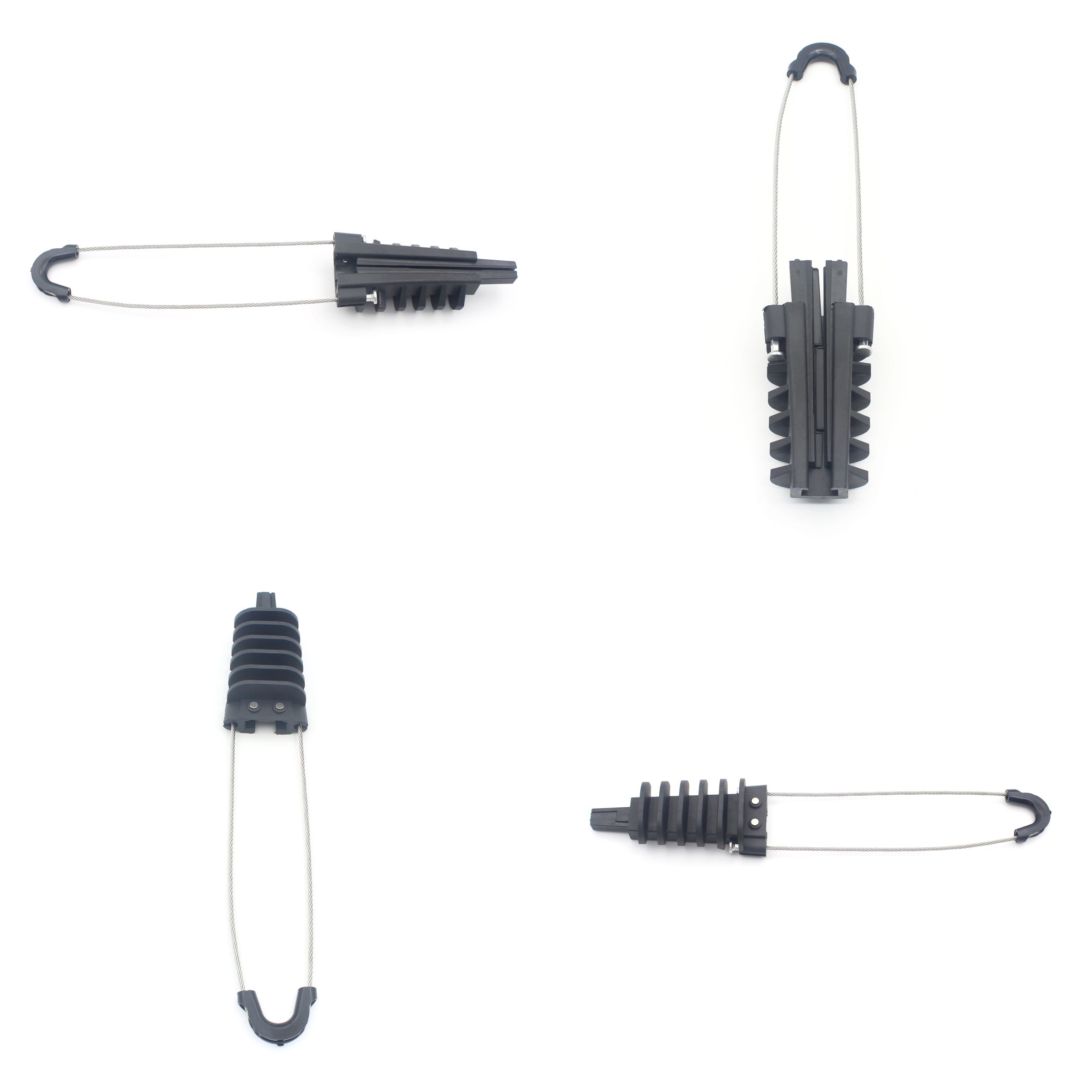

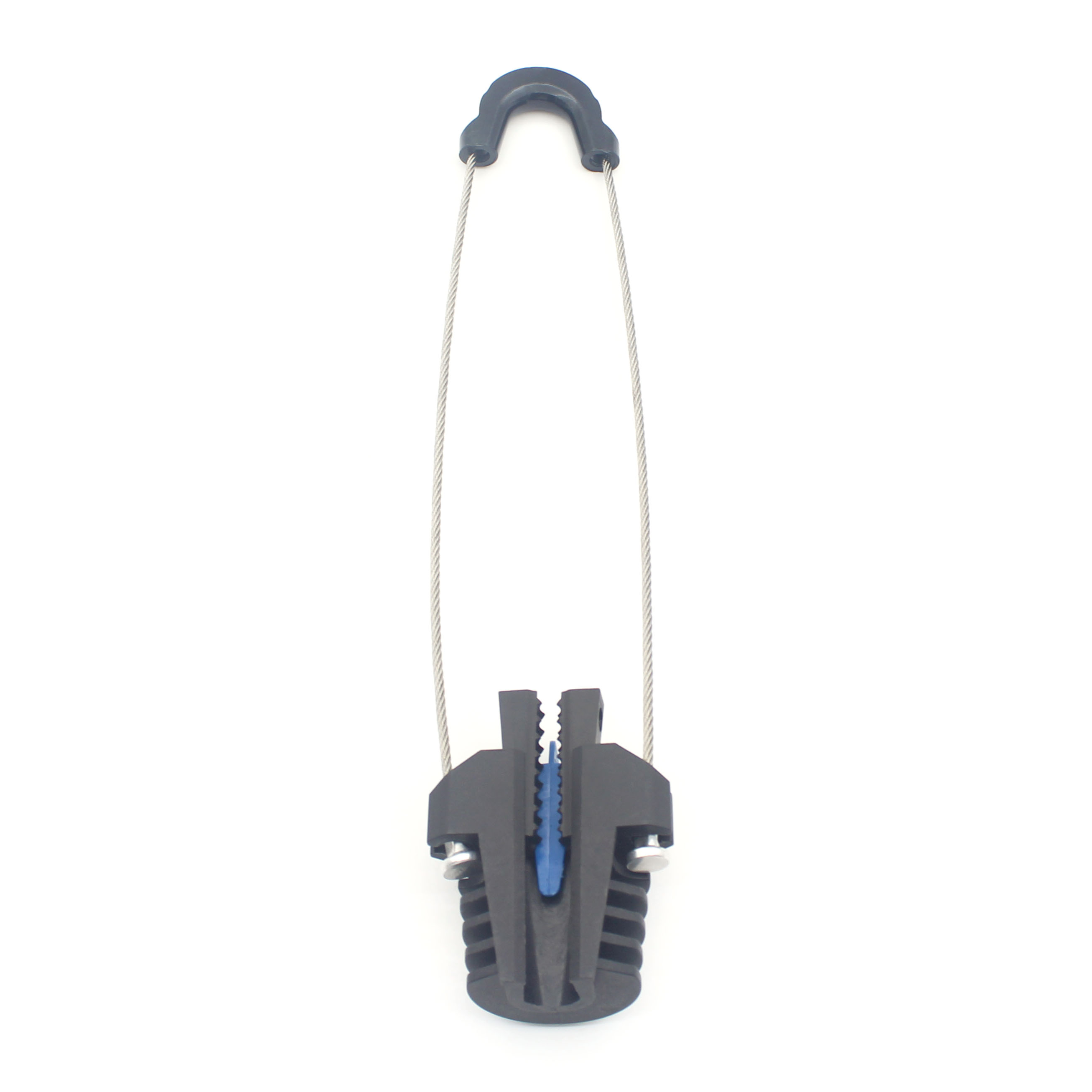

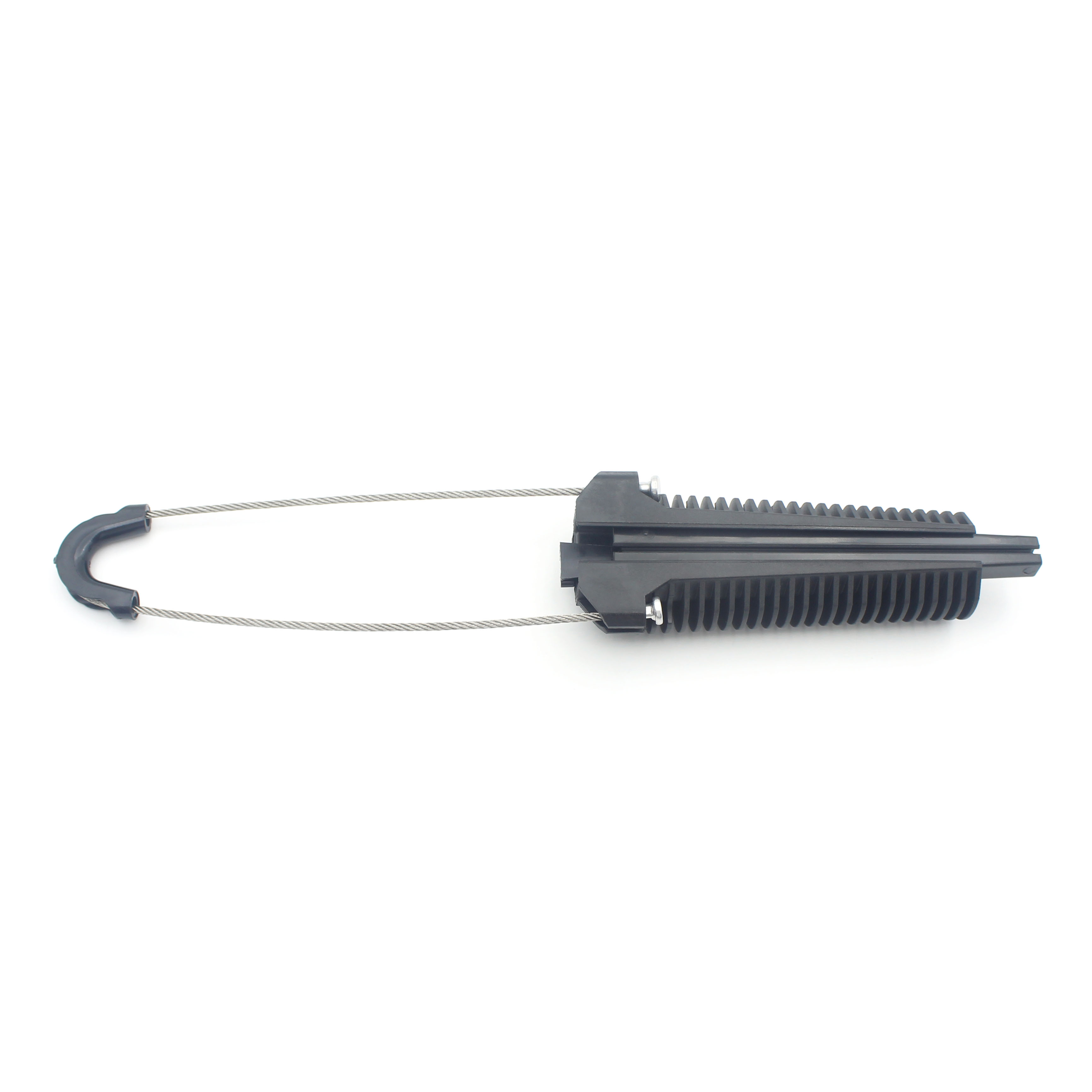

PA-01-SS ADSS Description:
PA-01-SS ADSS clamps for all dielectric self-supporting cable (ADSS) are developed as a solution for aerial round fiber optic cables of different diameters. These optical fiber fittings installed on short spans (up to 100 meters).
ADSS strain clamp is enough to keep the aerial bundled cables in tight strength position, and appropriate mechanical resistance archived by conical body and wedges, which does not allow the cable to slip from the ADSS cable accessory The ADSS cable route may be dead-end, double dead-ending or double anchoring.
Features of PA-01-SS ADSS:
FTTH drop clamp designed for suspension or tension round or flat FTTH fiber optic cable or drop wire cable in FTTX construction or telephone drop wires. FTTH clamp is applied outdoor on routes with short spans up to 50mm.

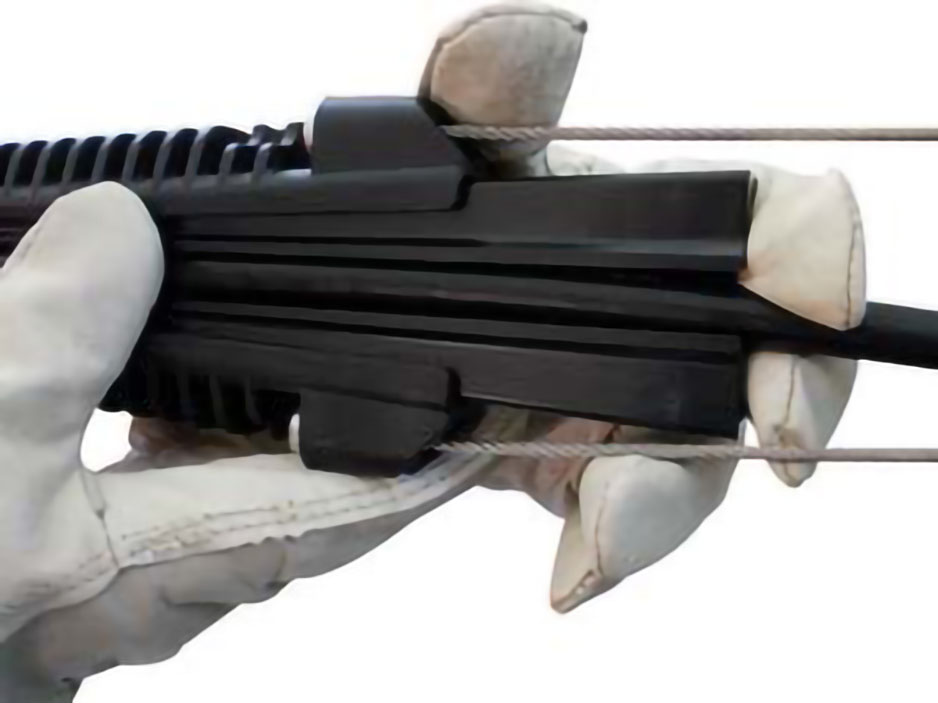

FTTH drop clamp is very easy for installation, and it does not require additional tools, handily adjusted metal S-hook allows simple installation on cross-arm or suspension brackets and FTTH hooks ,as well.
FTTH plastic clamp has plastic clip for round and flat cable sizes diameter 12~15mm,2.5-5mm or size 2*5mm,which covers most of popular ranges of outdoor FTTH cables. The plastic clip provide the excellent adherence with cable and insure reliable fixation..
FTTH drop clamp is very easy for installation, and it does not require additional tools, handily adjusted metal S-hook allows simple installation on cross-arm or suspension brackets and FTTH hooks ,as well.
FTTH plastic clamp has plastic clip for round and flat cable sizes diameter 12~15mm,2.5-5mm or size 2*5mm,which covers most of popular ranges of outdoor FTTH cables. The plastic clip provide the excellent adherence with cable and insure reliable fixation..
Product Specifications:
Attribute | Details |
---|---|
Model NO. | Tension Clamp |
Certification | CE, ISO, RoHS, GS |
Condition | New |
Max Workload | 10kN, 15kN, 22kN |
Inner Wedge | High-Strength Engineered |
Structure | Suspension Clamp |
Application | ADSS Cable or Low Voltage ABC Cable |
Material | Stainless Steel, Plastic, Stainless Steel |
Transport Package | Carton Package |
Specification | FTTH, FTTB, FTTX Network |
Trademark | Fibconet |
Origin | Ningbo |
HS Code | 8536700000 |
Production Capacity | 50,000 |
Type
|
Material
|
Cable Diameter
|
Weight
|
Damage Load
|
DW-SL2.1
|
Plastic
|
6~25MM
|
159g
|
3.5KN
|
Application:

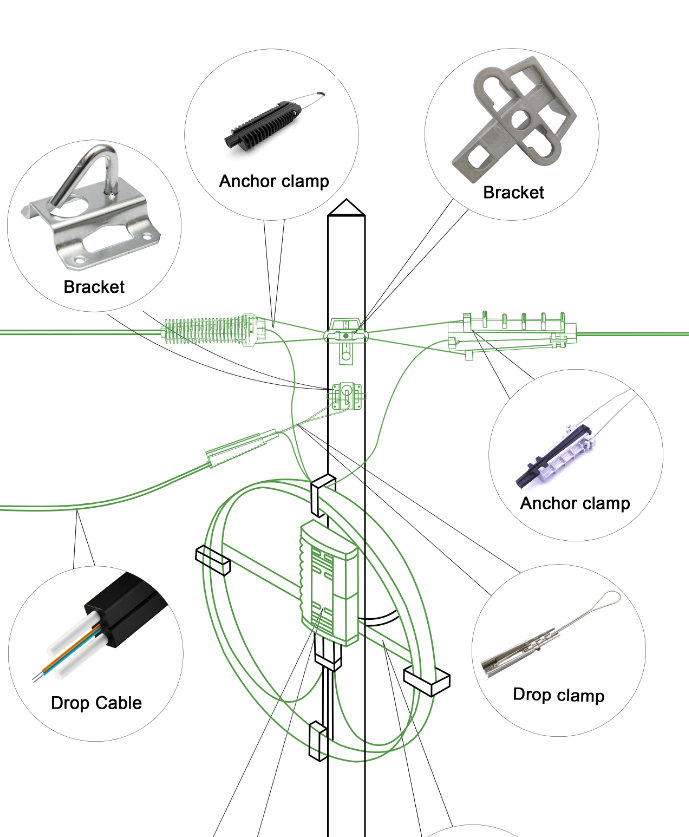

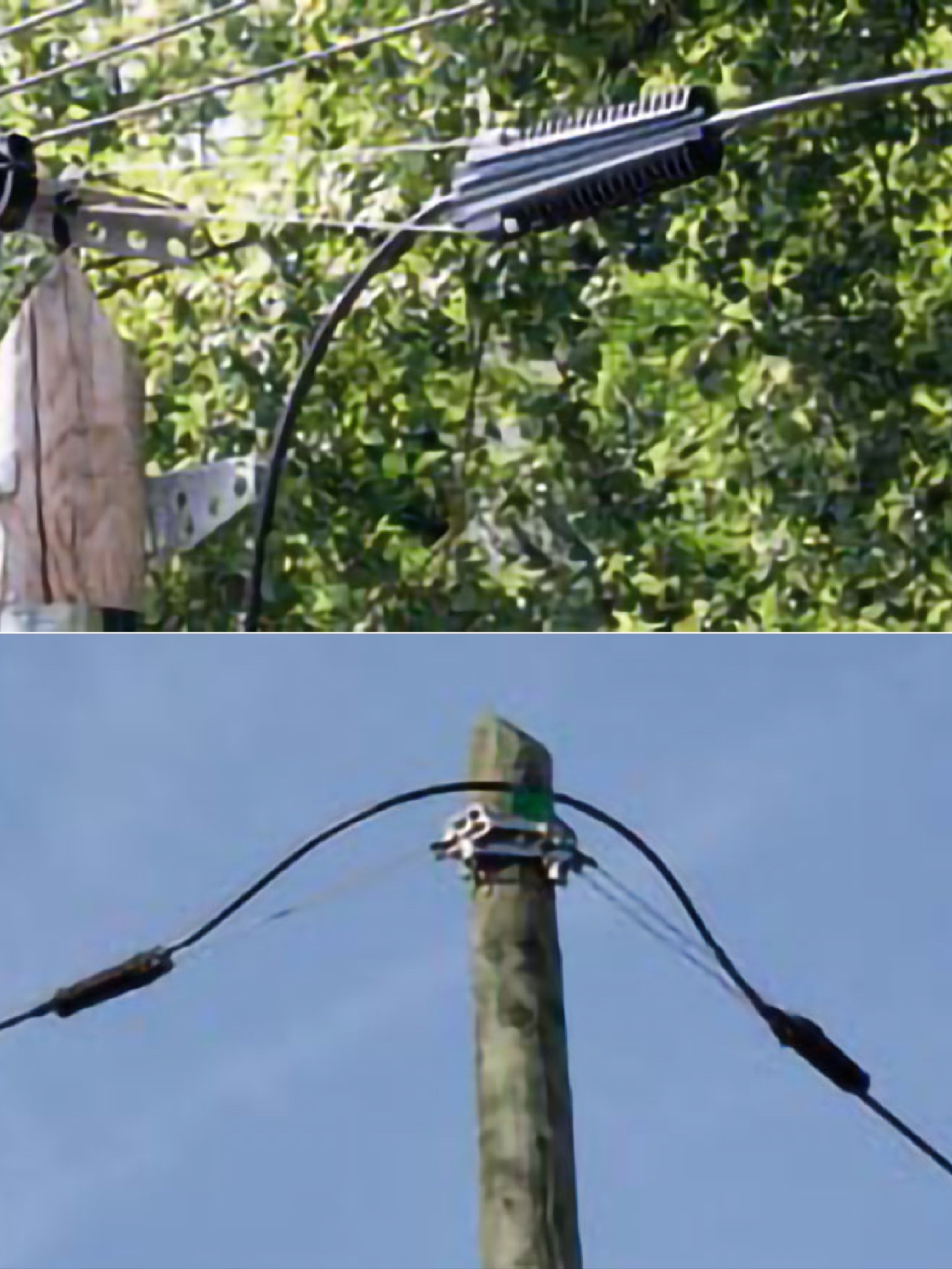

These clamps will be used as cable dead-end at end poles (using one clamp).Two clamps can be installed as double dead-end in the following cases :
1,at jointing poles
2,at intermediate angle poles when the cable route deviates by more than 20°.
3,at intermediate poles when the two spans are different in lengths
4,at intermediate poles on hilly landscapes
1,at jointing poles
2,at intermediate angle poles when the cable route deviates by more than 20°.
3,at intermediate poles when the two spans are different in lengths
4,at intermediate poles on hilly landscapes
