PA06/07/08 Description:
PA06/07/08 clamp is installed in pairs at the beginning, end and with an interval of 5 supports along the length of the cable line. The anchor clamp provides a significant reduction in the duration of the cable suspension process.
Fiber Optic Drop Wire Suspension Clamp is used for enabling mobile suspension of round or flat drop cables Ø 2 to 8mm on central poles used for distribution networks with spans up to 70m. For angles superior to 20°, it is recommended to install a double anchor.The s hook drop wire clamps can withstand the rigors of all environmental conditions in the telecommunications outside plant. The placement of slots and a hole in the clamp’s inner wedges allow for proper cable slack adjustment, tensioning and assistance with re-entry.

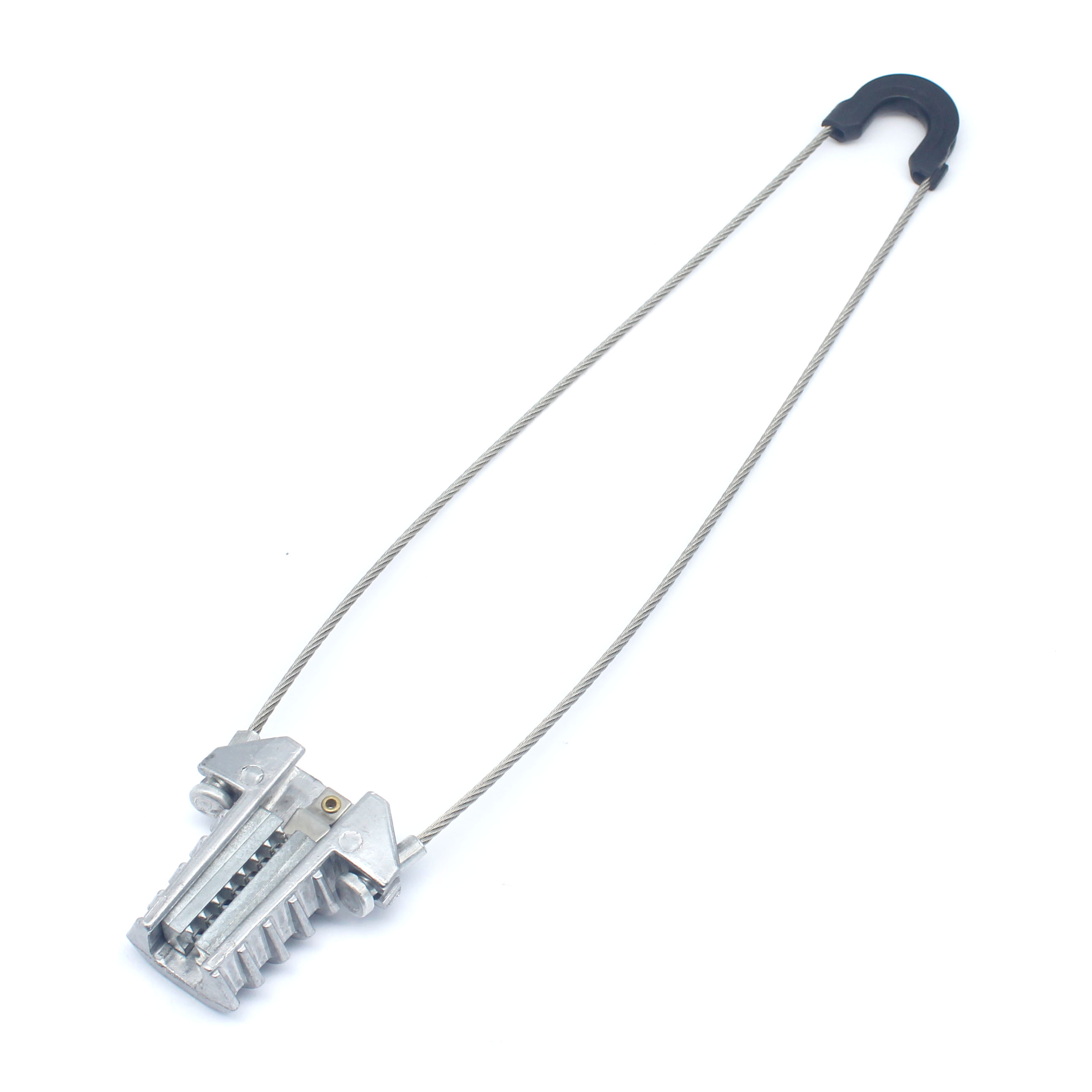

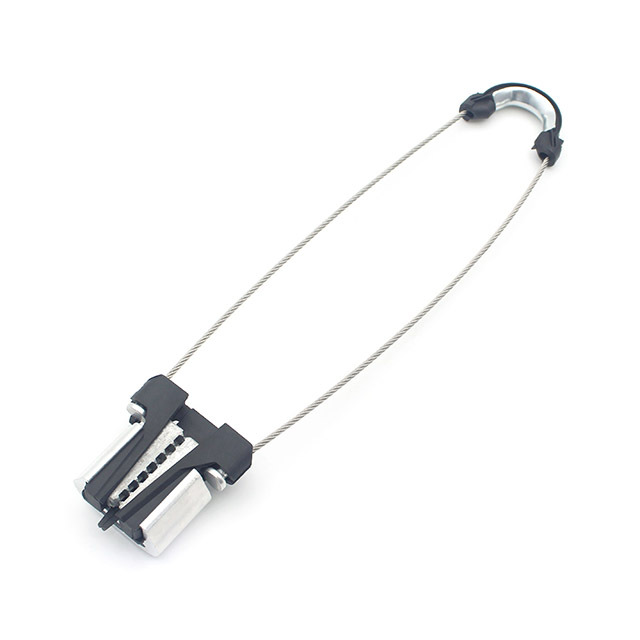

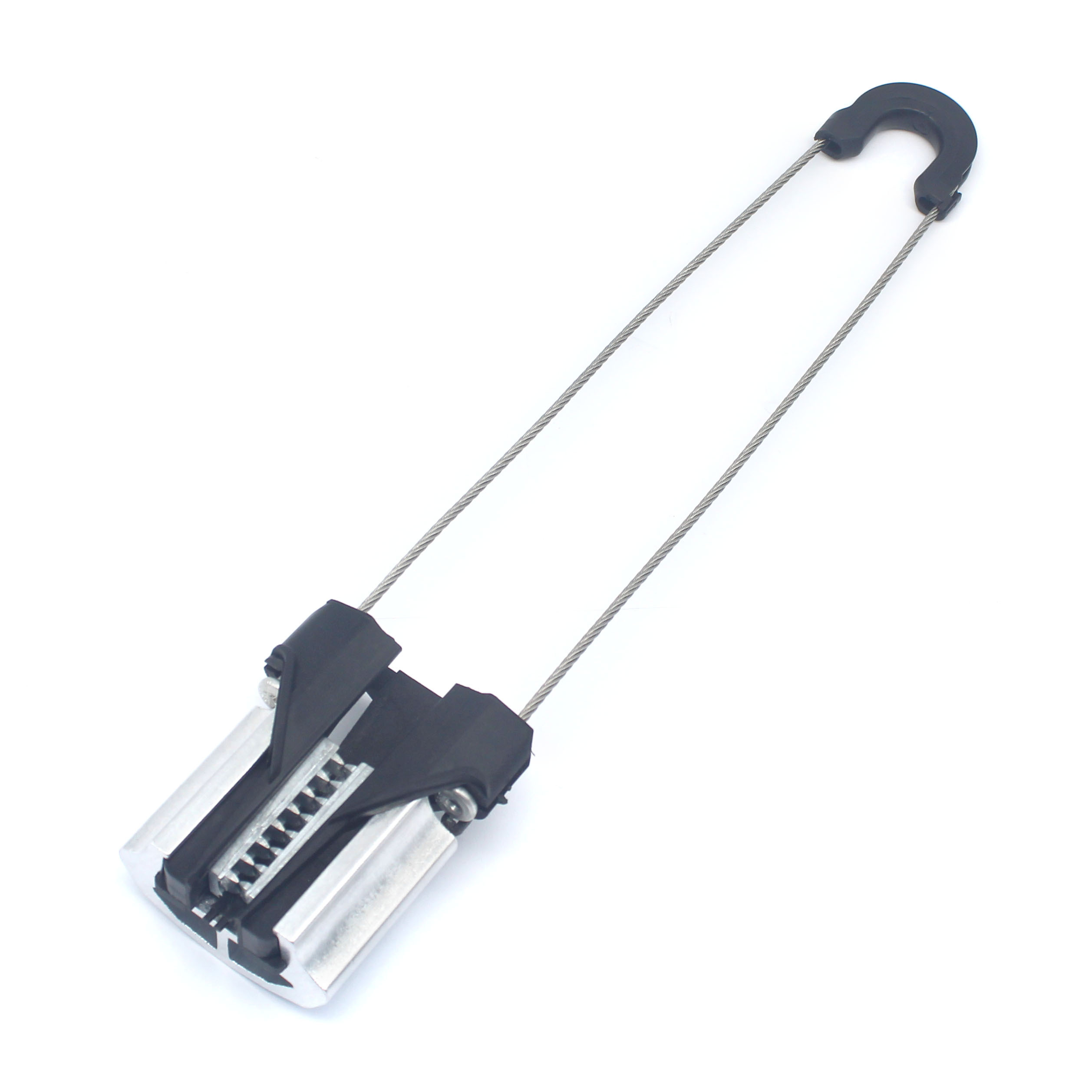

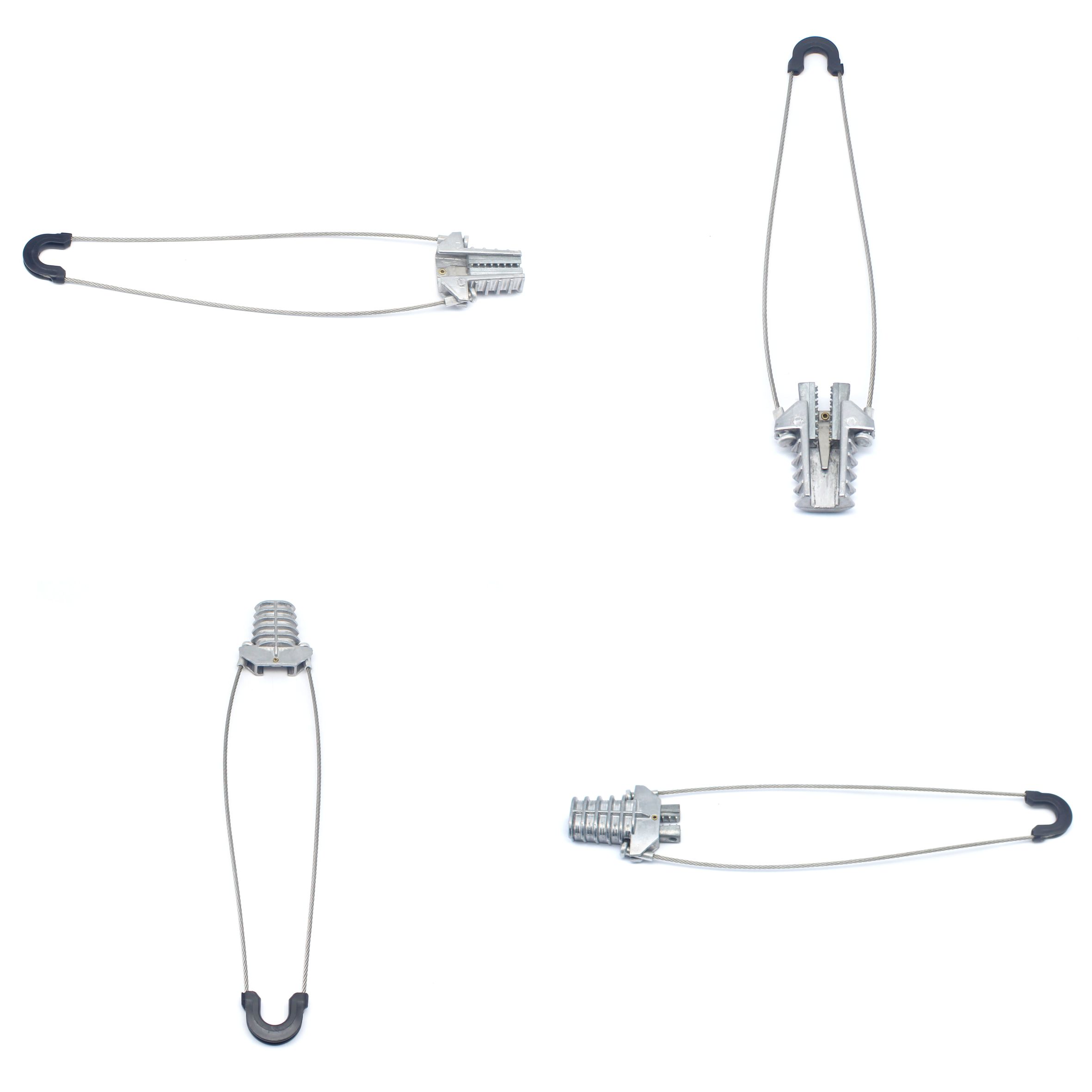

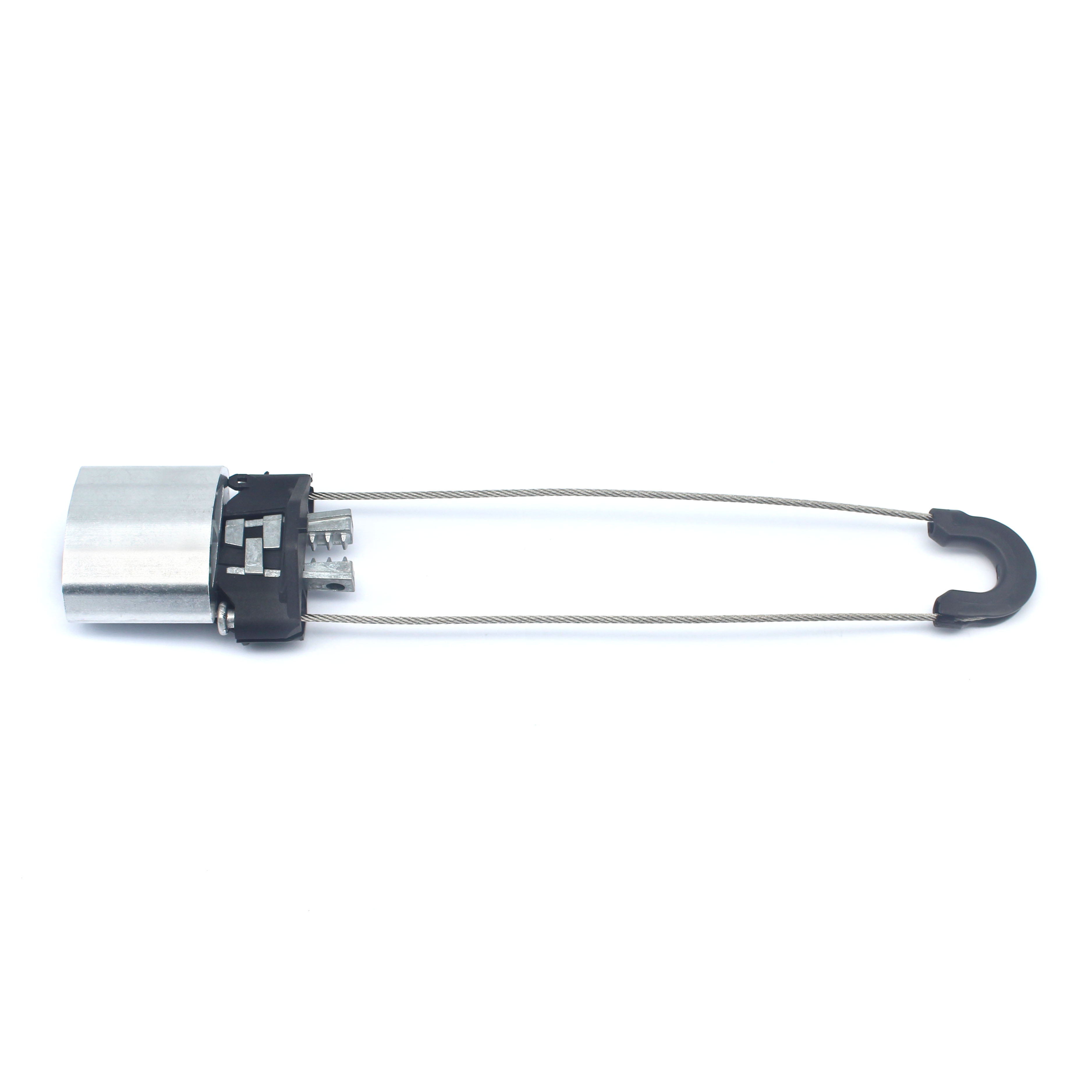

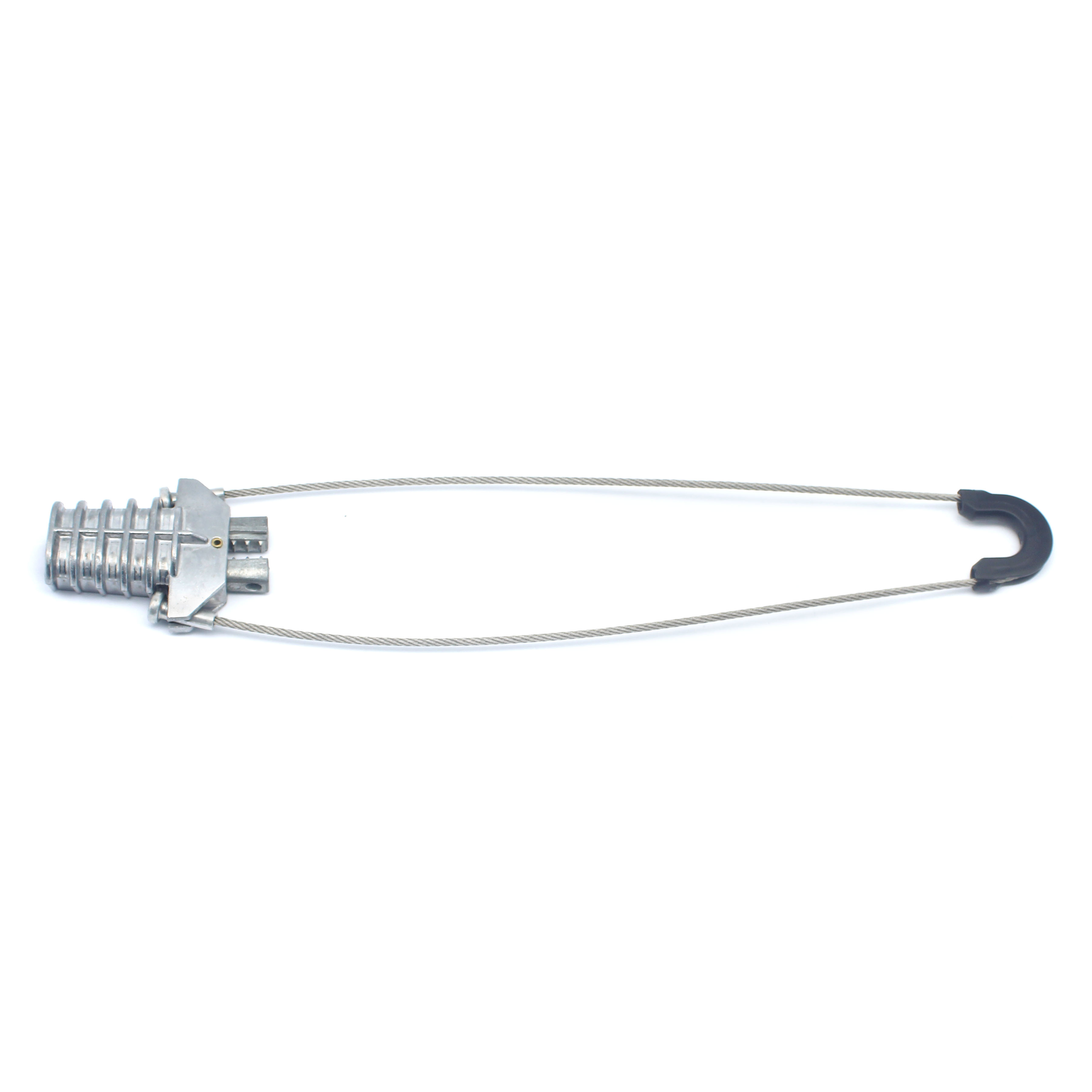

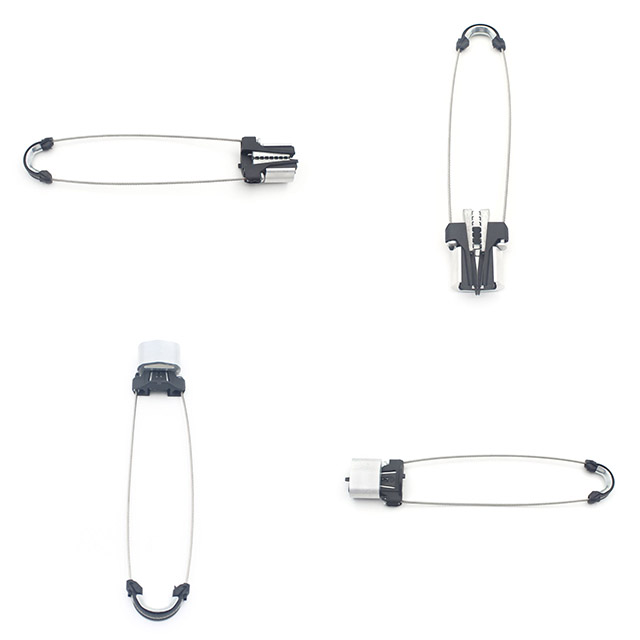

The drop wire clamp is composed of a mandrel shaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon and steel. Baudcom offer this tension clamp with appropriate fish type, S-type and other FTTH clamps.
FEATURES of PA06/07/08 :
- Unique hook and wedge lock design.
- Easy cable slack adjustment to apply proper tension.
- Can be re-entered and reused.
- Weather and corrosion resistant Nylon PA66 body.
- SS201 hook for maximum corrosion resistance.
- No special tools required for installation.
- No loose parts – wedge is tethered to clamp body.
Specifications:
Attribute | Details |
---|---|
Model NO. | PA06/07/08 |
Technics | Injection Molding |
Standard | GB |
Usage | Line Fittings |
Type | Suspension Clamps |
Trademark | Darren |
Specification | 804817.5mm |
Origin | Wuxi |
Type
|
Material
|
Cable Diameter
|
Weight
|
Damage Load
|
DW-SL2.1
|
Plastic
|
6~25MM
|
159g
|
3.5KN
|
