- Application:Long-haul,Metro and Access System Fiber CATV and Fiber Network System
- Certification:ISO9001:2015
- Product name:Fiber Optic Patch Cod
- Color:Yellow
- Wavelength:1310/1550nm
- Material:PVC, LSZH
- Fiber Type:SM
- Insertion loss:0.3dB
- Return loss:50dB
-
- Supply Ability
- 2000000 Piece/Pieces per Month Lu Uniboot Patch Cord
-
- Packaging Details
Poly bag for each item, carton case for outer package for Optical patchcord, SM, duplex uniboot, Lcupc to Lcupc, length 3m, LSZH, 3mm.
-
- Port
Shanghai/shenzhen and any port in China.
- Picture Example:
- Lead time:Quantity(pieces)1 – 150151 – 5000>5000Lead time (days)712To be negotiated
Product Description

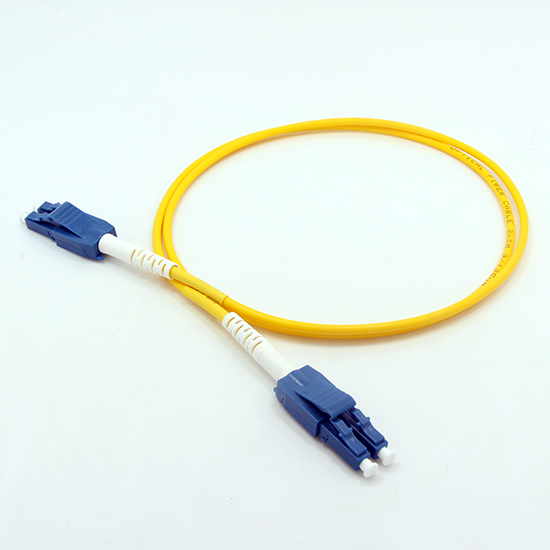

Polarity Reversible Lc-lc Sm Dual Fiber D652D 3mm 3m Lszh Yellow Uniboot Fiber Patch Cord with Pull Tab
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 50/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Products info
| Connector | LC to LC | Jacket OD | 2.0mm |
| Fiber Mode | 9/125μm | Jacket Color | Yellow |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Cable Type | Duplex | Jacket Material | LSZH, OFNP |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | OM3 |
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
We also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
