SKU 1600221002125 Categories ,
Essential details
Model Number:
Place of Origin:
Guangdong, China
Brand Name:
Communications room
Warranty Time:
new one for 1 year
power supply:
AC 100~240V 50/60Hz,DC -36V/-75V
EPON port:
uplink fiber port:
uplink Electrical interface:
EPON protocol:
IEEE 802.3ah EPON
100BASE-T(In-band console management interface)
1000BASE-T(Out-of-band management interface)
Exchange capacity:
Forwarding rate:
Maximum access:
Supply Ability
Supply Ability
100 Set/Sets per Week
Packaging & delivery
Packaging Details



shanghai shenzhen

Lead time:
Quantity(sets) 1 – 50 51 – 100 >100
Lead time (days) 7 14 To be negotiated

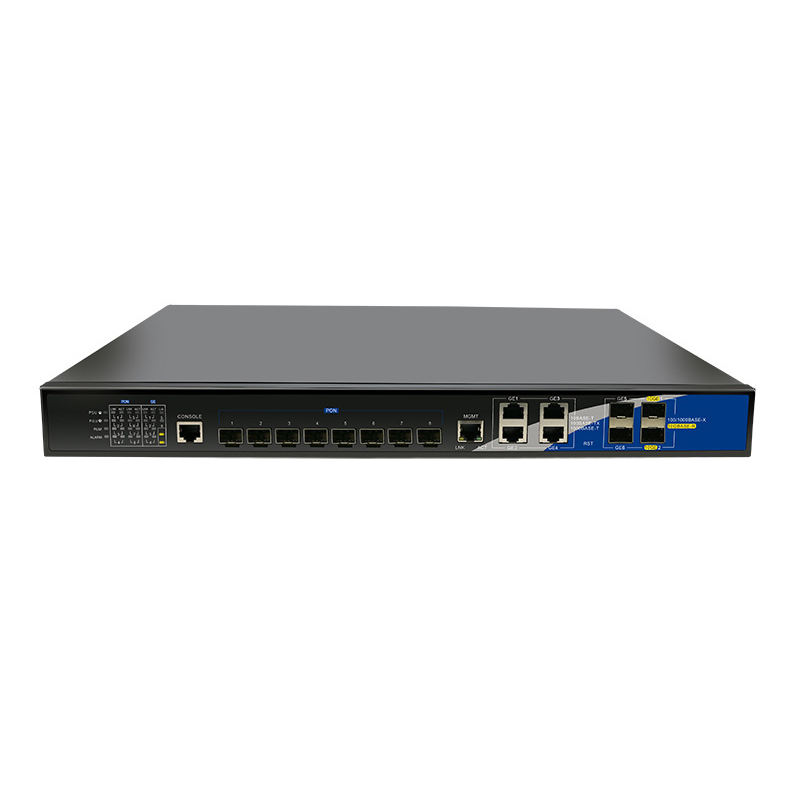

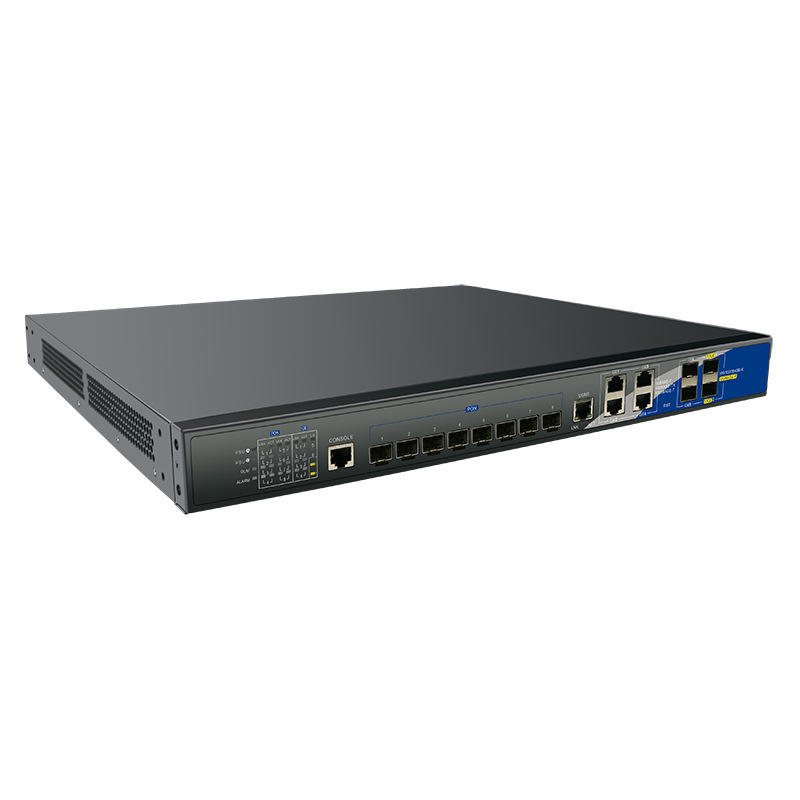

Price best EPON OLT 8 PON ports GEPON OLT 2*GE 2* 10GE uplink OLT EPON 4 PON AC power

Product Description


Business interface EPON interface 8xEPON (1.25/1.25 Gbps)

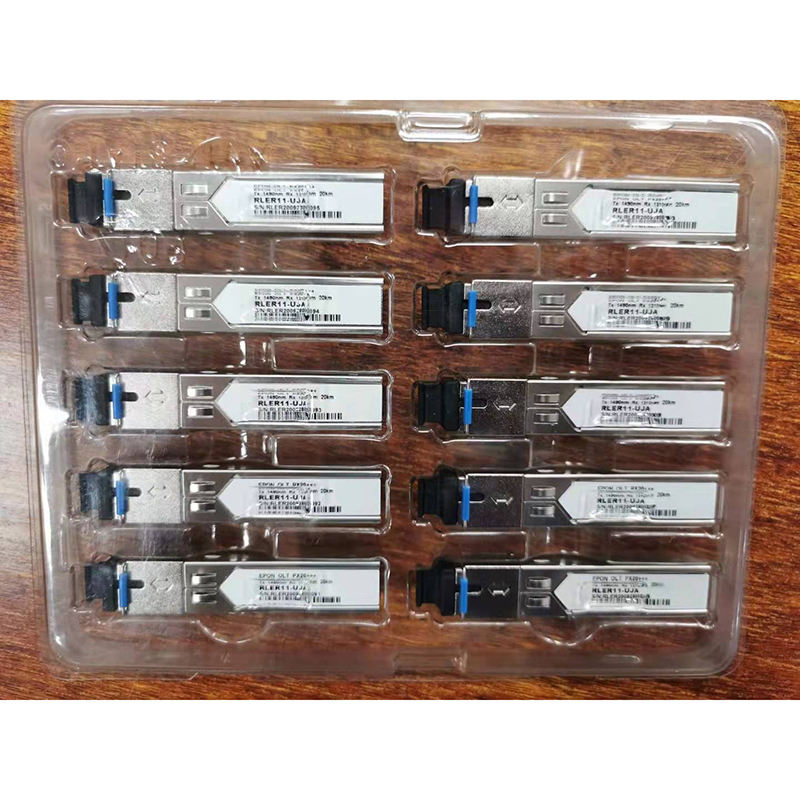

Uplink optical interface 2xGE SFP optical port 1+2x10GE SFP+ optical port
Uplink interface 4xRJ-45 Ethernet electrical port
PON interface standard EPON protocol IEEE 802 3ah EPON
Local management interface Console 100BASE-T in-band Console management port
MGMT 1000BASE-T loan management port
Product performance Exchange capacity 72Gbps
Forwarding rate 33Mpps
Split ratio 1*64
Maximum number of access 512
Power and power consumption power supply AC input: 100 to 240 VAC, 50/60 Hz; DC input: 36V-75V
Redundant design Dual power supply can be stacked, can support dual AC input, dual DC input and AC+DC input
Full load power consumption 46 W
Environmental parameters Storage environment temperature:
10 to 70℃, relative humidity 10-90% (non-condensing)
working environment O to 45℃, relative humidity 10-90% (non-condensing)
Exterior Crystal size 442mm×300mm×44mm (Length°Width”Height)
Full load weight 4.5 kg
VLAN 4K VLAN table entries
Port QinQ and flexible QinQ (StackVLAN)
VLAN based on port, MAC, protocol and IP subnet
Spanning tree Support remote loop detection
MAC Port MAC Limit
MAC Black Hole
8K MAC address
port Two-way bandwidth control
Port mirroring
Multicast Support IGMPv1lv27v3
Support IGMP SnoopinglProxy
Support IGMP filtering multicast filtering
Support PIM-SM sparse mode independent multicast protocol
Routing Protocol Support BGP
Support RIP
Support MPLS
Support OSPF
QoS Support for port or custom data restriction
Supports priority marking for ports or custom streams. And provide 802 1P, DSCP priority Remark capability
Support advanced queue scheduling based on Burmese port or custom flow
Support ports/streams Support 4 priority queues, provide WRR, SP and FIFO queue scheduling algorithms
Support congestion avoidance mechanism
User safety Support Anti ARP spoofing protection
Support Anti ARP flooding
Support MAC address binding to port and port MAC address filtering
Support TACACS+ authentication
Equipment safety Support the control layer to prevent various DOS attacks and virus attacks against the CPU
Support specific IP address login
Support the use of maintenance user classification protection to prevent unauthorized users from illegal intrusion
cyber security Support manual binding of parameters such as IP address, VLAN ID, MAC address and port
Support port broadcast/multicast message suppression and automatic shutdown of dangerous ports
Supports L2-L7 ACL flow filtering with a depth of 80 bytes in the header of a custom message
Support one-key binding based on dynamic ARP table
Support DHCP Option82 and PPPoE+ upload user physical location information
Network management Support command line interface (CLI), ConsoleO port, Console.Telnet
Support RMON (Remote Monitoring) 1, 2, 3, 9 MIB
Support WEB setting management support SNMPv1lv27v3
Support NTP network time protocol
Support NMS3000 network management platform
Crystal production description RL8008ES 8*EPON, 4*GE port, 2*GESFP, 2*10GSFP+ dual power supply,OLT central office
RL060PWRAC 60W AC power module
RL060PWRDC 60W DC power module

1set new
