- Model Number:HK811
- Type:Fiber Optic Transceivers
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Use:FTTX
- Warranty Time:3years
- Network:Wireless Lan, Wired LAN, wifi
- Dimension:102mm(L) x 45mm(W) x45mm(H)
- Power consumption:6W
- WiFi:2.4G
- Certification:RoHS
-
- Supply Ability
- 5000 Piece/Pieces per Week
-
- Packaging Details
20pcs in 1 carton;
-
- Port
shenzhen/guangzhou/hongkong
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated

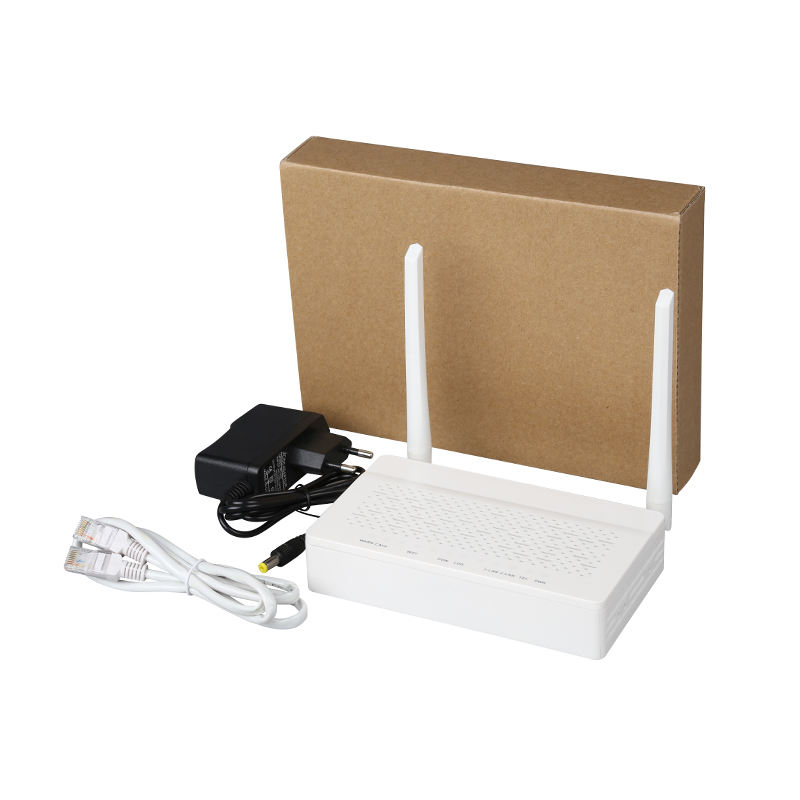

HK811
HK811 is the terminal equipment of a series of XPON which complies fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol. It is based on mature and stable and high cost-effective XPON technology which adopts high-performance XPON Realtek chipset and has high reliability, easy management, flexible configuration, robustness, good quality service guarantee(Qos). HK811 adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard. It also provides the WEB management page and simplifies the configuration of WIFI.HK811 supports 1 RF port for CATV, which can be switched off on OLT terminal. HK811 has the automatic function of EPON and GPON, which is realized by the Pure software.
Product Paramenters
|
Datasheet
|
||
|
Tech parameters
|
Description
|
|
|
Up-link interface
|
EPON Mode
|
1 EPON interface，SC single mode single fiber
|
|
1 Gbits/s rate which uplink and downlink are symmetrical
|
||
|
Fiber type：SC/PC
|
||
|
TX Optical power：-1 士 4 dBm
|
||
|
RX Sensitivity：-26 dBm
|
||
|
safety: ONU authentication mechanism
|
||
|
GPON Mode
|
1 GPON interface，SC single mode single fiber
|
|
|
RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate
|
||
|
Fiber type：SC/PC
|
||
|
TX Optical power：0~4 dBm
|
||
|
RX Sensitivity：-28 dBm
|
||
|
safety: ONU authentication mechanism
|
||
|
Wavelength(nm)
|
TX 1310nm，RX 1490nm
|
|
|
Fiber connector
|
SC/PC,SC/UPC,SC/APC
|
|
|
Down-link data interface
|
1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
|
|
|
DC supply interface
|
input＋12V 1A，footprint：DC0005 ø2.1MM
|
|
|
Power
|
≤5W
|
|
|
Operating temperature
|
-5～+55℃
|
|
|
Humidity
|
10～85%（non-condensation)
|
|
|
Storage temperature
|
-30～+70℃
|
|
|
Dimension（MM）
|
185*125*32mm（mainframe）
|
|
|
Weight
|
0.5Kg（mainframe）
|
|
WiFi Characteristics
|
|
|
WIFI
|
2.4G
|
|
Standard
|
IEEE802.11b/g/n
|
|
Frequency
|
2.4~2.4835GHz
|
|
Transmission speed
|
IEEE 802.11b :max11Mbps
IEEE 802.11g: max54Mbps IEEE 802.11n:max 300Mbps |
|
Channel number
|
2.4GHz :13
|
|
Data Modulation
|
DSSS,BPSK,CCK QPSK, and 16-QAM/64-QAM
|
|
Multiple encryption methods
|
WFA,WPA,WPA2,WAPI
|
|
Antenna
|
2T2R Mode, external antennas
5DBI Gain per pcs MIMO: 2*2 |
Application
Typical Solution：FTTH(Fiber To The Home)Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
