• Products Status:Stock
  • Ports:8
  • Transmission Rate:10/100/1000Mbps
  • Function:POE
  • Communication Mode:Full-Duplex & Half-Duplex
  • Switch Capacity:2.4G
  • Brand Name:HTF
  • Model Number:HT-POE8611G
  • Place of Origin:Guangdong, China
  • Interface:1~8 port 10/100/1000Mbps PoE ports
  • 1000M SFP:1 SFP
  • 1000M UPLINK:1 UPLINK
  • MAC:2K
  • PoE Port Power:30W Max
  • OEM:Yes
  • Power input:AC 100-265V 50/60Hz
  • Operating Temperature:0℃~40℃ (32℉~104℉)
  • Manufacturer:Shenzhen
  • Warranty:12 months
  • Certification:FCC, ce, RoHS
  • Selling Units:Single item
  • Single package size: 23.8X11.3X7 cm
  • Single gross weight:1.200 kg
  • Package Type:Neutral gift box
  • Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)32535To be negotiated

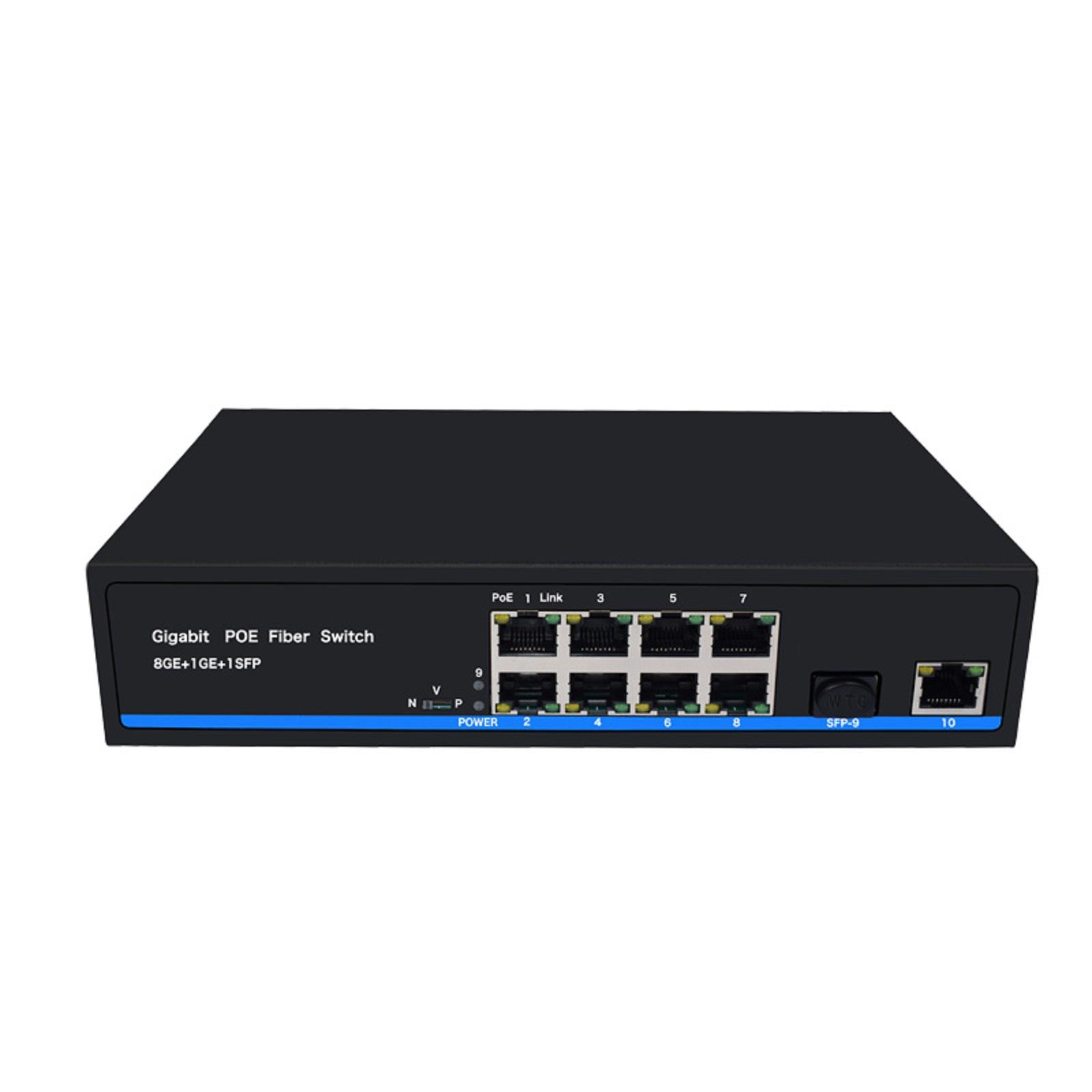

ROHS CE approval 8 port Fiber Gigabit Unmanaged POE Switch with 1 Port 1000M Uplink and 1 Port 1000M SFP



Feature
  • 8 10/100/1000Mbps Auto-Negotiation RJ45 ports with 8 PoE ports (port-1~port-8)
  • 1 Gigabit SFP port, 1 Gigabit uplink port
  • 250M cable power support 150W MAX power output
  • Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex
  • Mode LED indicators for monitoring power, link, activity and speed
  • Desktop mode with Metal Case
  • Each POE port Up to 30W of power on
  • Compatible With All IEEE 802.3at or Legacy
  • Safe: Low Power Devices Receive Only the Power They Need
  • Automatic Detection and Protection of Non–standard Ethernet
  • Terminals Supports 10/100 Base-T applications
  • Plug-and-Play no configuration required Internal power supply Easy installation and maintenance
  • complies to IEEE 802.3af/at PoE standard and is backward
Product Description



Model

POE8611G

1000M POE Rj45

8

1000M SFP

1 SFP

1000M UPLINK

1 UPLINK

Exchange Mechanism

Store-and-forward

Bandwidth

20G

MAC

2K

Environmental

Working Temperature: -10℃~55℃

Storage temperature: -40℃~70℃

Working Humidity :10%~90% RH non-condensing

Storage Humidity:5%~90% RH non-condensing

Power input

AC 100-265V 50/60Hz 2.88A MAX 150W

POE

IEEE802.3af/at,  Port PoE 30W,

Standards Protocols

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

IEEE 802.3x

Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

ROHS CE approval 8 port Fiber Gigabit Unmanaged POE Switch with 1 Port 1000M Uplink and 1 Port 1000M SFP

Packaging & Shipping

 ROHS CE approval 8 port Fiber Gigabit Unmanaged POE Switch with 1 Port 1000M Uplink and 1 Port 1000M SFP

Our Services

Reply your inquiry in 24 working hours;
Customization is available, OEM/ODM is warm welcome;
Delievery goods to our partners all over the world with high speed and great precision;
Offer our customers the most competitive with good quality wireless networking equipment.

Color

Black
