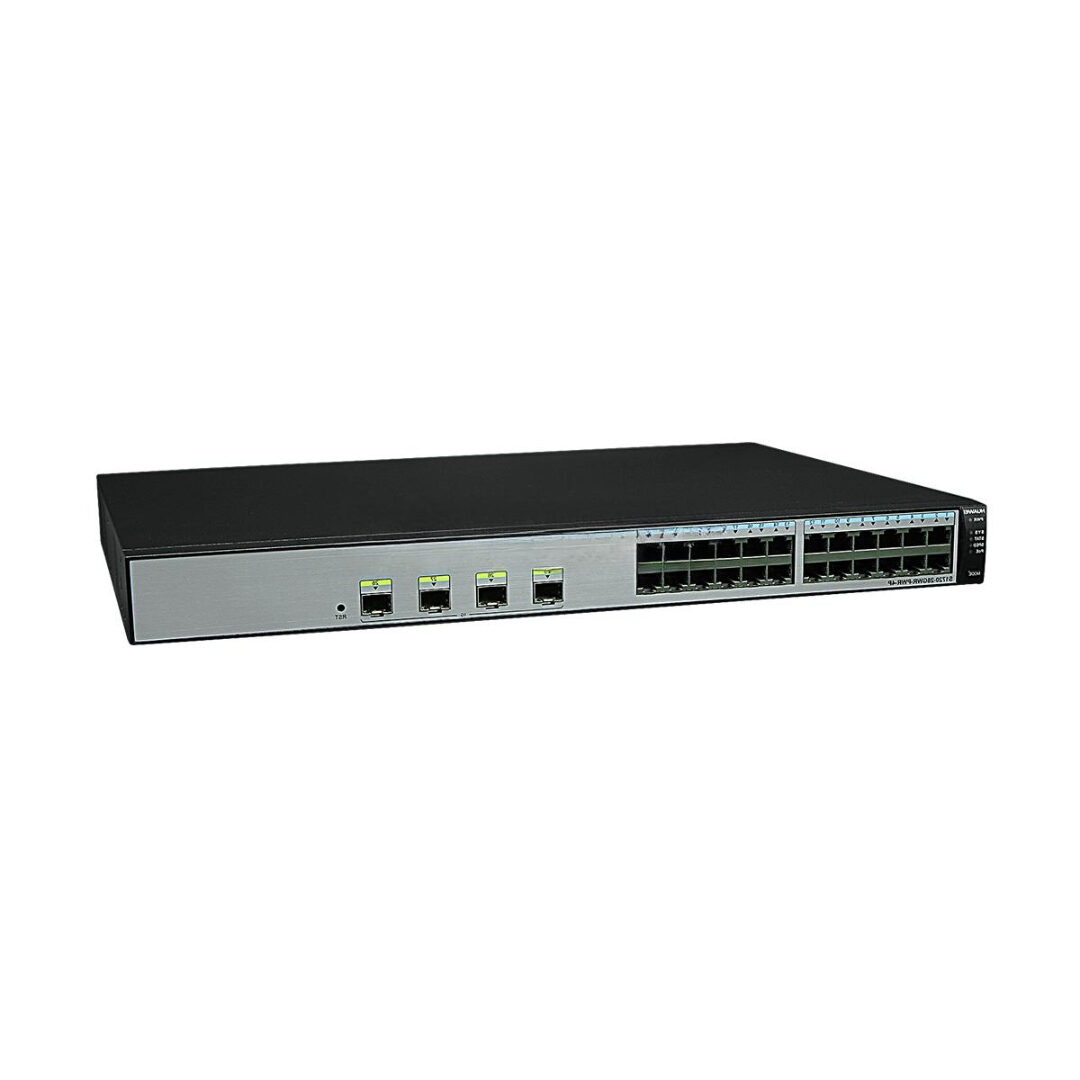

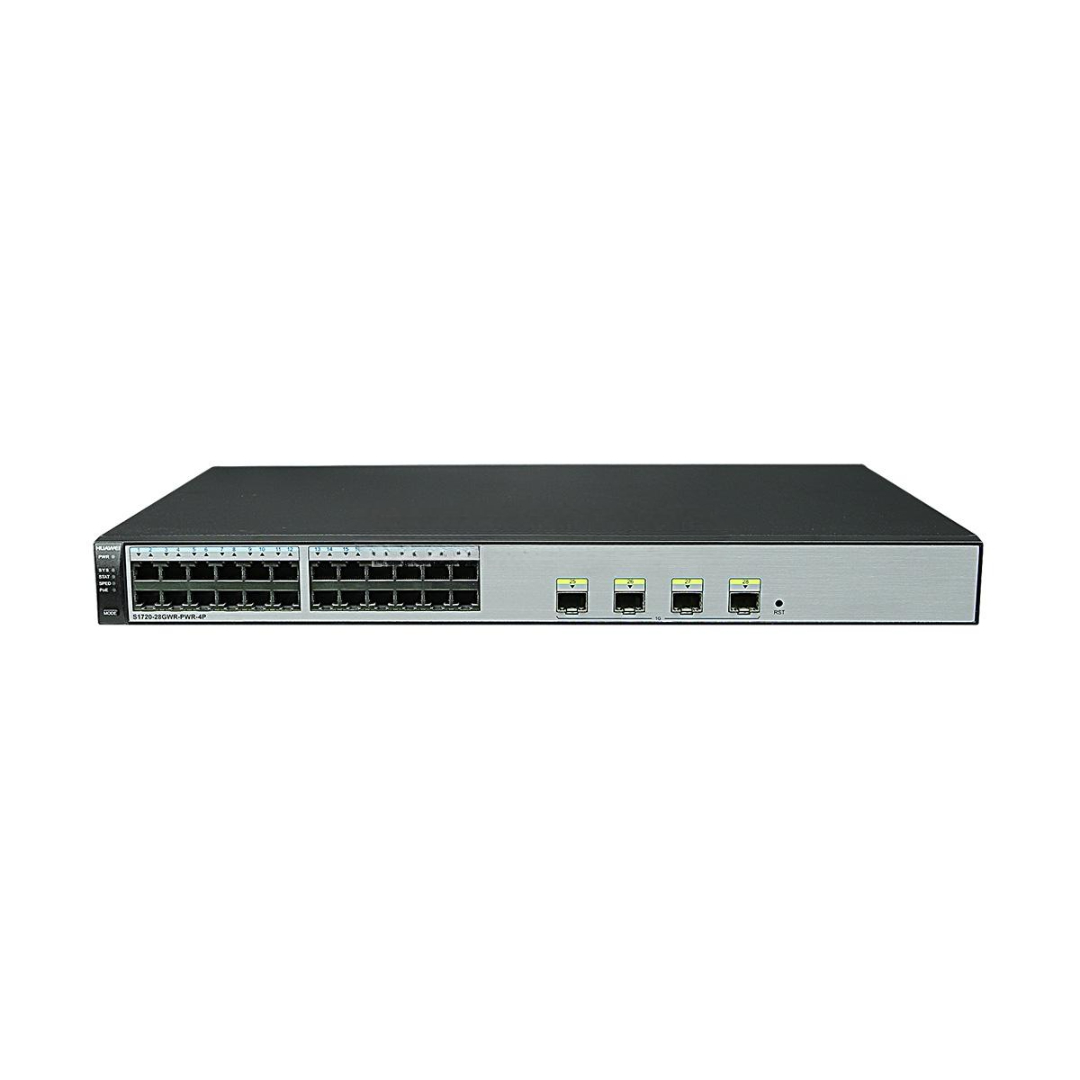

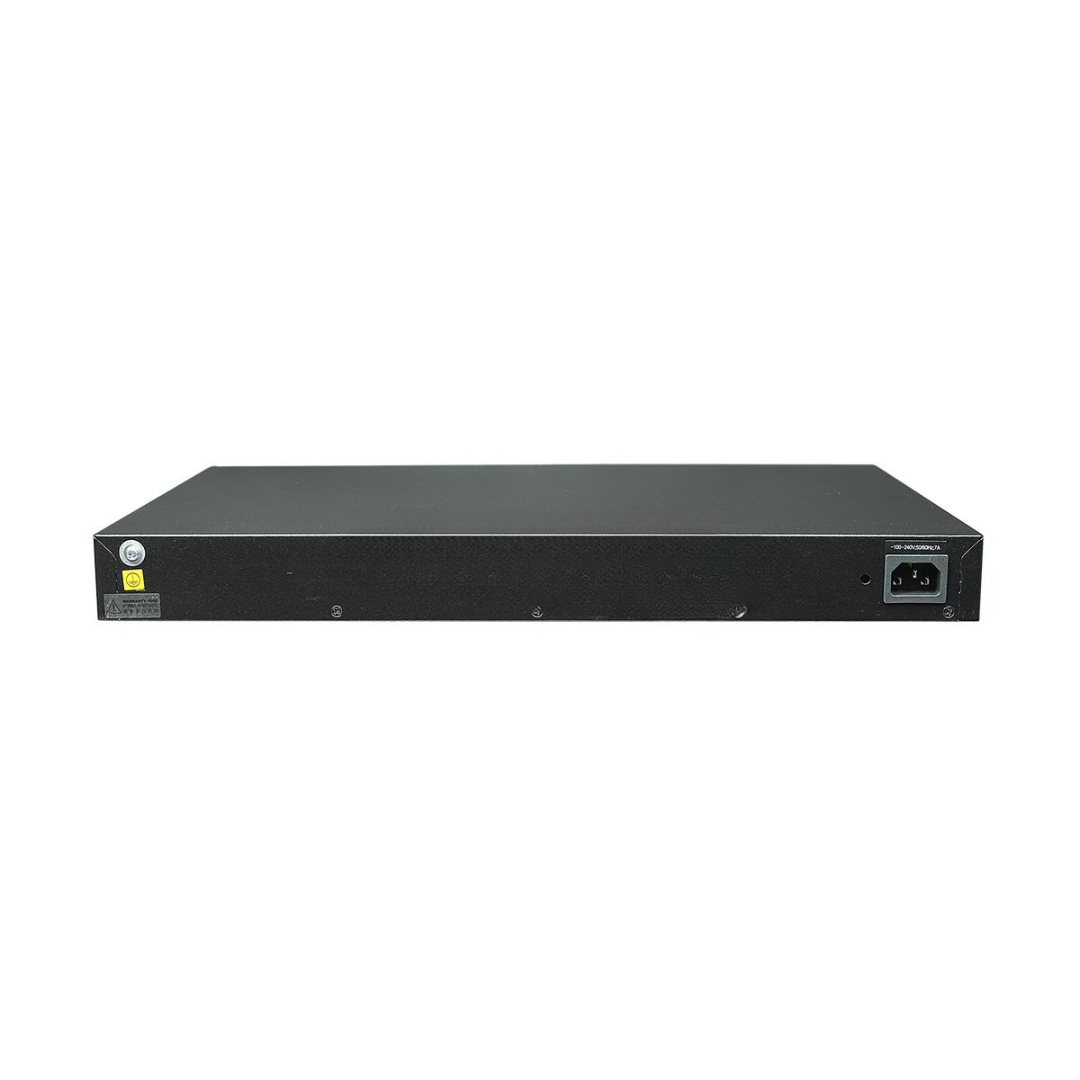

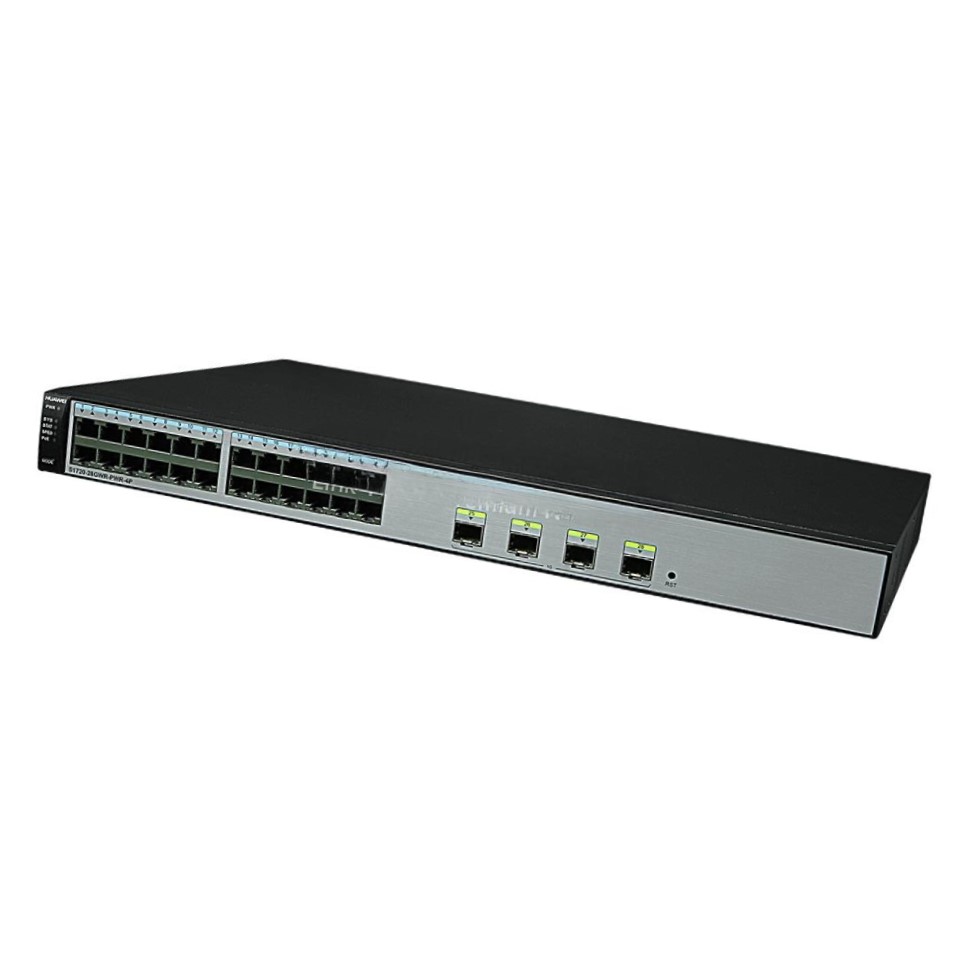

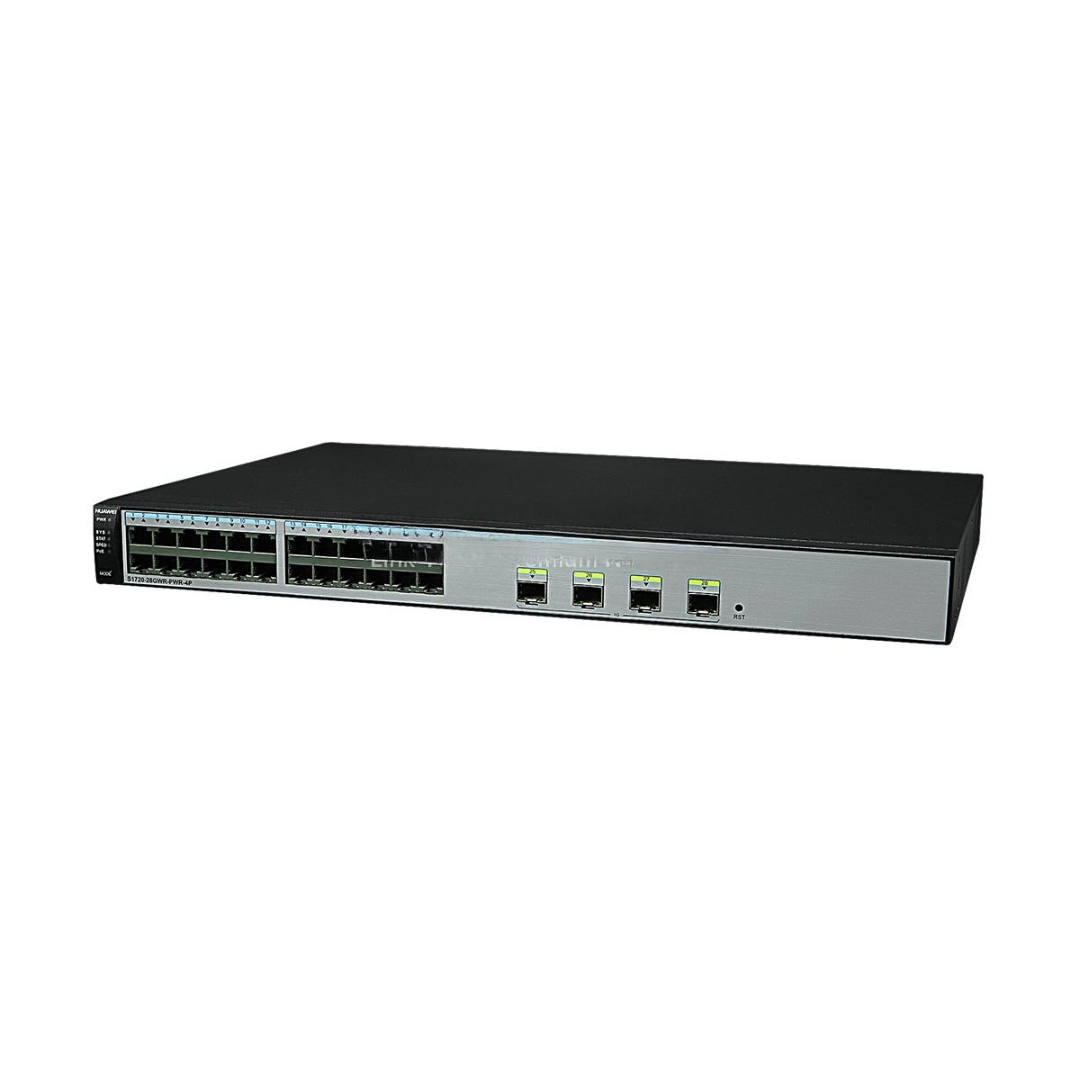

S1720-28GWR-PWR-4P Huawei Original New 24-Ports Power Fixed Switch
The S1720-28GWR-PWR-4P Huawei is a Layer 2 gigabit managed switch with Power over Ethernet (PoE) capability, tailored for enterprise, campus, and SMB networking environments. Featuring 24 full gigabit RJ45 PoE ports and 4 Gigabit SFP uplink ports, this switch offers seamless power and data delivery over Ethernet, ideal for IP phones, wireless APs, and surveillance devices.
Designed with quiet, fanless operation, robust security, and versatile VLAN and QoS support, the S1720-28GWR-PWR-4P enables intelligent, energy-efficient network infrastructure for modern businesses.
Key Features
- Model: S1720-28GWR-PWR-4P
- Condition: 100% Brand New & Original Huawei OEM
- Ports: 24 × GE PoE (10/100/1000BASE-T), 4 × GE SFP
- PoE Standards: IEEE 802.3af/at (PoE & PoE+)
- Total PoE Budget: Up to 370W
- Switching Capacity: 56 Gbps
- Forwarding Rate: 42 Mpps
- Management: Web GUI, CLI, SNMP v1/v2/v3
- Features: VLAN, STP, QoS, IGMP Snooping, Port Isolation, MAC filtering
- Energy Efficiency: EEE (Energy Efficient Ethernet) supported
- Deployment: Fanless design, rack-mountable 1U
Technical Specifications
| Specification | Details |
|---|---|
| Model | S1720-28GWR-PWR-4P |
| Downlink Ports | 24 × 10/100/1000BASE-T (PoE) |
| Uplink Ports | 4 × GE SFP |
| PoE Standard | IEEE 802.3af/at |
| Max PoE Output Power | 370W |
| Switching Capacity | 56 Gbps |
| Forwarding Performance | 42 Mpps |
| MAC Address Table | 8K |
| VLANs Supported | 4K |
| Dimensions (W×D×H) | 442 × 220 × 43.6 mm |
| Weight | ≤4.5 kg |
| Power Supply | Built-in AC, 100V–240V |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% RH, non-condensing |
| Warranty | 1–3 Years Manufacturer Warranty |
S1720-28GWR-PWR-4P Huawei Applications
- Enterprise Office Access – Simplifies cabling and powers end devices
- Wireless Networks – Efficiently powers WLAN APs with gigabit uplinks
- IP Surveillance – Ideal for powering multiple high-resolution cameras
- Retail & Hospitality – Fanless, quiet design for front-office spaces
- Education & Government – Secure, manageable PoE network deployment
Customization & OEM Options
- Custom Branding – OEM label, packaging, and logo support
- Preconfigured Settings – VLANs, port roles, PoE schedules preloaded
- SFP Module Pairing – Bundled with compatible Huawei SFP transceivers
- Global Compliance – CE, FCC, RoHS certifications available on request
- Rugged Versions – Extended temperature ranges available for harsh sites
- Localized Manuals – Documentation in regional languages if required
Wholesale & Global Supply Information
- Original Huawei OEM Inventory – Verified part numbers and serials
- Bulk Stock Available – For projects, rollouts, and government supply
- Rapid Shipping Worldwide – Safe packaging and export-ready logistics
- Volume Discounts – Available for resellers and integrators
- Documentation & Datasheets – Provided for IT and engineering teams
- Dedicated Support – Assistance with setup, firmware, and compatibility
Why Choose the S1720-28GWR-PWR-4P Huawei
24 PoE Ports – Power up to 24 devices with one switch
4 SFP Uplinks – Stable, long-distance fiber uplink support
Enterprise-Class Build – Solid, reliable, and scalable
Quiet Design – Ideal for office, retail, and indoor installations
Cost-Effective Solution – Full-featured PoE+ switching at a great value
Request a Quote Today
Take control of your access network with the Huawei S1720-28GWR-PWR-4P — where power meets performance.
Contact us now for wholesale pricing, OEM packaging options, and technical datasheets.
