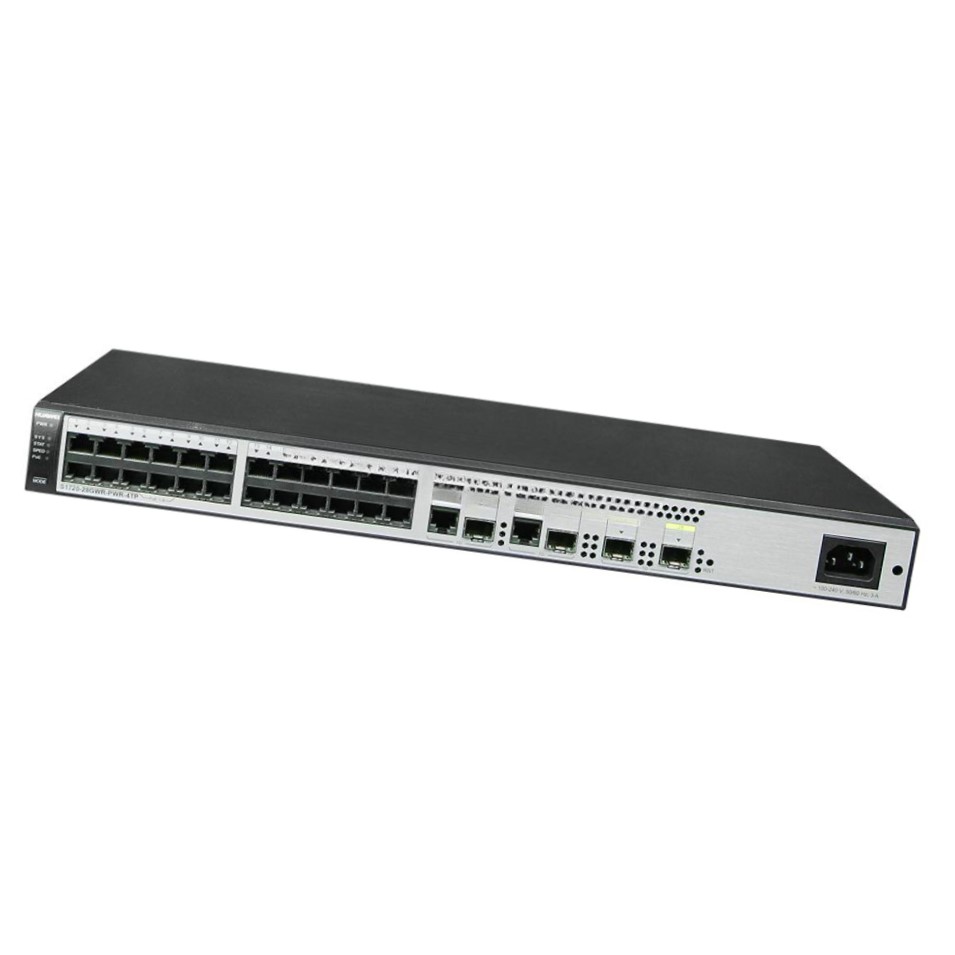

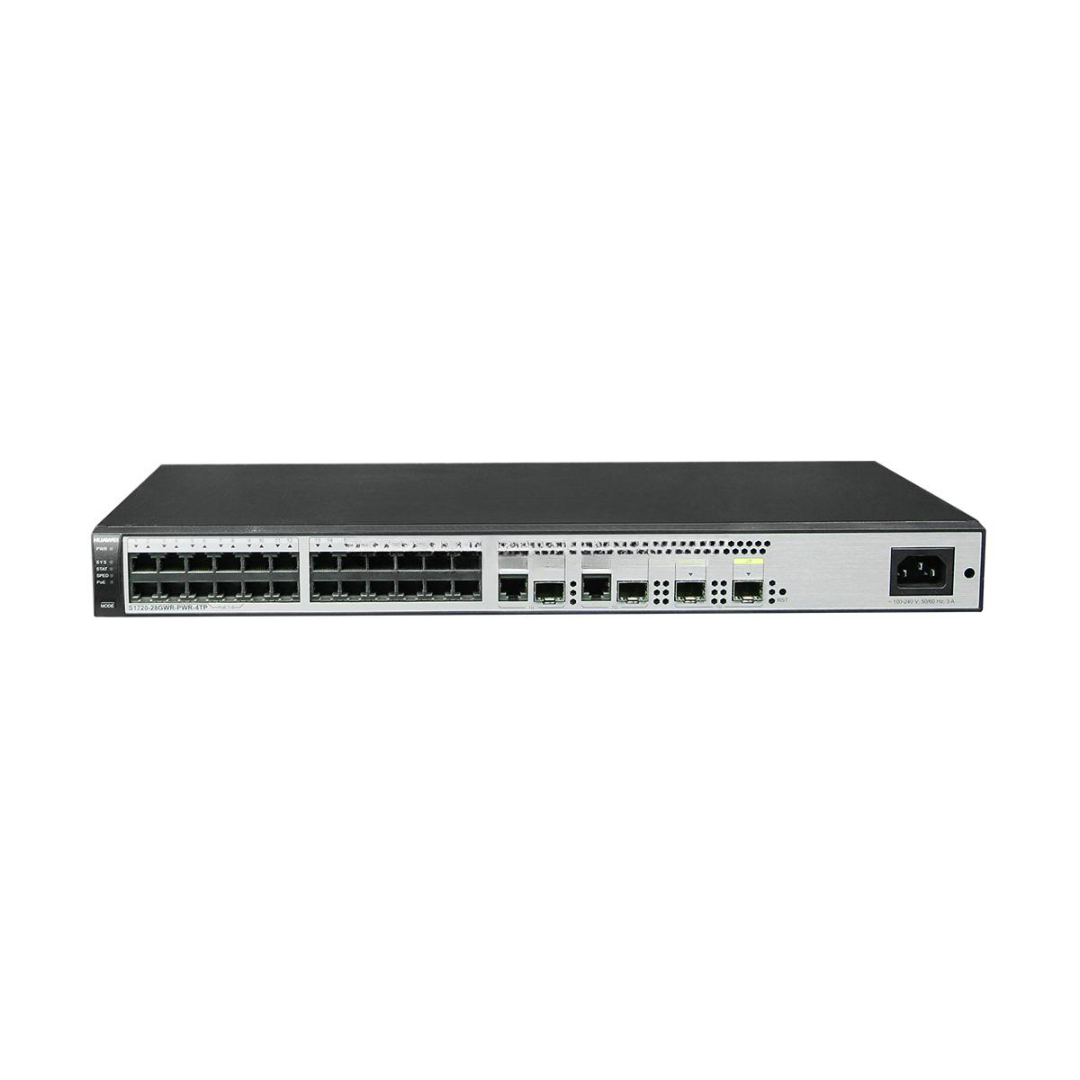

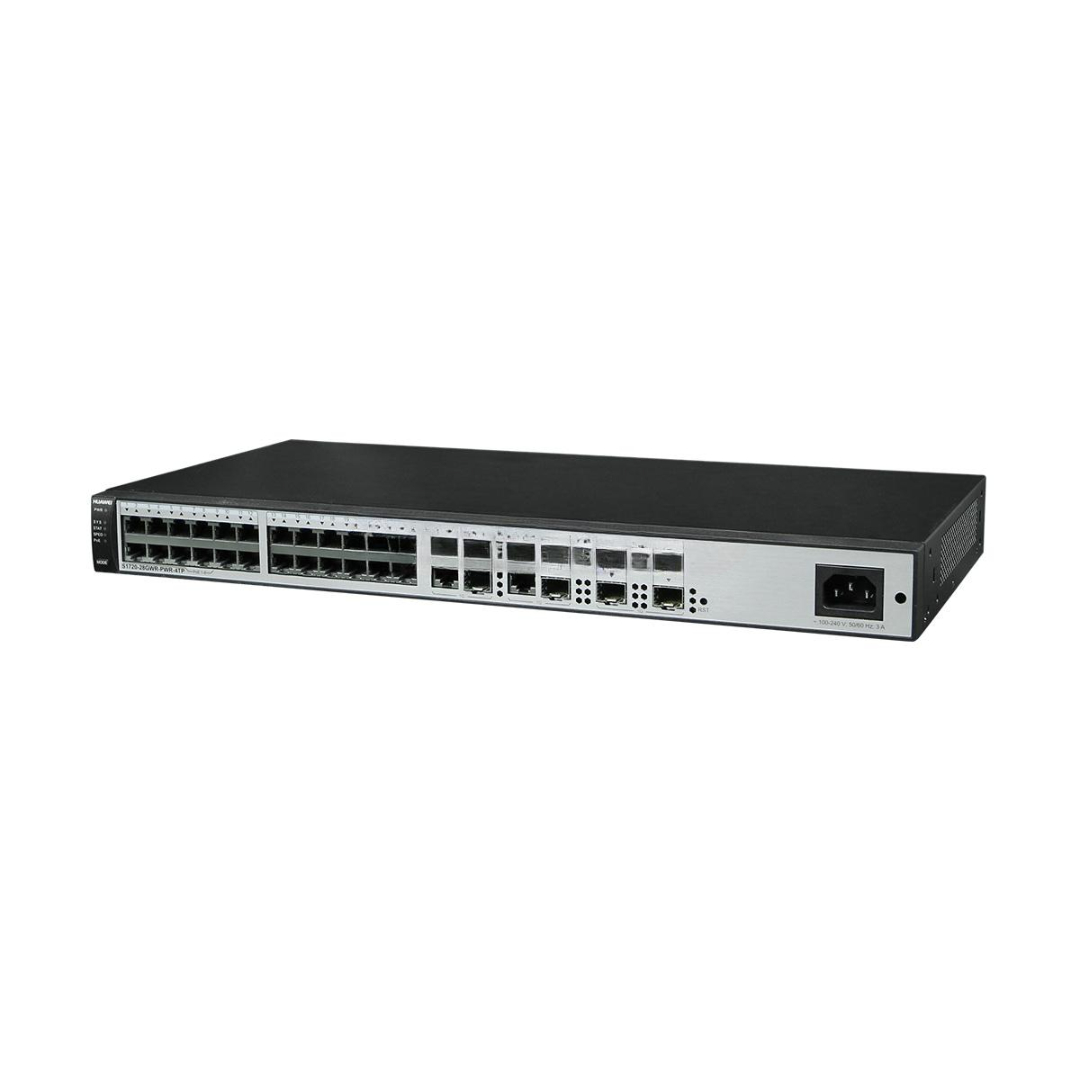

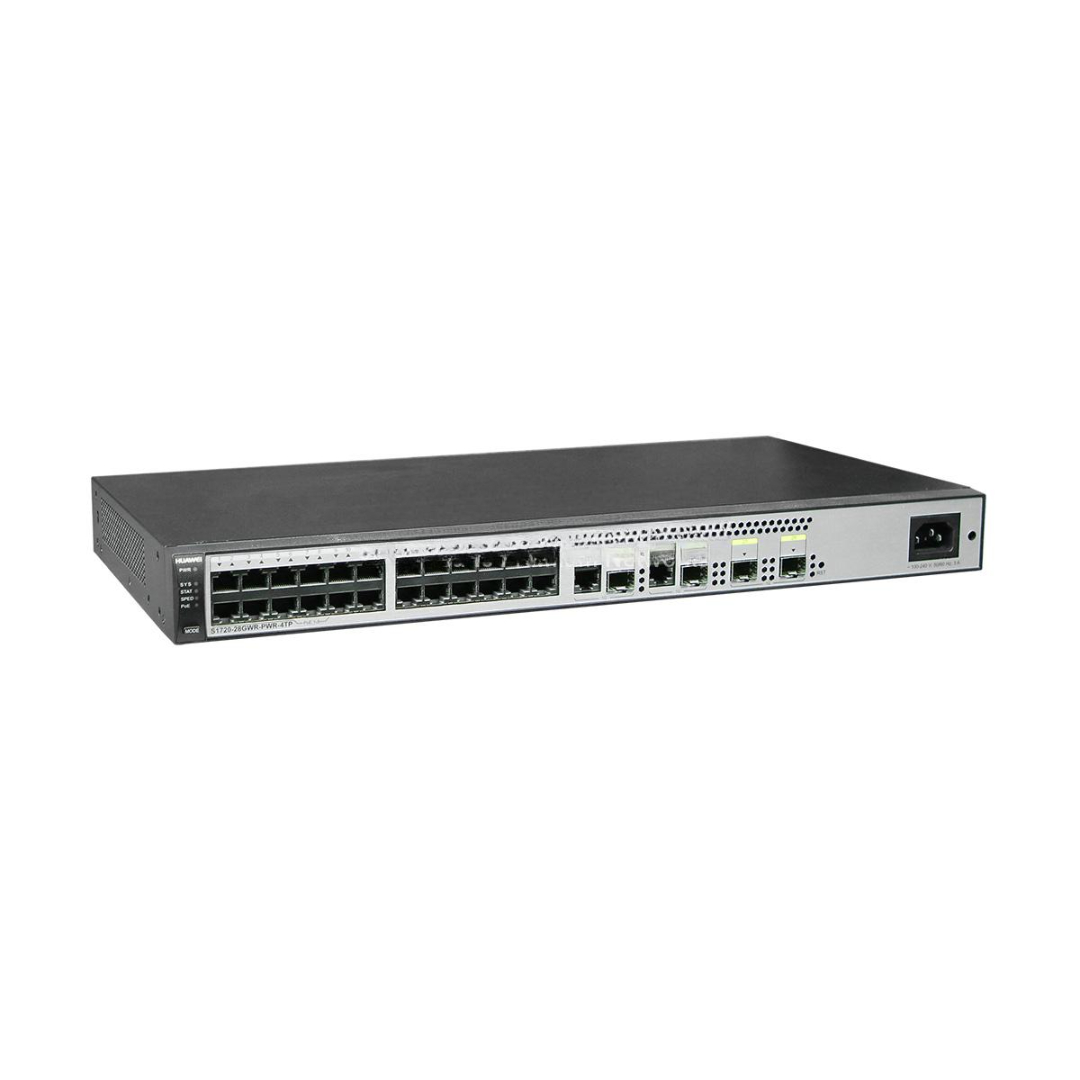

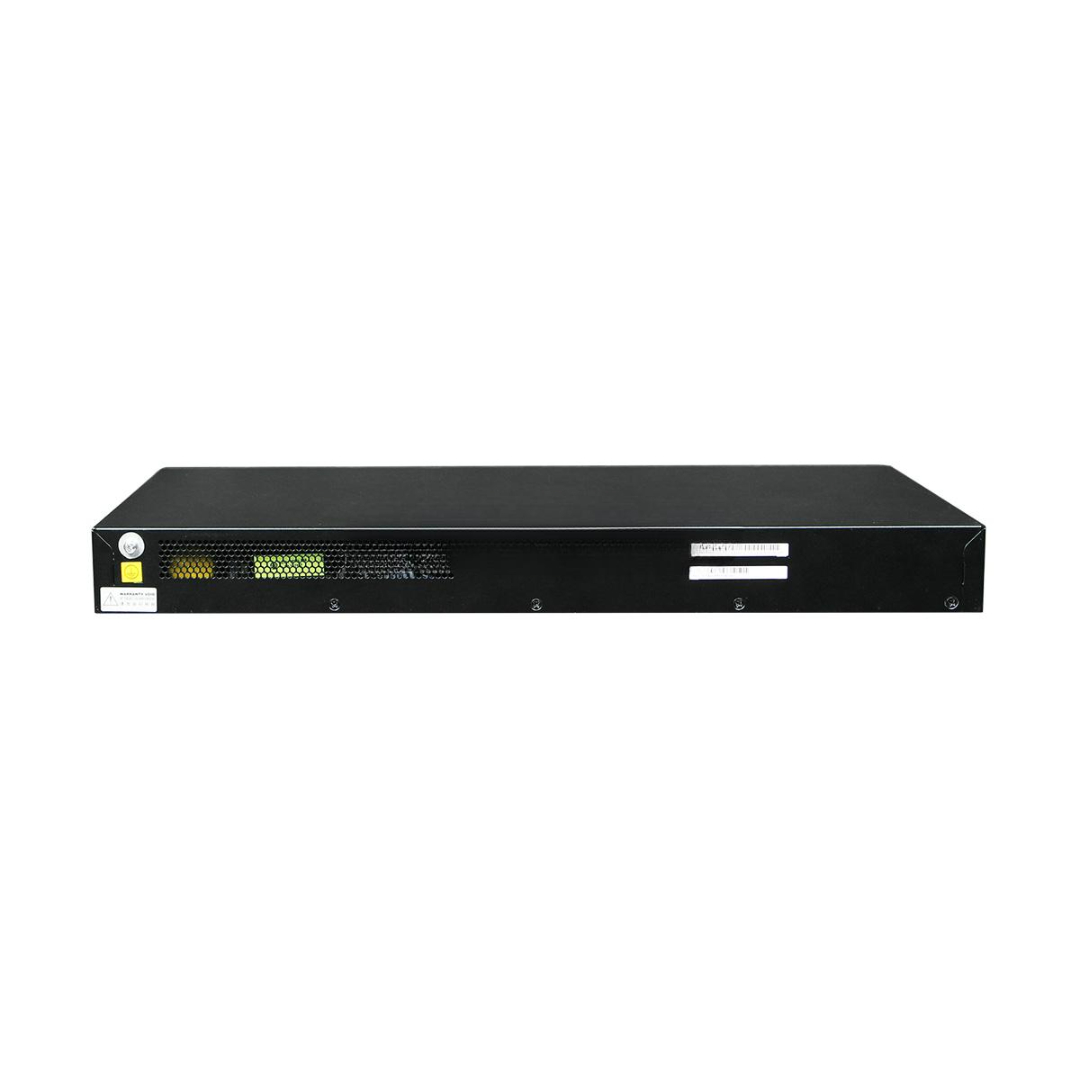

S1720-28GWR-PWR-4TP-E Huawei Original New 24-Port Power Fixed Switch
The S1720-28GWR-PWR-4TP-E Huawei is an enterprise-grade Layer 2 switch featuring 24 Gigabit Ethernet ports, PoE+ support, and 4 combo GE uplink ports (RJ45/SFP). Designed for small to medium-sized businesses, campus networks, and smart office deployments, this switch integrates high performance, PoE capabilities, and secure management in a fixed-port configuration.
With support for 802.3af/at PoE+, intelligent traffic management, and secure Layer 2 switching, the S1720-28GWR-PWR-4TP-E delivers reliable connectivity and power supply for IP phones, wireless access points, and surveillance systems — all in a compact, energy-efficient unit.
Key Features
- Model: S1720-28GWR-PWR-4TP-E
- Condition: 100% Original Huawei, Brand New
- Port Configuration: 24 × GE RJ45 PoE+ ports, 4 × combo GE uplink ports (RJ45/SFP)
- PoE Support: IEEE 802.3af/at PoE+, total power budget up to 370W
- Switching Capacity: 56 Gbps
- Forwarding Performance: 42 Mpps
- Power Supply: Built-in AC power, fixed power design
- Management: Web GUI, SNMP, CLI via console or Telnet
- Layer 2 Features: VLAN, STP/RSTP, QoS, MAC Filtering
- Security Features: Port security, storm control, broadcast suppression
- Mounting: Rack-mountable 1U form factor
- Warranty: 1–3 Years Manufacturer Warranty
Technical Specifications
| Specification | Details |
|---|---|
| Model | S1720-28GWR-PWR-4TP-E |
| Downlink Ports | 24 × 10/100/1000BASE-T (RJ45, PoE+) |
| Uplink Ports | 4 × Combo GE (RJ45 or SFP) |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Power Budget | Up to 370W total output |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 42 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | Up to 4K VLANs (IEEE 802.1Q) |
| Security | Port isolation, ACL, DHCP snooping |
| Dimensions | 442 mm × 220 mm × 43.6 mm |
| Weight | ~4.3 kg |
| Operating Temp | 0°C to +50°C |
| Humidity | 5%–95% RH (non-condensing) |
| Mounting | 1U Rack-Mountable |
| Power Supply | Built-in AC, Fixed |
| Warranty | 1–3 Years Huawei OEM Warranty |
S1720-28GWR-PWR-4TP-E Huawei Applications
- SME Office Networks — Reliable switching and PoE+ power for VoIP, IP cameras, and APs
- Campus Network Edge — High-speed Layer 2 switch for classrooms and administrative zones
- Retail & Hospitality — Unified wired and PoE connectivity for kiosks and surveillance
- Public Sector — Power and data integration for government and education institutions
- IoT & Surveillance Networks — Easily power devices over Ethernet for simplified setups
Customization & OEM Options
- Private Labeling — Custom branding and model identifiers for integrators or OEM partners
- Pre-Configured Settings — VLANs, port roles, SNMP traps, and security policies set per project
- Localized Firmware — Support for country-specific languages and regulations
- Extended Temperature Model — Optional industrial-grade variant for harsh environments
- Accessory Bundles — Include compatible SFP modules, PoE patch cables, and mounting kits
Wholesale & Global Supply Information
- Huawei Original Equipment — Official new stock with serial verification and sealed packaging
- Bulk Stock Availability — Ideal for MSPs, city-wide rollouts, and regional distribution
- Global Shipping Compliance — Secure packaging for international delivery
- Volume Discounts — Special pricing available for large deployments and integrators
- Fast Fulfillment — Ready-to-ship stock with rapid logistics and customs handling
- Technical Support — Pre- and post-sale configuration assistance included
Why Choose the S1720-28GWR-PWR-4TP-E Huawei
24 GE PoE+ Ports — Power and connect multiple edge devices from a single unit
Combo Uplinks — Flexible fiber or copper uplink options for various network topologies
Advanced Layer 2 Functions — Full VLAN and QoS control for traffic optimization
Quiet, Reliable Design — Energy-efficient, low-noise operation for office deployments
Huawei OEM Quality — Carrier-grade durability and longevity with enterprise-level support
Contact Us for Pricing, Technical Specs & Bulk Orders
Power up your enterprise network with the Huawei S1720-28GWR-PWR-4TP-E, the all-in-one Layer 2 switch that combines power, performance, and manageability.
Reach out today for a quote, datasheets, or OEM customization options tailored to your deployment.
