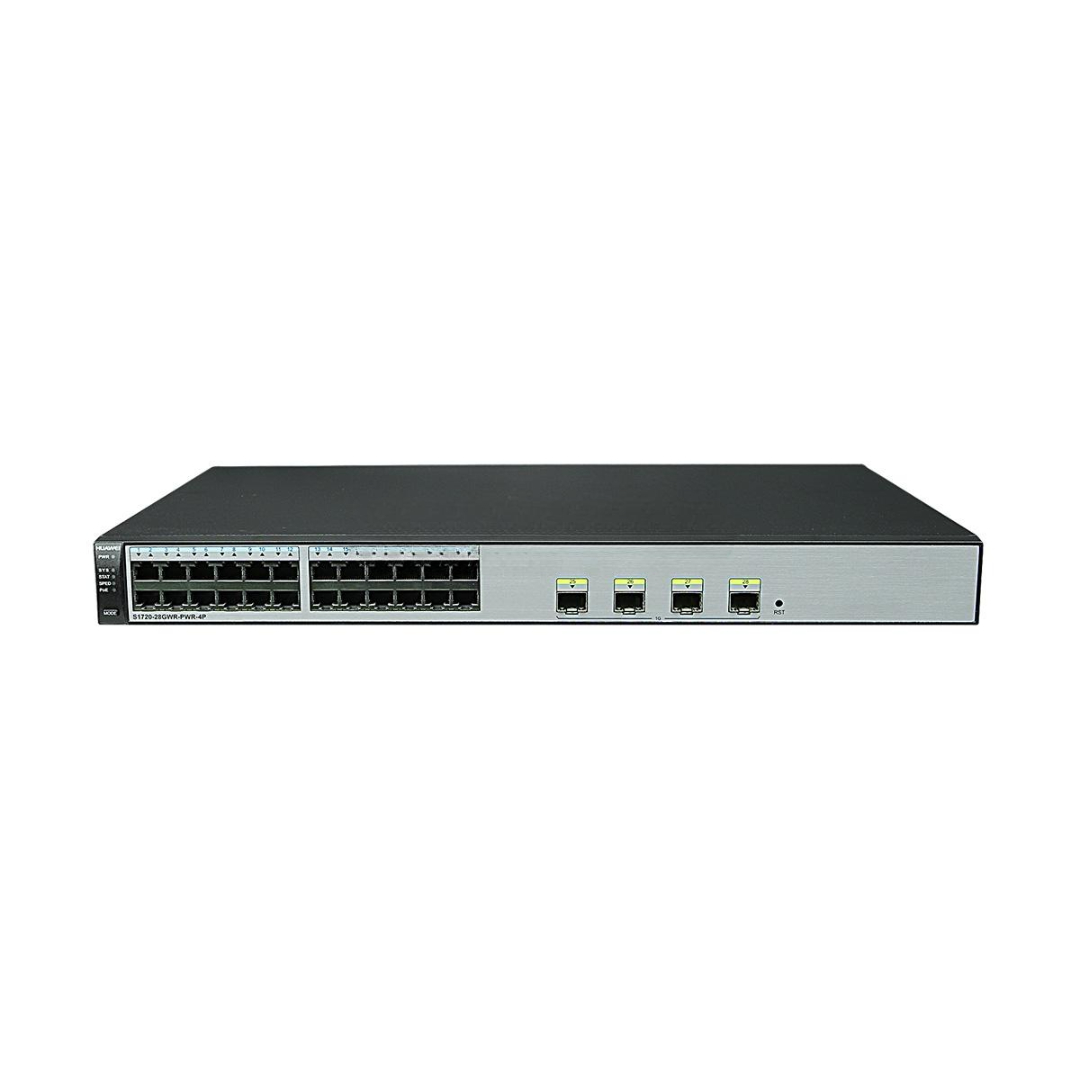

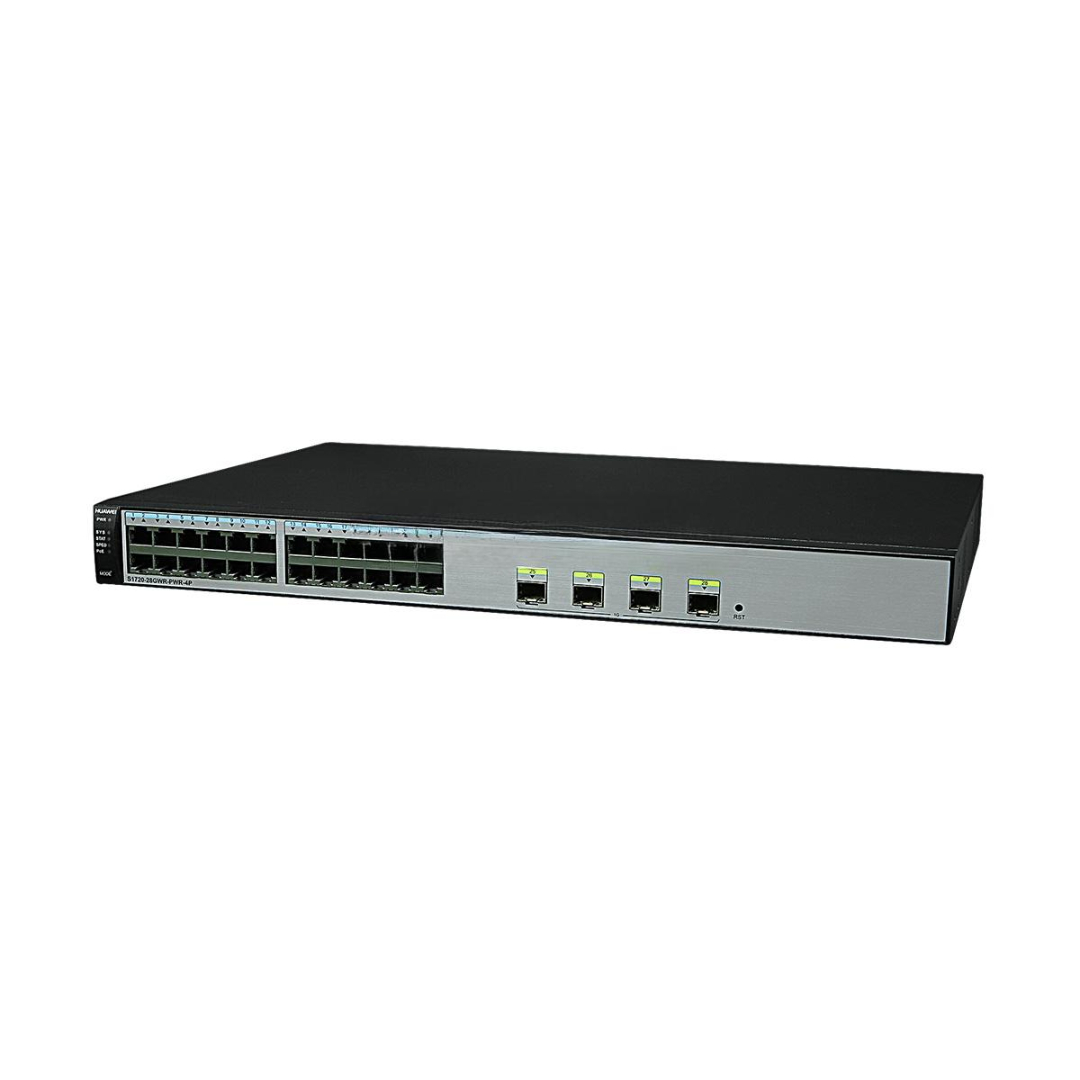

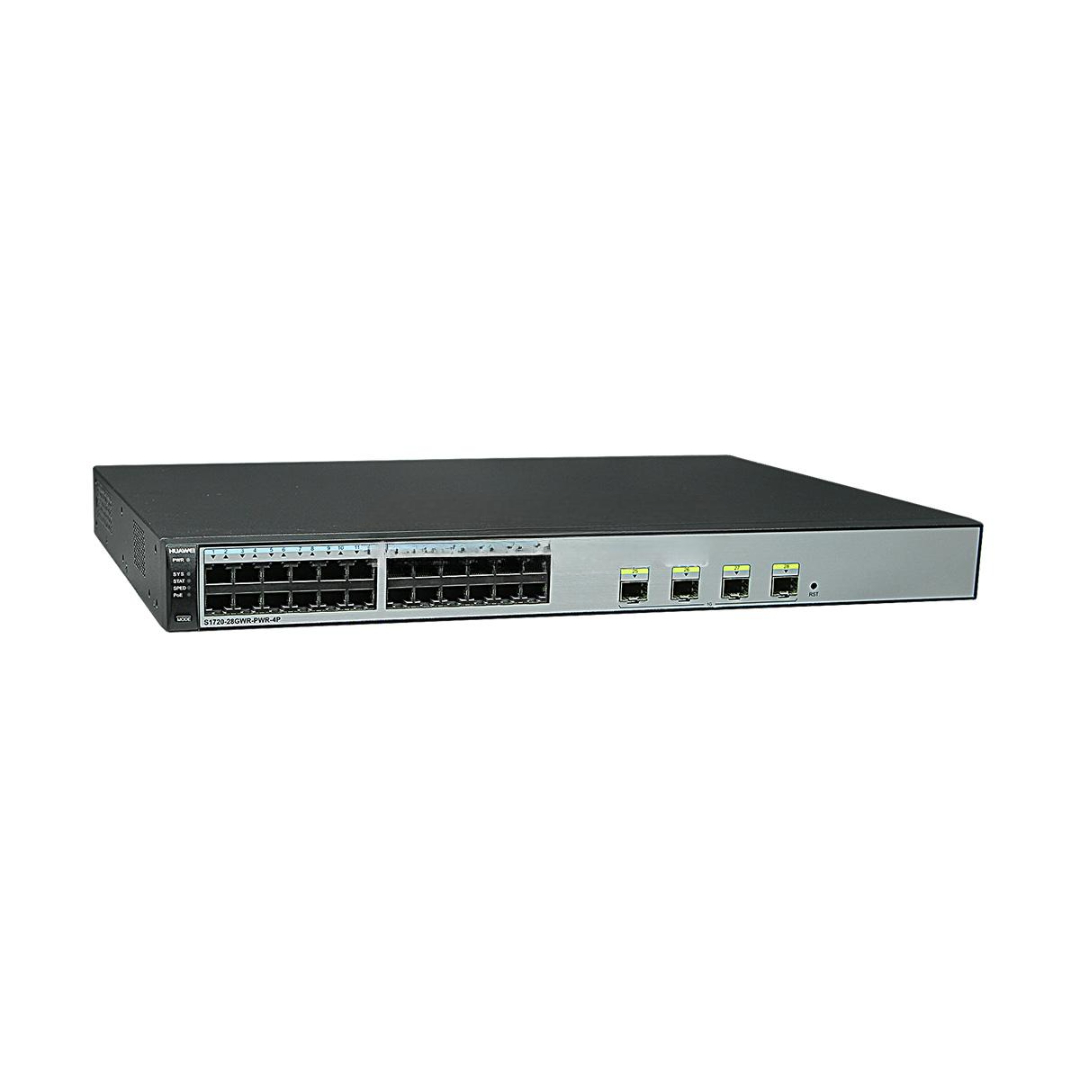

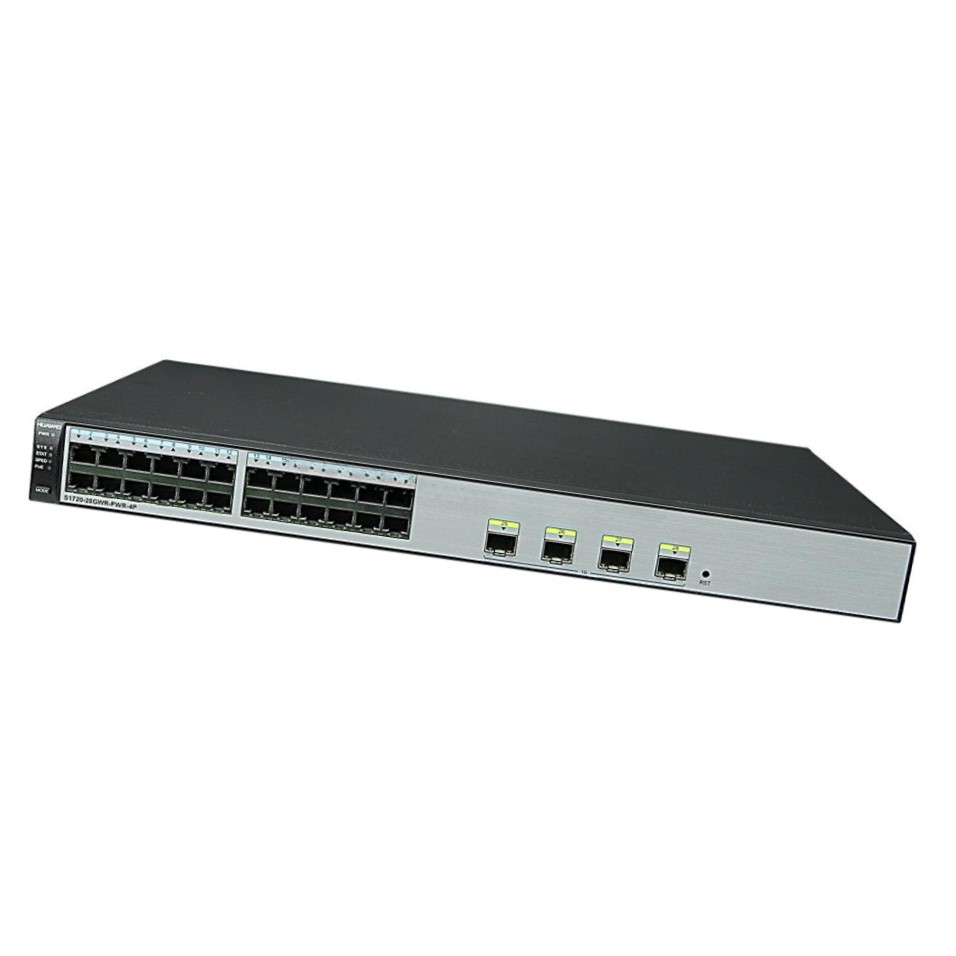

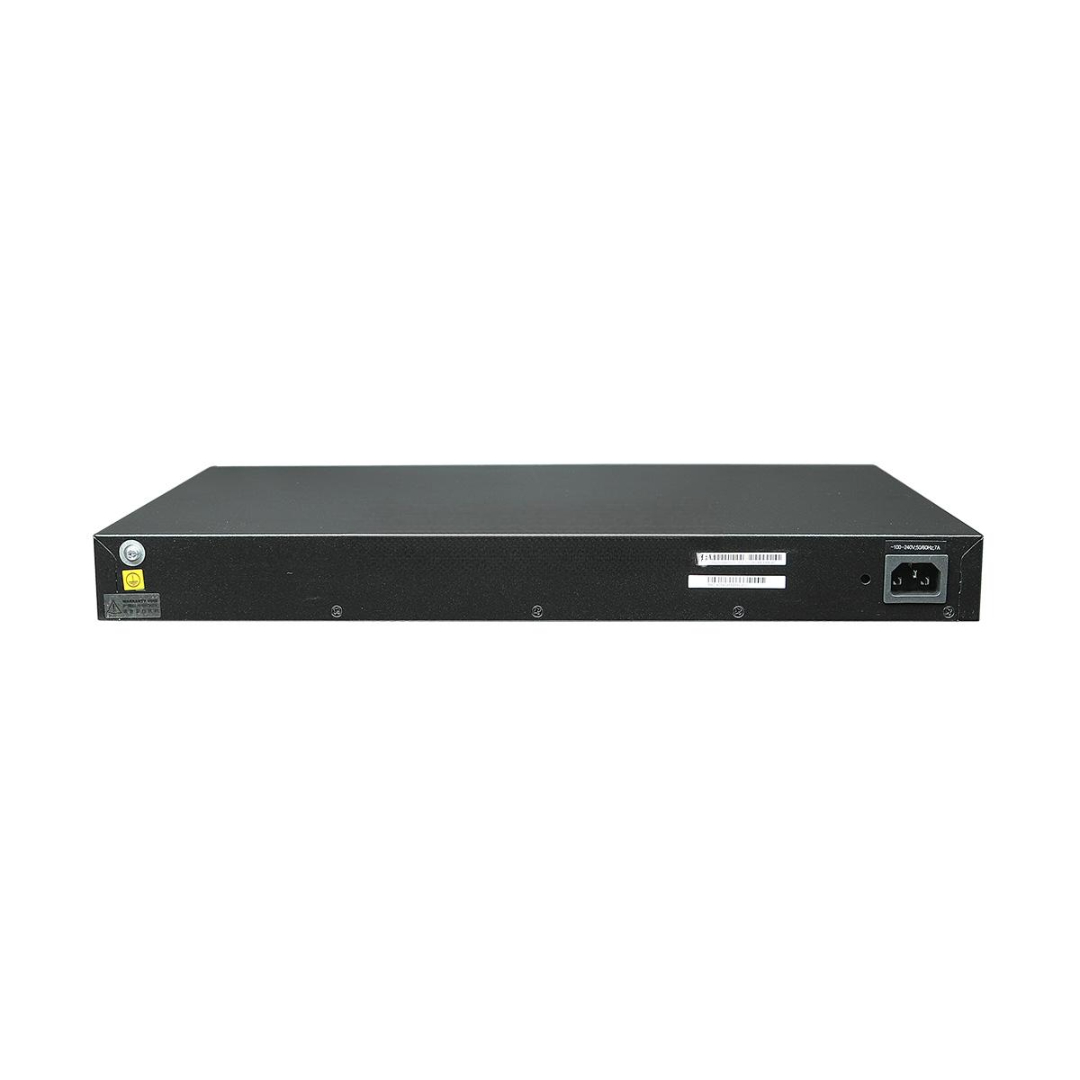

S1720-28GWR-PWR-4X-E Huawei Original New 24Ports Power Fixed Switch
The S1720-28GWR-PWR-4X-E Huawei Original New 24-Port PoE+ Ethernet Switch, purpose-built for small to medium-sized enterprise access networks, video surveillance, and wireless access point deployments. With 24 GE PoE+ ports, 4 GE SFP uplink ports, and robust Layer 2 capabilities, this switch delivers reliable power and data transmission in a compact, fanless, energy-efficient design.
Ideal for smart campus environments and IP surveillance, the S1720-28GWR-PWR-4X-E combines power, performance, and ease of management, supporting a total PoE budget of up to 370W, and advanced security features like storm suppression, 802.1x authentication, and ACLs.
Key Features
- Model: S1720-28GWR-PWR-4X-E
- Condition: 100% Original Brand New Huawei
- Port Configuration: 24 x 10/100/1000BASE-T PoE+ ports, 4 x 100/1000BASE-X SFP uplink ports
- PoE Standard: IEEE 802.3af/at compliant (PoE/PoE+)
- Total PoE Power Budget: Up to 370W
- Switching Capacity: 56 Gbps
- Forwarding Rate: 42 Mpps
- Layer 2 Features: VLAN, STP/RSTP/MSTP, IGMP Snooping, Port Isolation
- Management: Web, SNMP, CLI via console or Telnet
- Security: DHCP snooping, MAC filtering, 802.1x authentication
- Installation: Rack-mountable with fixed AC power supply
Technical Specifications
| Specification | Details |
|---|---|
| Model | S1720-28GWR-PWR-4X-E |
| Ports | 24 x GE PoE+ + 4 x GE SFP |
| PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
| Max PoE Budget | 370W |
| Switching Capacity | 56 Gbps |
| Forwarding Performance | 42 Mpps |
| MAC Address Table | 8K entries |
| VLANs | 4K VLAN IDs |
| Power Supply | Built-in AC Power Supply |
| Power Consumption | ≤ 460W (full load PoE) |
| Operating Temperature | 0°C to +45°C |
| Dimensions (W x D x H) | 442 mm × 220 mm × 43.6 mm |
| Installation | 1U Rack-Mountable |
| Warranty | 1–3 Years Manufacturer Warranty |
S1720-28GWR-PWR-4X-E Huawei Applications
- Enterprise Access Layer — Reliable PoE connectivity for workstations, IP phones, and APs
- Campus Networks — Scalable switching for schools and universities
- IP Surveillance Systems — Stable power and transmission for security cameras
- SMBs & Branch Offices — Compact and energy-efficient core networking
- Hotel & Hospitality IT — Backbone for wireless and IPTV systems
Customization & OEM Options
- Custom Labeling — Branding available with your company logo and model number
- Factory Settings Pre-Configured — VLANs, port isolation, PoE scheduling on request
- Bundle Kits — Optional packages with compatible SFP modules and patch cables
- Extended Temp Versions — Special-order models for industrial environments
- Compliance Customization — Local power cords and regulatory certification for each region
Wholesale & Global Supply Information
- Huawei Certified Stock — 100% original, sourced from official channels
- Bulk Order Ready — Ideal for integrators, ISPs, and project rollouts
- Global Logistics — Secure international shipping with fast dispatch
- Volume Discounts — Competitive pricing for resellers and distributors
- Professional Support — Pre- and post-sales technical assistance included
Why Choose the S1720-28GWR-PWR-4X-E Huawei
Reliable Power + Data — 24 PoE+ ports with 370W budget for diverse devices
Secure Layer 2 Features — VLAN, STP, DHCP snooping, and ACLs for managed networks
Compact & Energy-Efficient — Ideal for noise-sensitive or space-constrained setups
Huawei OEM Quality — Designed for stability, longevity, and real-world deployment
Plug-and-Play Configuration — Quick setup via web interface or CLI
Contact Us Now for Pricing, OEM Options & Bulk Orders
Enhance your enterprise network with the Huawei S1720-28GWR-PWR-4X-E, a trusted, PoE-capable Layer 2 switch engineered for high-performance and seamless scalability.
Request a quote today for wholesale pricing, datasheets, and fast delivery options!
